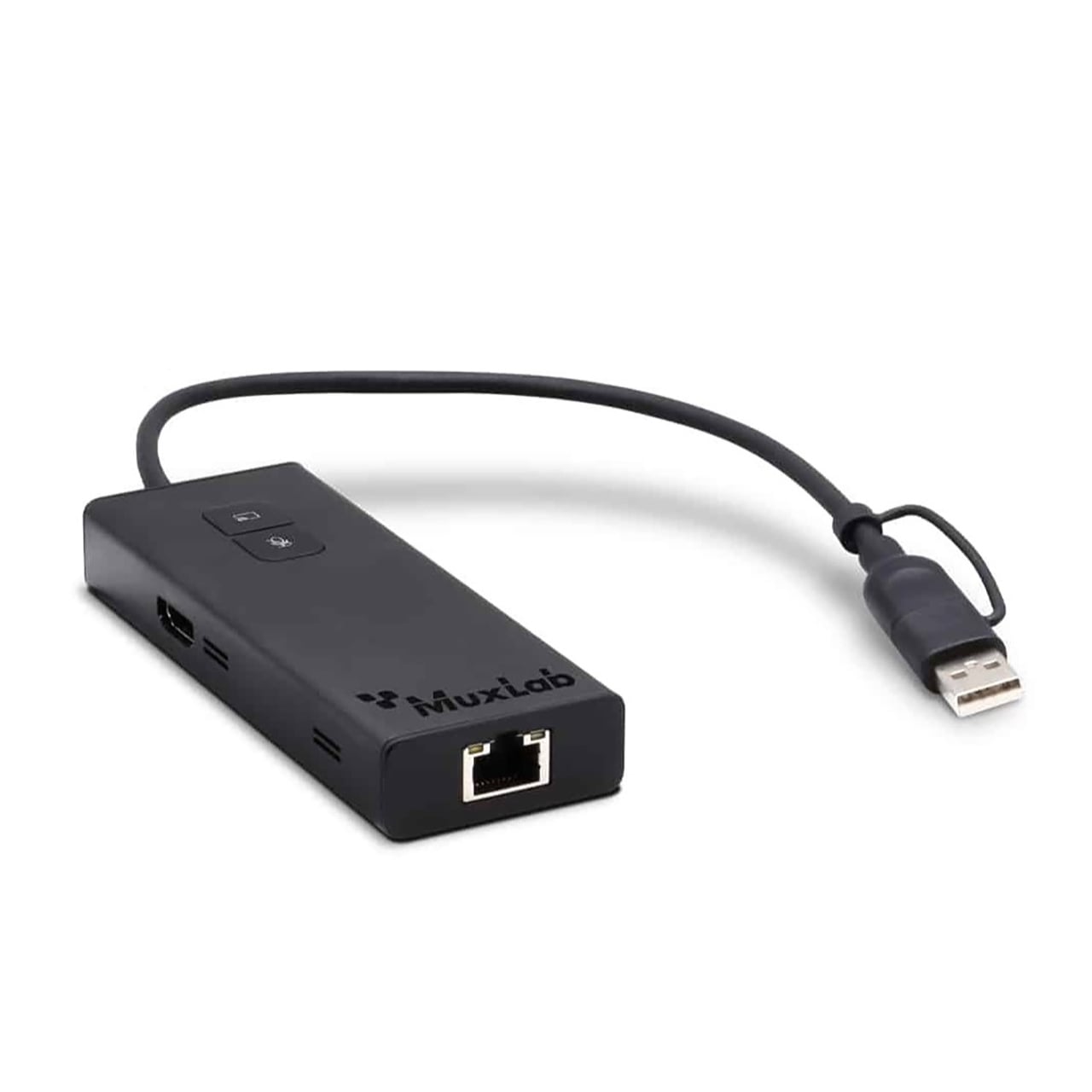

MuxLab 500883 MuxMeet Videobar Dongle for BYOM Screen Sharing with USB-A and USB-C Connectivity

ITEM #: MUX-500883 MFG #: 500883

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$418.00

Our Price:

$334.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

500883 - Overview

Easy to Deploy and Easy to Manage

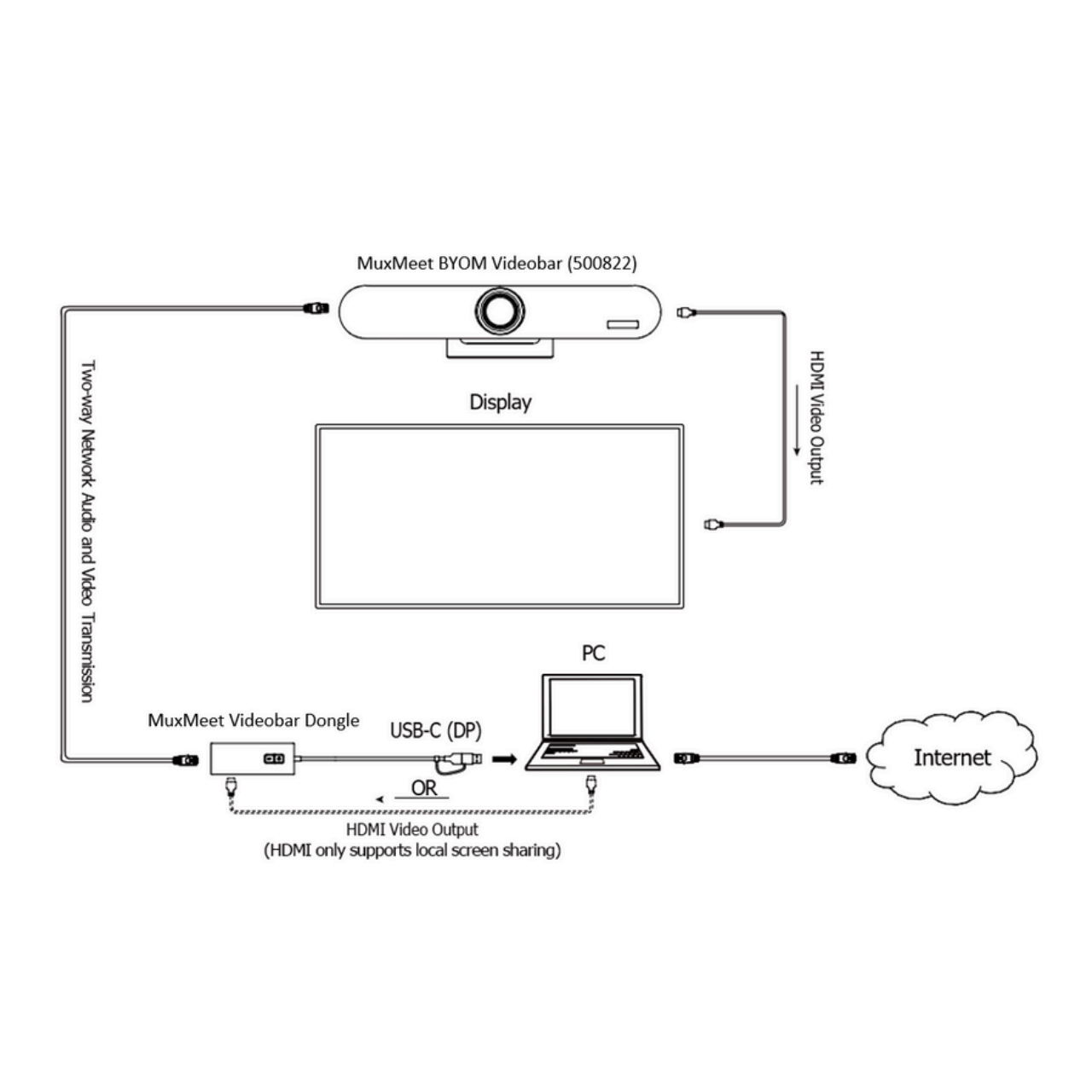

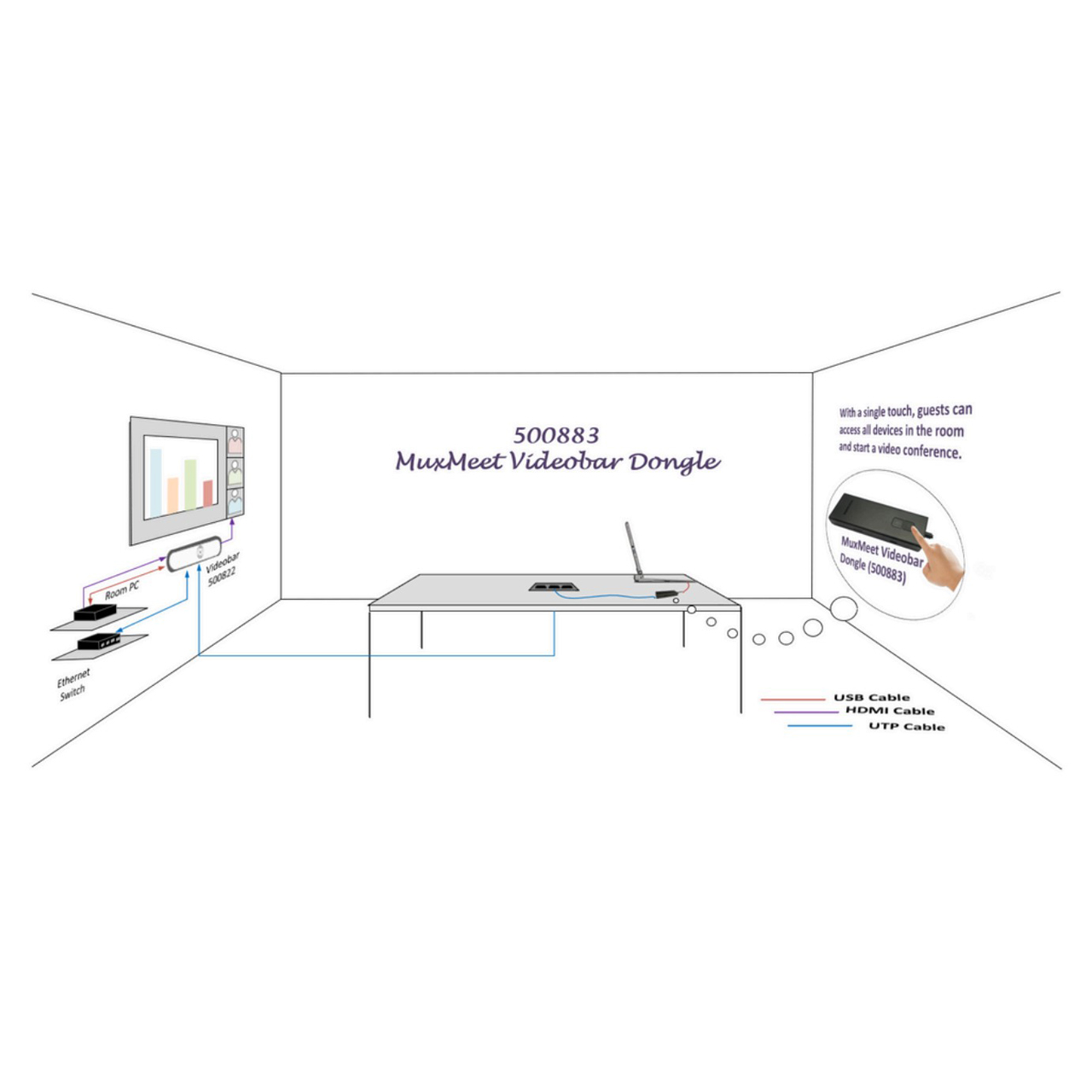

The MuxLab 500883 MuxMeet Videobar Dongle is designed for business conference screensharing scenarios, allowing you to quickly share presentation content. The computer video and audio resources can be send to the MuxMeet BYOM (Bring Your Own Meeting) Videobar which can be output to the television or other display device. It also support the BYOM to transfer the MuxMeet BYOM Videobar Video and Audio sources from the Videobar to the computer using USB. The operation is plug and play, no driver or software installation is required. Equipped with one-touch sharing and mute buttons for easy operation.

Applications:
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Collaborative PC systems

  • Features:

    • Supports USB-A and USB-C Connectivity
    • Share and Mute buttons
    • No power supply needed
    • Quickly share presentation
    • Supports high resolution 4K30 screen sharing


  • Specifications:

      Audio and Video Characteristics
    • Environment: Custom audio-video systems in a structured cabling environment
    • Application: Head-end installations, conference room, BYOM applications
    • Compatible Product: MuxLab 500822 MuxMeet Videobar with IP Control
    • USB-C Video Resolution: 3840x2160, 2560x1600, 1920x1200, 1920x1080, 1366x768,1280x800, 1280x720, 1024x768
    • Screen Sharing: Up to 3840x2160, 30fps
    • Video Encoding Format: H.265/H.264
    • Audio Encoding Format: 32KHz/16bit PCM, Mono/Stereo
    • Return Encoding: MJPEG
    • Return Video Encoding: Up to 1920x1080, 30fps
    • Return Audio Encoding: 32KHz/16bit PCM, Mono/Stereo

      Control
    • USB Control Protocol: UVC/UAC

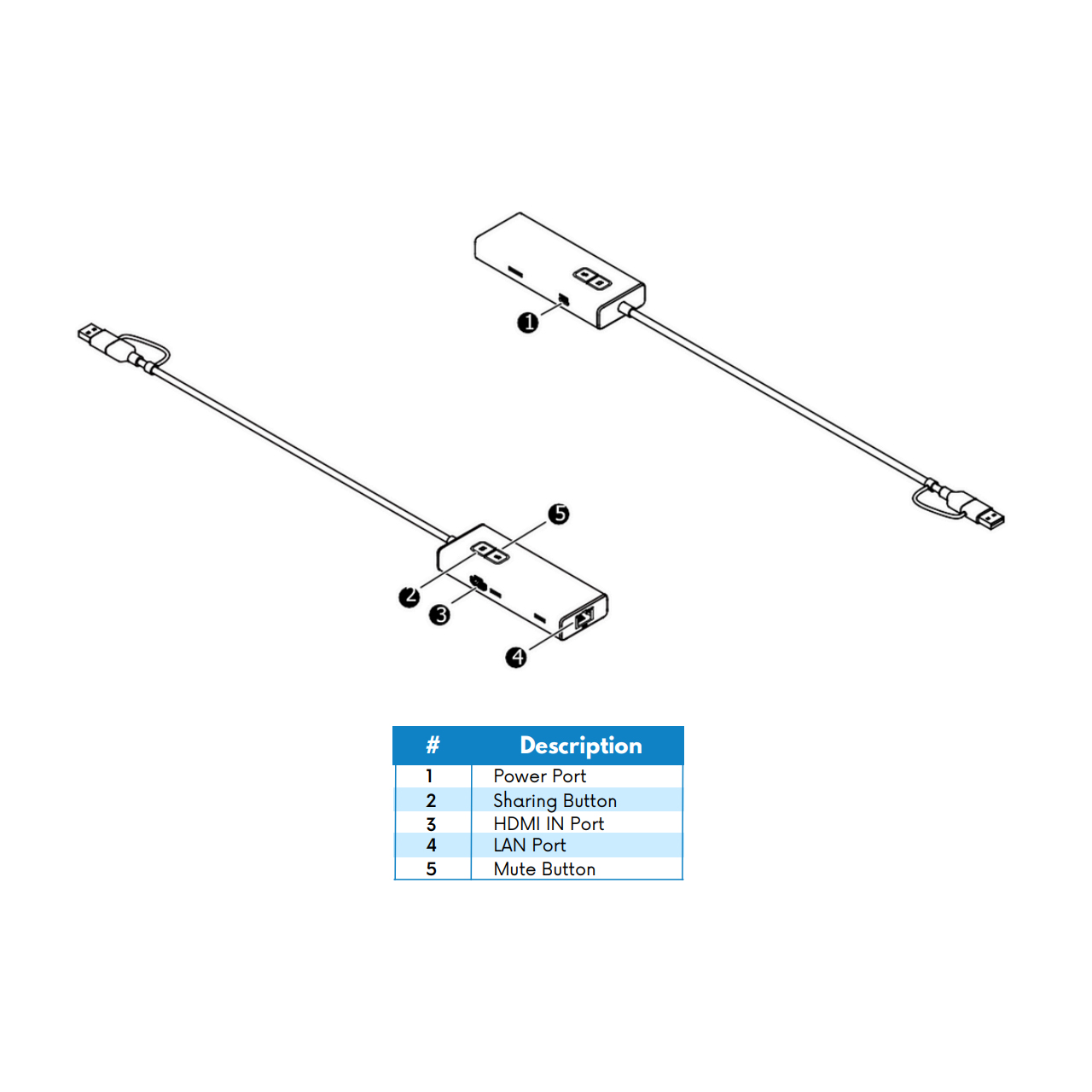

    • Sharing Button: Turn on/off screen sharing, dual-color status indicator
    • Mute Button: Control the local mute, dual-color status indicator
    • USB-C Interface(Power): USB-C female support USB PD3.0 Protocol, input voltage up to 20V/3.25A
    • USB-C Interface: PD Reverse Power supply up to 65W (External power adapter Required)
    • Ethernet: RJ45, supports 10M/100M/1000Mbps, supports PoE Power
    • HDMI: HDMI 2.0 female socket, supports 4K30 video input

      General
    • Input Voltage: USB 5V/PoE (IEEE802.3af)
    • Input Current: 0.6A
    • Power Consumption: 3.0W Maximum
    • Dimensions: 4.7" x 0.7" x 1.8" (120mm x 18mm x 45mm) - Excluding wire length
    • Weight: 0.2lbs (114g)
    • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94VO
    • Order Information: 500883 Muxmeet Videobar Dongle (UPC: 627699008836)


  • Item Includes:

    • 1x MuxMeet Videobar Dongle
    • 1x User Manual (Via Download)


  • Warranty:

    • 2 Year Limited Warranty
