Sennheiser TeamConnect Ceiling Medium Microphone Array Kit - PoE/PoE+ - Dante Optional - Teams Certified - White - 2FT

Name: Sennheiser TeamConnect Ceiling Medium Microphone Array Kit - PoE/PoE+ - Dante Optional - Teams Certified - White - 2FT
Brand: Sennheiser
SKU: SENN-TCCM-CT-W2
Price: 3490.00 USD
Availability: PreSale

ITEM #: SENN-TCCM-CT-W2 MFG #: 700518

Sennheiser

List Price:

$4,099.00

Our Price:

$3,490.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

700518 - Overview

Sennheiser TeamConnect Ceiling Medium Ceiling Tile is a new easy to fit leightweight square plate installation variation for the TeamConnect Ceiling Medium. The Ceiling Tile brings versatility and adaptability, elevating your meeting experience across a range of flexible and hybrid meeting spaces and learning environments.

With its adaptive, intelligent beamforming technology, TeamConnect Ceiling Medium ensures flawless audio every time. Effortless integration with single cable mode and numerous design and installation options ensure TeamConnect Ceiling Medium transforms any room into a hub of collaboration.

The TeamConnect Ceiling Medium can only be purchased as a Kit and not as a single article.

Please Note: The TeamConnect Ceiling Medium is password protected by default and must be initialized with Sennheiser Control Cockpit before first use. For enhanced security, audio is muted before the initialization is complete.

Features:
- Patented automatic dynamic beamforming
- TruVoicelift
- 15 SMD Electret condenser capsules made in Germany
- Perfect speech intelligibility
- Dante or Analog Output
- PoE/PoE+ powered (single/daisy chaining)
- Single-cable mode
- Exclusion and Priority Zones
- Camera Control via talker position data
- Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2

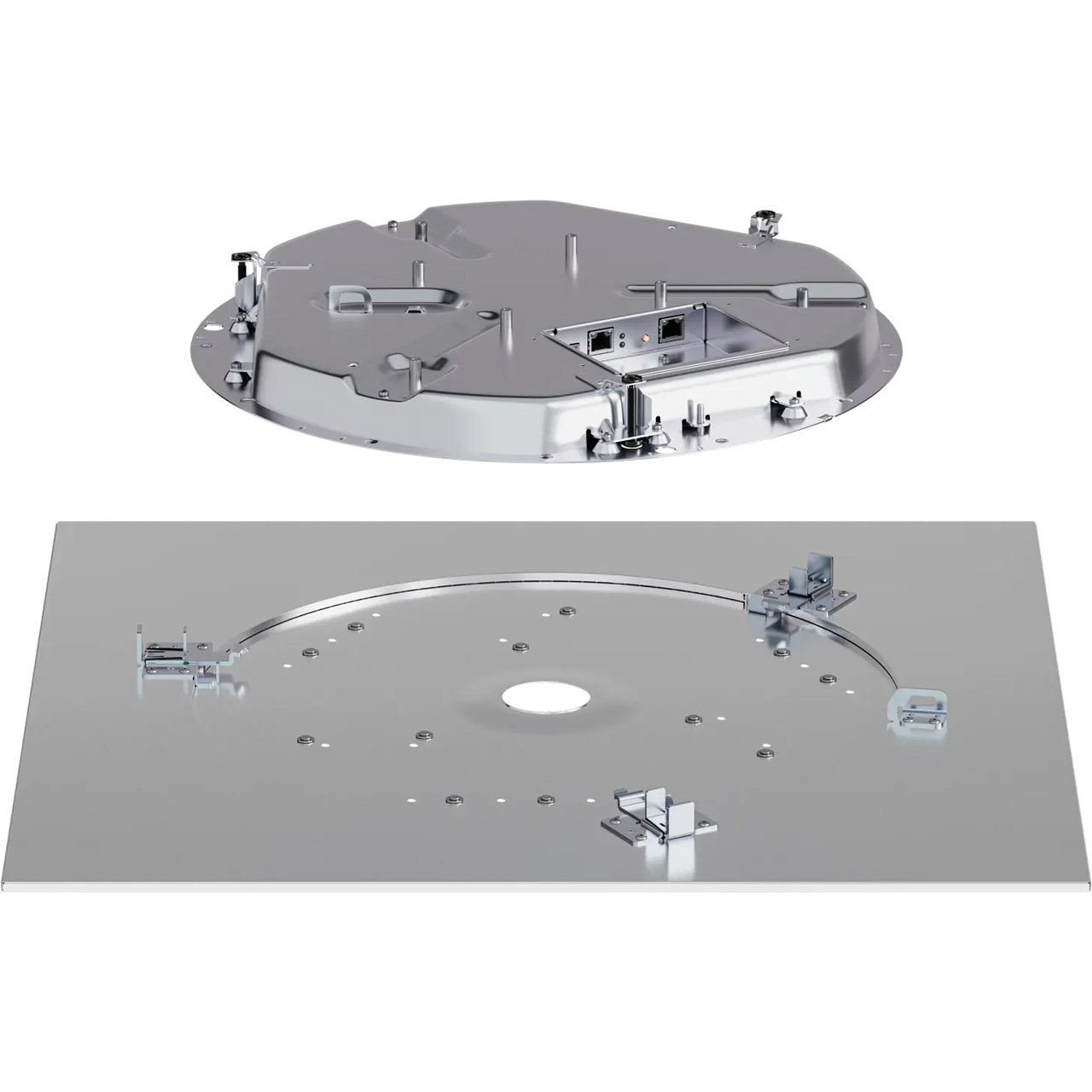

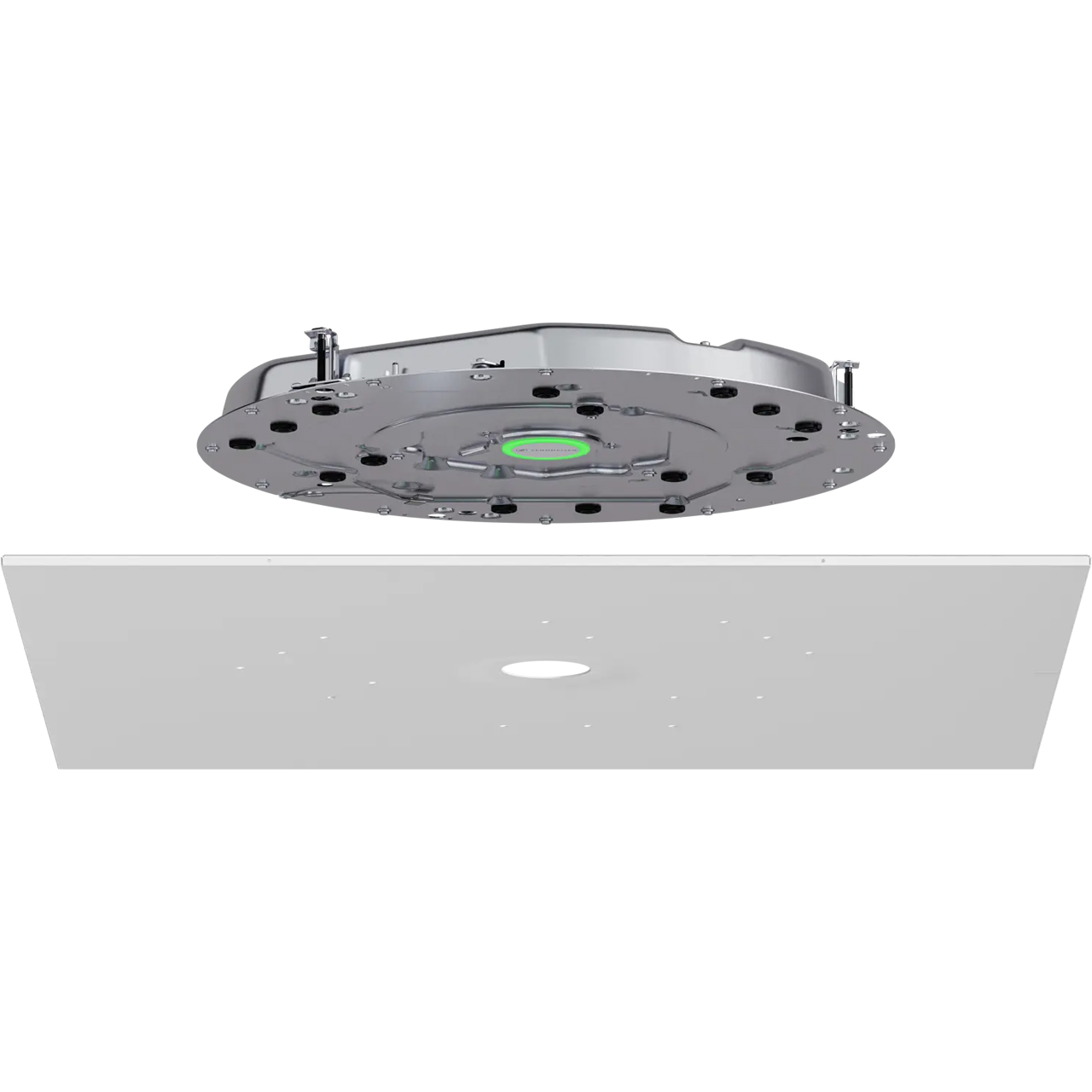

- Options for flush, surface, suspended, VESA mounting and ceiling tile
- Easily paintable metal housing
- IEEE 802.1x
- Intelligent Noise Control
- Color: White
- Certified for Microsoft Teams
Specifications:
- Outputs:
  - 1x 3-pin connection socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81)
  - 1x digital Dante network audio (RJ-45)
- Network/Control: 1x RJ-45 Ethernet socket for PoE power supply and data/control

  Acoustic Properties
- Transducer Principle: Pre-polarized condenser microphone
- AF Frequency Response: 100Hz - 16kHz
- Sensitivity: 0dBV/Pa (1020mV/Pa)
- Signal-to-Noise Ratio: 77dB(A)
- Equivalent Noise Level: 17dB(A)
- Number of KE 10 Microphone Capsules: 15
- Pick-Up Pattern: Beam pattern
- Max. Sound Pressure Level: 98dB SPL
- Dynamic Range: 81dB(A)

  Ambient Conditions
- Temperature Range:
  - Operation: 32°F - 122°F (0°C - 40°C)
  - Storage: 32°F - 122°F (-10°C - 60°C)
- Relative Humidity: 20% - 95%, non-condensing

  Other
- Supply Voltage: PoE IEEE 802.3af Class 3 or PoE IEEE 802.3at/Type 2/Class 4 (if cascaded)
- Power Consumption: approx. 8W
- Security Certification: IEC/EN 62368-1 (including UL 2043 verification and compliance)
- Dimensions (ØxH): 23.9" x 23.9" x 1.8" (606.5mm x 606.5mm x 45.8mm)
- Weight: 10.1lbs (4.6kg)
Item Includes:
- 1x TeamConnect Ceiling Medium Microphone
- 1x Square front plate
- 1x Safety ropes
- 8x Rubber feet
