MuxLab 500830 4K60 HDMI 2.0/3G-SDI Test Signal Generator

ITEM #: MUX-500830 MFG #: 500830

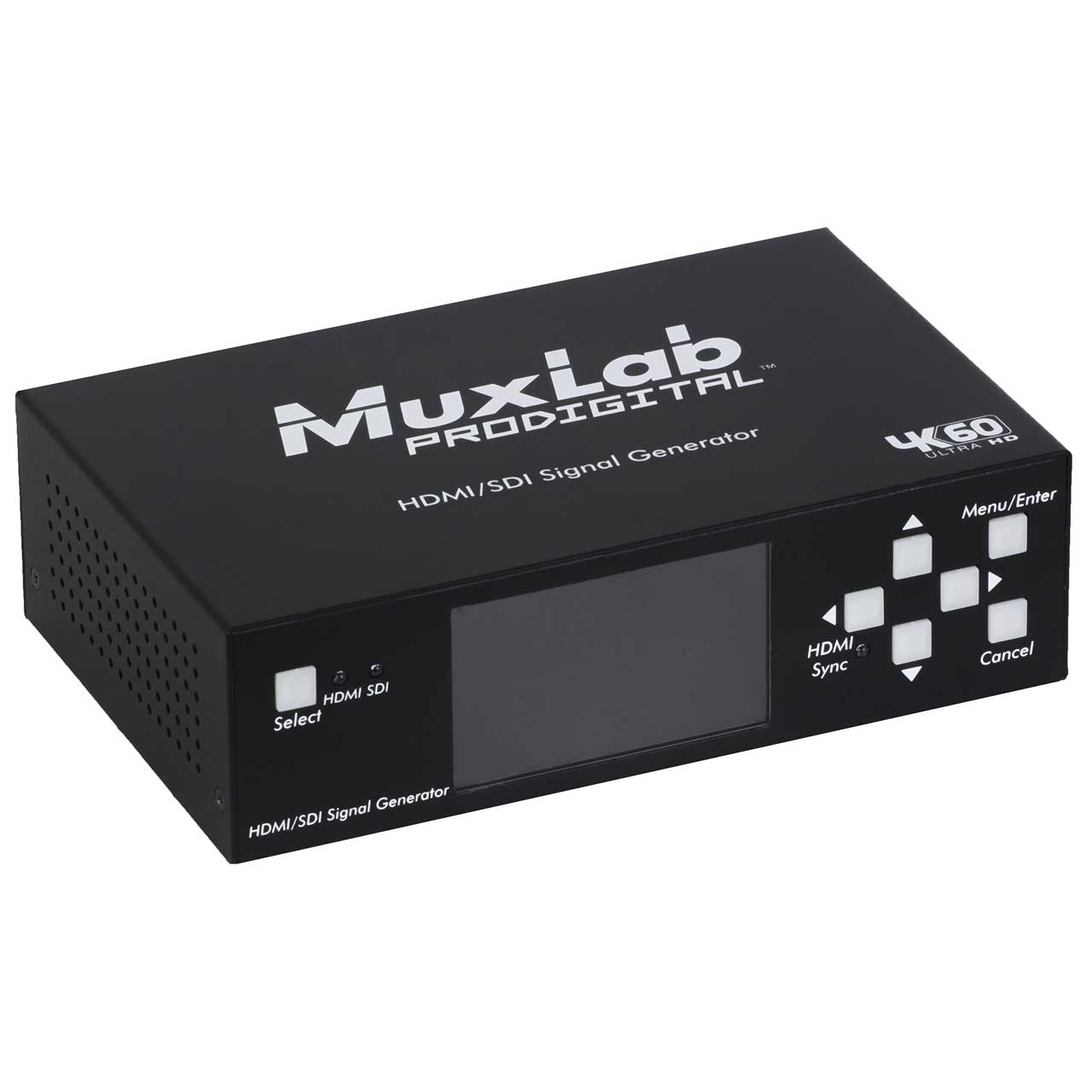

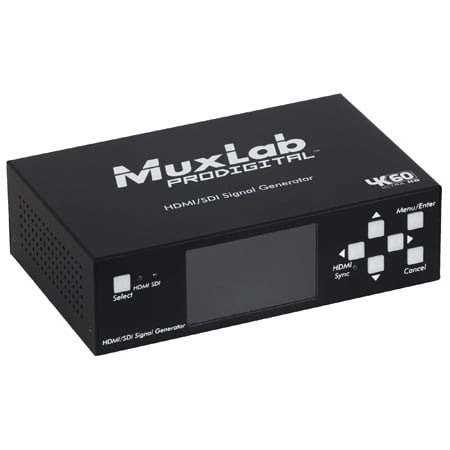

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,359.00

Our Price:

$1,887.00

Availability: In Stock
iAvailability Description Popup


    500830 - Overview

    HDMI 2.0/3G-SDI Signal Generator
    The Muxlab 500830 HDMI signal generator is a portable test tool that is able to generate SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The HDMI test signal generator assists users in validating the capabilities and proper operation of their sink devices. The user may select from various test pattern, resolutions, refresh rates, color spaces and other related parameters. When used with the 500831 Signal Analyzer, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, integrator and installer.

    The HDMI test signal generator is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per charge.

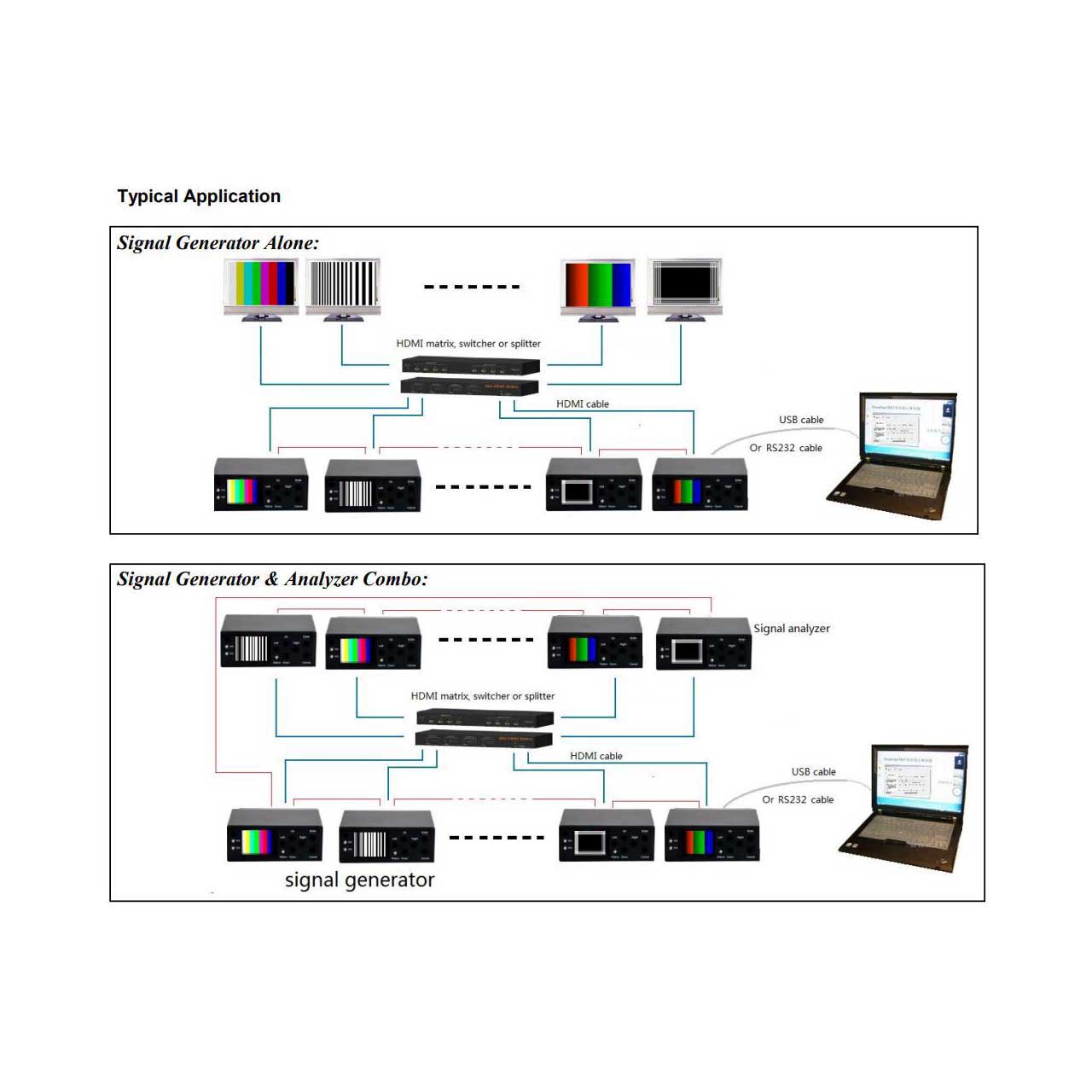

    Applications:
    Testing AV sink devices
    Testing AV transmission infrastructure

    • Features:

      • Portable Signal Generator for autonomous operation anytime, anywhere
      • Supports up to 5 hours of operation on a single charge via an internal rechargeable Lithium-ion battery
      • Supports HDMI up to 4K/60 & 3D, and 3G-SDI
      • Supports HDR
      • HDMI signal generator Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
      • HDMI signal generator˜Supports 33 preset patterns & 32 preset resolutions
      • LCD panel for pattern preview & menu settings
      • Supports 7 audio sample rates
      • Supports HDCP on/off, for testing HDCP 2.2 & 1.4
      • Supports EDID management
      • Locally or remotely managed via RS232 or USB
      • Supports an RS232 cascade for management
      • Free Windows management software

    • Specifications:

      • Environment: HDMI 2.0 and 3G-SDI
      • Devices: Testing projectors, monitors, and TV displays. Plus cable infrastructure when paired with 500831.
      • HDMI Signal Support: Up to HDMI 2.0/DVI
      • SDI Signal Support: SD-SDI, HD-SDI and 3G-SDI
      • HDCP Support & Control: Supports HDCP 2.2 and 1.4, with On/Off control.
      • Video Bandwidth: Up to 18.0GHz (6.0GHz per channel).
      • Color Depth: 24bits,30bits,36 bits,48bits
      • Color Space: RGB444,YUV444,YUV422,YUV420 (HDMI 2.0 only)
      • Resolution/Refresh Rate: Presets 32 preset resolutions: 4K/30, 4K/25, 4K/24, HDMI2.0 4K/60, HDMI2.0 4K/60, 720P-3D, 1080P-3D, Auto modes: one auto mode
      • User Defined Resolutions/Refresh Rates: 10 configurable presets.
      • Supported Patterns: 33 preset patterns (32 2D pattern and one 3D pattern)
      • Audio Bit Depth: 16bit,20bit,24bit
      • Audio Sample Rate: 32K,44K,48K,88K,96K,176K,192K
      • Vertical Frequency Range: = 120Hz

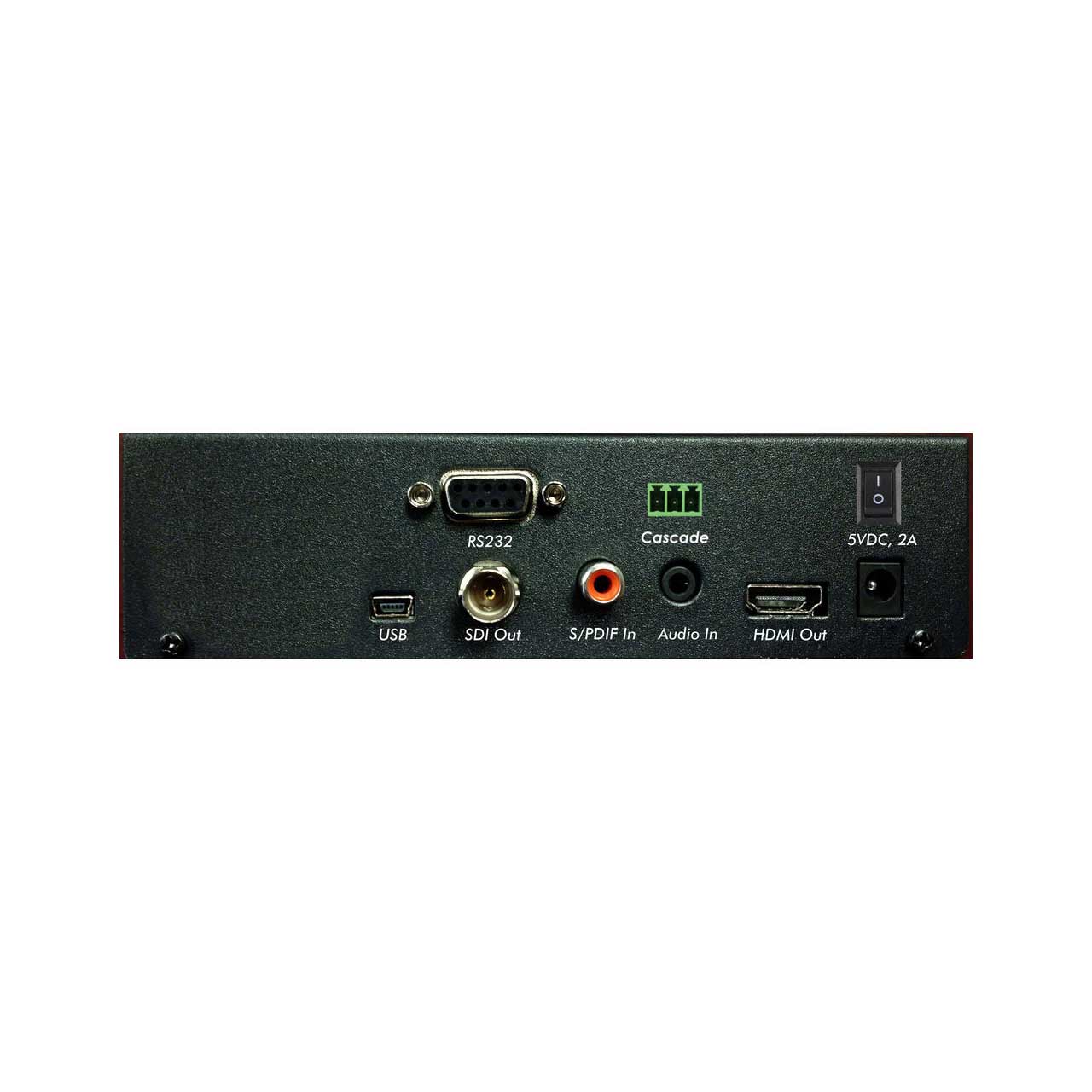

        Connectors
      • (1) HDMI connector for HDMI video-out.
      • (1) SDI (BNC) connector for SDI video-out.
      • (1) S/PDIF connector for digital audio-in.
      • (1) 3.5mm connector for analog audio-in.
      • (1) RS232 DB9 connector for management.
      • (1) RS232 terminal block for cascading management port.
      • (1) USB connector for management
      • (1) 2.1mm locking power connector

        Power Source
      • One (1) 110/240VAC to 5VDC @ 1A power supply, with interchangeable blades for US, UK and EU.
      • One (1) built-in (non-serviceable) rechargeable Lithium-ion battery supporting up to 5 hours of usage per charge. (Unit supports a power switch on rear. Battery charge duration may vary.)

      • Power Consumption: 2W
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Metal
      • Dimensions: 6.38" x 1.73" x 3.74"
      • Weight: 1.14lbs (0.52kg)
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0

    • Item Includes:

      • 1x Muxlab 500830 HDMI 2.0/3G-SDI Test Signal Generator

    • Warranty:

      • 2 Years

    • GTIN:

      0627699008300
