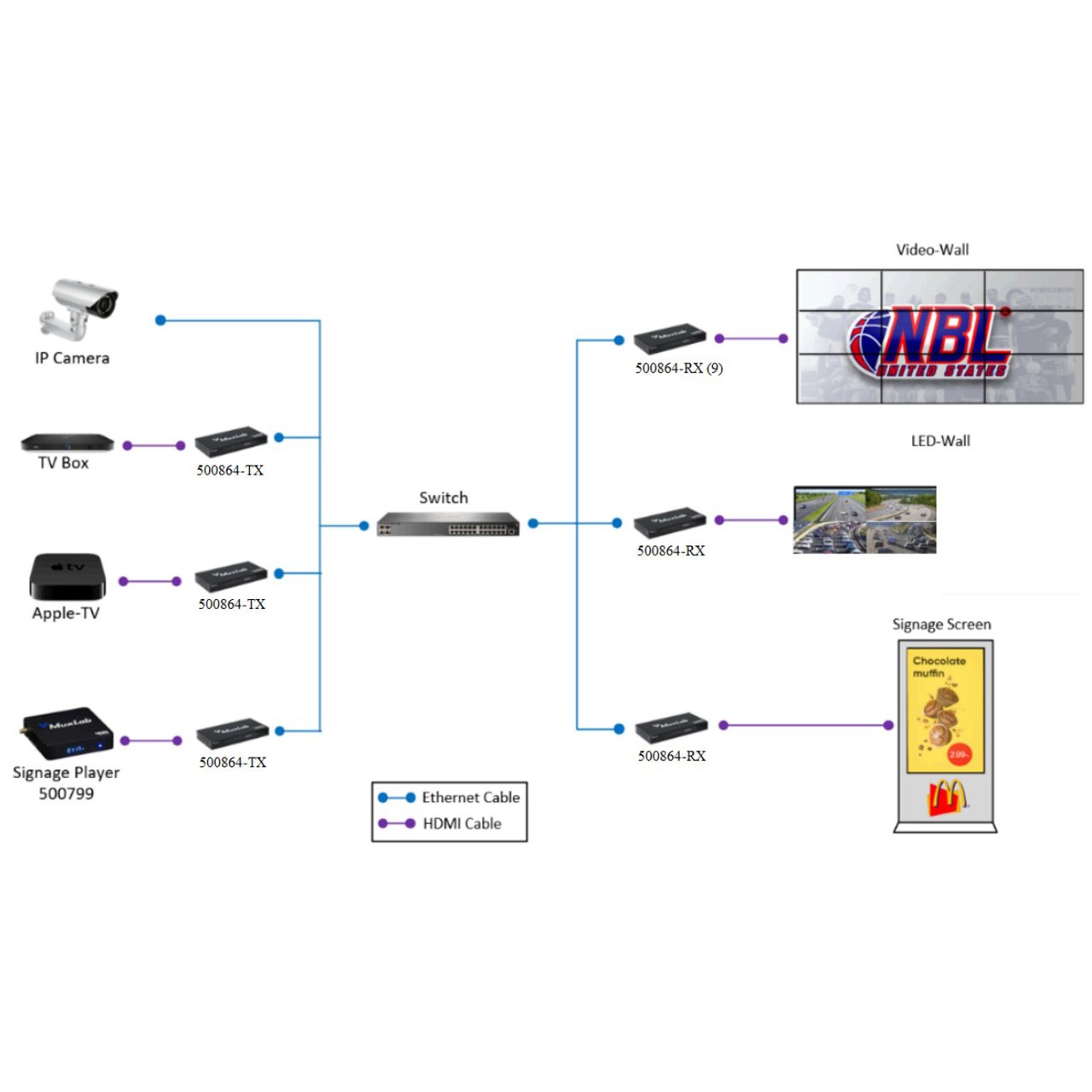

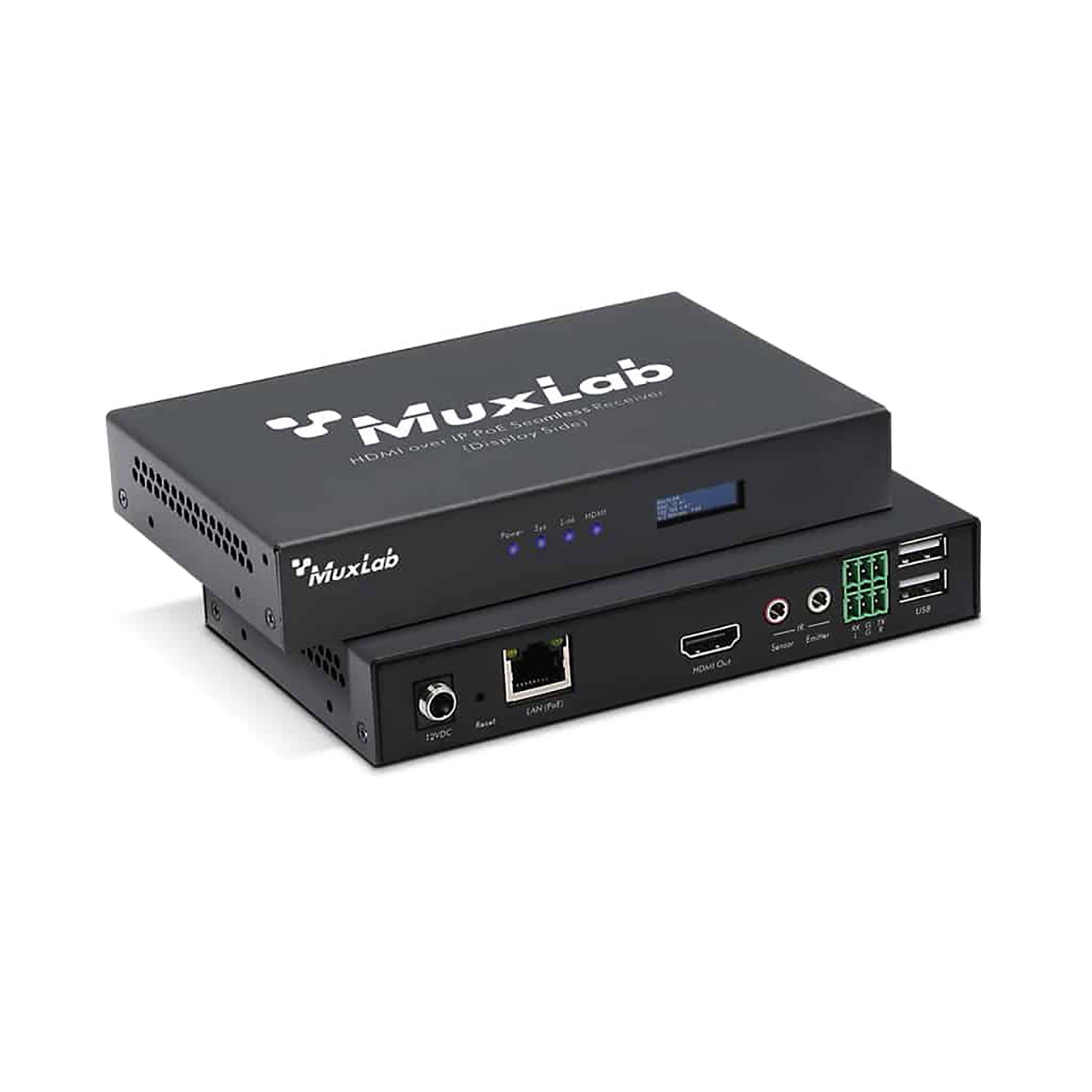

The MuxLab 500864-RX allows HDMI Display equipment to be extended locally up to 330ft (100m) at up to 1080p @ 60Hz resolution via Cat5e/6 cable and is compatible with the MuxLab 500864-TX transmitters to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The receiver accepts a 1080p video @ 60Hz streams from an H.264/H.265 transmitter and displayed the content on a 1080P monitor. The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
Applications:
- Audio/Video Streaming over LAN, Wifi and Internet
- Commercial and residential AVsystems
- Classroom projector systems
- Digital signage
- Boardroom systems
- Medical information systems
