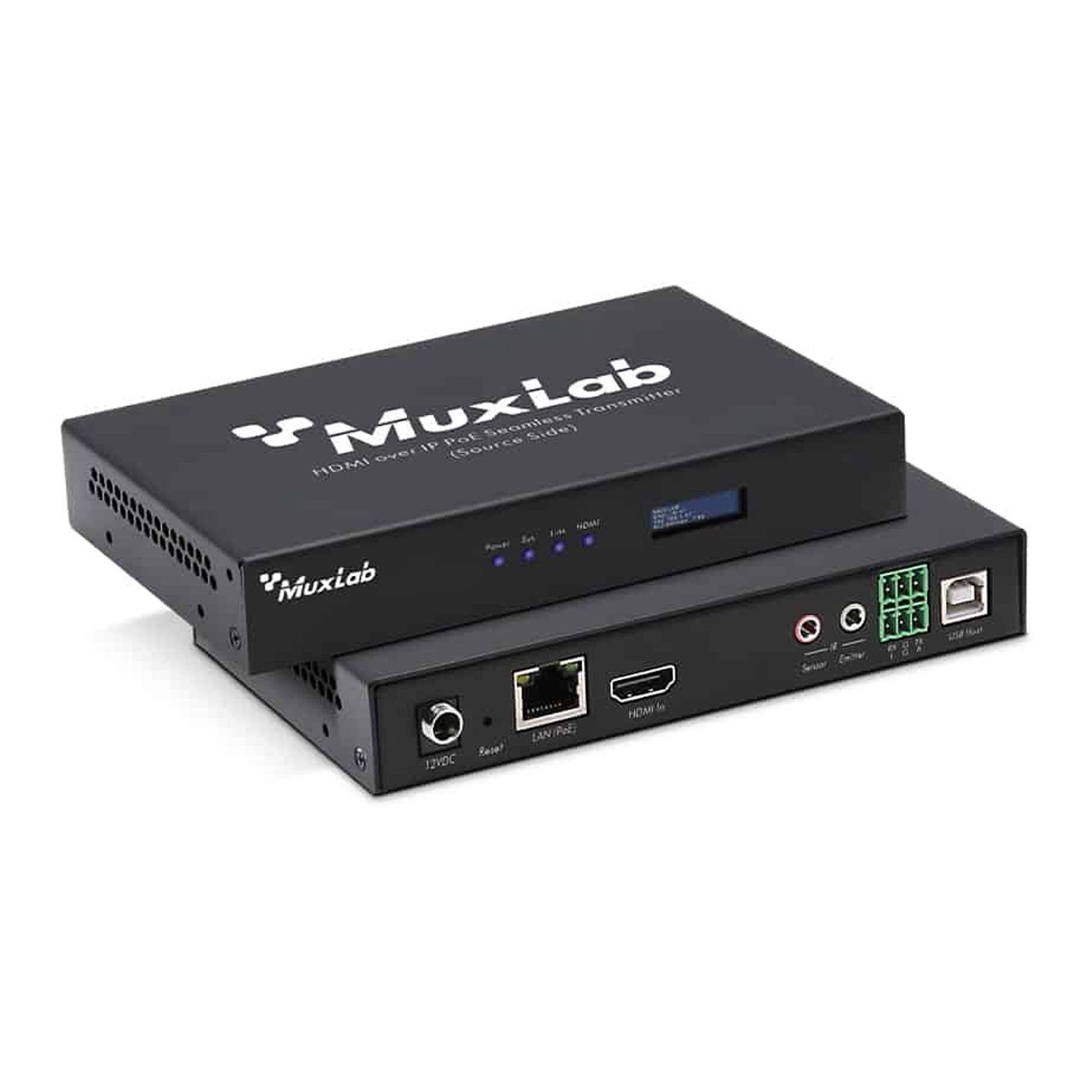

MuxLab 500864-TX 1080P60 HDMI Over IP PoE Seamless Transmitter - Extends Locally Up to 330 Feet

ITEM #: MUX-500864-TX MFG #: 500864-TX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$654.00

Our Price:

$523.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

500864-TX - Overview

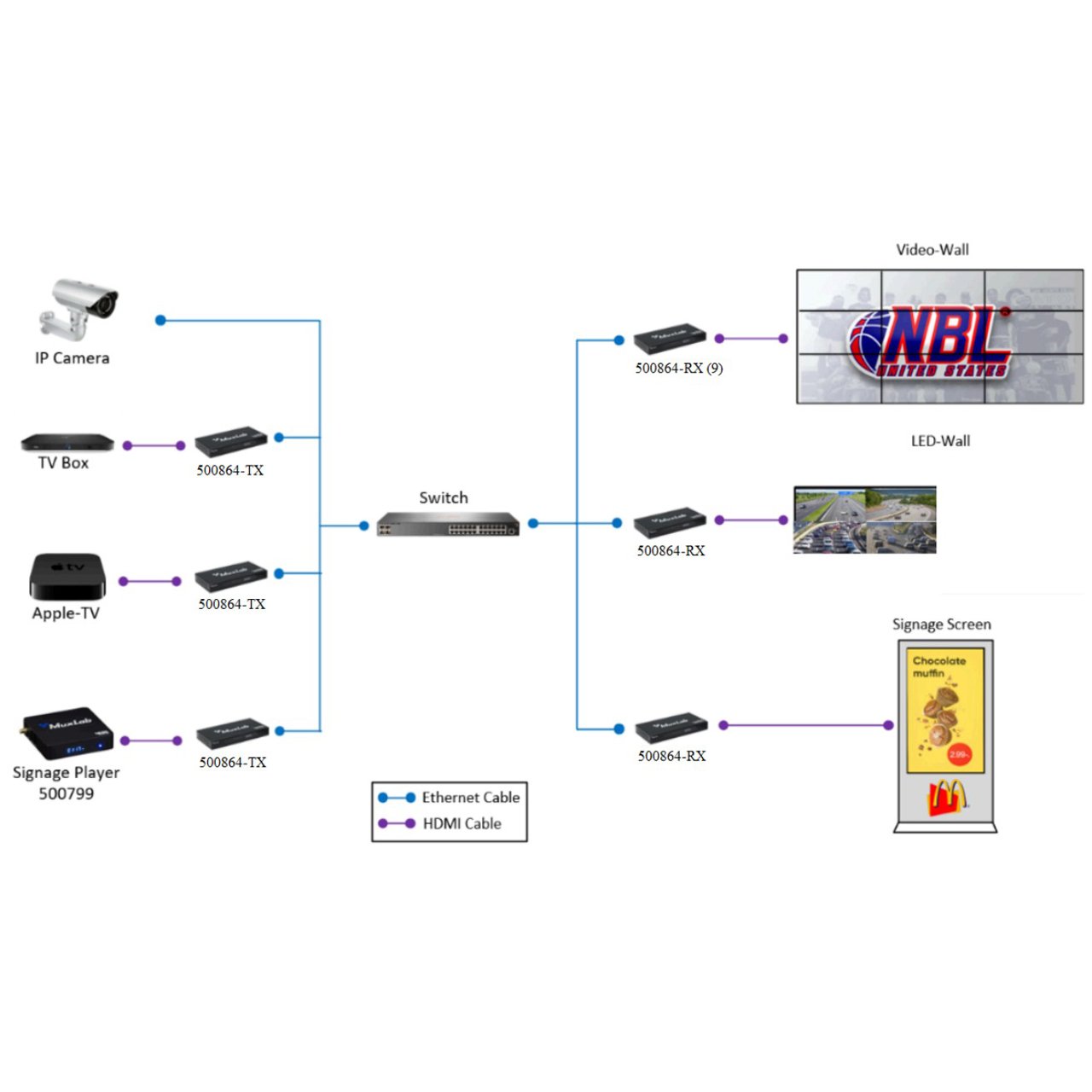

The MuxLab 500864-TX allows HDMI source equipment to be extended locally up to 330ft (100m) at up to 1080p @ 60Hz resolution via Cat5e/6 cable and is compatible with the MuxLab 500864-RX receivers to support point-topoint, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The transmitter accepts a 1080P video @ 60Hz and streams the content to an H.264/H.265 receiver to be displayed on a 1080p monitor. The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

Applications:
- Audio/Video Streaming over LAN, Wifi and Internet
- Commercial and residential AV systems
- Classroom projector systems
- Digital signage
- Boardroom systems
- Medical information systems

  • Features:

    • Supports up to 1080p @ 60Hz video streams
    • H.264/265 video codec, excellent for LAN and Internet transmission
    • High image quality and ~80ms latency
    • Supports seamless switching
    • Supports Video Wall
    • Supports Multiview with up to 4-windows per screen
    • RS232, USB and infrared for remote control of end devices
    • PoE powered, via PoE (PSE) Ethernet Switch
    • Managed via Muximus Network Controller (500813)


  • Specifications:

      Technical
    • Environment: HDMI 1.4
    • Devices: Blu-Ray, set top boxes, projectors, monitors, TVs, PCs, supporting HDMI
    • Signal Protocol/Standard: HDMI 1.4 and HDCP 1.4
    • Video Resolution: Up to 1080p/60Hz
    • Audio: Phoenix connector Line in, or HDMI audio
    • Latency: 80ms - 120ms
    • Network Bandwidth: Up to 12Mbps
    • Protocols: Supports Multicast, RTSP, RTMP
    • Compression: Supports H.264/265

      Front Panel
    • Indicators:
      - Power: Power indicator
      - Sys: System indicator
      - Link: LAN cable connection indicator
      - HD: HDMI signal status
    • OLED Screen: Showing the Model, ID, IP, status

      Rear Panel
    • 1x HDMI Type-A
    • 1x RS232 phoenix connector
    • 1x 3.5mm IR Sensor
    • 1x 3.5mm IR Emitter
    • 1x Phoenix connector input
    • 1x RJ45 (PoE)
    • 1x USB-B ports for PC host
    • 1x 12VDC 1A Power input

      General
    • Control:
      - Muximus Network Controller
      - 3rd Party Control by TCP/UDP
      - Windows PC software, Android/iOS App
    • Power Source: This device supports PoE (PD), an external power supply is sold separately.
    • Power Consumption: <10W
    • Dimensions: 6" x 3.7" x 1" (155mm x 95mm x 25mm)
    • Weight: 1.2lbs (0.54kg)


  • Item Includes:

    • 1x 500864-TX 1080P60 HDMI over IP PoE Seamless Transmitter


  • Warranty:

    • 2 Year Limited Warranty
