MuxLab 500932 MuxStream Camera 30X Zoom - PoE

ITEM #: MUX-500932 MFG #: 500932

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500932

500932 - Overview

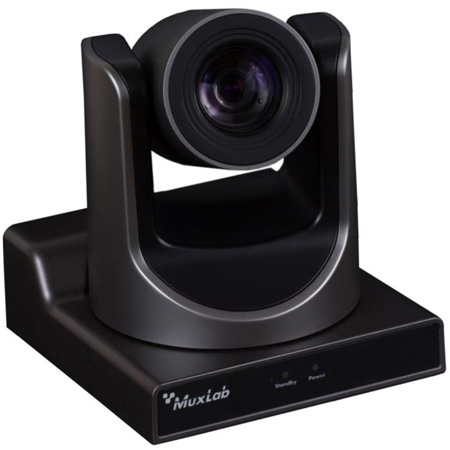

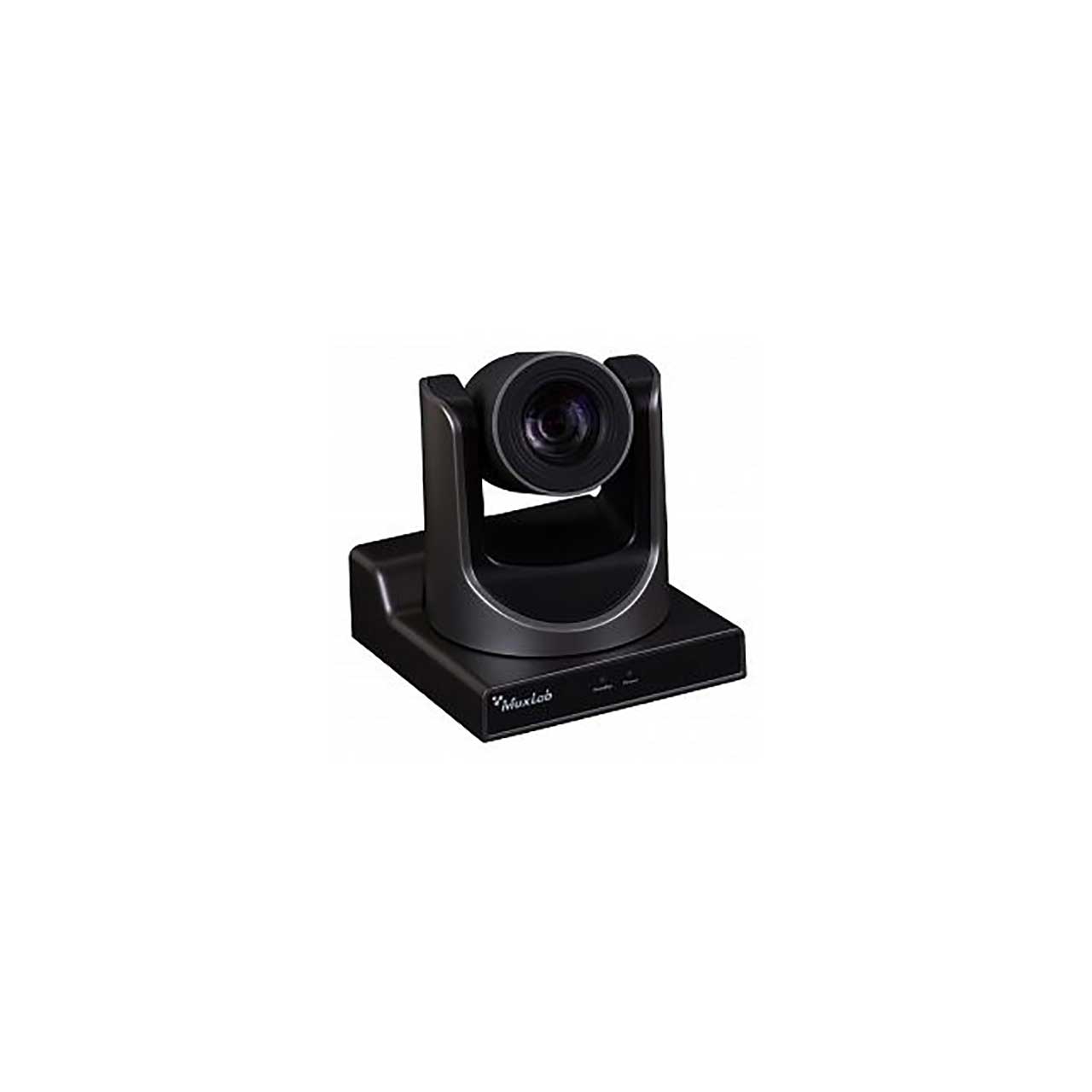

The MuxStream Camera 30X Zoom, PoE is a full HD 1080p HDMI and IP streaming camera with Pan, Tile, and Zoom capability for extreme flexibility and reach. The camera supports both uncompressed video via an HDMI outport for local connectivity, and H.264/H.265 compressed video for streaming over the Internet, while supporting a 30X optical zoom and 8X digital zoom.

The MuxStream Camera 30X Zoom, PoE is suitable as a standalone device for video conferencing, education, houses of worship, fitness training, and many other live streaming applications to broadcast services such as YouTube, Facebook, Wowza, and others. The device is also compatible with MuxLab's Live Streaming kits include the 500785 and 500785-PoE Multi-Camera Live Streaming Solutions, and the 500786 and 500786-PoE Single Camera Live Streaming solutions which support enhanced features and capabilities.

The MuxStream Camera 30X Zoom, PoE supports PoE for convenience when powering the device, and a 1/2.7", 2.07 million effective pixels high-quality CMOS sensor to capture video, plus an audio input for 2 channel audio sources such as microphones. The camera supports a focal length of f4.42mm to 132.6mm, an aperture of F1.8 to 2.8, a shutter speed of 1/30s to 1/10000s, and a minimum illumination of 0.05 Lux for low-light conditions.

The HDMI/IP PTZ Camera may be remotely managed via IP and RS232 for added convenience.

Applications:
Local AV capture and monitoring
Live AV presentation broadcasts over the Internet
Live AV streaming to YouTube, Facebook, and Wowza
Streaming to OBS and Wirecast AV content production tools
Ideal for House of Worship, Fitness Training, Cooking Classes, etc.

  • Features:

    • Maximum resolution of 1920 x 1080 (Full HD) at 60Hz
    • Supports a Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor
    • Uses a 60.7° wide-angle high quality lens
    • Supports a 30x optical zoom, and up to 8x digital zoom
    • High SNR CMOS sensor combined with 2D & 3D noise reduction algorithm, effectively reducing noise even under low light
    • Supports AAC audio encoding for better sound quality at a lower bandwidth
    • Supports USB disk local storage, local recording directly without NVR
    • Designed with worm gear drive for reliable and accurate movement
    • May be remotely controlled via RS232 and IP
    • Supports PoE
    • Works as a standalone device and is compatible with MuxLab's Live Streaming Kits (models 500785, 500785-PoE, 500786, and 500786-PoE)

  • Specifications:

    • Video: HDMI 1.3 and H.264/H.265 Streams
    • Sensor: 1/2.7 inch, CMOS, Effective Pixels: 2.07M
    • Scanning Mode: Progressive
    • Lens: Focal length of 4.42mm to 132.6mm, aperture of F-Stop of 1.8 to F2.8, shutter speed of 1/30s to 1/10000s
    • Zoom: Optical Zoom: 30x / Digital Zoom: 8x
    • Minimal Illumination: 0.05 Lux @ (F1.8, AGC ON)
    • Angle of View: Horizontal: 60.7° to 2.28° / Vertical: 34.1° to 1.28°
    • Rotation Range: Horizontal: -170° to +170° / Vertical: -30° to +90°
    • Video Coding Standard: H.265/H.264/MJEPG
    • Video Stream: Two streams supported: First Stream & Second Stream
    • First Stream Resolution: 1920x1080,1280x720,1024x576,960x540,640x480,640x360
    • Second Stream Resolution: 1280x720,1024x576,720x576,720x408,640x360,480x270,320x240,320x180
    • Video Bit Rate: 32Kbps to 20480Kbps
    • Bit Rate Type: Variable and Fixed rate
    • Frame Rate: 50Hz: 1fps to 50fps, 60Hz: 1fps to 60fps
    • Audio Encoding: AAC
    • Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps
    • Support Protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

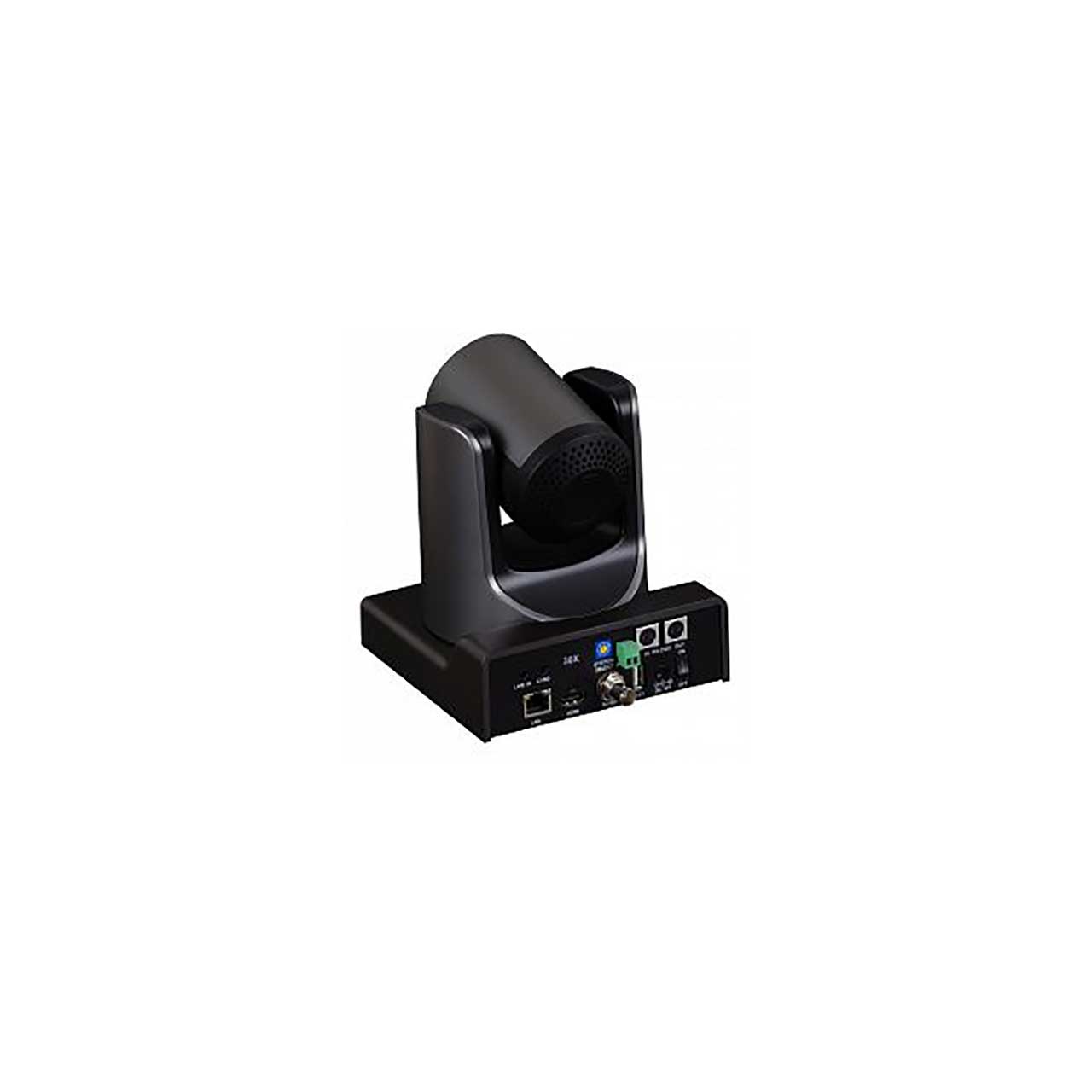

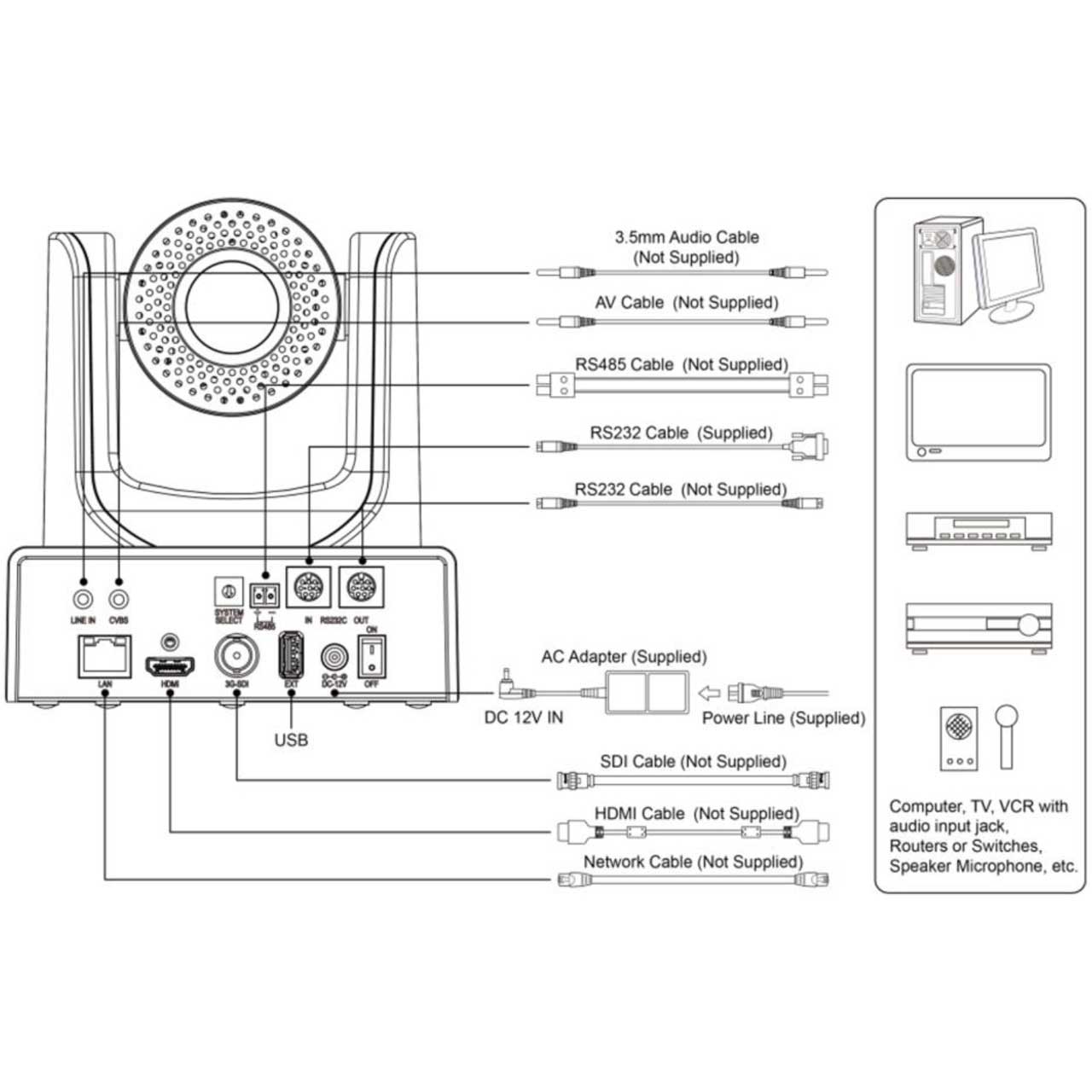

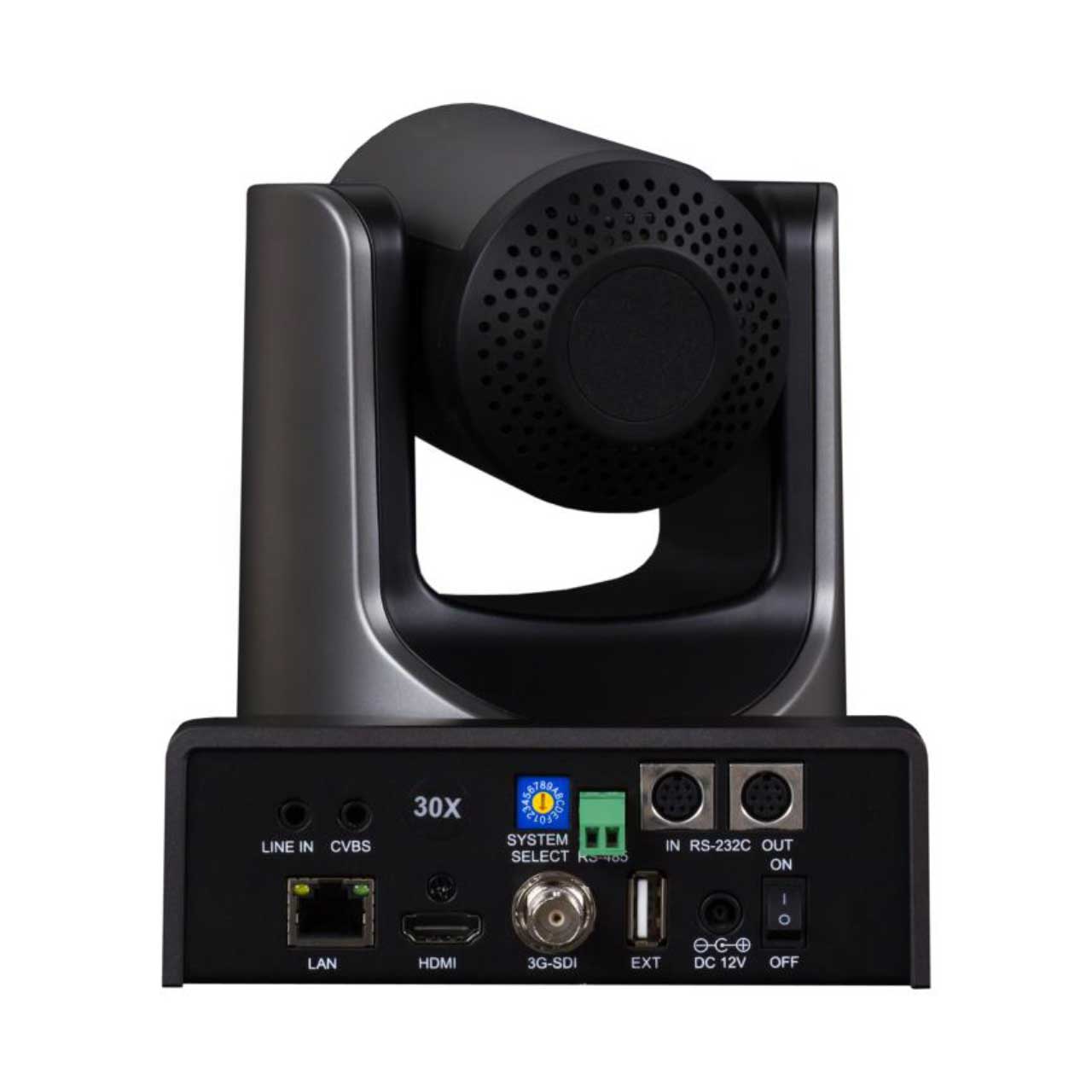

    • Connectors
      1x HDMI 1.3
      1x CVBS: 3.5mm RCA jack, 1Vp-p, 75Ω
      1x RS-485: 2pin phoenix port, Max Distance 1200m, Protocol: VISCA/Pelco-D/Pelco-P
      1x RS-232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
      1x RS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
      1x RJ45: 10/100/1000M Ethernet port
      1x 3G-SDI: BNC type, 800mVp-p, 75Ω. Along to SMPTE 424M standard
      1x USB2.0: Type A female jack
      1x 3.5mm jack for 2 CH analog audio input
      1x JEITA type connector for power (12VDC)
    • Power: DC 12V @ 1A (Max)
    • Power Consumption: 12W (Max)
    • Unit Dimensions: 5.71 x 5.94 x 6.37" (145.2 x 150.9 x 161.8mm)
    • Unit Weight: 3.35Lbs (1.52kg)
    • Shipping Weight: 7.31Lbs (3.32kg)
    • Temperature:
      Operating: 14° to 104°F (-10° to 40°C)
      Storage: -40° to 140°F (-40° to 60°C)

  • Warranty:

    • Warranty 2 years

  • GTIN:

    0627699009321
