Neutrik NAC3FCB-D powerCON Cable End Power Out [Gray] - 100 Pack

ITEM #: NAC3FCB-D MFG #: NAC3FCB-D

free ship

List Price:

$767.00

Our Price:

$657.00

Availability: In Stock
iAvailability Description Popup


    NAC3FCB-D - Overview

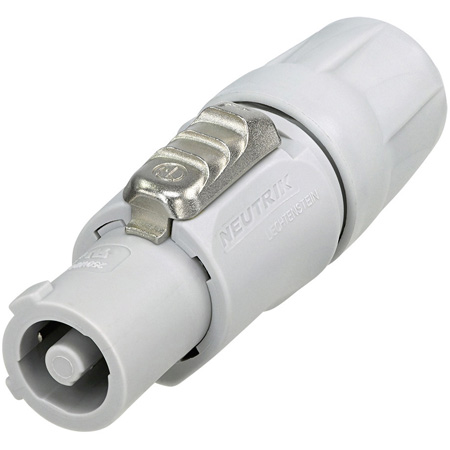

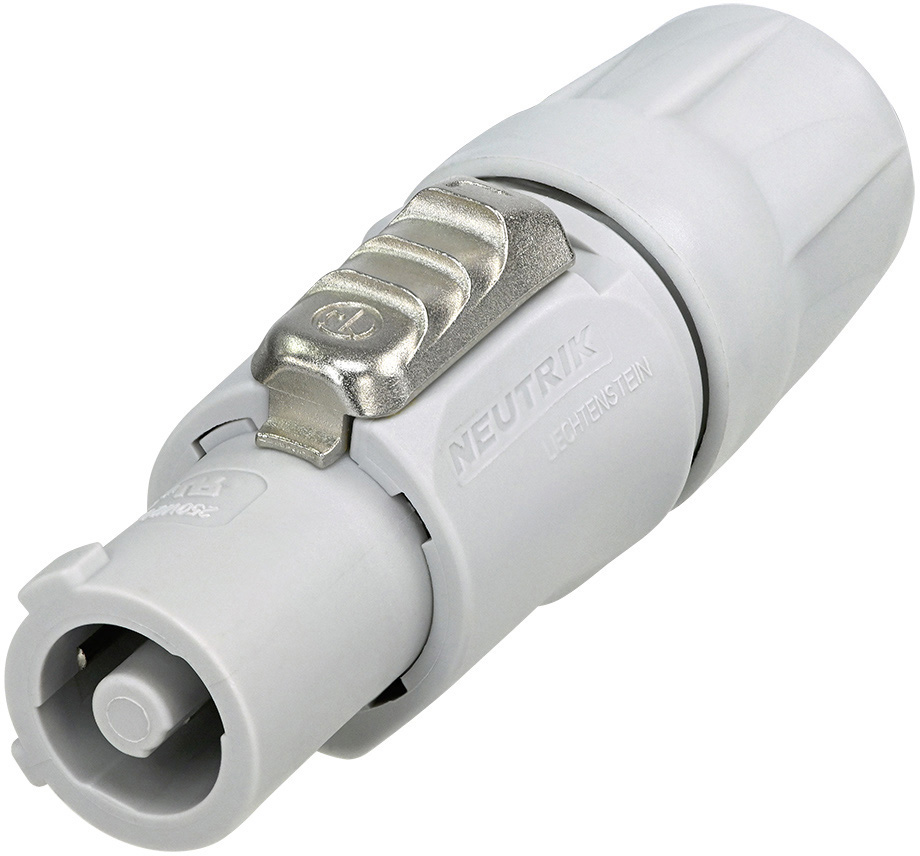

    Neutrik NAC3FCB lockable cable connector, power-out, screw terminals, grey

    The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

    Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

    • Features:

      • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
      • Fast and easy twist lock latching system
      • Extremely robust and reliable
      • Ergonomic design
      • Unique Neutrik chuck type strain relief
      • Improved kink protection by two-component bushing
      • UL, cUL recognized components, VDE certified, SEV approved
      • Branded with unique hologram - guarantees genuine and authentic Neutrik product

    • Specifications:

      • Electrical
      • Contact resistance: ≤ 3 mΩ
      • Dielectric strength: 4 kVdc / 2.8 kVac
      • Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
      • Number of electronical contacts: 2 + PE
      • Rated current per contact: 20 A rms
      • Rated voltage: 250 V ac

        Mechanical
      • Cable O.D.: 6 - 15 mm (1)
      • Lifetime: > 1000 mating cycles
      • Wiresize: 2,5 mm²
      • Wiresize: 14 AWG

        Locking device
      • Quick Lock; (1): Cable O.D. range limited to 6 mm - 14 mm acc. VDE

        Material
      • Contact plating: 4 µm Ag
      • Contacts: Bronze (CuSn6)
      • Insert: Polyamide (PA 6 30 % GR)
      • Locking element: Zinc diecast (ZnAl4Cu1)
      • Shell: Polyamide (PA 6 30 % GR)
      • Strain relief: Polyacetal (POM)

        Environmental
      • Temperature range: -30 °C to +80 °C
