Neutrik NAC3MX Male powerCON TRUE1 Screw Terminal  IP65 Cable Connector - Black/Yellow
  • Neutrik NAC3MX Male powerCON TRUE1 Screw Terminal  IP65 Cable Connector - Black/Yellow
  • Neutrik NAC3MX Male powerCON TRUE1 Screw Terminal  IP65 Cable Connector - Black/Yellow
  • Neutrik NAC3MX Male powerCON TRUE1 Screw Terminal  IP65 Cable Connector - Black/Yellow

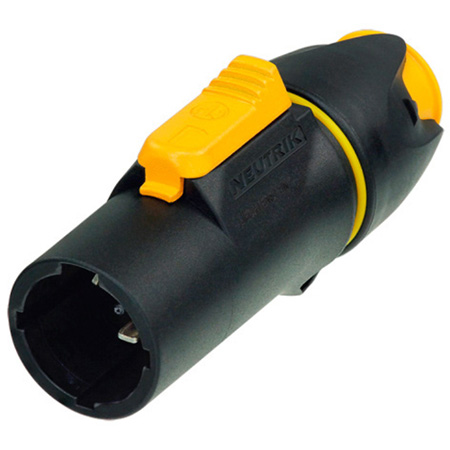

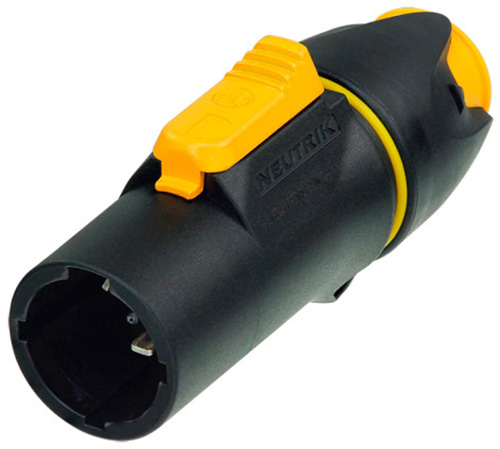

Neutrik NAC3MX Male powerCON TRUE1 Screw Terminal IP65 Cable Connector - Black/Yellow

Manufacturer: Neutrik USA Inc

Item #: NAC3MX-W   •   MFG #: NAC3MX-W



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the NAC3MX-W





Neutirk NAC3MX-W locking male cable connector with screw terminals.

The powerCON TRUE1 is a locking waterproof 16/20 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.


  • Features

    • True mains connector with breaking capacity (CBC)
    • Lockable 16 A single phase connector (USA: 20 A)
    • Dust and water resistant according to IP65 in mated condition
    • Easy and reliable twist lock system
    • Extremely robust and reliable
    • Unique Neutrik cable retention
    • ENEC certified according to IEC 60320
    • UL recognized components

  • Specifications

    • Contact resistance= 3 mO (inner)
    • Dielectric strength: 4 kVdc / 2.8 kVac
    • Insulation resistance: 0,1 GO (after damp heat test IEC 68-2-30)
    • Number of electronical contacts: 2 + PE
    • Rated current per contact: 16 A rms (USA: 20 A)
    • Rated voltage: 250 V ac
    • Cable O.D.6 - 12 mm
    • Lifetime> 5000 mating cycles
    • Wiresize1.0 - 2.5 mm²
    • Wiresize12 AWG
    • Contact plating 2 æm Ag
    • Contacts CuNi1Si0.2
    • Insert Polyamide (PA 6.6 30 % GR)
    • Locking element ZuAl4Cu1
    • Shell Polyamide (PA 6.6 30 % GR)
    • Strain relief Polyacetal (POM)
    • FlammabilityUL 94 V-0
    • Protection class IP 65 (mated)
    • Temperature range -30 °C - +80 °C

  • GTIN:

    7613187008245
