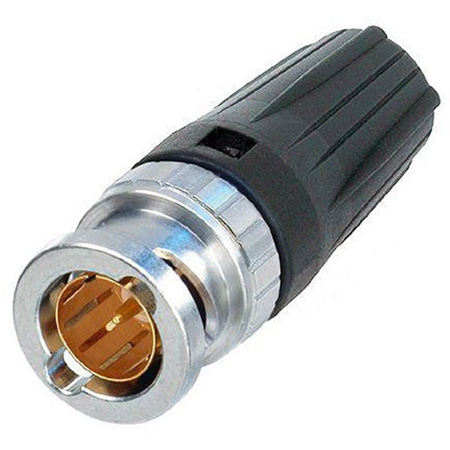

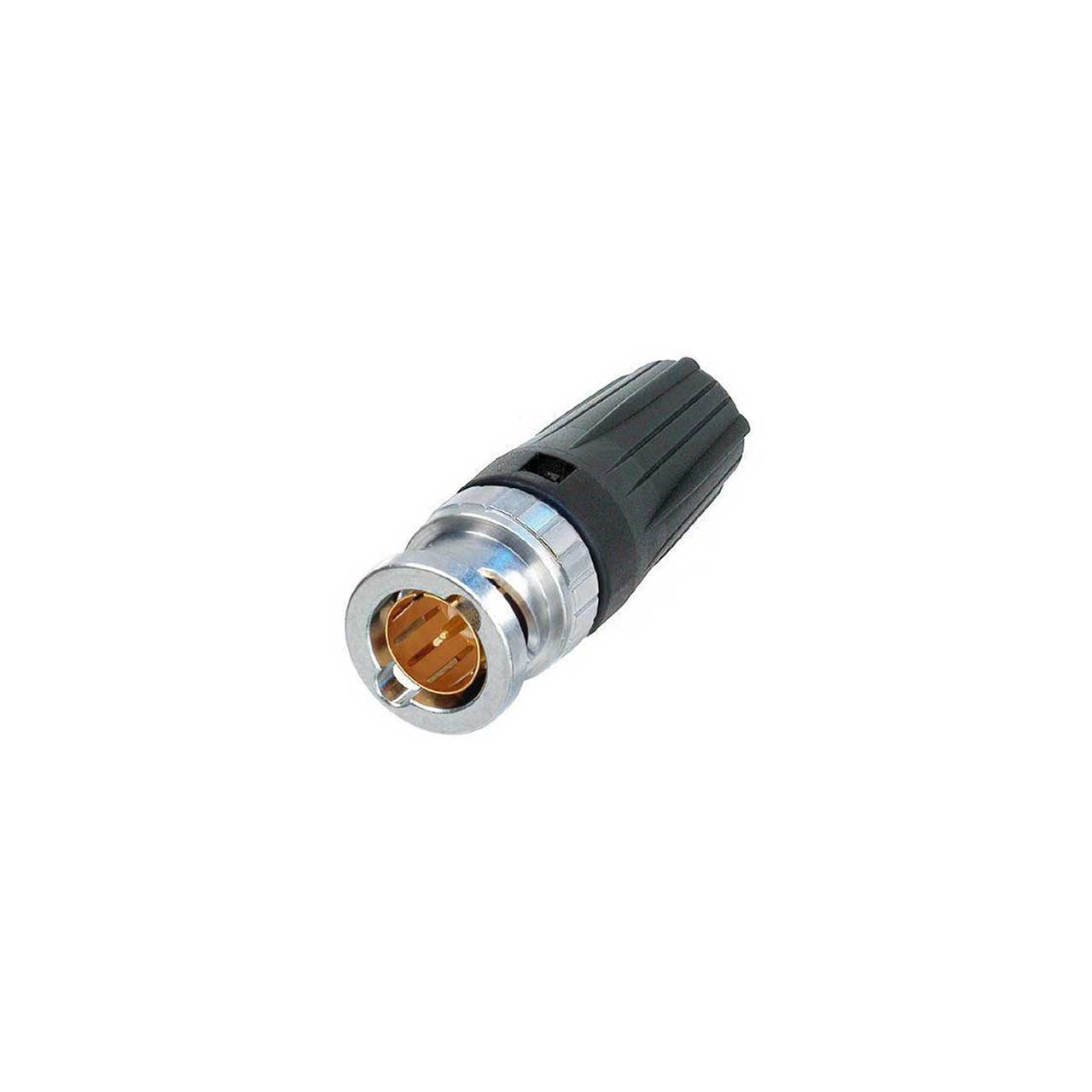

Neutrik NBNC75BQP11X rearTWIST BNC/UHD Cable Connector - O.D. 4-8mm - Antraloy Plating - 75 Ohm For Belden 1695A

ITEM #: NBNC75BQP11X MFG #: NBNC75BQP11X

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4.25

Our Price:

$3.64

Availability: In Stock
iAvailability Description Popup


    NBNC75BQP11X - Overview

    The Neutrik NBNC75BQP11X The transition to 4K or even 8K-signals made the impedance of BNC connectors more important than ever. Every deviate impedance has a negative influence on return loss and VSWR (Voltage Standing Wave Ratio) which are important measurements for reflected signals in a transmission line. Especially on high data rates up to 24 Gb/s, as they occur when transmitting ultra-high definition (UHD) signals, an impedance mismatch results in high return loss. Neutrik's new rearTWIST UHD-BNC connector is a specifically for high frequencies optimized BNC connector; based on the proven rearTWIST technology. The unique insulator design in combination with the reduced crimp diameter of the gold plated center pin allows UHD-data transmission within the required return loss limits.

    • Features:

      • Screen and cable jacket crimp instead of screen
      • crimp only.
      • Grooved inner surface holds the
      • cable jacket to prevent tearing braids.
      • High frequency optimized insulator design for
      • UHD-transmissions.
      • Reduced pin crimp diameter for performance
      • improvement (return loss values).
      • Swiss antraloy plating.
      • rearTWIST boot for easy access in high density
      • applications.

    • Specifications:

      • rearTWIST Principle locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
      • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue.
      • These connectors turn from the back and not the front.
      • True 75 Ohm design meets the stringent HDTV / DVD requirements.
      • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
      • Snug-fit center pin insert provides tactile feedback.
      • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies.
      • Excellent cable protection and retention.
      • Precise Swiss machined brass parts for outstanding durability.
