Belden 1695A CMP/Plenum Rated RG6 6G-SDI/UHDTV Coaxial Video Cable 18AWG - Black - 1000 Foot

ITEM #: BL-1695A-1000 MFG #: 1695A 0101000

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,017.90

Our Price:

$1,899.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    1695A 0101000 - Overview

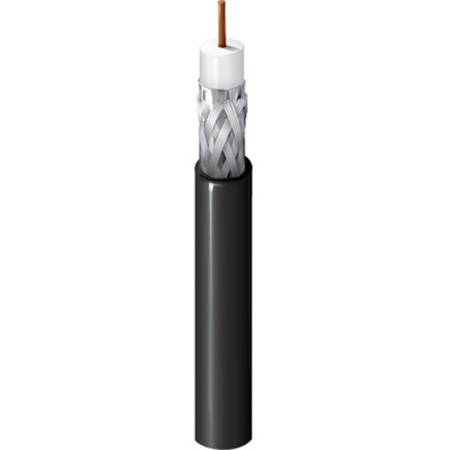

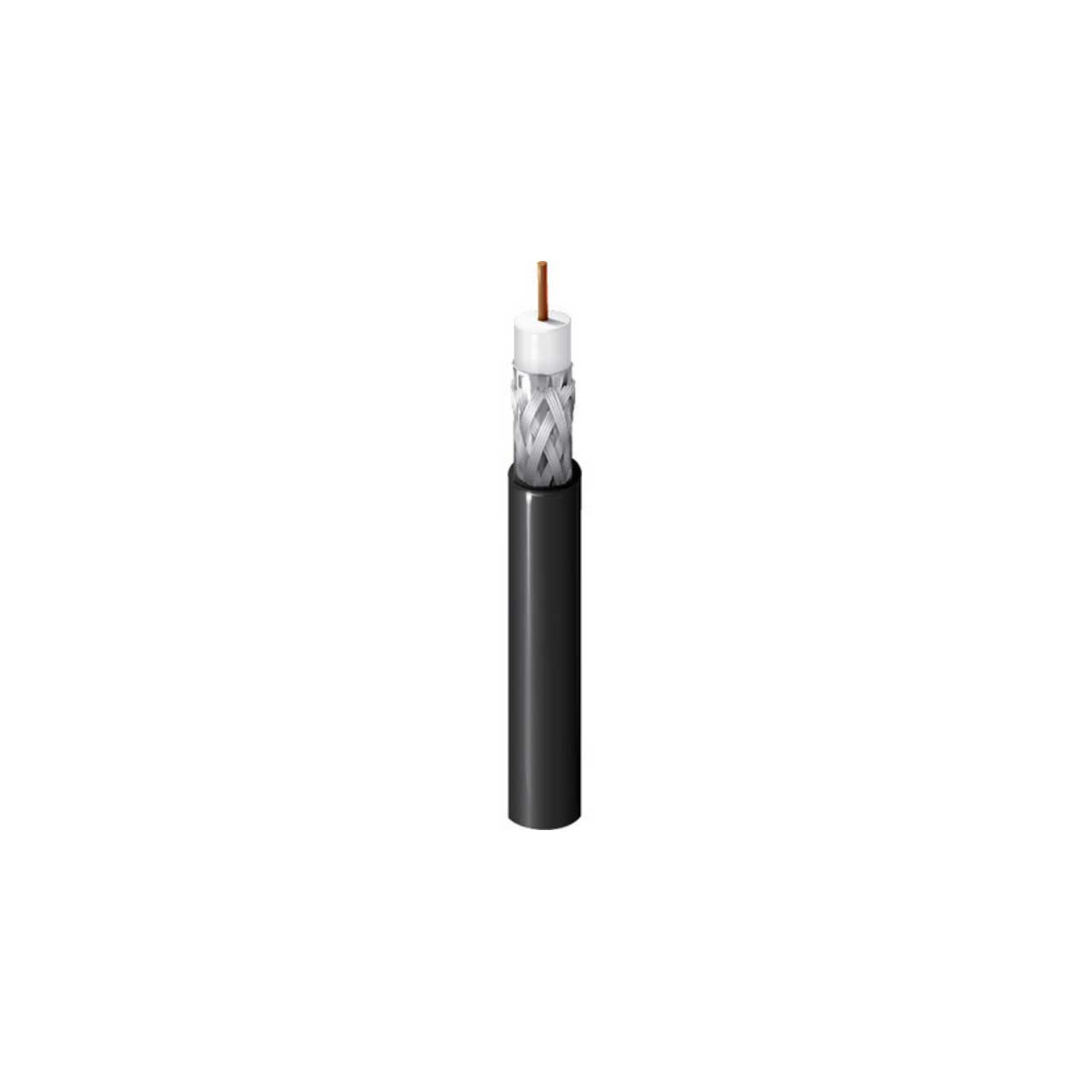

    Belden 1695A Video Cable is a Plenum Low Loss Serial Digital RG-6, 75 Ohm, 6G-SDI Coax cable that features a 18 AWG solid .040 inch inch bare copper conductor with foam FEP insulation, Duofoil® Foil plus tinned copper braid shield (95% coverage) in a PVC jacket.

    Belden’s premium multi-channel 6D-SDI coax cable meets the SMPTE ST-2081 6G-SDI Standards to support 6 Gbps and maximum resolutions for 4K video & audio applications up to 30Hz. This cable supports: 1080P (All formats to YUV 4:4:4), 10/12-bit 4Kx2K RAW, 10-bit 4Kx2K YUV 4:2:2.

    Applications
    Indoor use where plenum is required
    Digital Video
    6 Gb/s UHDTV
    HD-SDI 1080p
    Multimedia and lighting automation

    • Features:

      • Convenient Installation: Only one cable can be installed to send 10 Bit 4:2:2 4K at 30p or 24p & support 6 Gb/s of bandwidth for 6G-SDI
      • Durable Materials: The flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • High Quality Signal Transmission: Professional quality 4K, 75 ohm BNC connectors for proper 6G performance

    • Specifications:

      • RG Type: 6
      • Conductor AWG: 18
      • Conductor Stranding: Solid
      • Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)
      • Conductor Nom Diameter: 0.040in
      • Conductor Material: Bare Copper
      • Nom. Conductor DCR: 6.4 Ohm/1000ft
      • Insulation Material: FEP - Fluorinated Ethylene Propylene (Foam)
      • Nom. Insulation Diameter: 0.170 in (4.32 mm)
      • Nom. Outer Shield DCR: 2.8 Ohm/1000ft
      • Nom. Capacitance Cond-to-Shield: 16.2 pF/ft
      • Nom. Impedence: 75 Ohm
      • Nom. Velocity: 83%
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.229 in (5.82 mm)
      • UL Voltage Rating: 300 V (CMP)
      • UL Rating Temp: 75°C
      • Operating Temp: 0°C to +75°C
      • Bulk Cable Weight: 41 lbs/1000ft
      • Max. Pull Tension: 69 lbs
      • Environmental Suitability: Indoor - Plenum, Indoor
      • Sustainability: CA Prop 65
      • Flammability / Fire Resistance: NFPA 262, FT6
      • NEC / UL Compliance: CMP
      • CEC / C(UL) Compliance: CMP
      • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

    • Item Includes:

      • 1695A RG6 Plenum Coaxial Video Cable - Black - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825121190
