Neutrik Pole Male XLR Receptacle with Special Grounding Mating Connector Shell to Pin1/Front Panel - Vertical PCB Mount

ITEM #: NC3MAV-1 MFG #: NC3MAV-1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1.60

Our Price:

$1.37

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NC3MAV-1 - Overview

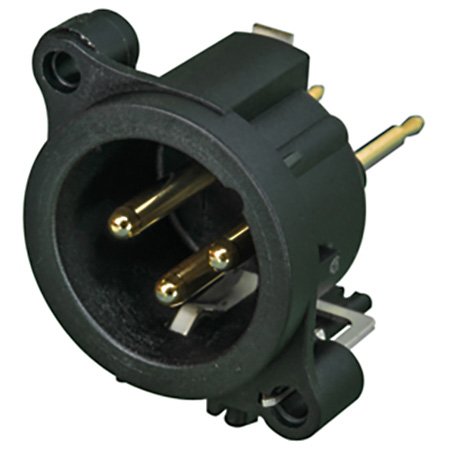

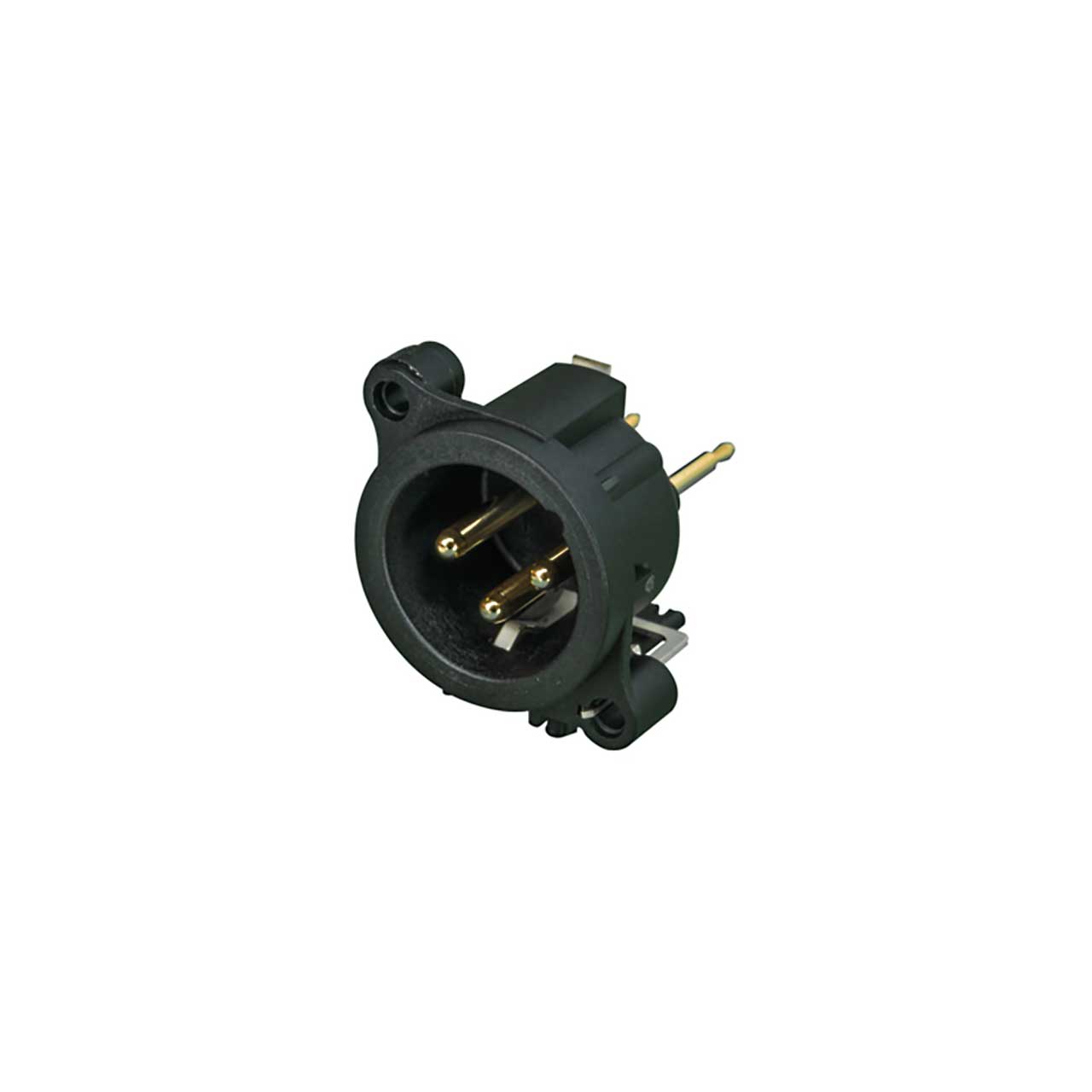

    Neutrik NC3MAV-1 is a 3 pole male XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount.

    The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). Hard gold plated contacts with polished contact areas. UL recognized component.

    • Features:

      • Smallest XLR receptacles, highest packing density
      • Plastic housing, steel latch lock
      • Polished contact areas and hard gold plating
      • Housing flammability UL94V-0

    • Specifications:

      • Product
      • Title: NC3MAV-1
      • Connection Type: XLR
      • Gender: Male

        Electrical
      • Capacitance between contacts: ≤4 pF
      • Contact resistance: ≤ 6 mΩ
      • Dielectric strength: 1,5 kVdc
      • Insulation resistance: > 10 GΩ (initial)
      • Rated current per contact: 6 A
      • Rated voltage: < 50 V
      • Grounding: Pin 1 connected directly to front panel and connector shell, no separate ground contact

        Mechanical
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiring: vertical PCB mount
      • Locking device: Latch lock
      • Mounting direction: Rear mounting
      • Chassis shape: A
      • Mounting: A-Screw

        Material
      • Contacts: Brass (CuZn39Pb3)
      • Shell: Polyamide (PA 6.6 30 % GR)

      • Environmental
      • Approvals: UL
      • Flammability: UL 94 V-0
      • Standard compliance: IEC 61076-2-103
      • Protection class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature range: -22° to 176°F (-30° to 80°C)
