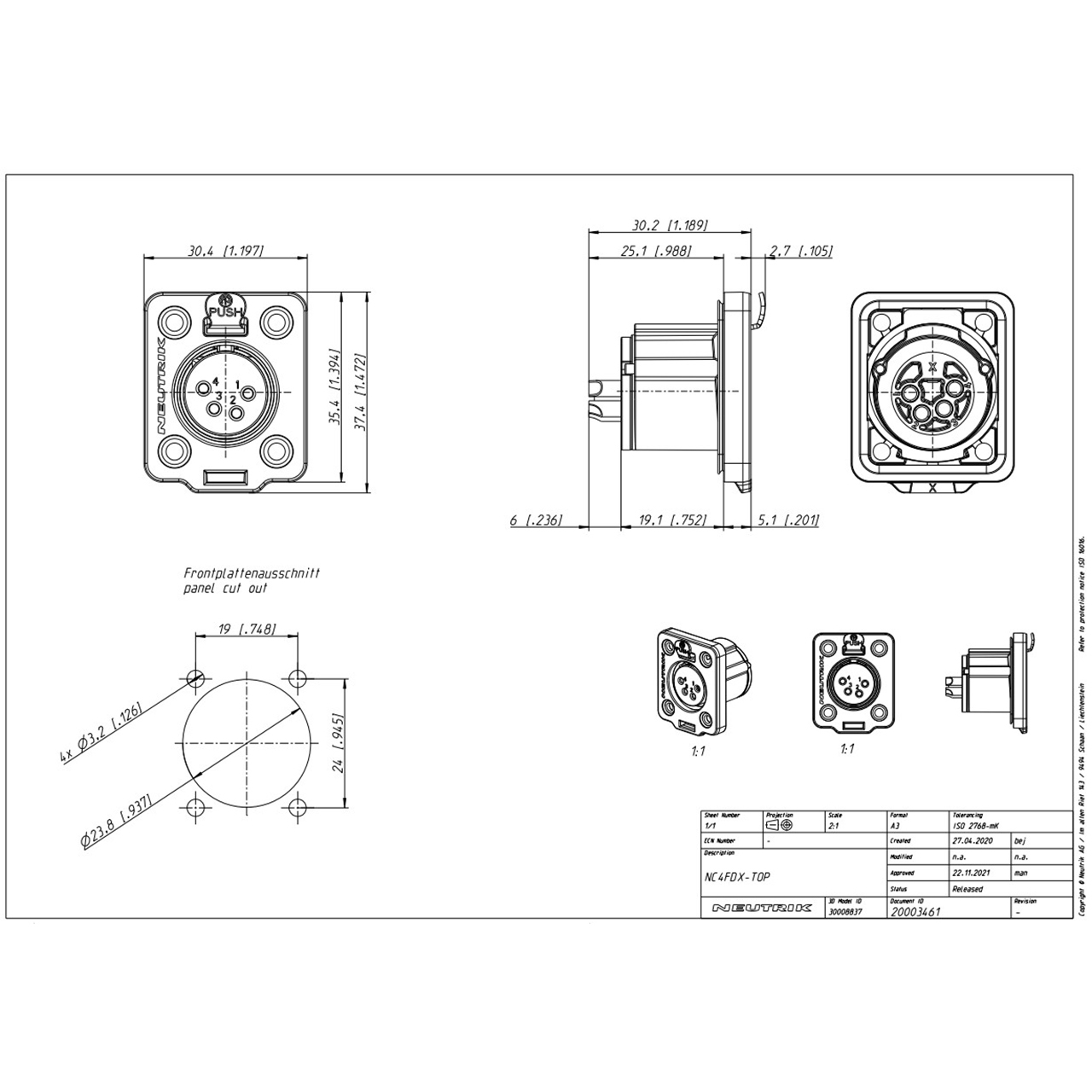

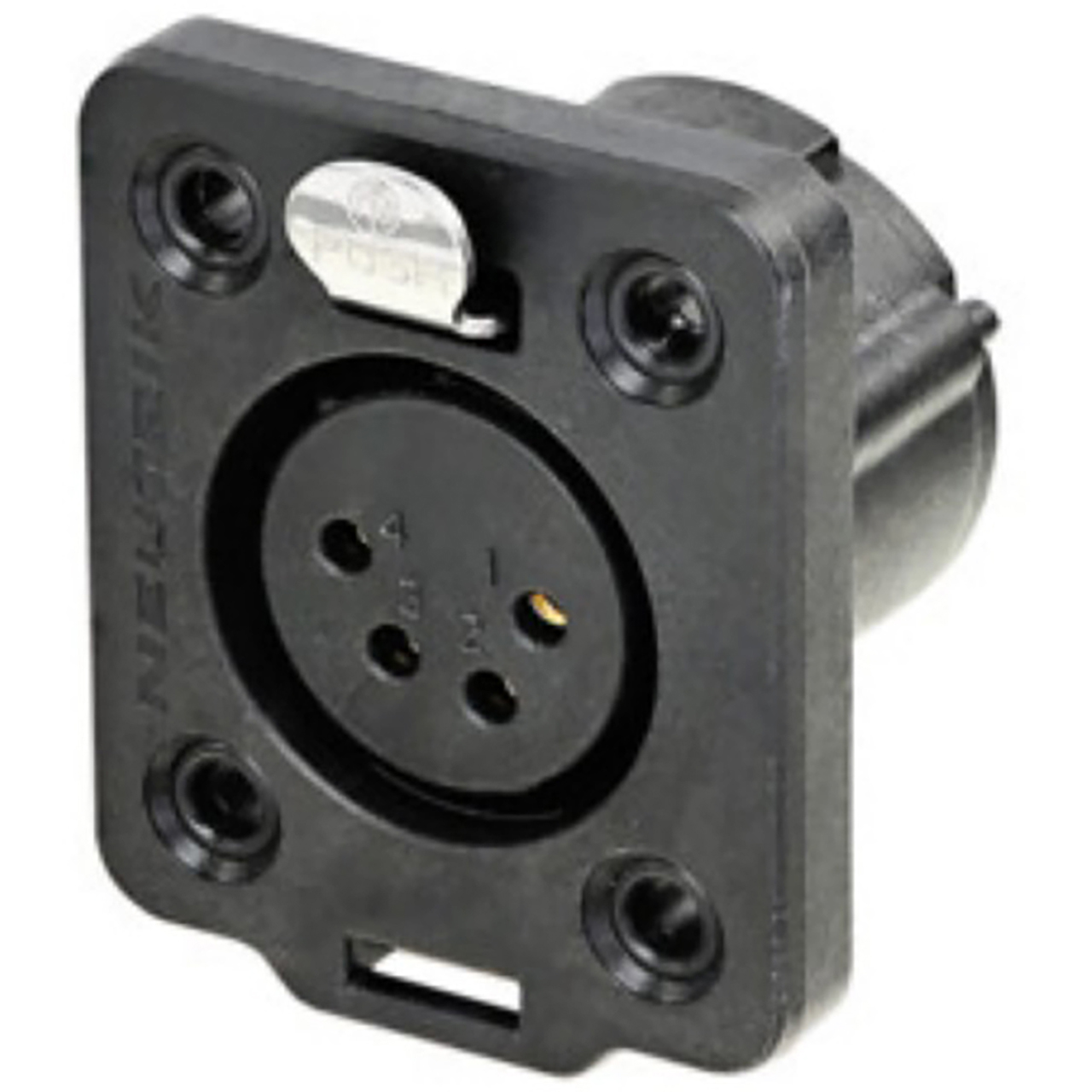

4 pole female chassis connector, TRUE OUTDOOR PROTECTION (TOP)
The X-TOP series is a "heavy-duty" XLR chassis connector for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
-
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- High impact UV-resistant materials
- IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
- IEC 61984 certified
-
- Connection Type: XLR
- Gender: Female
- Contact Resistance: = 5mΩ
- Dielectric Strength: 1.5kVdc
- Insulation Resistance: >10GΩ (initial)
- Rated Current per Contact: 10A
- Rated Voltage: 50V
- Insertion Force: = 20N
- Withdrawal Force: = 20N
- Lifetime: >1000 mating cycles
- Wiring: Solder contacts
- Locking Device: Latch lock
- Mounting Direction: Front mounting
- Chassis Shape: D
- Contact Plating: Gold (Au) over Nickel (Ni)
- Contacts: Brass
- Insert: Polyamide
- Locking Element: Stainless steel
- Gasket: TPE
- Shell: Polyamide
- Flammability acc. to UL94: V-0
- Standard Compliance: IEC 61076-2-103
- Protection Class acc. to IEC 60529: IP65
- Solderability: IEC 60068-2-20
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
