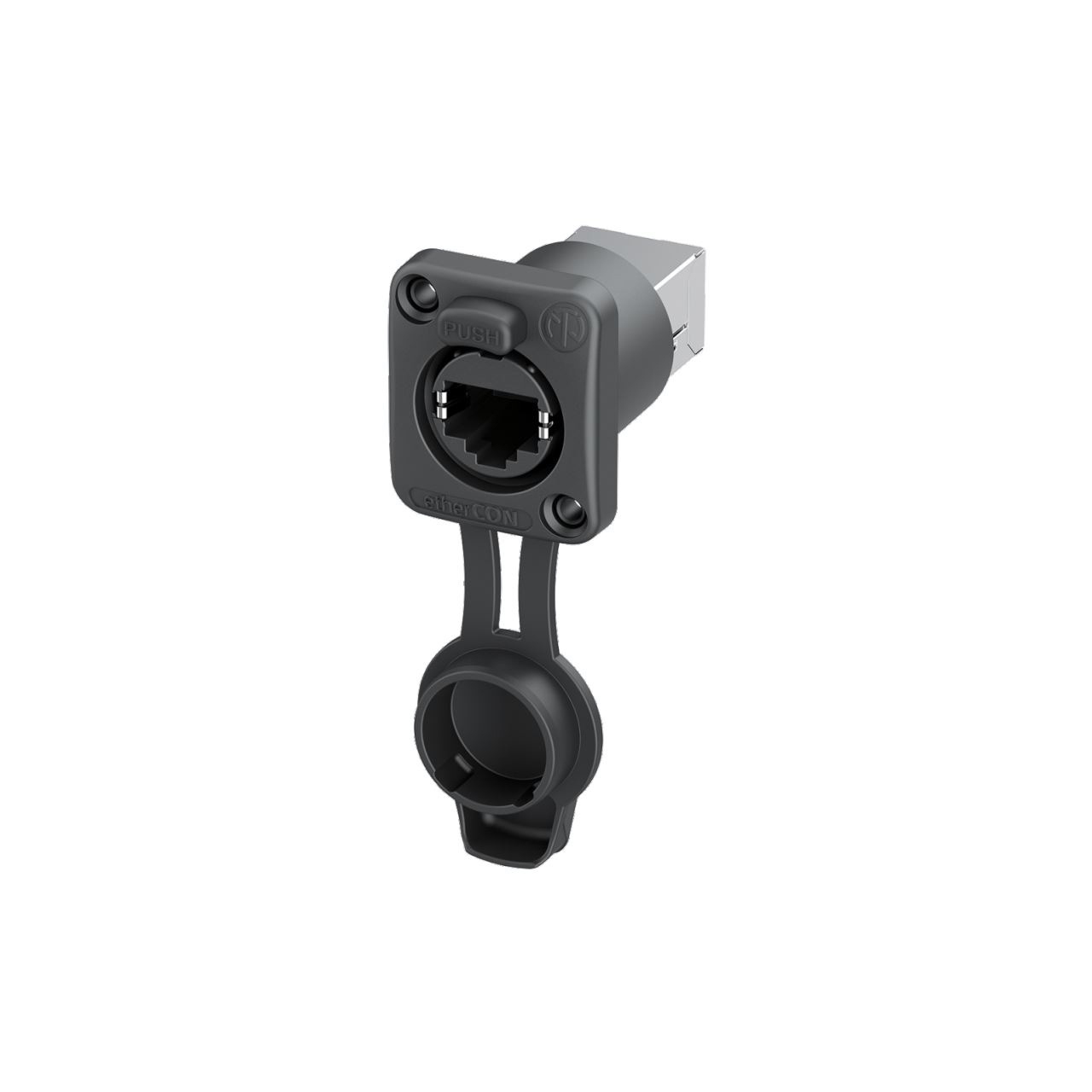

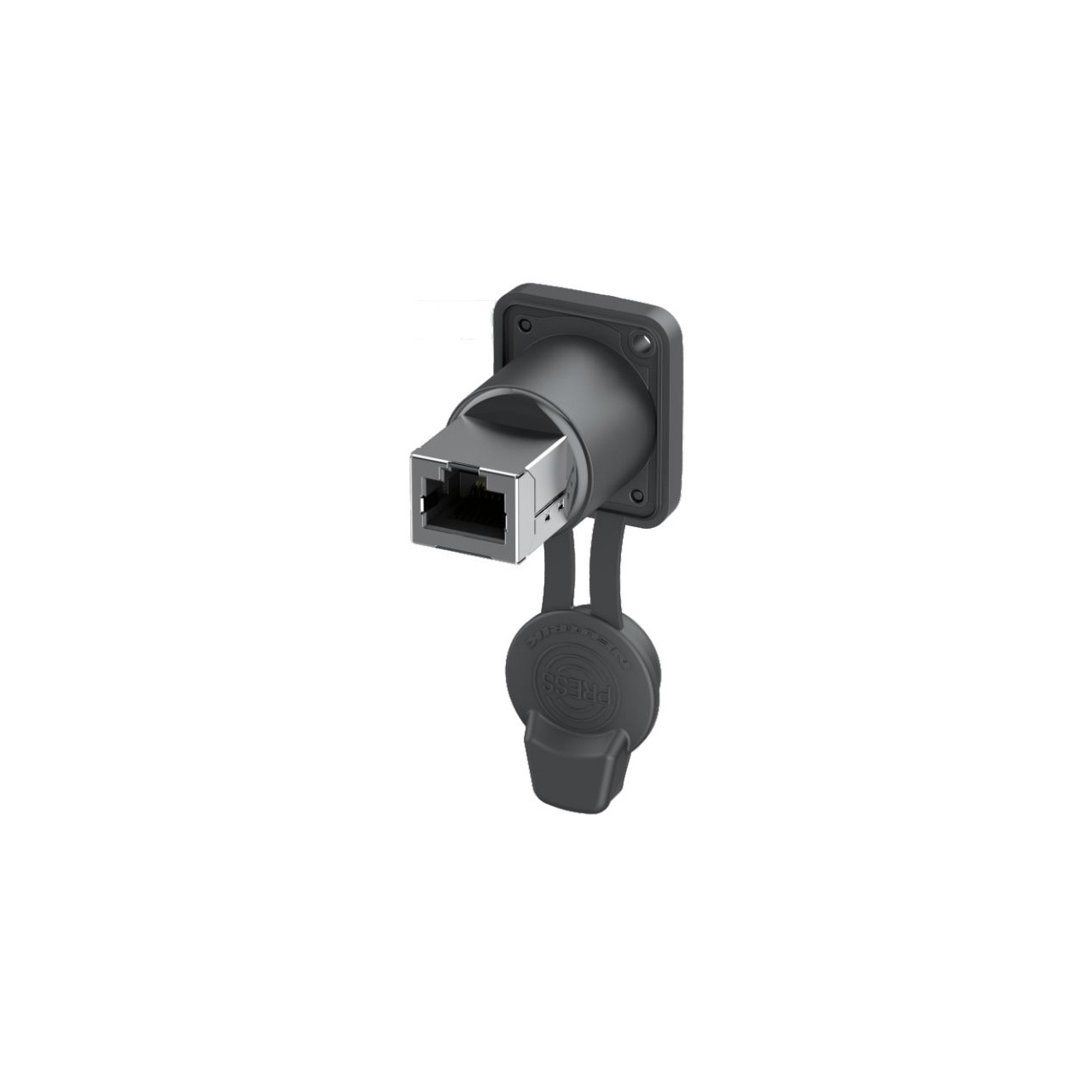

NEUTRIK NE8FDIS-TOP etherCON TOP IP65/IP67 Chassis Receptacle with IDC/RJ45 - Airtight - 100 Watt/PoE - 40/Pack

ITEM #: NE8FDIS-TOP-40 MFG #: NE8FDIS-TOP

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
NEUTRIK Group
Free Shipping with $49 Minimum Order

List Price:

$430.77

Our Price:

$369.30

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

NE8FDIS-TOP - Overview

The Neutrik NE8FDIS-TOP "etherCON TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the etherCON product group and belongs to our premium data line. With an impressive array of features and a particular focus on protection and performance, the "etherCON TOP airtight" is the choice for professionals who require absolute reliability.

With the etherCON TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure data connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK - your link to the future.

  • Features:

    • IP65 & IP67 rating to protect from water and dust ingress (even in unmated and open sealing cap condition) Corrosion resistance
    • UV protection
    • Airtightness for production line tests to ensure true outdoor protection on devices
    • 100 W power delivery according to IEEE 802.3bt Type 4 Class 8
    • Seamless design language of etherCON TOP & upcoming xlrCON TOP
    • Easy maintenance due to front-mount design
    • ESD protection up to 2 kV


  • Specifications:

    • Product Family: etherCON
    • Connection Type: Chassis connector
    • Gender: Female

      Electrical
    • Contact Resistance: < 10 mΩ
    • Dielectric Strength: 1 kV DC
    • Insulation Resistance: > 0.5 GΩ
    • Rated Current Per Contact: 1.5 A
    • Rated Voltage: ≤ 57 V
    • Transmission Performance: CAT3 acc. to TIA/EIA 568C channel specifications, CLASS C acc. to ISO/IEC 11801 channel specifications
    • Frequency Range: 1-16 MHz
    • Power over Ethernet: PoE type 4 class 8 acc. IEEE 802.3bt

      Mechanical
    • Insertion Force: < 30 N
    • Withdrawal Force: < 30 N
    • Lifetime: min. 1000 mating cycles
    • Locking Device: Latch lock
    • Wiring: 2.54 mm Box Header 2x4 Pin Feedthrough (Wiring scheme enclosed)
    • Chassis Shape: D
    • Mounting Direction: Front mounting

      Material
    • Contact Plating: Gold plating
    • Contacts: Brass
    • Flange: PA66 (hard component) + EPTR (soft component)
    • Housing: PA66

      Environmental
    • Flammability: V-0 acc. to UL94
    • Standard Compliance:
      - UL 1863
      - CSA C22.2 No. 182.4-M90 for fire enclosure acc. to IEC 62368-1:2018
      - EN IEC 62368-1:2020 +A11:2020
      - UL 62368-1 Ed.3, CSA C22.2 No. 62368-1:19 for outdoor enclosure acc. to IEC 62368-1:2018 Annex Y
      - EN IEC 62368-1:2020 +A11:2020 Annex Y
      - Regulation (EU) 2023/988
      - Regulation (UK) 2016 No. 1101
      - IEC 60529:1989 +AMD1:1999 +AMD2:2013
    • Ingress Protection Class: IP65/IP67
    • Temperature Range: -22°F - 158°F (-30°C - 70°C)


  • Item Includes:

    • 1x Neutrik NE8FDIS-TOP etherCON TOP IP65/IP67 Chassis Receptacle with IDC/RJ45 - Airtight - 100 Watt/PoE - 40/Pack
