    SPLITMUX-VWC-4HDLC - Overview

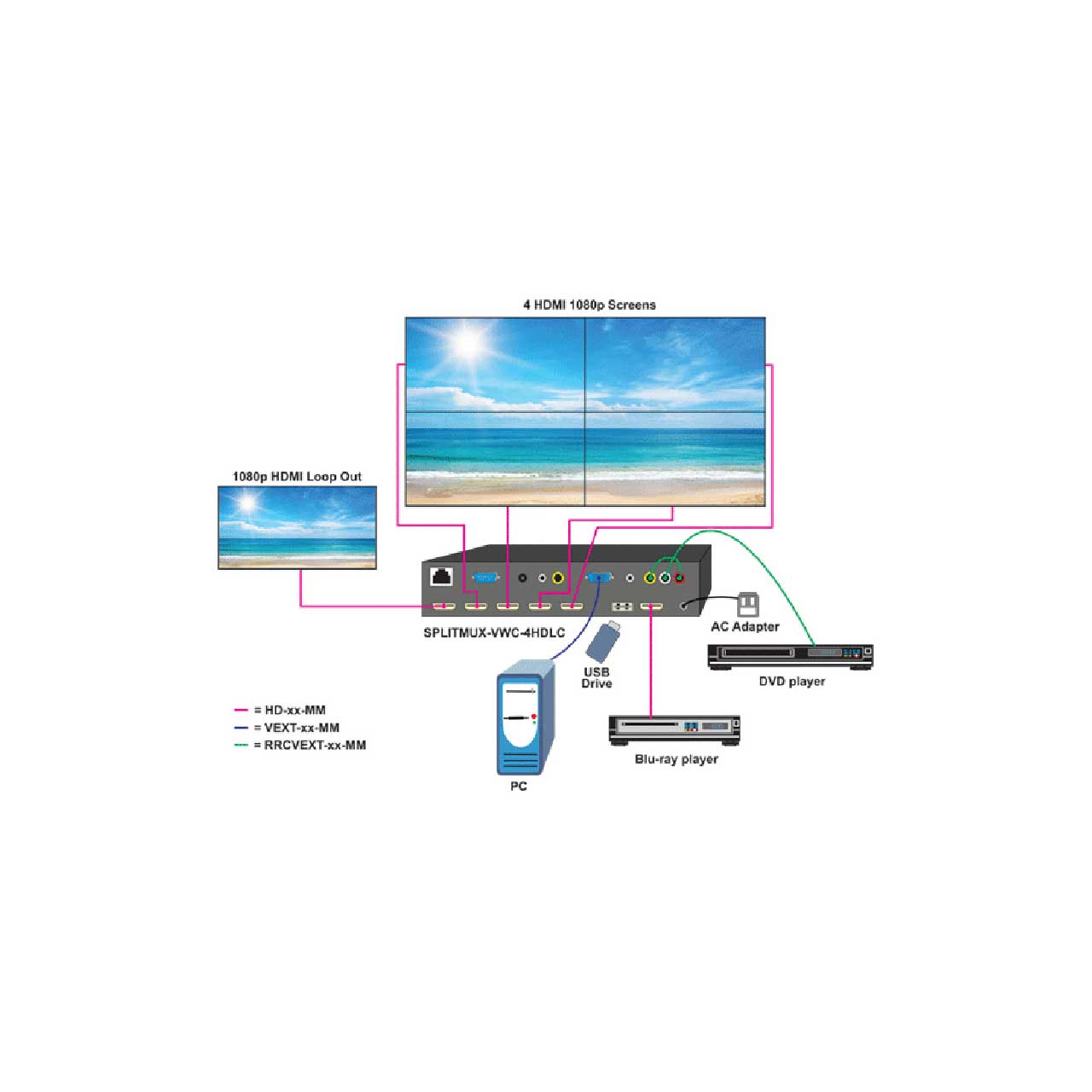

    The SPLITMUX-VWC-4HDLC is a Multi-Format HD Video Wall Controller that allows you to display video from one HDMI, VGA or composite video source across four 1080p HDMI monitors. Two processors can be cascaded to create a video wall up to 3x3 - 9 screens. Additionally, it can be used as a video splitter, video converter and video switch.

    • Features:

      • Supports video wall configurations with displays in landscape or portrait orientations.
      • Landscape (horizontal) orientation: 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
      • Portrait (vertical) orientation: 1x2, 1x3, 1x4
      • Cascade two processors to create video walls with up to 9 screens - 2x3, 3x2, 2x4, 4x2, and 3x3.
      • Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image.
      • Independent video in to video out resolution.
      • Supports HDTV resolutions to 1080p.
      • HDMI features supported:
      • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
      • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS.
      • Bandwidth up to 225 MHz (6.75Gbps).
      • Lip Sync
      • HDCP compatible.
      • Fluid, real-time video performance with 60 frames per second (fps).
      • Integrated USB media player - play content from a portable USB drive.
      • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
      • Control the video wall controller through Ethernet, RS232 serial port, or IR remote.
      • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.
    • Specifications:

      • Audio/Video Input
      • 1x- female HDMI connector.
      • 1x- female 15-pin HD connector.
      • 1x- RCA composite video jack (Supports PAL, NTSC, SECAM)
      • 1x- 3.5 mm stereo audio jack.
      • 1x- set (R&L) RCA audio jacks.
      • 1x- female USB Type A connector.
      • Supported file types: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture decode and MPEG1/2, MP3 audio decode

        Audio/Video Output
      • 4x- female HDMI connectors.
      • 1x- female HDMI Loop Out connector for cascading.
      • Supported video output resolutions: 1024x768, 720p, 1360x768, 1080p
      • Input resolutions will be converted to one of these user-selectable resolutions.
      • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
      • 1x- 3.5 mm stereo audio jack.
      • 1x- digital coaxial (RCA) audio jack.

        Control Methods
      • Ethernet: 1x female RJ45 connector.
      • RS232: 1x female DB9 connector.
      • IR remote control: 1x female 3.5mm port for IR receiver (IR remote control and 38 KHz IR receiver cable included)

      • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
      • Output: 12 VDC, 2A
      • Dimensions (WxDxH): 8.27" x 5.31" x 1.75"
      • Operating temperature: 32°F to 104°F
      • Storage temperature: -4°F to 140°F
      • Operating/storage relative humidity: 20 to 90% non-condensing RH.
    • Item Includes:

      • 1x - 12V/2.0A DC power adapter
      • 1x - Operation Manual
      • 1x - 38KHz IR Receiver Cable
      • 1x - TV wall remote
      • 1x - RS232 cable
    • Warranty:

      • 2 years
