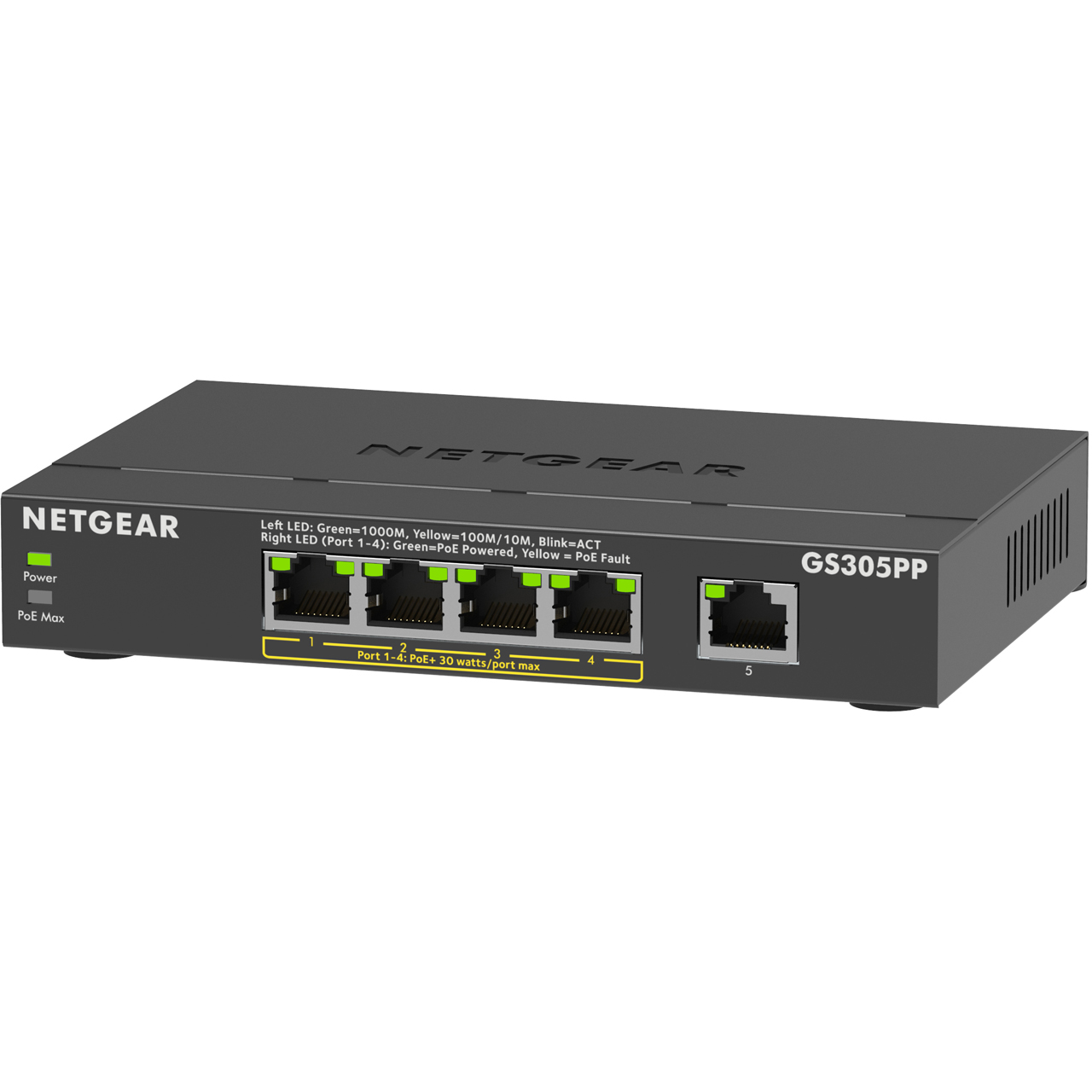

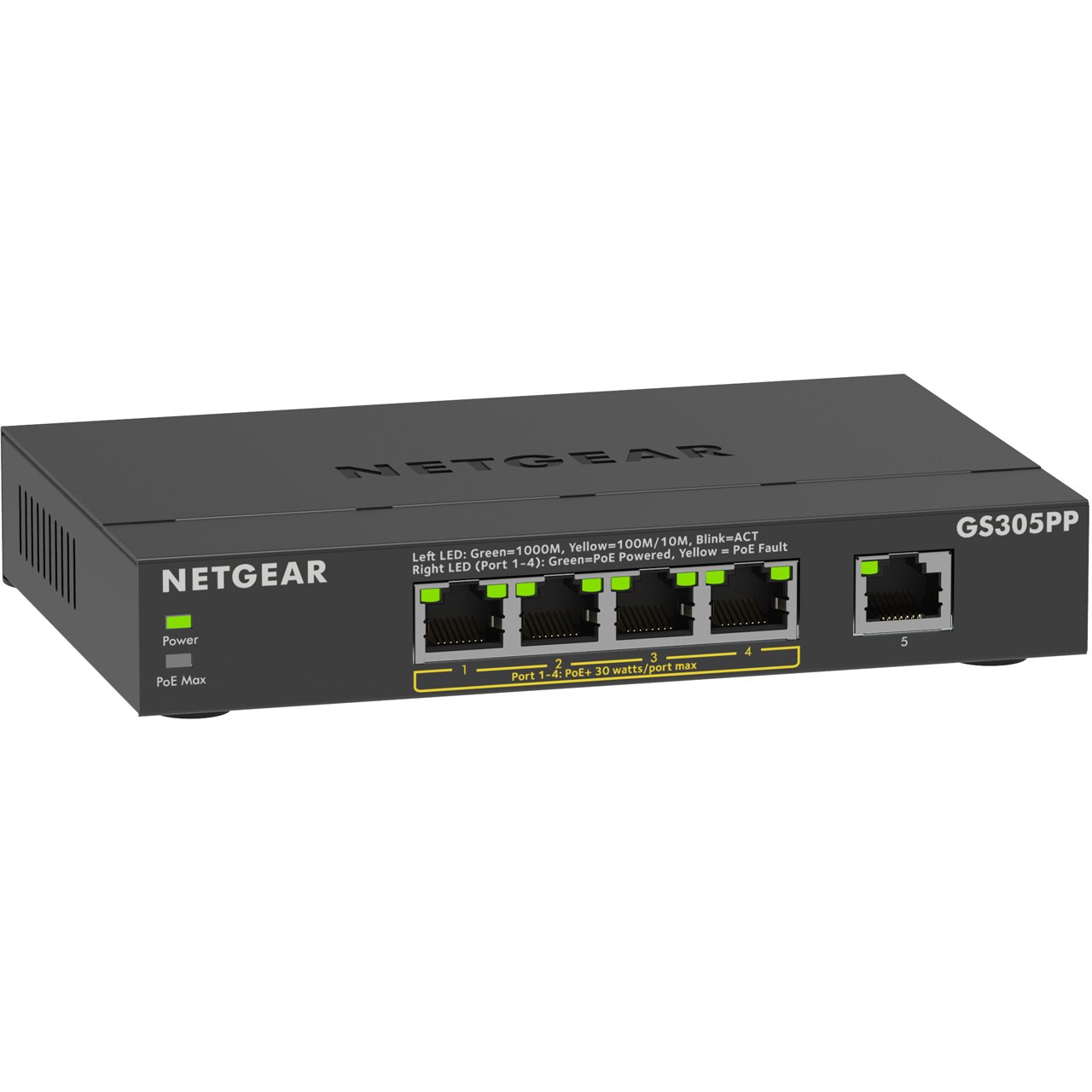

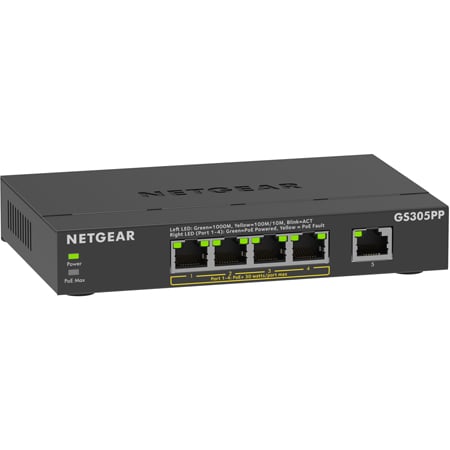

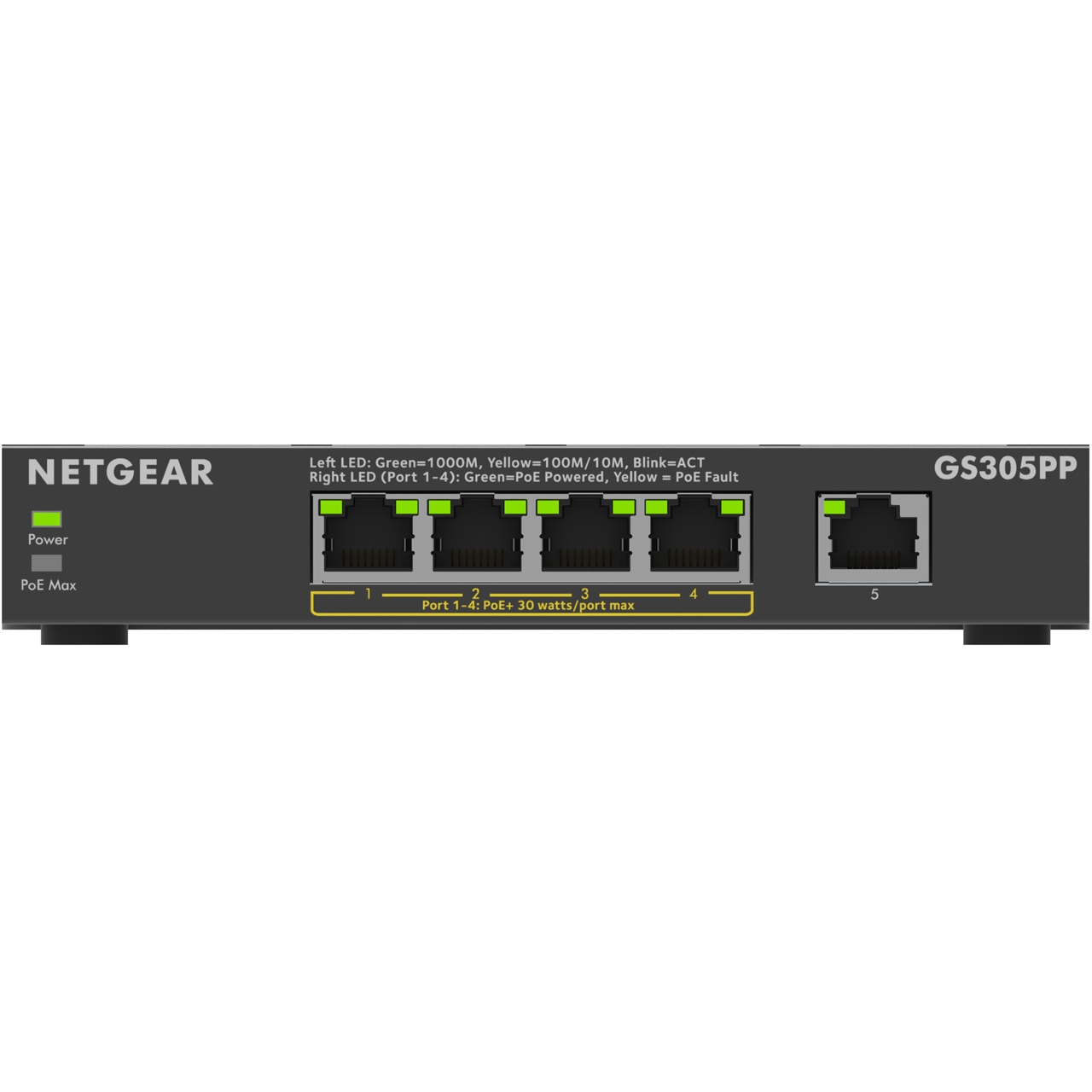

GS305PP - Overview

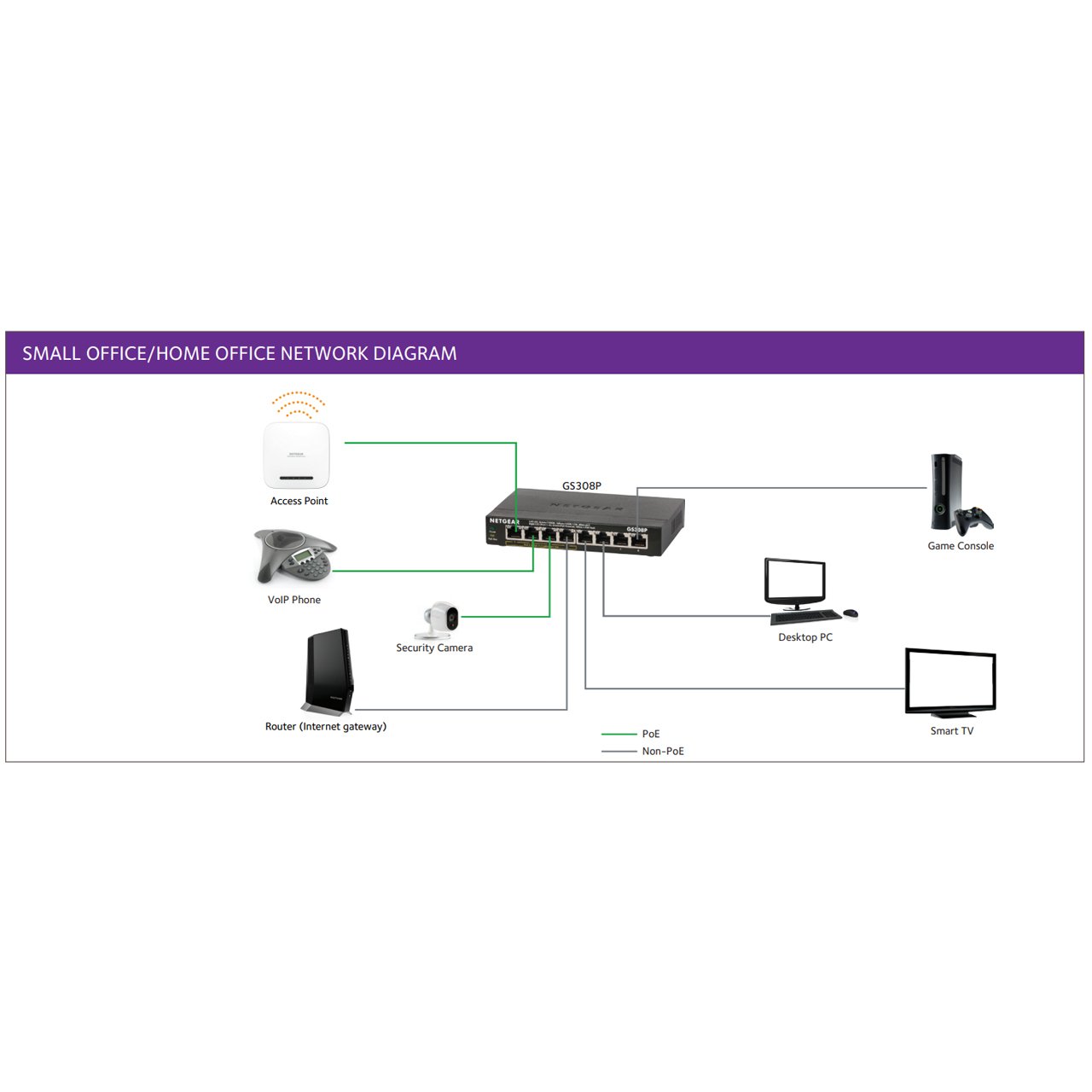

5-Port Gigabit Unmanaged Switch with 4 PoE+ Ports and 83W Power Budget to Power Wireless AP, IP Cameras, IP Phones and More

The NETGEAR GS305PP 5-Port Gigabit Ethernet Unmanaged Network Switch with PoE provides easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

Outstanding Power Flexibility with NETGEAR's Exclusive FlexPoE
The Gigabit Unmanaged Essentials PoE switches support NETGEAR's exclusive FlexPoE upgradeable PoE power feature.Powered by the industry's first flexible PoE+ integrated technology, you can increase or decrease the PoE budget by simply purchasing a new NETGEAR. FlexPoE power supply, effectively futureproofing small business networks and budgets. With NETGEAR's exclusive FlexPoE, these two switches help businesses cost effectively increase their power budget to expand their network as needed.

All ports support PoE/PoE+ up to 30W per port, which makes them the perfect switches for deploying Wireless APs, Pan/ Tilt/Zoom and fixed IP Cameras, VoIP Phones, access-limited security door locks or any other IoT PoE-powered devices.

The Gigabit Unmanaged Essentials PoE switches have copper Gigabit Ethernet PoE+ ports featuring NETGEAR FlexPoE power. The GS305P with 63W, GS305PP with 83W, GS308PP ships with 83W of PoE budget, GS316P ships with 115W, and the GS316PP features an astounding 183W of PoE power budget.

  • Features:

    • 5 Gigabit ports
    • Simple set up with no software to install or configuration needed and zero maintenance
    • Non-blocking switching architecture for maximum throughput at wire speed
    • 4 PoE ports with 83W total power budget to power wireless AP, IP Cameras, IP Phones and much more
    • NETGEAR's unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.
    • The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
    • Designed to optimize power usage lowering its cost to operate.
    • Metal Case - Durable and Rugged
    • Supports desktop and wall placement. Includes wall mount kit in the box
    • Ensure interoperability with any standards-based PDs

  • Specifications:

    • Speed: Gigabit
    • Number of Ports:
      - 4 PoE ports
      - 4 PoE+ @ 30W each until budget is met
    • PoE Budget: Up to 83W Total
    • Energy Efficient Ethernet Support: Yes - Compliant with IEEE802.3az Energy Efficient Ethernet mode
    • Jumbo Frame Support: 9,216 bytes
    • MAC Table Size: 2k
    • Packet Buffer Size: 128K
    • PoE Auto Balance: Yes - Balances the PoE power per port based on the device needs independent of PoE class detected
    • Optional Modules and Accessories:
      - EPS130W 130W External Power Adapter (Included)
      - EPS200W 200W External Power Adapter (Optional, up to 183W PoE+ Budget)
      - EPS90W 90W External Power Adapter (Optional, lower to 76W PoE+ Budget)
    • Protocols:
      - IEEE 802.3ab 1000BASE-T Gigabit Ethernet
      - IEEE 802.3u 100BASE-TX Fast Ethernet
      - IEEE 802.3i 10BASE-T Ethernet
      - IEEE 802.3x Flow Control
      - IEEE 802.1p Priority QoS (all models)
      - IEEE 802.3 CSMA/CD
      - 802.3az Energy Efficient Ethernet
    • Dimensions: 6.2" x 4.0" x 1.1" (158mm x 101mm x 27mm)
    • Weight: 0.88lbs (0.40kg)

  • Item Includes:

    • 1x NETGEAR GS305PP 5-Port Gigabit Ethernet Unmanaged Network Switch with 4-Ports PoE/PoE+ - 83W
