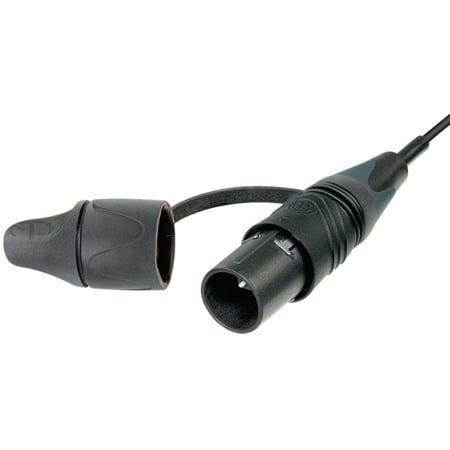

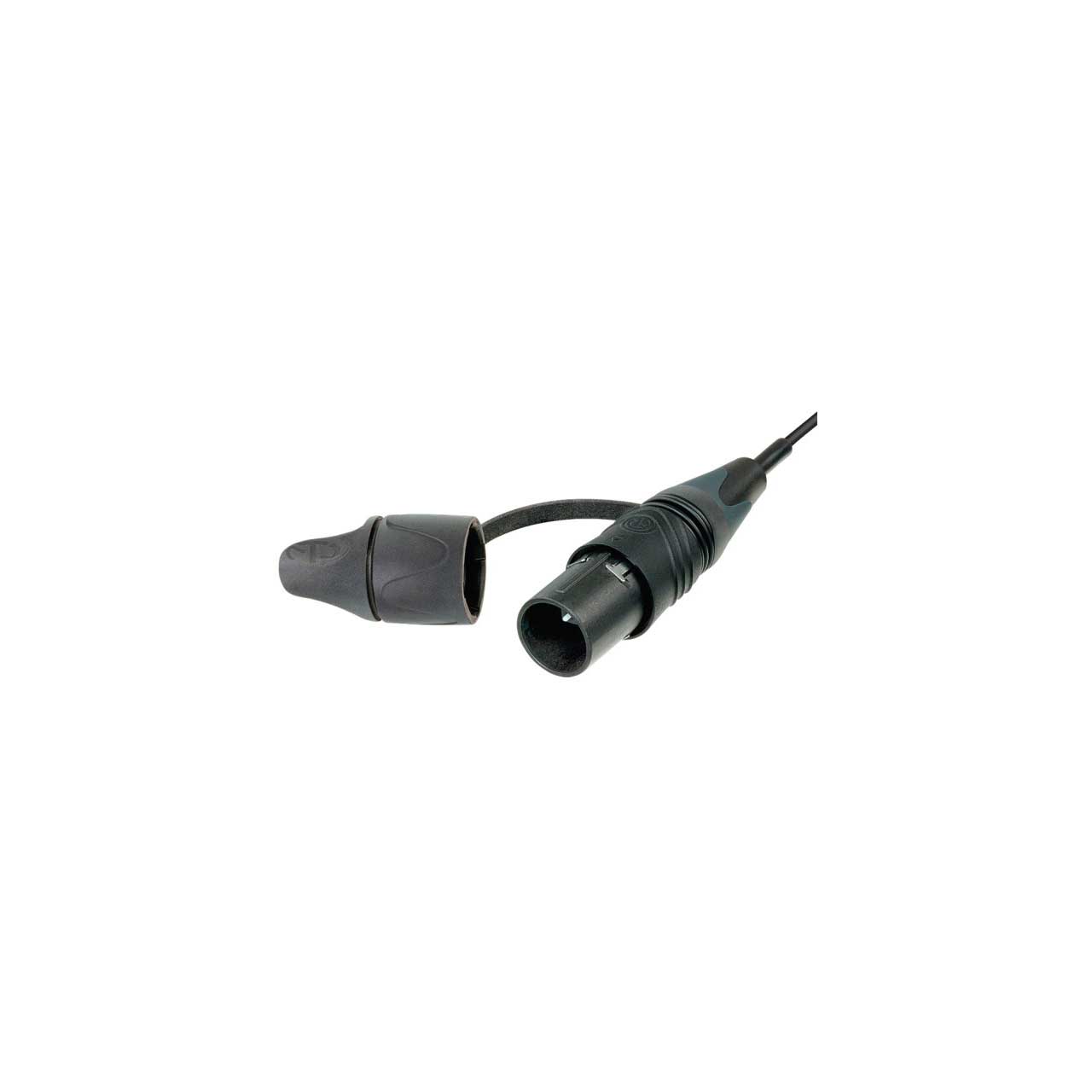

NEUTRIK NKO2S-L-0-3 opticalCON DUO LITE Single Mode Fiber Optic Cable - 3 Meter

ITEM #: NKO2S-L-0-3 MFG #: NKO2S-L-0-3

Primary Image
Free Shipping with $49 Minimum Order


Item unavailable.Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email


Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


NKO2S-L-0-3 - Overview

2 channel fiber system, improved bending performance due to new fiber design, black matte outer jacket, available in multi- and single-mode (PC or APC). Designed for temporary and permanent installations. The opticalCON DUO LITE cable connector accommodates a standard optical 1.25mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths. opticalCON LITE is a semi-rugged fiber optic connection for a wide variety of applications: its lightweight, compact design, robust housing, and high mating cycles provide a safe and cost-effective connection. Employing a novel fiber structure, the cable used with opticalCON LITE is designed to meet the extreme conditions of the entertainment industry. The cable offers excellent bending performance, a compact design and extreme flexibility that far exceed the mechanical strength of conventional patch cables.

  • Features:

    • Ruggedized 2 channel fiber optic connection system
    • Cost optimized fiber connection for semi and permanent installation
    • Waterproof acc. to IP65 safety standard in mated condition
    • Lightweight plastic housing
    • Reliable Push-Pull locking mechanism
    • Easy to clean, no special tools required
    • Compatible with standard opticalCON DUO chassis NO2-4FDW-A*

  • Specifications:

    • Number of Fibers: 2
    • Fiber Type: Single-mode
    • Fiber Standard: G.657.A2
    • Core Diameter: 9 µm
    • Cladding Diameter: 125 µm
    • Primary Coating Diameter: 500 µm
    • Secondary Buffer Diameter: 900 µm
    • Numerical Aperture 0.20
    • Proof Test Level: 100 kpsi
    • Wavelength: 1310 nm/ 1550 nm
    • Attenuation: 0.35 dB/km (1310 nm)
    • Attenuation: 0.21 dB/km (1550 nm)
    • Nominal Dispersion Slope: - 0.092
    • Cable Surface: PVC jacket (black)
    • Cable Weight: 9.98 kg/km
    • Cable Diameter: 3.0 mm
    • Installation Max. Tensile Load: 1000 N
    • Installation: Min. Bend Radius: >45mm
    • Operation Max. Tensile Load: 500 N
    • Operation Min. Bend Radius: >30mm
    • Impact Resistance: 20 impacts (EIA/TIA-455-25B military req.)
    • Crush Resistance: 644 N/cm (TIA/EIA-455-41A military req.)
    • Operation Temperature: -20°C - 75°C
    • Storage Temperature: -40°C - 85°C
    • Bend optimized: Yes Laser optimized: No
