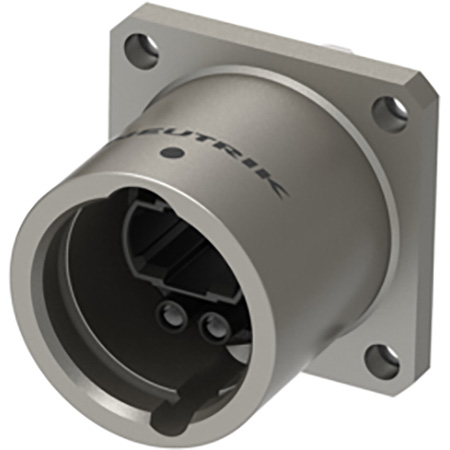

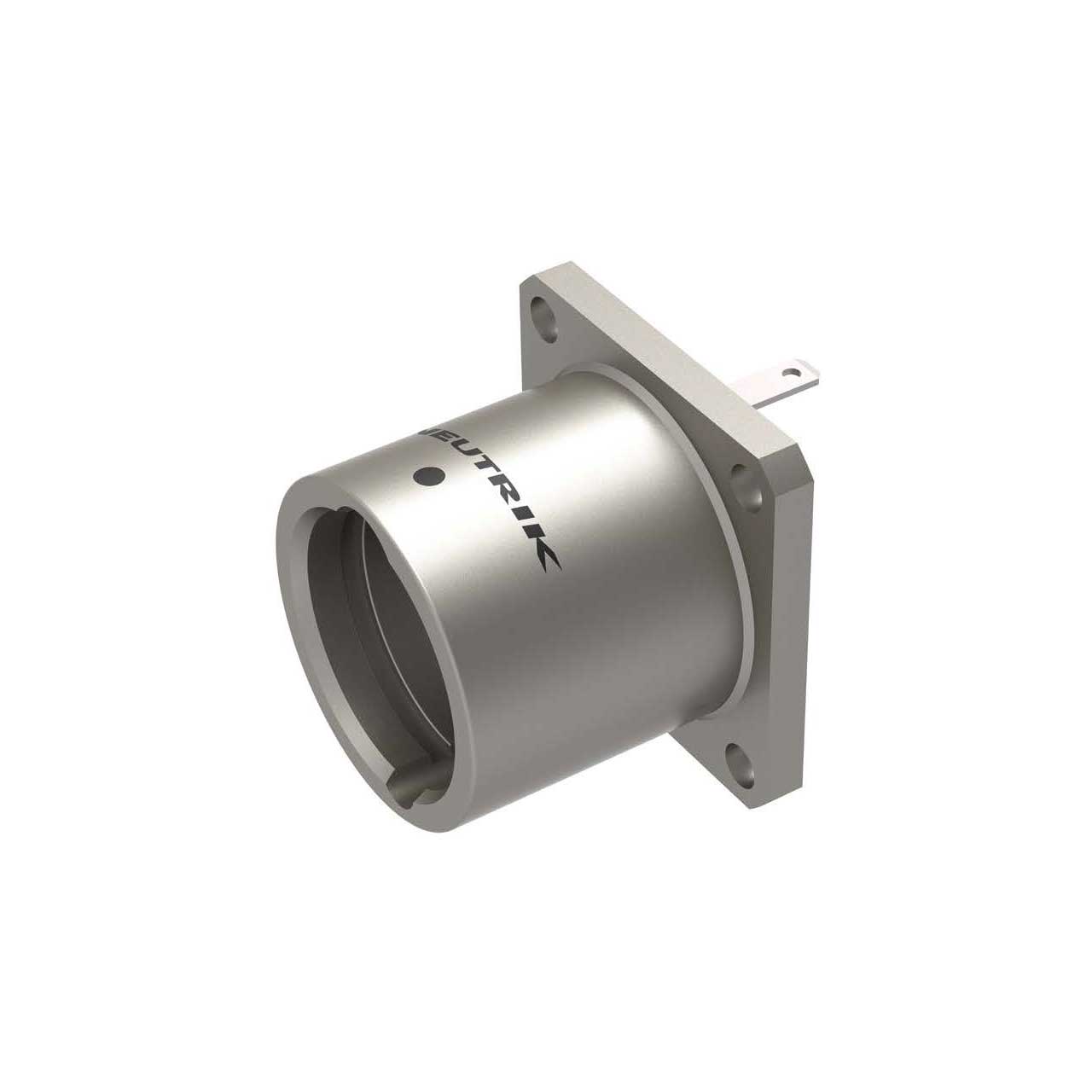

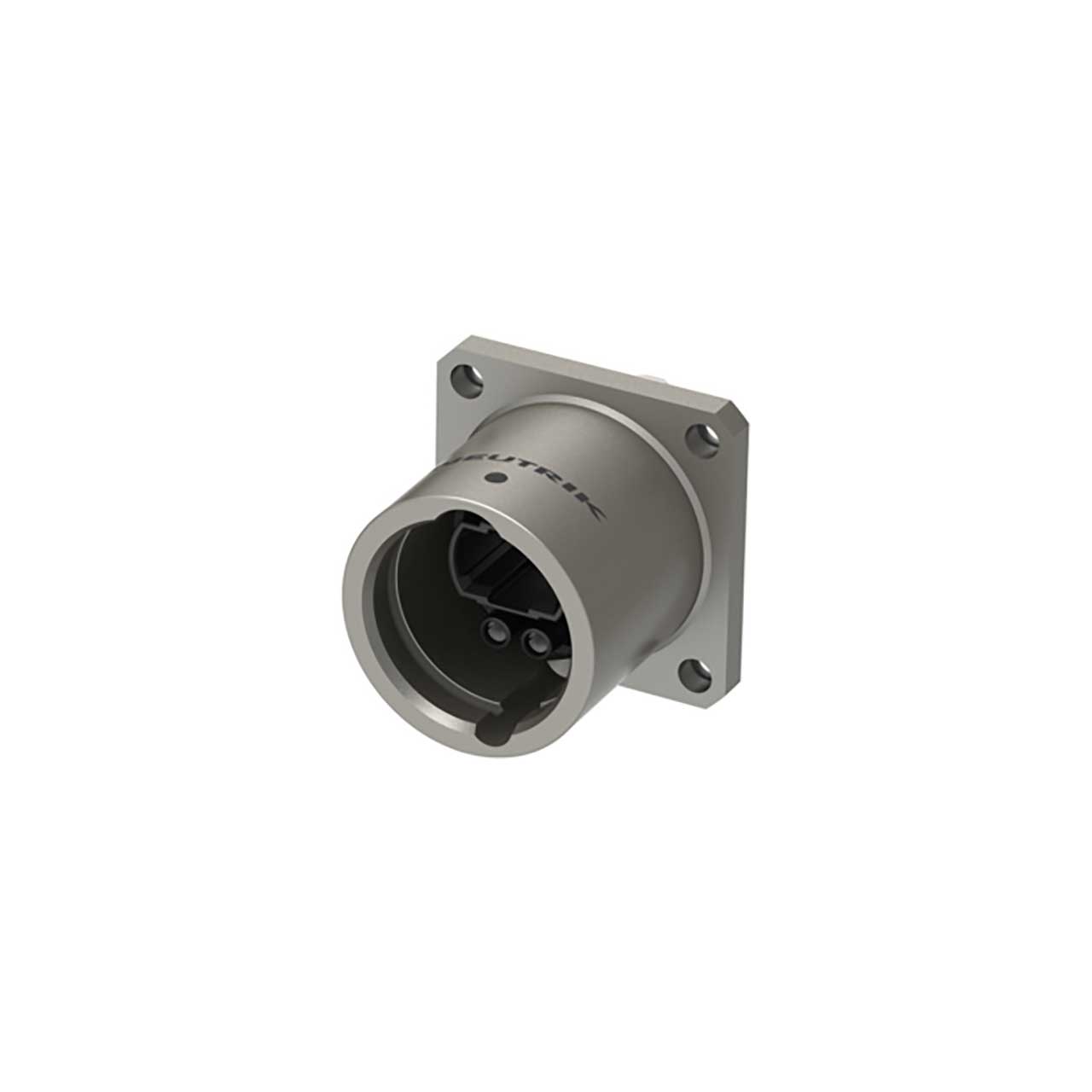

Neutrik NO2FW-XP opticalCON DRAGONFLY SMPTE Hybrid Chassis Mount Connector - Female
  • Neutrik NO2FW-XP opticalCON DRAGONFLY SMPTE Hybrid Chassis Mount Connector - Female
  • Neutrik NO2FW-XP opticalCON DRAGONFLY SMPTE Hybrid Chassis Mount Connector - Female

Questions? Ask a Markertek Expert:
800-522-2025 Email

Neutrik NO2FW-XP opticalCON DRAGONFLY SMPTE Hybrid Chassis Mount Connector - Female

Manufacturer: Neutrik USA Inc

Item #: NO2FW-XP   •   MFG #: NO2FW-XP




Our Price:$130.47

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Neutrik NO2FW-XP female SMPTE Hybrid chassis connector with ruggedized anticorrosive plating, 4 crimp contacts, 1 XB2 feedthrough socket and 1 shell ground contact for SMPTE cable shield. Waterproof acc. to protection class IP68 in mated condition with sealing kit SCXP-F. The connector comes pre-assembled.

    The chassis connector acts as a feedthrough allowing simplified installations by connecting a XB2 patch cable on the rear. The chassis cut-out has the same size as common standard broadcast cut-outs and is therefore simple to integrate into existing systems. Additional dirt and dust protection: SCNO2FW-XP sealing cover.

    Expanded Beam Meets Broadcast & AV
    Neutrik's opticalCON DRAGONFLY fiber optic connector series offers advanced lens technology for the Broadcast and AV Market with a more robust, reliable and easier to maintain system than common SMPTE hybrid camera signal transmission systems. DRAGONFLY is based on the patented XB2- Technology. Its innovative fusion splice high performance lens transmits UHD 4K and 8K signals with very low loss as the signal surface of the XB2 lens is 322 times bigger than physical contact surfaces. This further results in low insensitivity against dust and dirt.

    The DRAGONFLY connector offers long life with very low maintenance. It can also withstand harsh and demanding environments and is dust and moisture insensitive. Additionally, DRAGONFLY is robust against vibration and therefore has low potential for damage. And if there ever is a problem, DRAGONFLY is field repairable. With this new technology, DRAGONFLY provides a complete solution for the Broadcast and AV Market.


    • Features

      • 1 MPO cut-out for XB2 Patch Cord
      • 2 Signal Contacts
      • 2 Power Contacts
      • 1 Ground Contact
      • IP68 in mated condition with SCXP-F
      • High performance - low loss
      • Consistent Quality
      • 100% Reliable Even at Extreme Temperature Fluctuations
      • Permanent Connection
      • SMPTE Hybrid Connection - Power & Data Over One Connection
      • Low Maintenance Interval
      • Easy Switching to DRAGONFLY- Fits into Standardized SMPTE Hybrid Cutouts
      • Easy Cleaning with Compressed Air and Water
      • Competitive price ROBUST AND RELIABLE
      • Extremely Robust System
      • Reliable Push/Pull Locking Mechanism
      • Dust and Waterproof According to IP68
      • Proven Anti-kink Boot Design
      • Long life - 10.000 Mating Cycles

    • Specifications

      • Product
      • Title: NO2FW-XP
      • Gender: female

        Electrical
      • Contact resistance: < 7 mΩ
      • Insulation resistance: > 10 GΩ (initial)
      • Mains:
        240V AC / 10A / 50Hz
        120V AC / 10A / 60Hz
        300V DC / 7A
      • Sense:
        42V AC peak / 1-3A / =1kHz
        60V DC / 1-3A

        Mechanical
      • Insertion force: < 45 N
      • Withdrawal force: < 45 N
      • Lifetime: 10000 mating cycles
      • Locking force: 900 N
      • Locking device: Push-Pull
      • Mounting direction: Front mounting
      • Chassis shape: Common standard Broadcast cut-out
      • Wiresize (power): max. 16 AWG
      • Wiresize (sense): max. 24 AWG

        Material
      • Contacts: Brass
      • Insert: Polyetherimide and Polycarbonate (PEI+PC)
      • Shell: Zinc diecast and Polyoxymethylen
      • Shell plating: Nickel
