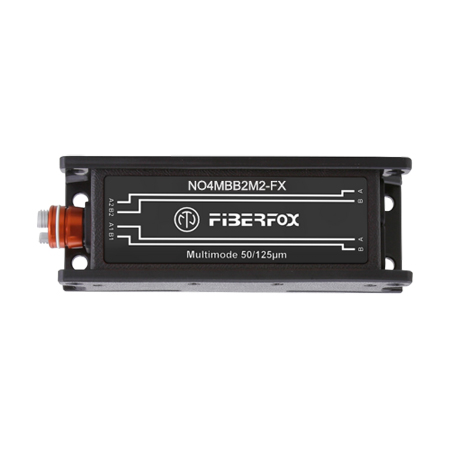

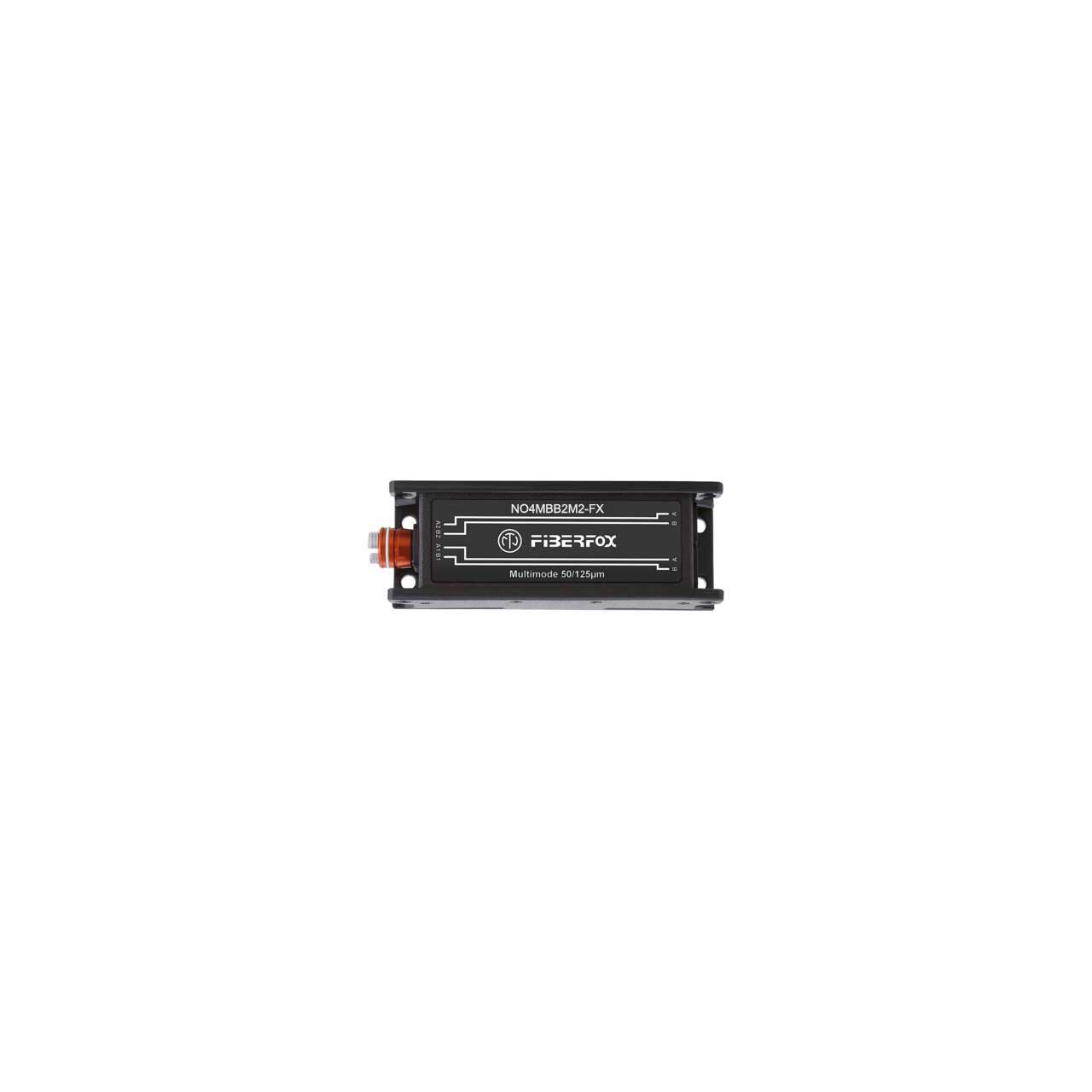

Neutrik NO4MBB2M2-FX FIBERFOX Adapter Box - Fiber Channel Splitter - 1x EBC1504MM to 2x EBC1502MM IP65

ITEM #: NO4MBB2M2-FX MFG #: NO4MBB2M2-FX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,866.22

Our Price:

$1,599.61

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NO4MBB2M2-FX - Overview

    The Neutrik NO4MBB2M2-FX is a ruggedized and weatherproofed FIBERFOX Adaptor BOX split fiber channel point-to-point connection to extend cable length.FIBERFOX Expanded Beam Fiber Optic Connectors are designed to meet the requirements of MILDTL-83526 Military Specifications. Expanded Beam fiber optic connectors are designed to operate in harsh environments, they use nonphysical contact fiber optic termini that are IP68 sealed behind an anti-reflective coated ball lens.

    This lens expands the beam to many times its original size aiding optical alignment and minimizing the effects of dust, debris and other environmental conditions. Because there is no wear on the optical surfaces / end faces of the termini during use, the FIBERFOX connector has excellent durability, in excess of 5000 mating cycles, providing a long service life interconnect solution. FIBERFOX is a hermaphroditic connector allowing multiple plug-to-plug cable assemblies to be combined to extend the length of the system. These connectors are available with two or four channels multimode lenses.

    In addition to the standard plugs, FIBERFOX briDge receptacles are suitable with standard LC Patch Cables and acts as a unique LC to Expanded Beam converter.

    Applications:
    Lighting
    Network
    PA
    Video
    Broadcast
    Defense & Government
    Railway and Oil & Gas for Communications
    Audio/Video
    Sensing

    • Features:

      • High-impact resistant Easylen® housingIncluding safety holes and clip rails for rig clamps or accessoriesM10 thread at the bottom
      • Ø = 5.5 mm, PUR flame-retardant, halogen-free, bent tolerant Cable
      • Heavy-duty, connectors IP68 (even unprotected)
      • Cables are direct prolongable, no couplers required
      • Wear-free connectors, > 5’000 mating cycles without any maintenance
      • No special cleaning or measurement tools required
      • Compatible with 2CH FIBERFOX System and all MILDTL-83526 Systems

    • Specifications:

      • Gender: Hermaphroditic
      • Mounting Direction: Front & Rear Mounting
      • Chassis Shape: D-shape
      • Locking device: Screwed
      • Fiber Type: Multimode
      • Insertion Loss:
        Typical 0.9 dB / Connect
        Maximum 1.45 dB / Connect
      • Return Loss: N/A
      • Wavelengths: 850 nm / 1300 nm
      • Lifetime: > 10000 mating cycles
      • Tensile Strength: 1800 N
      • Compressive load: 50000 N
      • IP Rating: IP68 (mated and unmated)
      • Free fall Resistance: 500 falls onto concrete from 1.2 M height
      • Bump Resistance: 4000 bumps @ 40 g acceleration
      • Vibrational Sinusoidal: 10-500 Hz, 0.75 amplitude @ 10 g acceleration
      • Compatibility: MIL-DTL-83526
      • Flammability: UL94 V-0
      • Temperature Range: -40° to 158°F (-40° to +70°C)
