NTI ST-C6DP4K-131 XTENDEX 4K 9Gbps DisplayPort 1.2a HDBase-T Extender via One CAT6a/7

ST-C6DP4K-131 - Overview

• Features:

  • Transmits an uncompressed DisplayPort signal over a single CATx cable.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz 4:4:4, and HDTV resolutions to 1080p @60Hz.
  • Compliant with DisplayPort v1.2a specifications.
  • Video bandwidth up to 9Gbps.
  • HDCP compliant.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Resolutions to Ultra-HD 4Kx2K 30Hz 4:4:4
  • DisplayPort 1.2a


• Specifications:

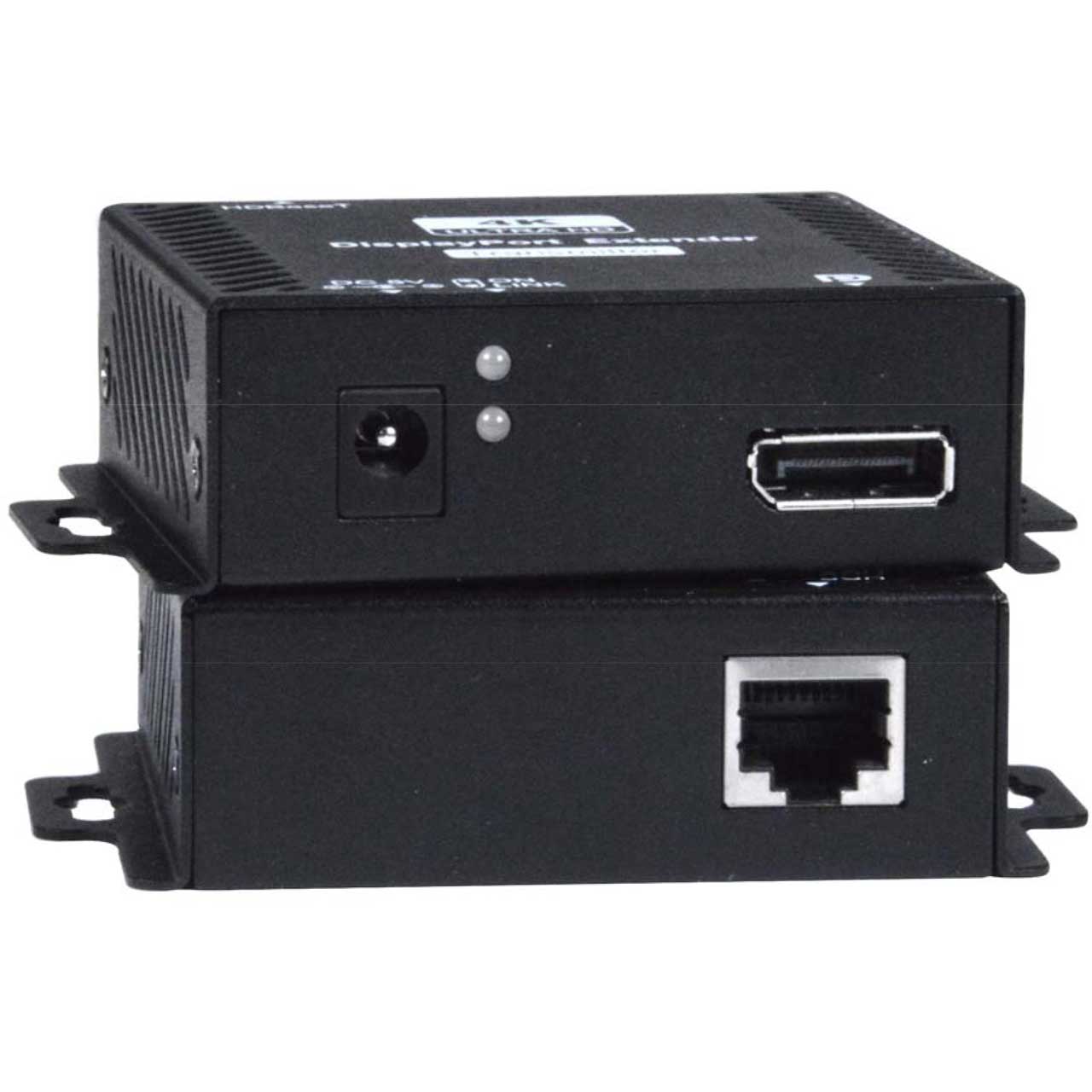

  • Local Unit
  • One female DisplayPort connector for video source.
  • One female RJ45 port for sending UHD video and audio.
  • HDCP compliant.

    Remote Unit
  • One female DisplayPort connector for display.
  • One female RJ45 port for receiving UHD video and audio.
  • Supported video resolutions: Ultra-HD 4Kx2K 30Hz 4:4:4 resolutions (3840x2160 and 4096x2160 @30Hz). HDTV resolutions to 1080p (1920x1080@60Hz).
  • Supports embedded digital audio through DisplayPort compatible displays or audio receivers.
  • HDCP compliant.
  • Max data rate: 9Gbps

    Power - Local and Remote Unit
  • Input: 100 to 240 VAC at 50 to 60 Hz via AC adapter.
  • Output: 5VDC, 2A
  • Power consumption: Local unit: 5W, Remote unit: 8W

    Dimensions
  • WxDxH (in): 3.62x2.72x0.98 (92x69x25 mm)

    Environmental
  • Operating temperature: 14 to 113°F (-10 to 45°C).
  • Storage temperature: -22 to 158°F (-30 to 70°C).
  • Operating and storage relative humidity: up to 95% non-condensing RH

    Regulatory Approval
  • CE, RoHS

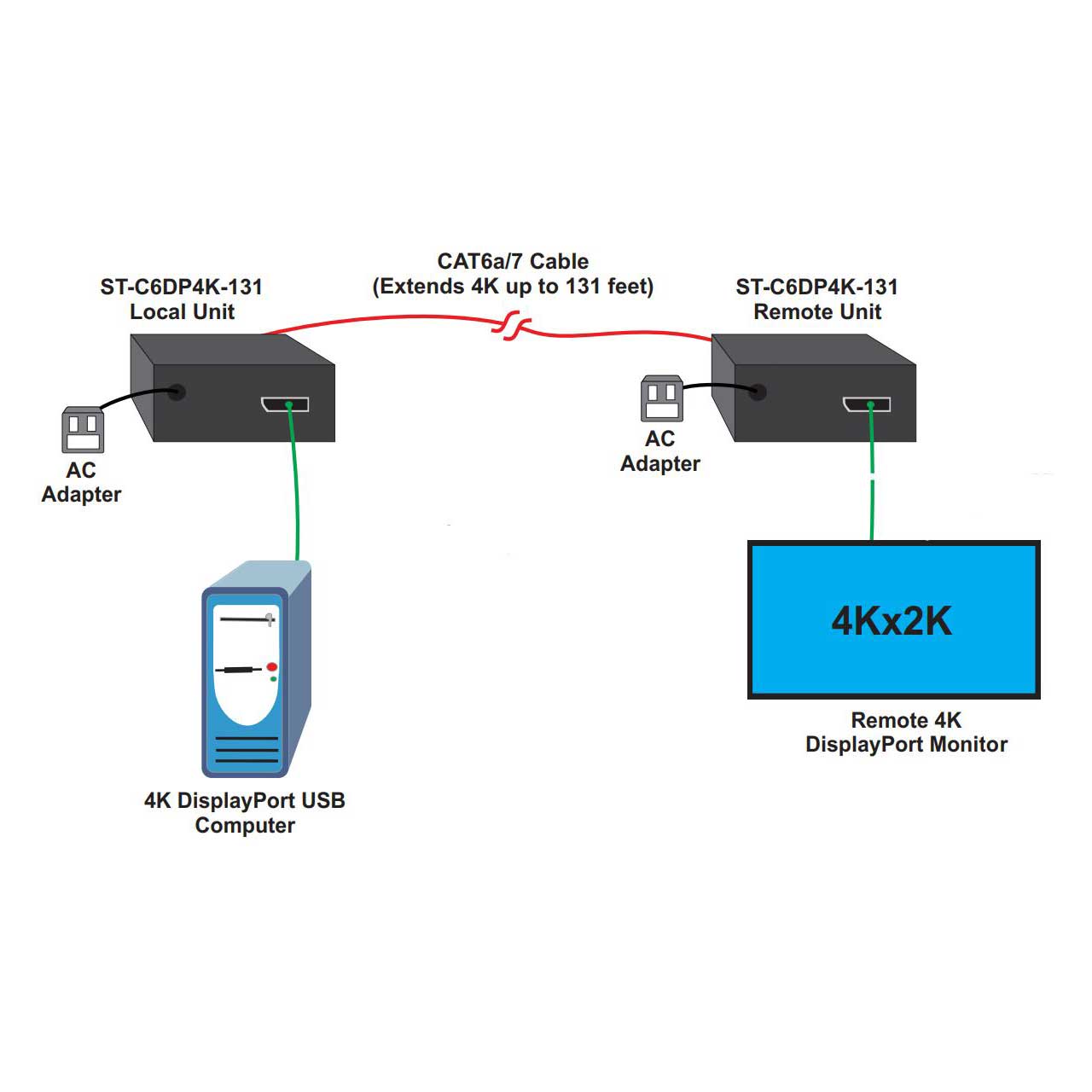

    Max Distance
  • Extend a 4Kx2K signal up to 131 feet (40 meters) with solid CAT6a/7 cable and 115 feet (35 meters) with solid CAT5e/6 cable.
  • Extend a 1080p signal up to 230 feet (70 meters) with solid CAT6a/7 cable and 197 feet (60 meters) with solid CAT5e/6 cable.
    Distances & Resolutions for CAT5e/6/6a/7 Cables:
  • CAT5e/6: 115 feet (35 meters) - 3840x2160 and 4096x2160 at 30Hz. 4:4:4 1080p at 60Hz, 197 feet (60 meters) - 1080p at 60Hz
  • CAT6a/7: 131 feet (40 meters) - 3840x2160 and 4096x2160 at 30Hz. 4:4:4 1080p at 60Hz, 230 feet (70 meters) - 1080p at 60Hz

    Cables
  • Interface cables between the video source/display and the transmitter/ receiver are required for proper operation.
  • Use DP-xx-MM to connect a DisplayPort source or display (not included).
  • Use CATx straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).


• Item Includes:

  • 1x NTI ST-C6DP4K-131 XTENDEX 4K 9Gbps DisplayPort HDBase-T Extender via One CAT6a/7


• Warranty:

  • Two years
