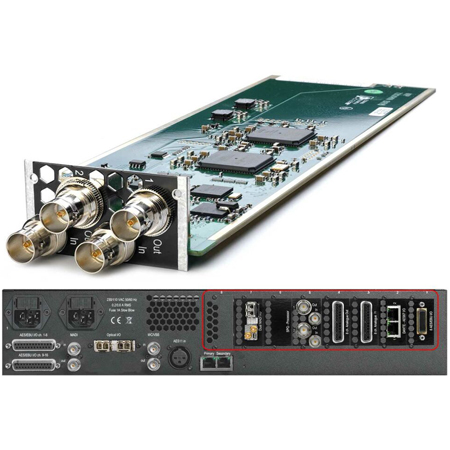

NTP CARD-SDI Dual SDI/HD/3G Embedder/Deembedder Card with SRC

CARD-2SDI - Overview

• Features:

  • 2 x SDI Embedder/de-embedder
  • 16 channels pr. SDI
  • 8 cards = 16 SDI Embedder/de-embedder
  • Supports SD, HD and 3G SDI
  • Built-in Sample Rate Converter
  • Routing of single channels


• Specifications:

  • General:
  • Signal type compliance: Serial digital video acc. to SMPTE
  • Formats: SD: 292M, 424M, 259M, SMPTE 425 A+B, 525 / 59.94Hz, 625/50Hz
  • Formats: HD: 720p / 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 Hz 1080i / 60 / 59.94 / 50 Hz 1080p / 30 / 29.97 /
    25 / 24 / 23.98 Hz 1080psF / 25 / 24 / 23.98 Hz
  • Formats: 3G: 1080p / 60 / 59.94 / 50 Hz (Level A)
  • Return Loss: > 15dB (270Mbit and 1.48 Gbit) > 10dB (2.97Gbit)
  • Input impedance: 75 Ohm
  • Connector: BNC

    SDI Input:
  • Signal Type: 3G/HD/SD with automatic video format and standard detection,
  • No. of inputs: 2
  • Cable length 3G/HD/SD: 120/180/320 m (Belden 1694A)

    SDI output:
  • Signal Type: 3G/HD/SD .Output format Follows input format
  • No. of outputs: 2
  • Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
  • Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI

    Audio I/O, processing:
  • No. of inputs/outputs: 16 channel on each SDI I/O
  • Deembedding modes: 16 channels, selectable SRC for Gr. 1 to Gr. 4, Selectable pass trough or drop for all channels
  • Embedding modes: 16 channels, selectable for Gr. 1 to Gr. 4 Pass trough, Insert synchronously, asynchronously or with
    SRC
  • Audio/Video sync: Synchronously or asynchronously with SRC
  • Sample rates: 32, 44,1 and 48 kHz.
