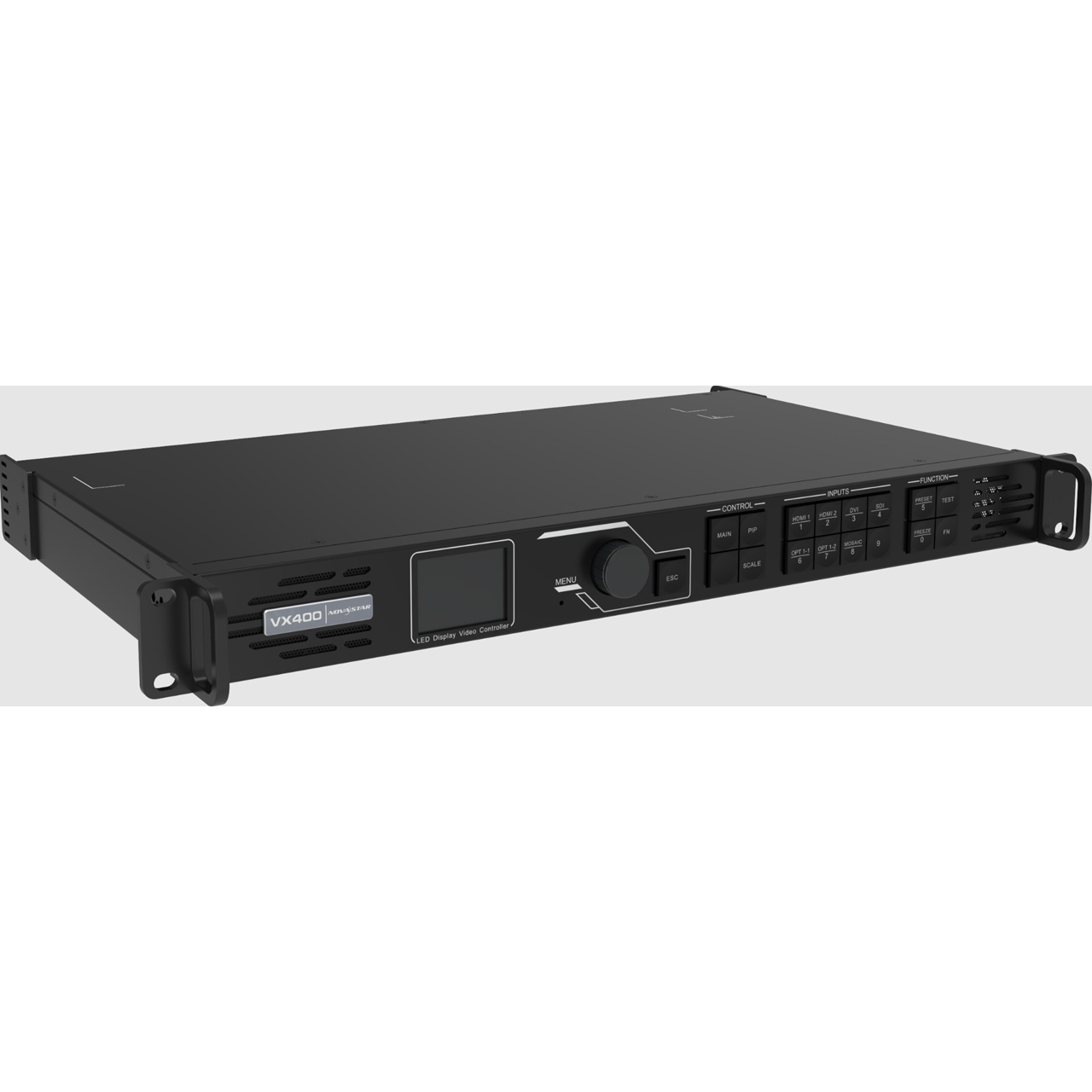

Novastar VX400 All-In-One Video Controller - 1920x1200 at 60Hz

ITEM #: NVA-VX400 MFG #:

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Novastar
Free Shipping with $49 Minimum Order

List Price:

$2,899.95

Our Price:

$1,829.99

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

- Overview

The VX400 is NovaStar's all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX400 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your in-field operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

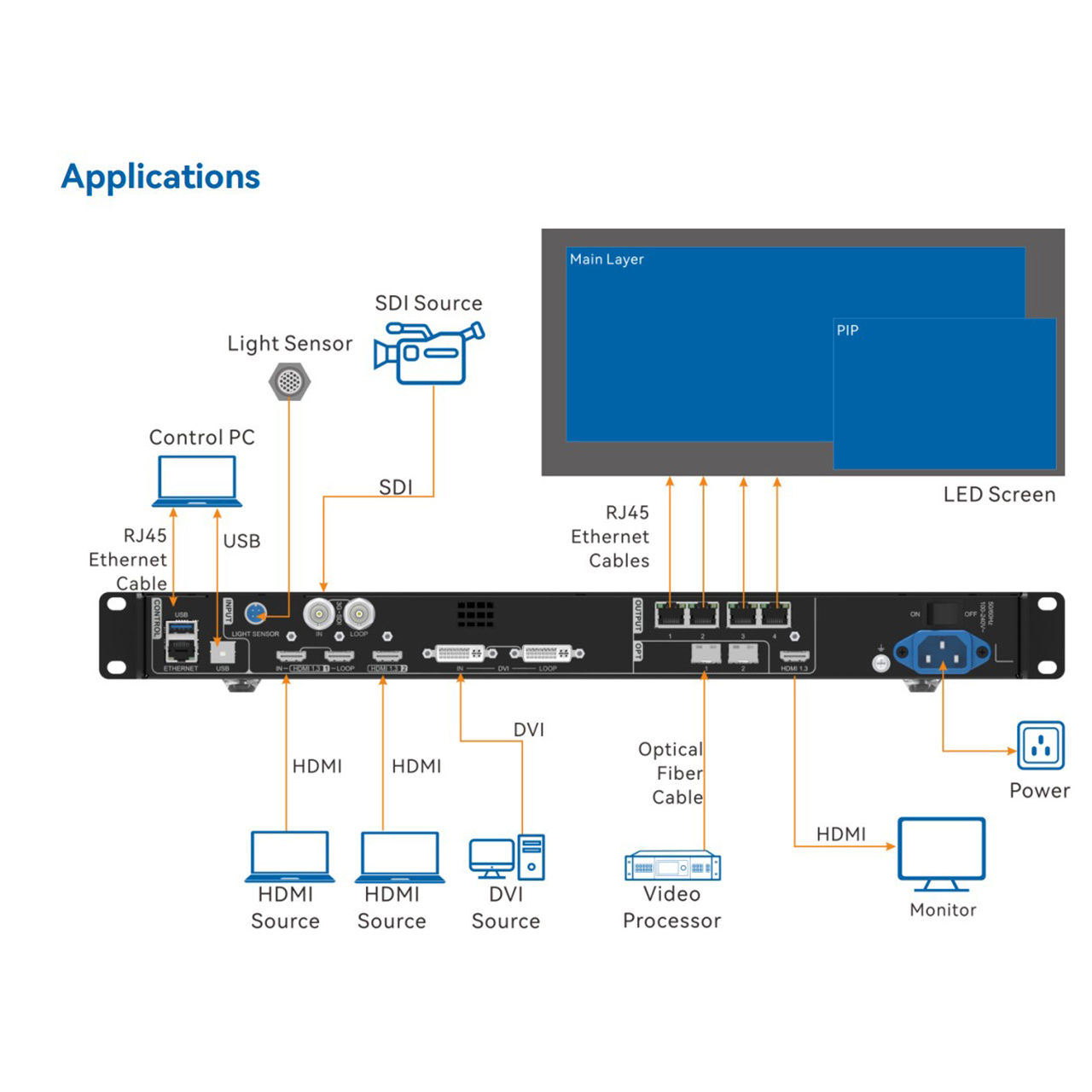

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX400 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

  • Features:

    • Six Gigabit Ethernet ports
    • A single device unit drives up to 3.9 million, pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels
    • OPT 1 copies the output on 6 Ethernet ports.
    • OPT 2 copies or backs up the output on 6 Ethernet ports
    • Self-adaptive OPT 1 for either video input or sending card output
    • Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device
    • Audio input accompanied with HDMI input source, Audio output via a multifunction card, Output volume adjustment supported
    • Low Latency - Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled


  • Specifications:

    • Loading Capacity: 3.9 million pixels
    • Max Width & Height: Width 10,240 pixels x Height 8,192 pixels
    • Layers: 3 Layers
    • Inputs:
      - 1x 3G SDI (IN & LOOP)
      - 1x HDMI1.3 (In & Loop)
      - 1x HDMI1.3
      - 1x DVI (In & Loop)
      - 1x OPT
    • Outputs:
      - 6x RJ45
      - 2x 10G OPT
      - 1x HDMI1.3 (For Monitor or Preview)
    • Genlock (In & Loop): Yes
    • Low Latency: Yes
    • Input Source Backup: Yes
    • Bypass Mode: Yes
    • Fiber Converter Mode: Yes
    • Electrical Parameters:
      - Power Connector: 100V - 240V~, 1.5A, 50/60Hz
      - Rated Power Consumption: 28W
    • Operating Environment:
      - Temperature: 14°F - 140°F (-10°C - 60°C)
      - Humidity: 20% - 90% RH, non-condensing
    • Storage Environment:
      - Temperature: -4°F - 158°F (-20°C - 70°C)
      - Humidity: 10% - 95% RH, non-condensing
    • Physical Specifications:
      - Dimensions: 19.04" x 13.83" x 1.97" (483.6mm x 351.2mm x 50.1mm)
      - Net Weight: 8.82lbs (4kg)
      - Gross Weight: 13.89lbs (6.3kg)
    • Certifications: TBD
    • Noise Level (typical at 25°C/77°F): 45 dB (A)


  • Item Includes:

    • 1x Power cord
    • 1x HDMI to DVI cable
    • 1x USB cable
    • 1x Ethernet cable
    • 1x HDMI cable
    • 1x Quick Start Guide
    • 1x Certificate of Approval
    • 1x Safety Manual
