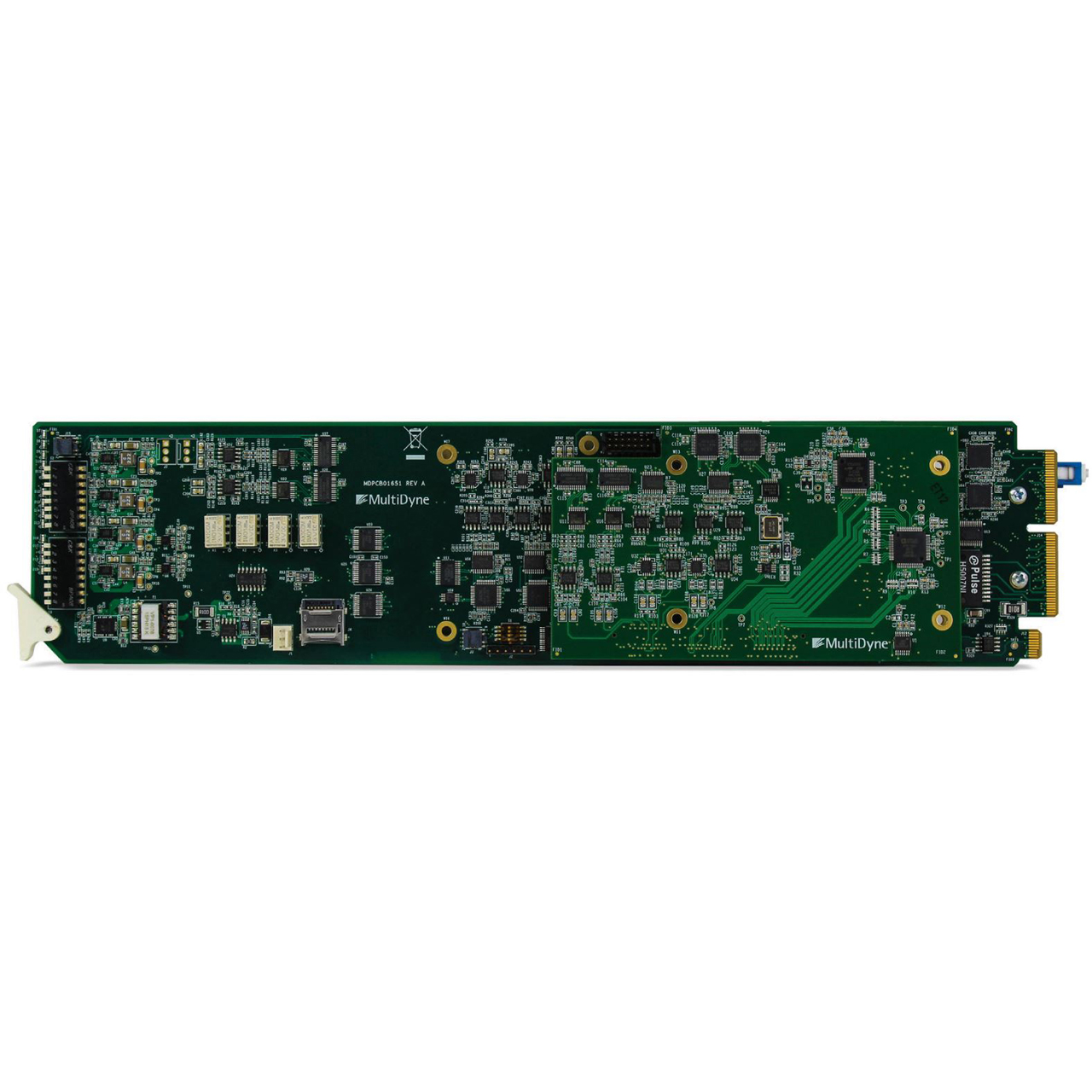

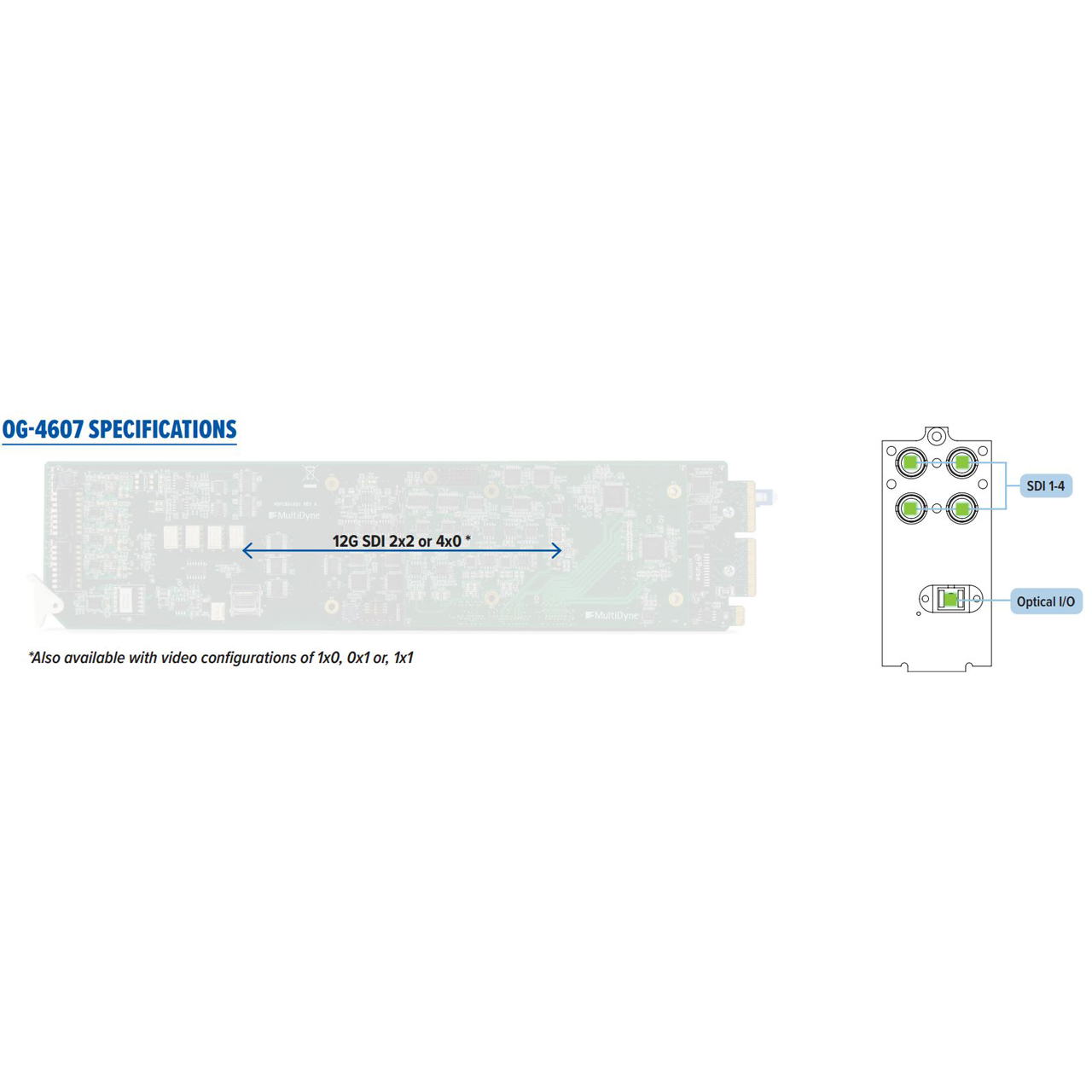

Multidyne OG-4607 Transmitter Card with 4 One-way 12G-SDI Video Channels Over Single-Mode Simplex Fiber ST Connector

OG-4607-4T-XX-XX-XX - Overview

• Features:

  • Up to 4 x 12G SDI
  • 8x8 Audio Line/AES
  • Genlock
  • Time Code, GPIO, Data
  • Ethernet


• Specifications:

  • Digital Video
  • Number of Inputs: 1 to 4 input options available
  • Number of Outputs: 1 to 4 output options available
  • Interface: SMPTE, ST292, ST424, DVB-ASI, ST2081, ST2082
  • Data Rate: 1.5Gbps, 3Gbps, 6Gbps, 12Gbps
  • Input/Output Level: 800mVp-p
  • Input/Output Impedance: 75Ω
  • Return Loss: >15 dB up to to 3 GHz
  • Jitter: < 0.2UI
  • Rise/Fall Times: < 130ps (HD)
  • Bit-error Rate: 10e-12

    Video, CVBS
  • Number of Inputs: 1
  • Number of Outputs: 1
  • Type: Analog NTSC, PAL
  • Impedance: 75Ω

    Video, Genlock
  • Number of Inputs: 1 (REF1 On OpenGear Frame)
  • Number of Outputs: 1
  • Type: Analog Black Burst (NTSC, PAL), HD Tri-Level
  • Impedance: 75Ω

    Audio
  • Number of Input Channels (mono): 4 or 8 input options available
  • Number of Output Channels (mono): 4 or 8 output options available
  • Type: Balanced. Analog Line-Level or AES3, selectable in groups of 2
  • Analog Audio:
    - Level: +4dBu nominal, +24dBu max.
    - Input Impedance: > 10kΩ
    - Output Impedance: 22Ω
    - S/N: >90db
    - Frequency Response: +/-0.1db, 20Hz - 20kHz
    - Distortion < 0.05%
  • Digital Audio:
    - Sample Rate: Up to 96kHz
    - Bit Depth: Up to 24 bits

    Serial Data
  • Number of Channels: Up to 3
  • Type: RS232, RS422
  • Data Rate: DC - 1Mbps

    Ethernet
  • Number of Channels: 1
  • Data Rate: 10/100/1000 Base-T

    Timecode
  • Number of Inputs: 1
  • Number of Outputs: 1
  • Inputs: Unbalanced, 15Vp-p max
  • Outputs: Unbalanced, 3Vp-p

    Tally/GPIO
  • Number of GPI Inputs: Up to 3
  • Number of Tally Inputs: 1
  • Number of GPI Outputs: Up to 3
  • Number of Tally Outputs: 1
  • Inputs: Short to GND or TTL Low to Activate
  • Outputs: Relay Contact Closure (30V, 2A max)

    Optical
  • Operating Wavelengths: 1471-1611nm
  • Tx Laser Output Power: 0dBm (Class 1 Laser)
  • Fiber Compatibility: Single-mode
  • Optical Connector: Types SC, ST, LC
  • Distance Limit: 40km w/Single-mode

    Mechanical, Environmental
  • Dimensions (HxLxW) openGear Form Factor: 3.025H" x 12.75L" x 3 slots
  • Environmental: 32°F - 122°F (0°C - 50°C), 0% - 95% RH, non-condensing.
  • Power Consumption: 12.5W


• Item Includes:

  • 1x Multidyne OG-4607 Transmitter Card with 4 One-way 12G-SDI Video Channels/Single-Mode/R3 Range Multiplexor - 1471-1531nm
