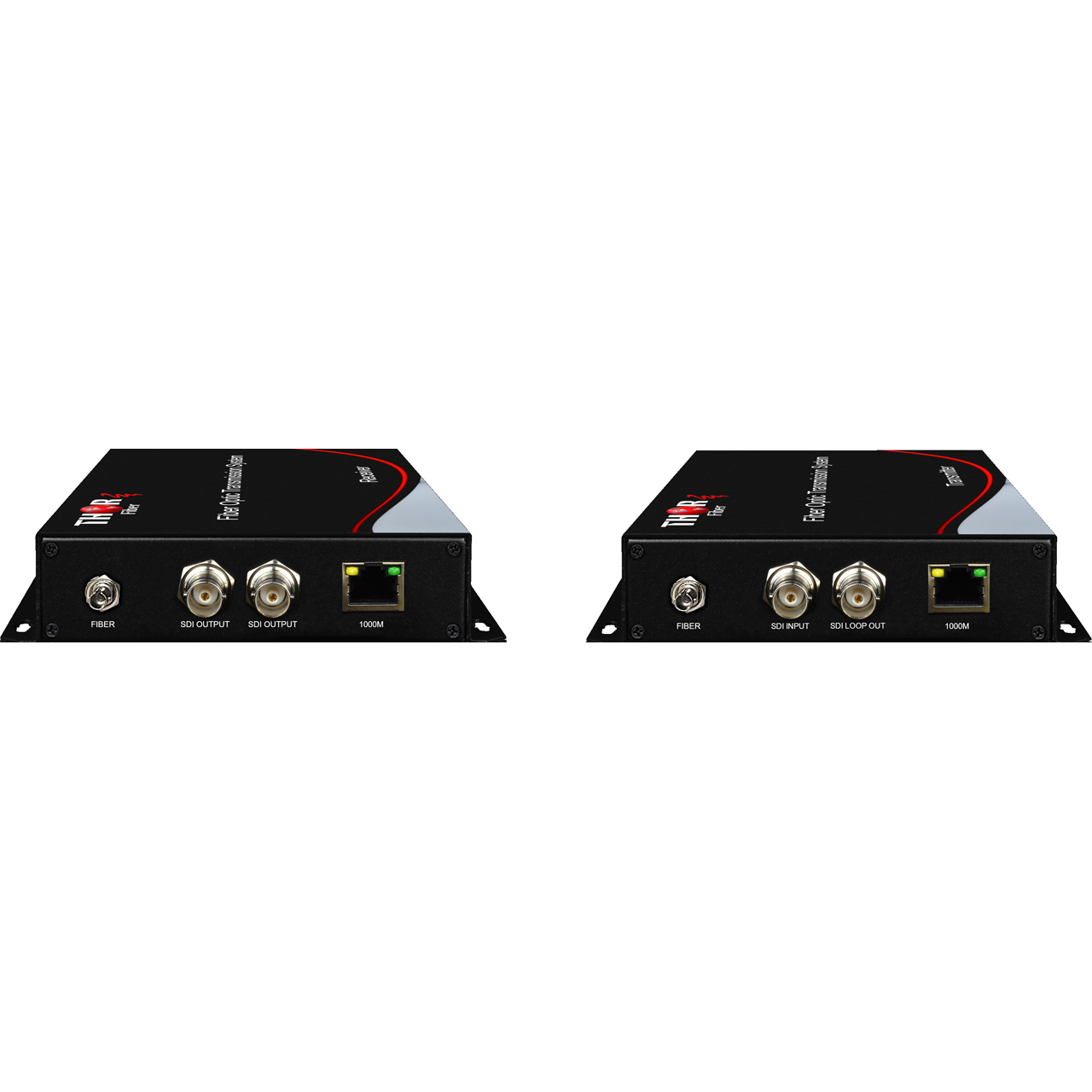

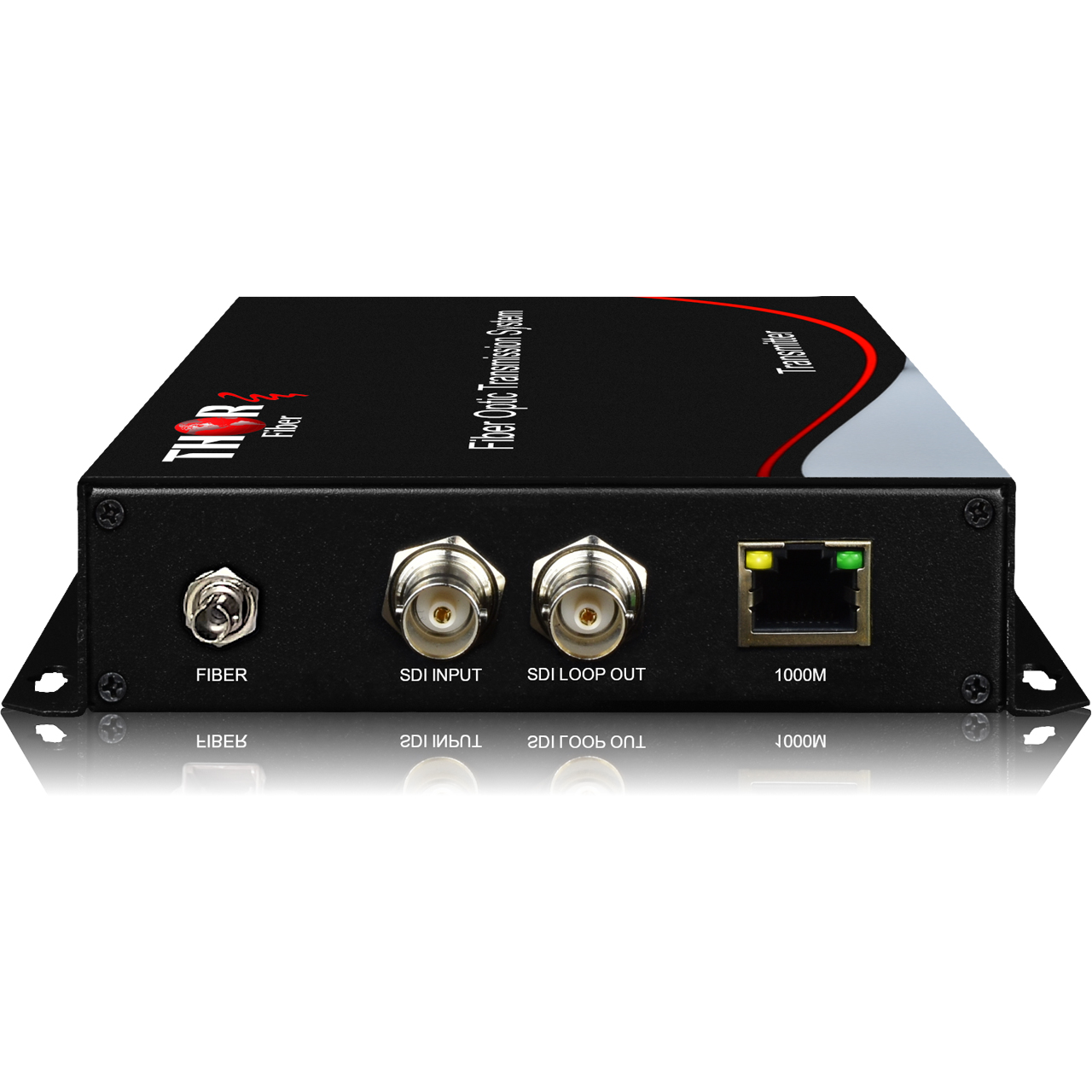

Thor Fiber F-M1SDI-3G-ET-TX/RX Portable 3G SDI and 10/100/1000 Gigabit Ethernet CWDM Extender - Singlemode - ST/PC

ITEM #: F-M1SDI3GETTX-RX MFG #: F-M1SDI-3G-ET-TX/RX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$1,794.00

Our Price:

$1,495.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F-M1SDI-3G-ET-TX/RX - Overview

SDI and Ethernet Over Fiber - 3G and 1GbE Optical Extender
Introducing the Thor Fiber F-M1SDI-3G-ET-TX/RX Portable 3G SDI and 10/100/1000 Gigabit Ethernet transport device - ViperConnect a truly unique solution on the market.

This versatile tool is perfect for a wide range of applications.

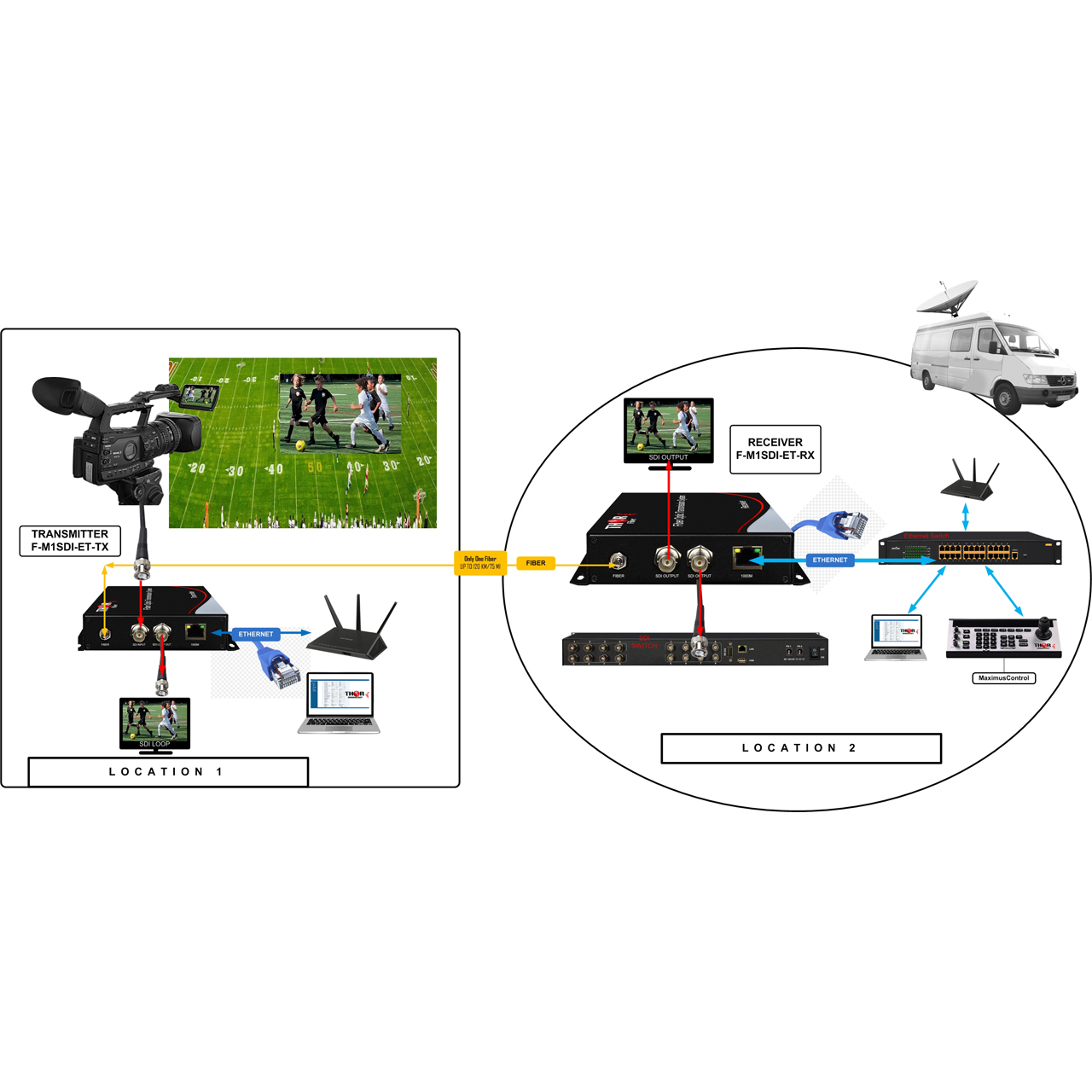

For example, customers can use it to send video from any SDI broadcast camera to the studio while providing Ethernet connectivity for PCs or IP-controllable devices.

The possibilities are endless, including WiFi extension, IP network extention, IPTV transmission, monitoring, control, file transfer, audio over IP, and Dante Audio, all alongside SDI video-over just one fiber!

This makes it an ideal choice for field operations. It's a great addition to our popular line of SDI fiber devices like Cobra.

  • Features:

    • 1-Channel forward SD/HD and 3G SDI (Full HD up to 1080p/59.94/60Hz)
    • Loop SDI output for local monitoring
    • Bi-directional 10/100/1000 Gigabit Ethernet transceiver
    • Single-mode fiber
    • ST/PC fiber connector
    • Instant transmission - 1ms
    • SDI - BNC connector
    • Ethernet - RJ45 copper connector
    • Portable
    • +5V DC Power Supply


  • Specifications:

    • Fiber Parameter - ViperConnect - 3G SDI and Gigabit Etherent fiber Extender Transceiver
    • Wavelength: CWDM - 1310nm & 1470nm ~ 1610nm
    • Fiber Type: Single mode, single fiber
    • Distance: 20km
    • Fiber Connector: ST/PC

      Video
    • Signal Type: DVB -ASI, SD-SDI, HD-SDI 3G-SDI
    • Work Standards: DVB-ASI, SMPTE259M, SMPTE292M, SMPTE424M
    • Bit Rates: 270 Mbps 1. 485 Gbps 2. 97Gbps
    • Input Impedance: 75 Ohm
    • Enter the Automatic Cable Equalization: >80m (1. 485 Gbps @ BELDEN8281 cable)
    • Clock Recovery: When 270 Mbps, 1. 485 Gbps, and 2. 97Gbps are automatic, the others are bypass
    • Input Level: 800mVp-p±10%
    • Enter the Echo Loss: 10dB @ 2. 97 Gbps
    • Output DC Offset: <±0. 5V
    • Optical Budget: 10dB @ 2. 97 Gbps
    • The Biggest Shake: 0. 1UI (1485Mbps)
    • Signal Overshoot: 5% (1485Mbps)

      Ethernet
    • Ethernet Port: 100m or 1000m sharing
    • Ethernet Bandwidth: Adaptive 10/100/1000m rate
    • Standard Protocol: IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
    • Phisical Interface: RJ45

      Power
    • Power Supply: DC 5V
    • Input Voltage: AC 100V~240V
    • Overload Protection: provide
    • Over Current Protection: provide

      Mechanical
    • Chassis: Aluminum alloy
    • Dimensions: 7.55" x 6.57" x 1.77" (192mm x 167mm x 45mm)
    • Packing: 13.58" x 8.26" x 3.54" (345mm x 210mm x 90mm)
    • Product Net Weight: 1.54lbs (0.7kg)
    • Installation: Wall-mounted

      Other
    • Operating Temperature: -4°F - 167°F (-20°C - 75°C)
    • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
    • Relative Humidity: 5% - 95% (non-condensing)
    • MTBF: 100,000 hours


  • Item Includes:

    • 1x Thor Fiber F-M1SDI-3G-ET-TX/RX Portable 3G SDI and 10/100/1000 Gigabit Ethernet CWDM Extender - Singlemode - ST/PC
