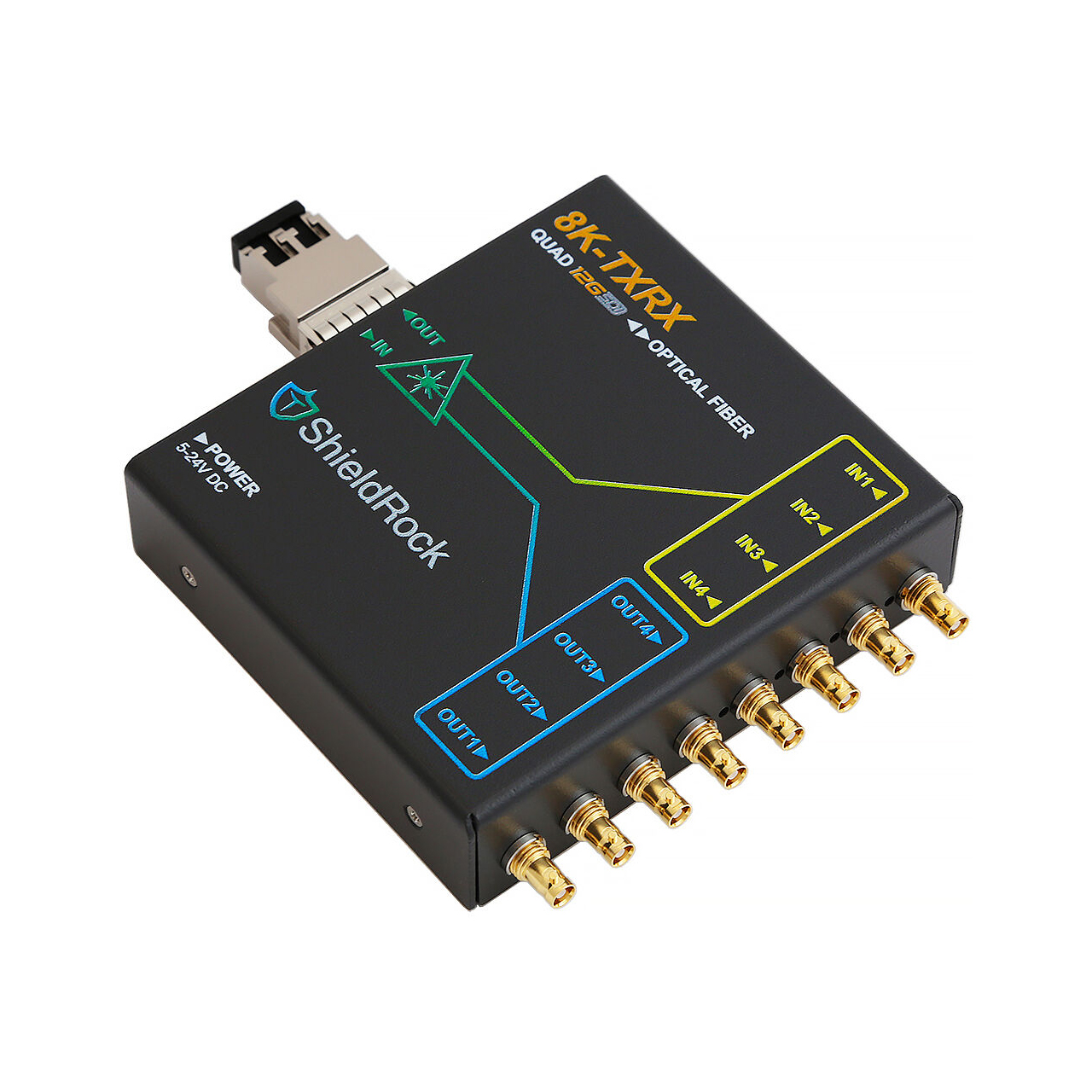

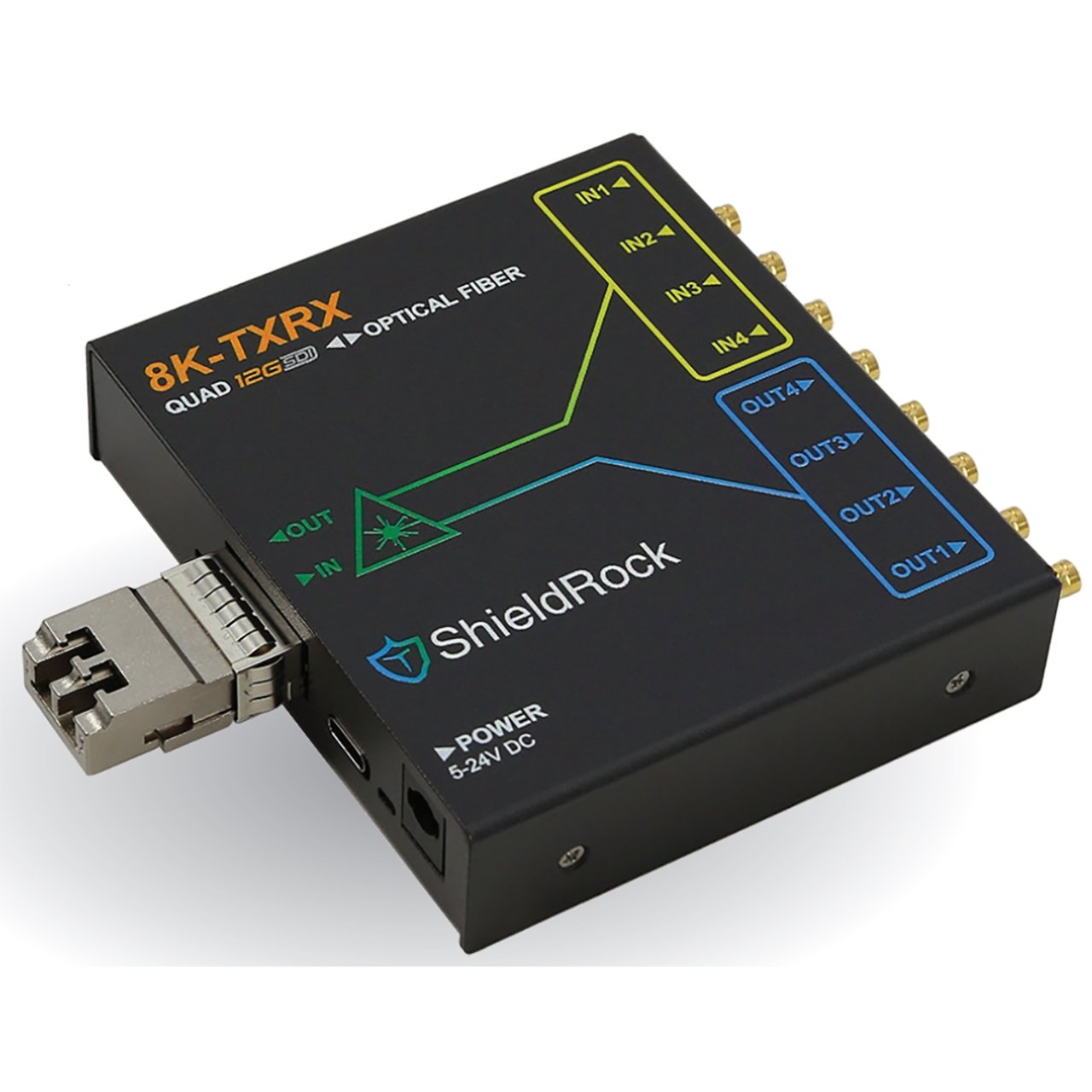

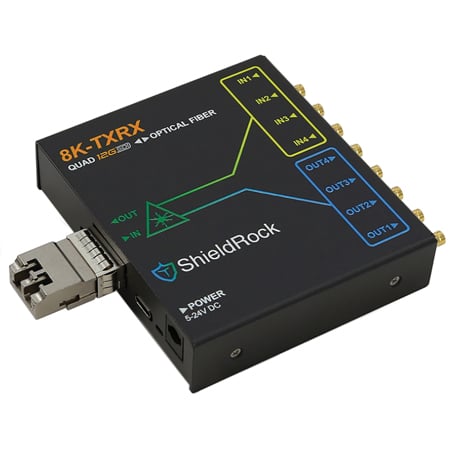

ShieldRock 8KTXRX Quad 12G-SDI - HDBNC Optical Extender Transceiver - LC Singlemode - 6.2 Mile Range

SRBMC-8KTXRX - Overview

• Features:

  • Transmit and receive Quad 12G-SDI over 10km fiber-optic cable
  • Compact and lightweight
  • Powder coated aluminum construction
  • 48G Transceiver QSFP+ Module Included


• Specifications:

  • Video Interface
  • 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
  • SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, 2081, 2082

    Video Format
  • 8K/UHD2 4320p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 4K/UHD 2160p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 2K/HD 1080p: 23.98/24/25/29.97/30/48/50/59.94/60
  • 1080i: 50/59.94/60
  • 1080PsF: 23.98/24/25/29.97/30
  • 720p: 23.98/24/25/29.97/30/48/50/59.94/

    Electrical
  • Input: 5-24 VDC
  • USB-C: 5 VDC
  • Power: 6W max

    Mechanical
  • Dimensions: 4.08" x 3.76" x 0.86" (103.7mm x 95.5mm x 21.9mm)
  • Weight: 0.39 lbs (180g)

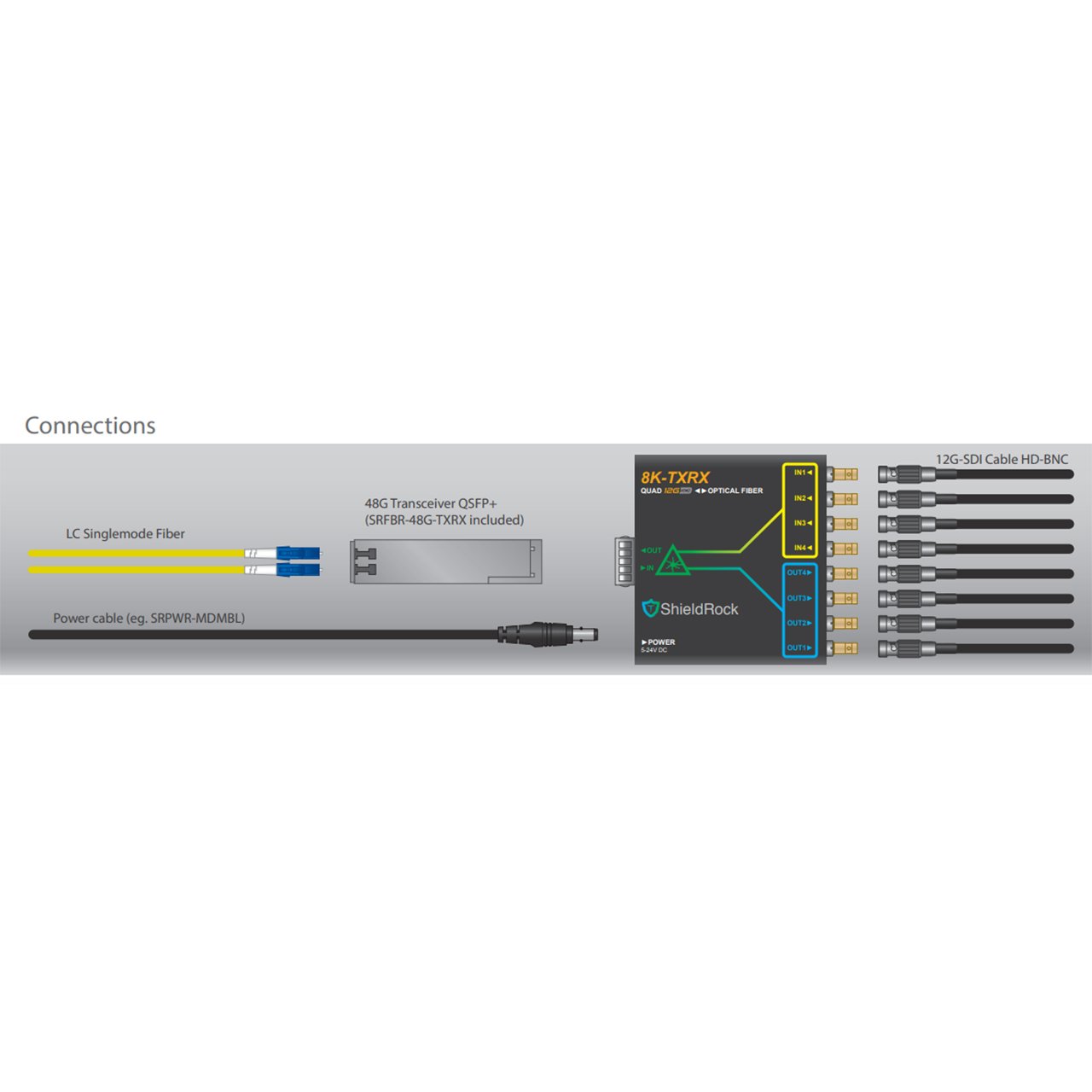

    Inputs
    - 4x HDBNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Female
    - 1x SFP+ Female
    - Embedded Audio Input

    Outputs
  • 4x HDBNC (3G-SDI / 6G-SDI / 12G-SDI / HD-SDI / SD-SDI) Female: 1x SFP+ (Fiber) Female


• Item Includes:

  • 1x ShieldRock 8KTXRX Bidirectional QUAD 12G-SDI Optical Fiber Converter
  • 1x SRFBR-48G-TXRX 48G Transceiver QSFP+ Module


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0685239811957
