Apantac openGear OG-SDI-HDTV-SET-1 SDI to HDMI Converter with Rear Module Set - Auto Detects 3G SDI/HD SDI or SD SDI

ITEM #: OGSDIHDTVUHDS1 MFG #: OG-SDI-HDTV-SET-1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Apantac
Free Shipping with $49 Minimum Order

List Price:

$420.00

Our Price:

$398.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OG-SDI-HDTV-SET-1 - Overview

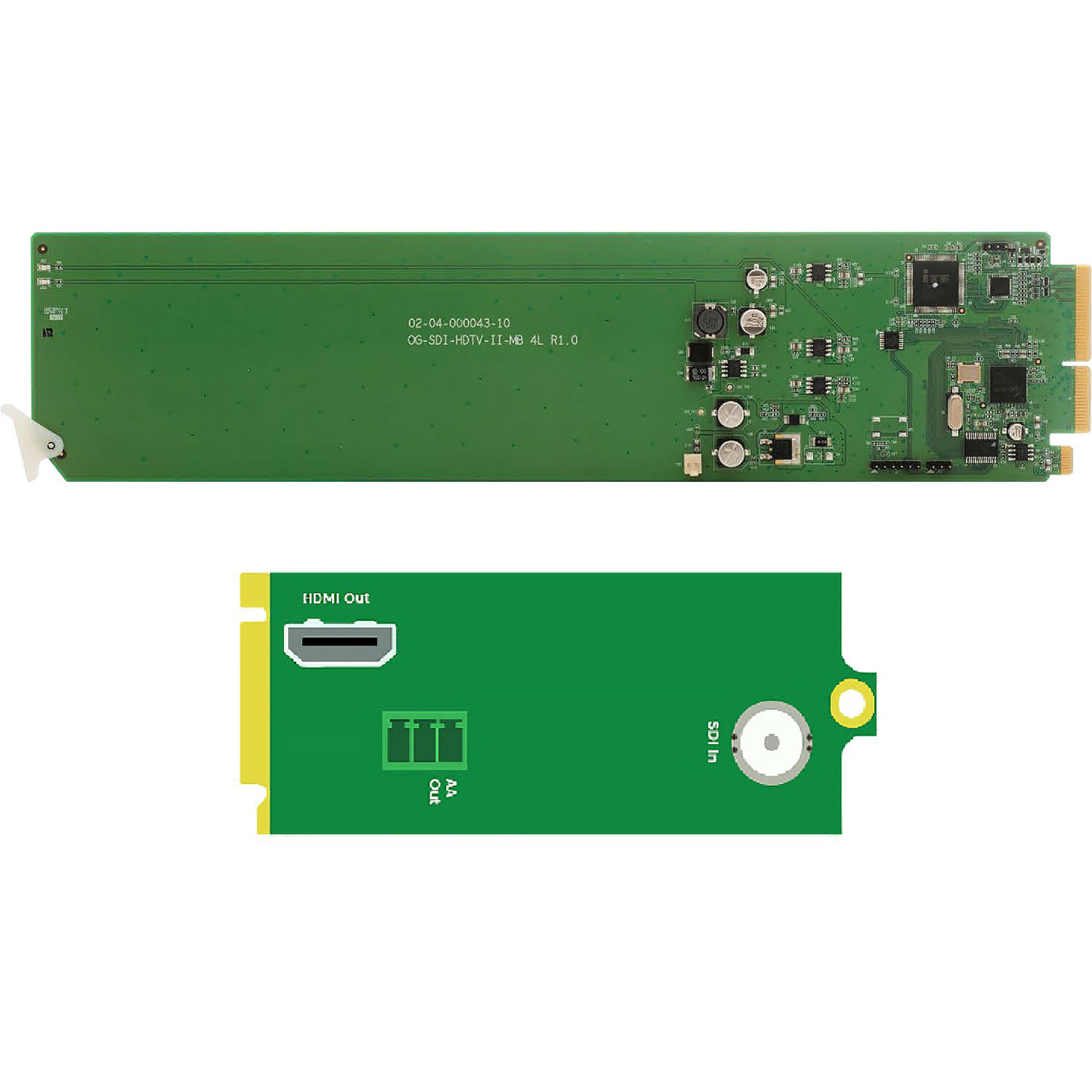

Main Board & Rear Module set.

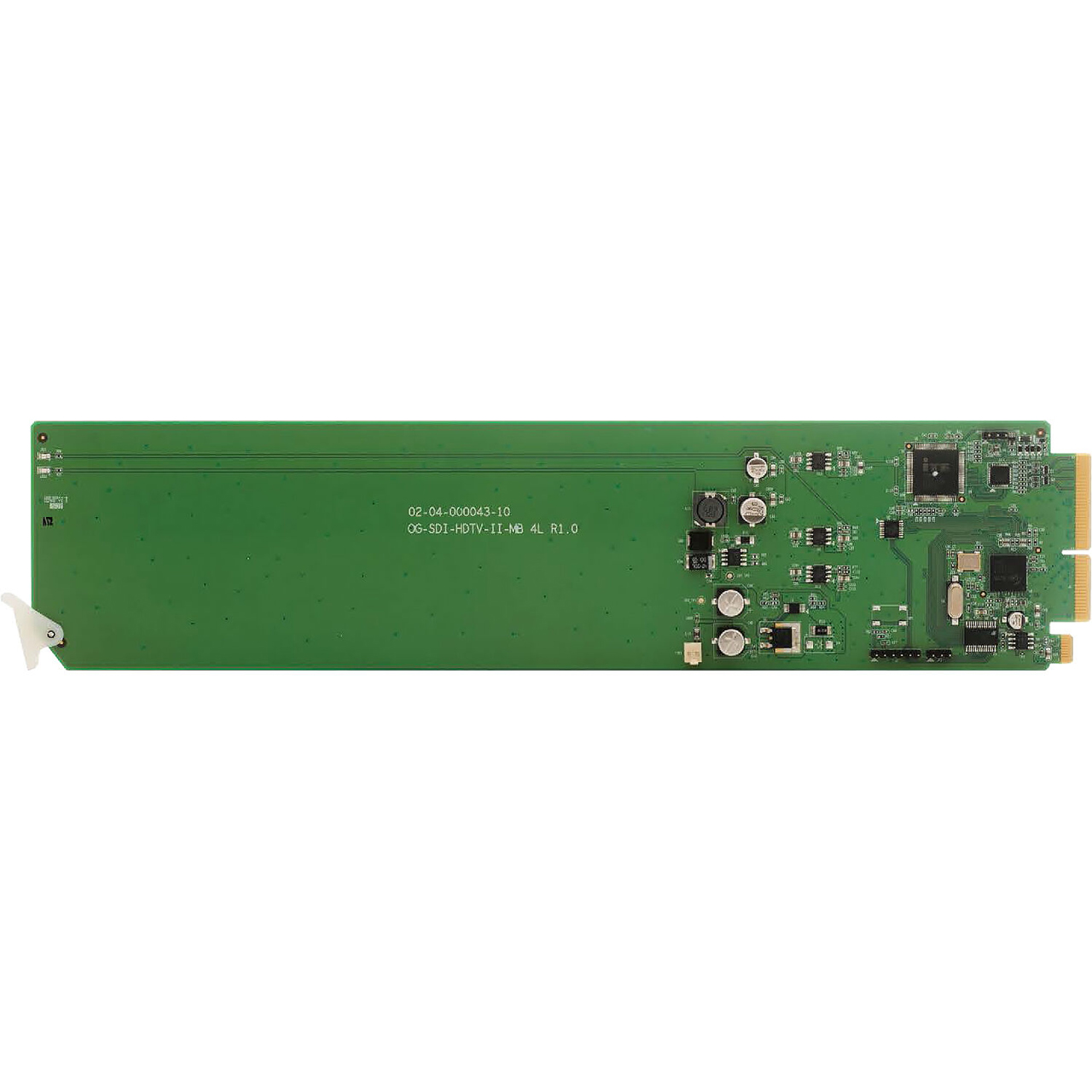

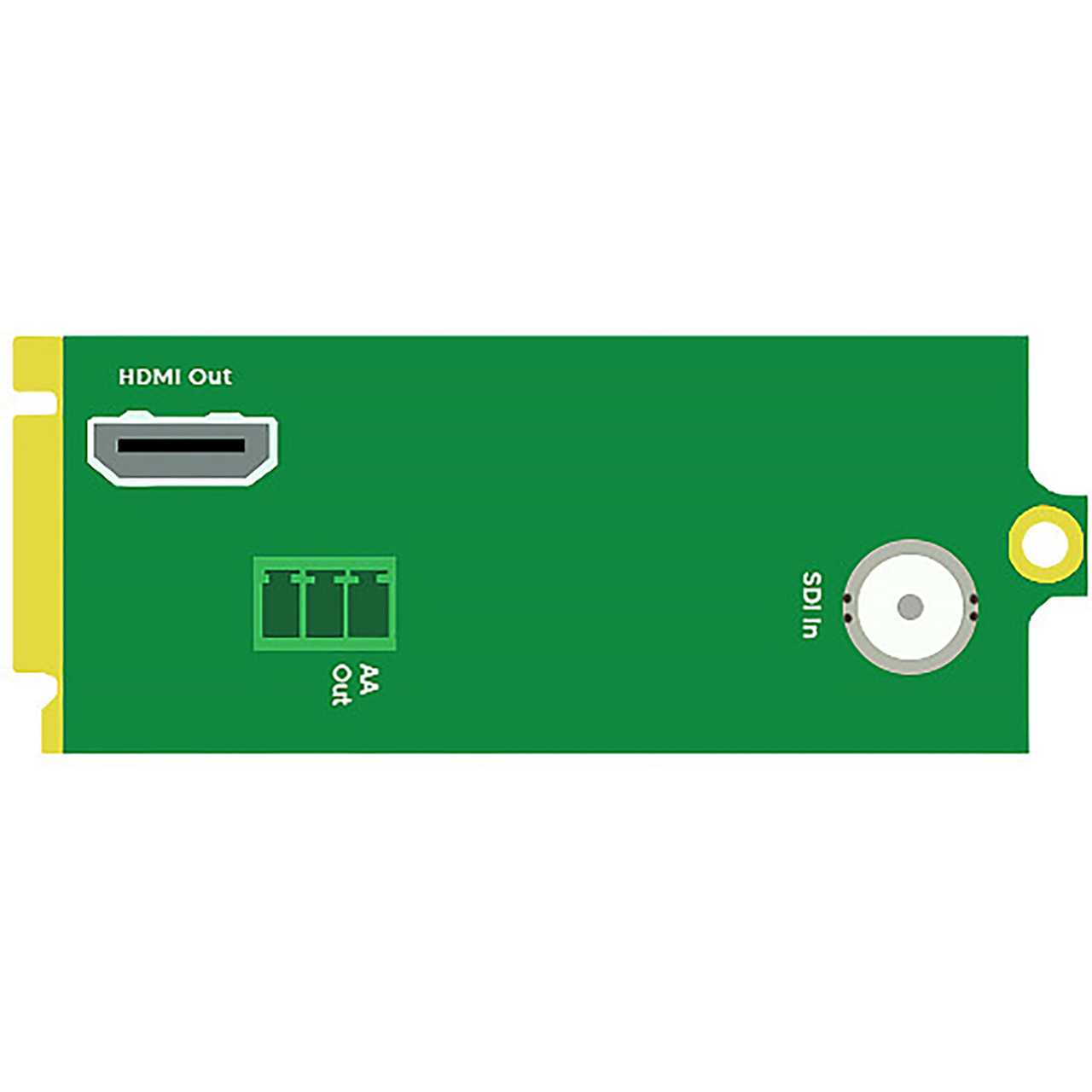

The Apantac OG-SDI-HDTV-SET-1 is an openGear Bundle with both the OG-SDI-HDTV-MB and the OG-SDI-HDTV-RM. The main board can auto-detect 3G SDI (1080p - SMPTE-425M level A) HD-SDI (720p, 1080i) or SD-SDI (525,625) to an HDMI output. The rear module auto-detects 3G SDI (1080p - SMPTE-425M level A) HD-SDI (720p, 1080i) or SD-SDI (525,625). The rotary switch allows selecting one of the 8 embedded AES pairs and sends it to the analog stereo audio output.

  • Features:

    • OGX/3.0 card-based form factor
    • Dashboard control enabled
    • Auto-detect 3G SDI (1080P - SMPTE-425M, Level A) HD-SDI (720P, 1080i) or SD-SDI (525, 625)
    • HDMI output
    • Low power consumption


  • Specifications:

    • Input: 1x 3G HD-SDI - BNC
    • Output: 1x 19 pin HDMI Type A
    • Control: Dashboard
    • Analog Audio Out: Phoenix connector
    • Power Consumption: 8W


  • Item Includes:

    • 1x OG-SDI-HDTV-MB
    • 1x OG-SDI-HDTV-RM


  • Warranty:

    • 5 Year Limited Warranty
