OMC Tech OptoMedia RMC-C0-6C73K-R 12G SDI Coax Single SFP Receiver - Standard BNC Connector - MSA

ITEM #: OMC-RMC-C06C73KR MFG #: RMC-C0-6C73K-R

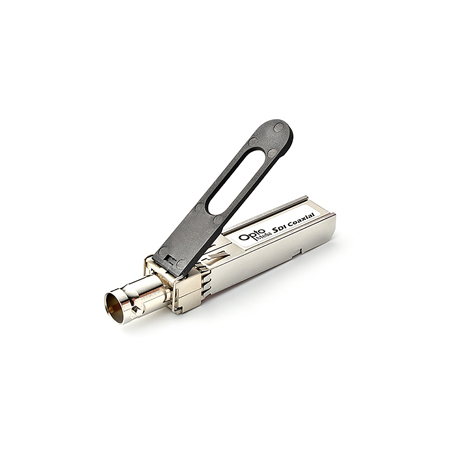

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

List Price:

$449.00

Our Price:

$404.10

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RMC-C0-6C73K-R - Overview

The OMC Tech RMC-C0-6C73K-R is a 12G-SDI electrical SFP receiver from OptoMedia. This SFP perfectly transmits SDI electrical signals up to ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and ST-259 (SD) and DVB-ASI over Belden 1694A cable via BNC. It handles 12Gbps pathological patterns.

  • Features:

    • Supports ST-2082-1, ST-2081-1, ST-424, ST-292 and ST-259
    • BNC 75Ω connectors
    • Compatible With DVB-ASI and AES10 (MADI)
    • Supports pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI
    • Monitor function via serial interface


  • Specifications:

    • Operating Case Temperature Range: 32°F - 158°F (0°C - 70°C)
    • Storage Temperature Range:: -40°F - 185°F (-40°C - 85°C)
    • ESD Rating (HBM): ±5.5kV (typical) - ±6kV (max)
    • Power Supply Voltage:
      - Min: 3.13V
      - Typical: 3.3V
      - Max: 3.465V
    • Power Consumption:
      - Typical: 165mA
      - Max: 220mA


  • Item Includes:

    • 1x OMC Tech receiver
