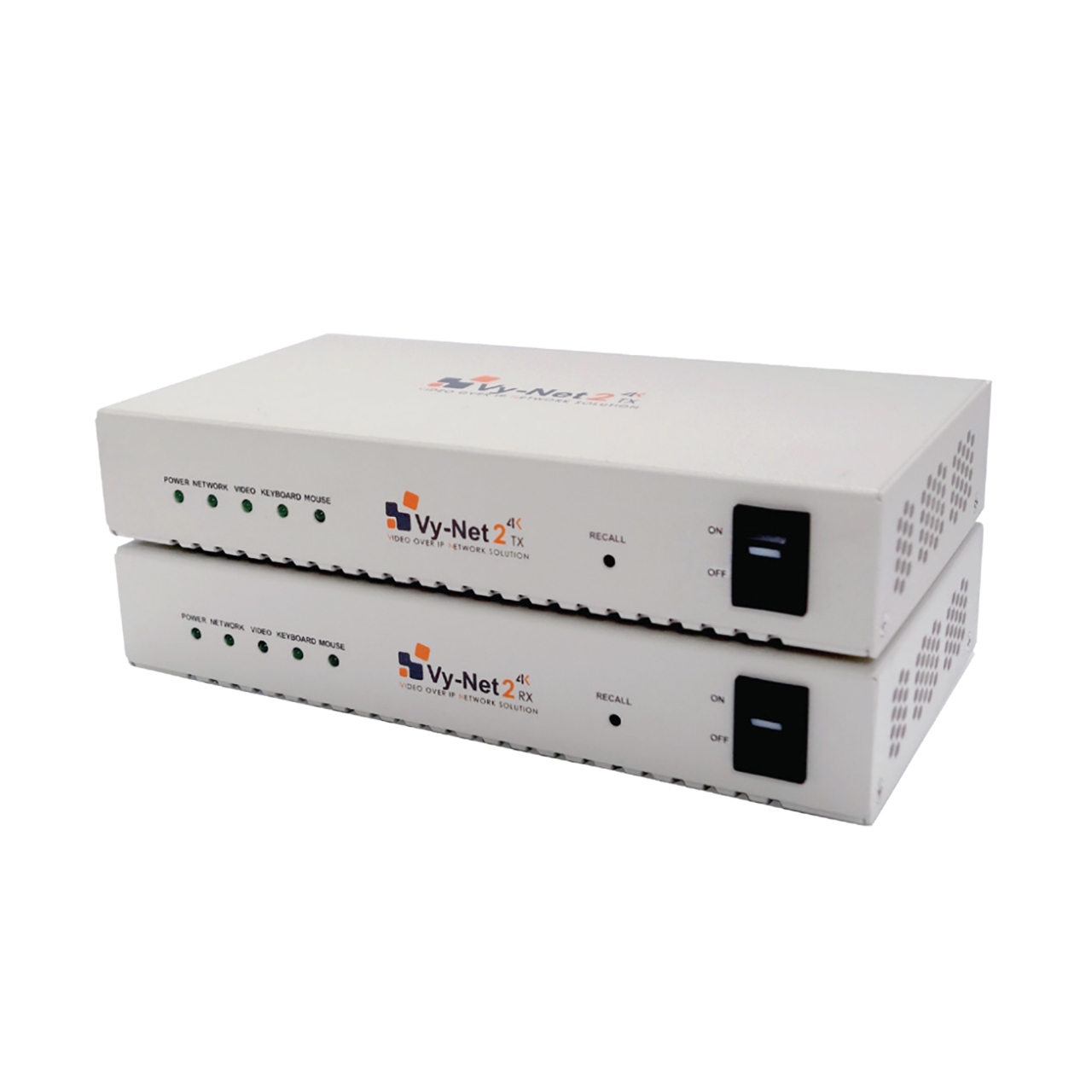

Ophit VY-NET2 4K UHD Modular HDMI 2.0 10Gb Video Over IP Network Encoder and Decoder Set - PIP / Multiview / Videowall

ITEM #: OPHI-VY-NET2 MFG #: VY-NET2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$5,120.00

Our Price:

$4,608.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


VY-NET2 - Overview

Expandable 4K Video Over IP Network

Ophit's modular Vy-Net2 is a fully scalable, 4K Video-over-IP (VoIP) content management system. Minimal hardware is required to connect video sources to end-point destinations - or create a videowall! Its integrated Ethernet infrastructure provides near-zero latency for uncompressed video content distribution. This VoIP system allows users to easily control, manage, expand, and simplify content distribution.

With Ophit's Vy-Net2, users can trust its unwavering performance and reliability, providing peace of mind for managing video content.

Key Benefits of the VY-NET2 Solution:
- Route sources to monitors or create a videowall
- Add and remove system components with ease
- Quickly, simply, connect point-to-point streaming devices via Cat6a/Cat7

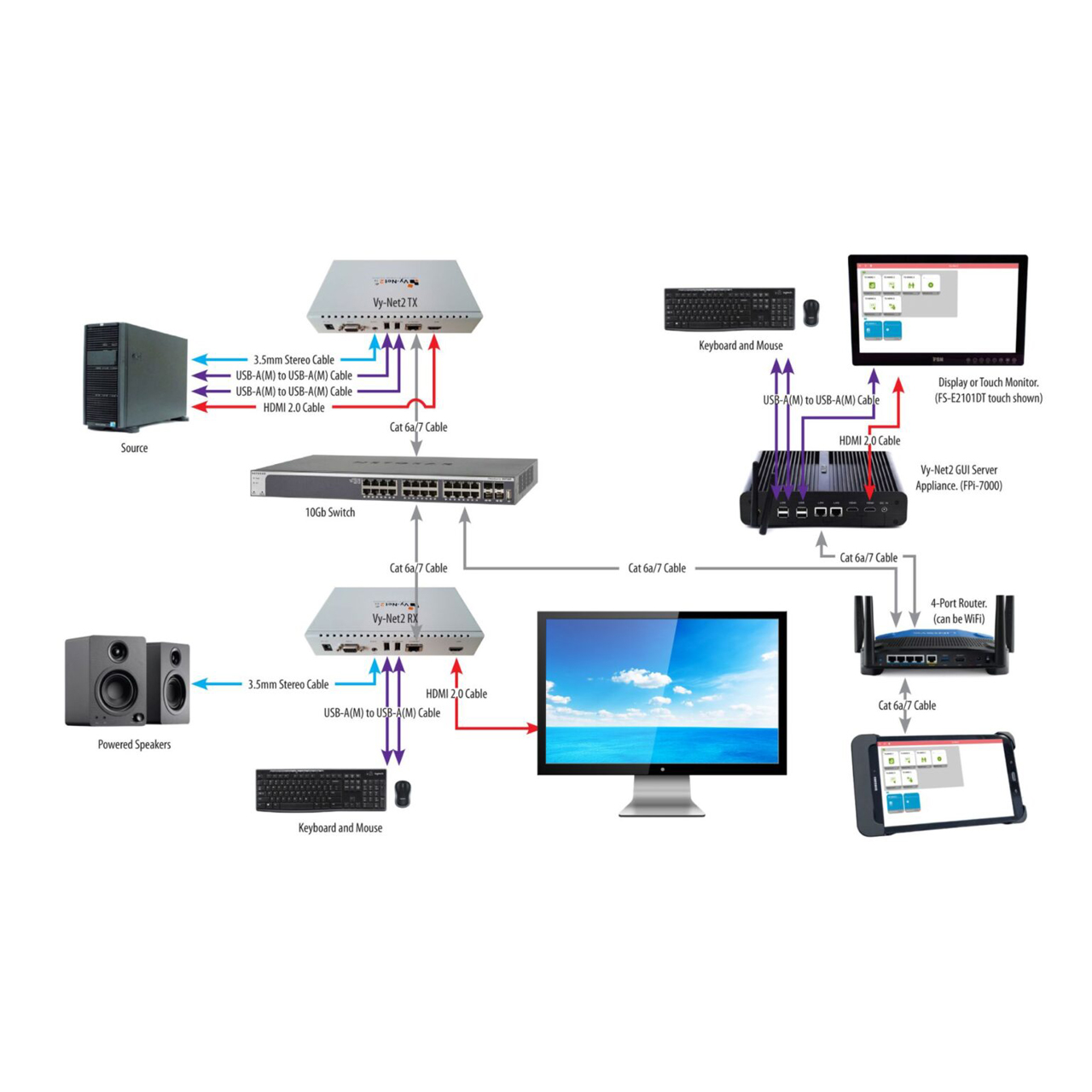

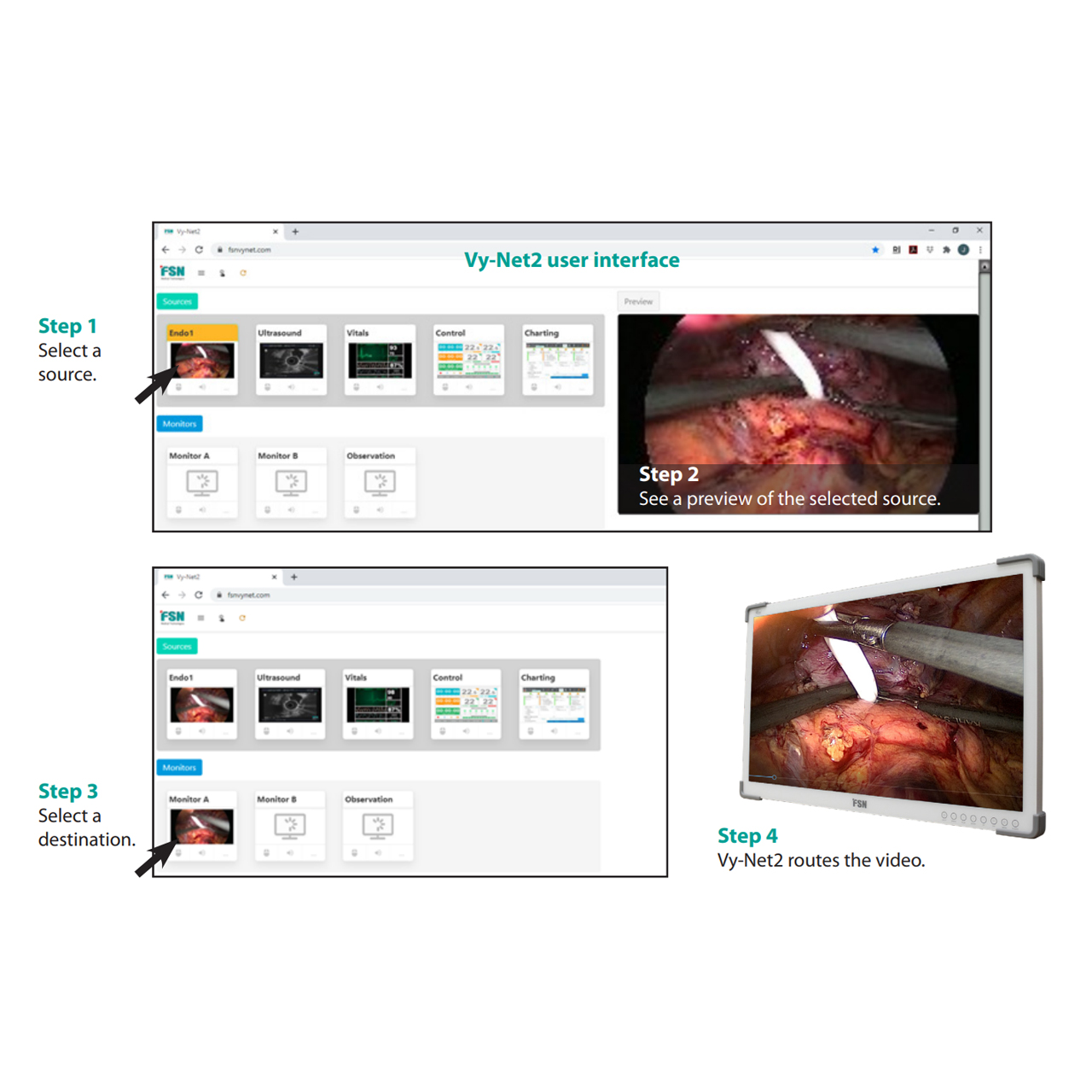

The Vy-Net2 user interface software will control video over Vy-Net2 IP devices, and route video sources to one, many or all destinations (monitors, capture and streaming devices etc.). KVM, audio and RS232 functions are also available.

Recommended Components (sold separately):
- Level 3, 10-Gigabit smart managed network switch
- Netgear M4300 series up to 96-port, SDVOE-ready
- 4-port 1-Gigabit WiFi router
- Linksys WRT1900ac
- USB Keyboard & Mouse with scroll wheel
- Cat6a/Cat7 network cabling
- HDMI 2.0 video cabling

  • Features:

    • 4K HD resolution of (3840 x 3260) @60Hz
    • 10Gb Ethernet infrastructure (SDVoE)
    • Multiple display layouts, including Picture-in-Picture, Multiview and Videowall
    • Live Preview is included
    • 19" rackmount and rear-monitor bracket
    • Available with Linux OS
    • Available with audio and KVM functions

  • Specifications:

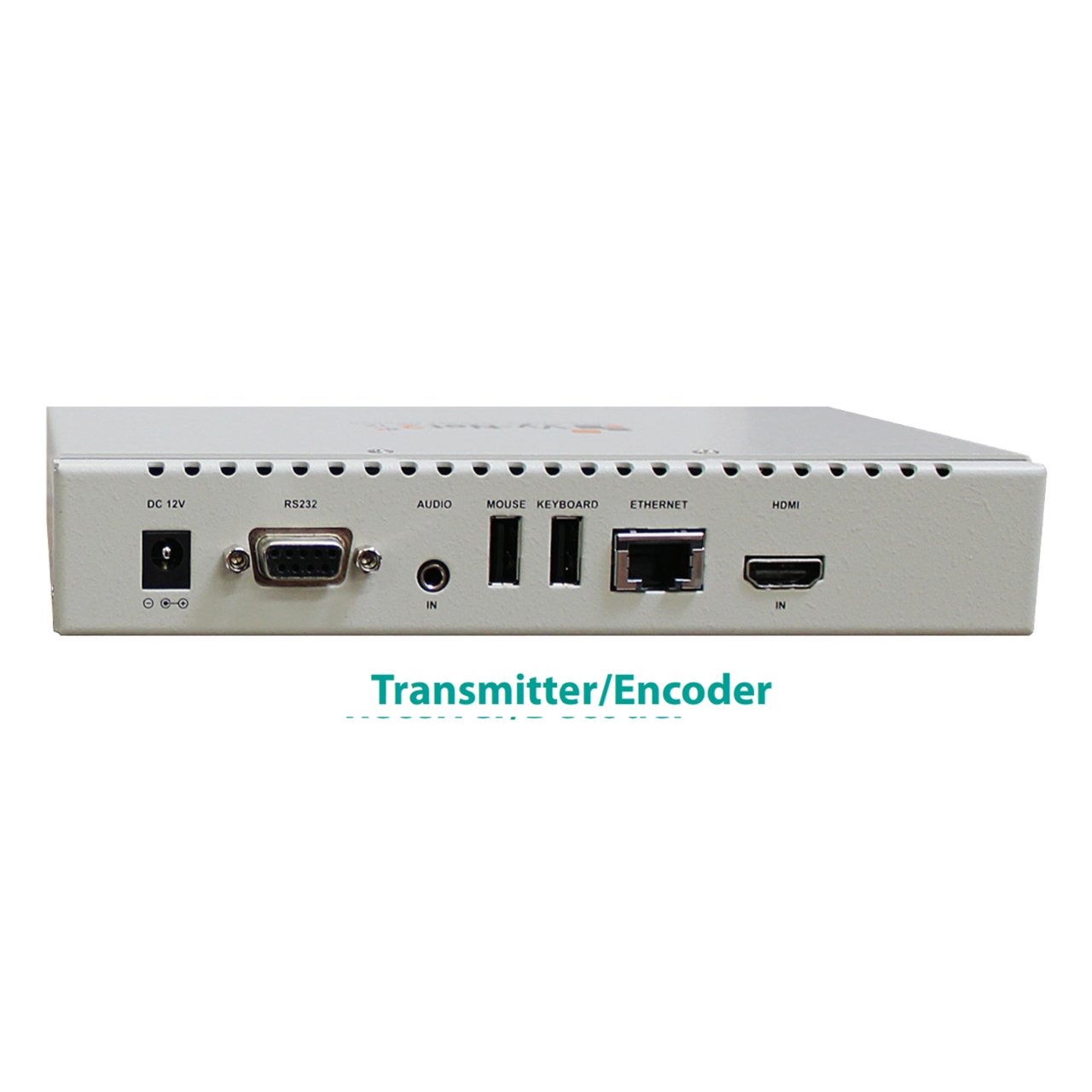

    • Input Signal:
      - HDMI 2.0 (TX)
      - 10GbE (copper)(RX)

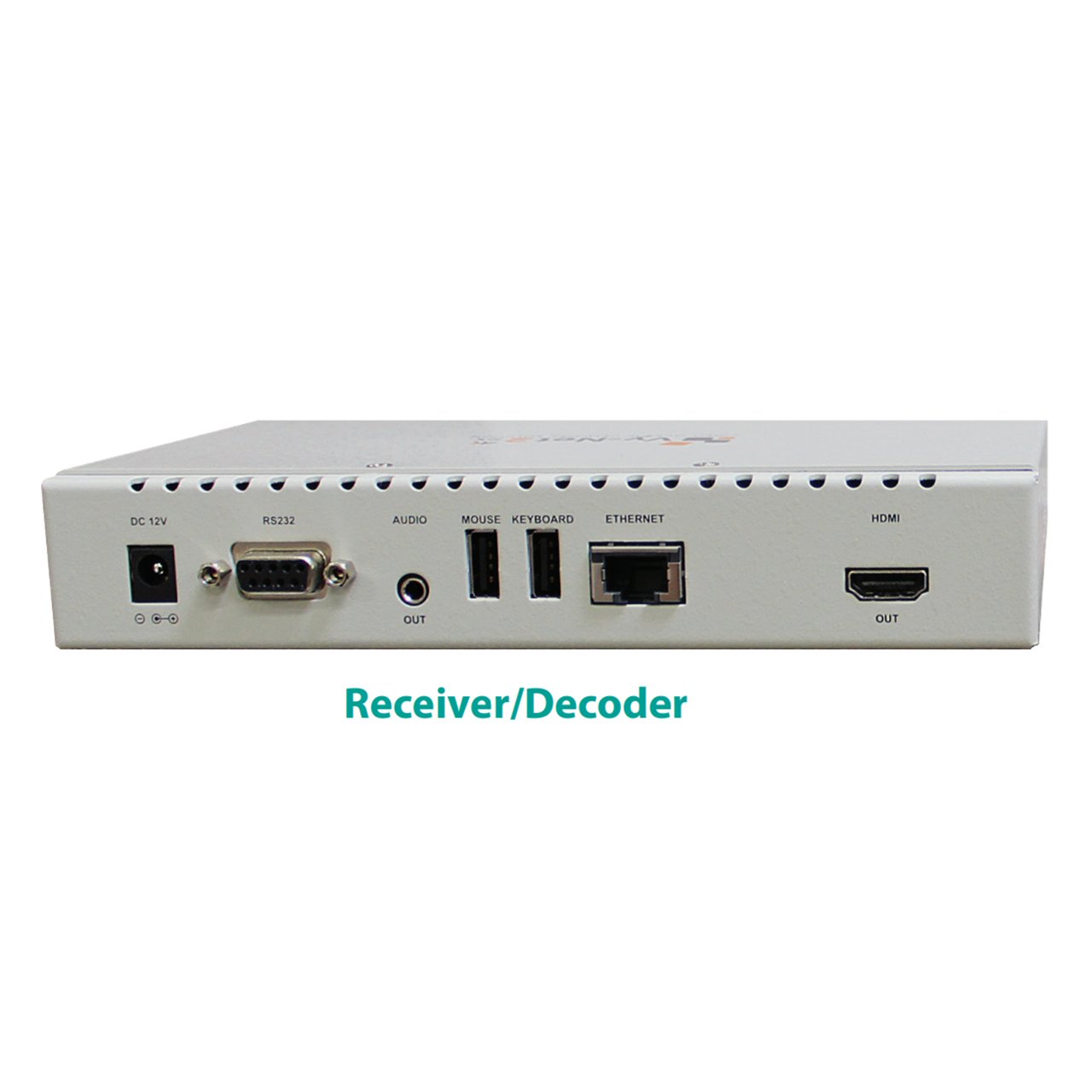

    • Output Signal:
      - 10GbE (copper)(TX)
      - HDMI 2.0 (RX)
    • Maximum Resolution: 3840x2160 @ 60Hz
    • Keyboard Connector: x1 USB A-Type
    • Mouse Connector: x1 USB A-Type
    • Audio Connector: 3.5mm Phone Jack
    • Power Supply: DC + 12V
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Relative Humidity: 1% - 80%, non-condensing
    • Recommended Cable: Cat6a/Cat7
    • Weight:
      - 1.32lbs (600g)(TX)
      - 1.33lbs (605g)(RX)

  • Item Includes:

    • 1x Ophit VY-NET2
    • 2x Power Adapter
    • 2x Power Cord
    • 1x User's manual
