Opticis DPFX-200-TR 2 Fiber DisplayPort 1.2 Extender

ITEM #: OPTI-DPFX-200-TR MFG #: DPFX-200-TR

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the OPTI-DPFX-200-TR

DPFX-200-TR - Overview

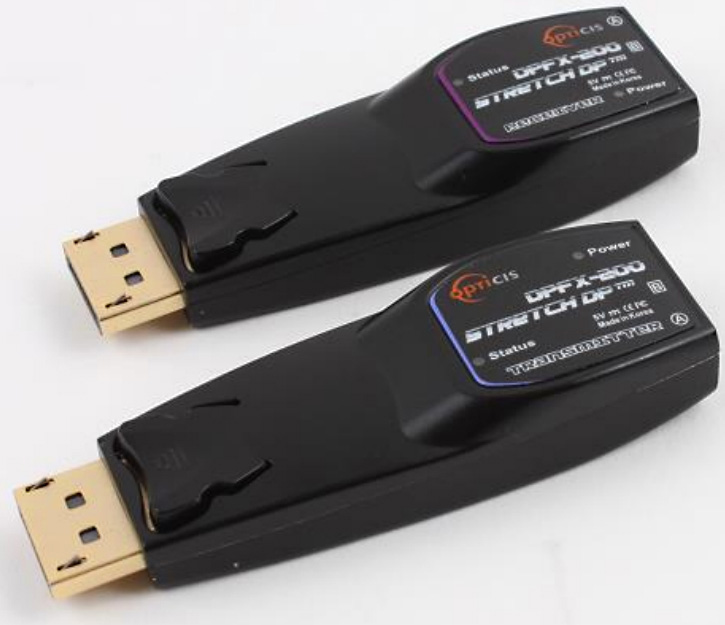

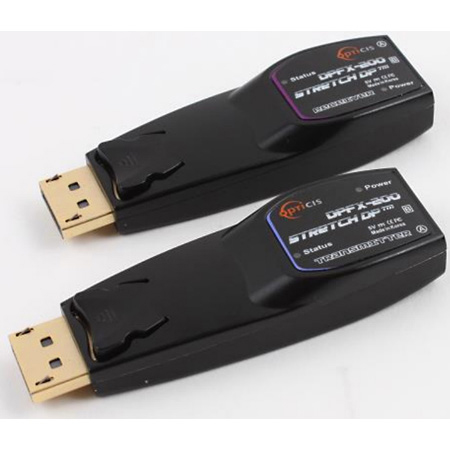

DPFX-200-TR is designed compact enough to be fitted into various installation environments. The transmitter and receiver set transmits 4K (4096x2160) at 60Hz signal up to 200m (656 feet) over two (2) LC multi-mode fibers, avoiding any tricks like scaling or data compression for lessening the burden of data transmission.

Between the transmitter and the receiver, the pure fiber connection by two (2) LC fibers connector gives clean, secure and easy installation with perfect electrical isolation and no electrical hazard. The DPFX-200-TR can be operated by USB power without an external DC power adapter simply by plugging the supplied USB to the DC plug cables of each module.

  • Features:

    • Supports 4K and DisplayPort 1.2 standards
    • Extends 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
    • Transmits DP data up to 200m (656 feet) over two (2) LC multi-mode fibers (50/125um).
    • Offers total data rate 21.6Gbps (5.4Gbps per lane)
    • Supports Dual-mode DP (DP++)
    • Supports Auxiliary /lÝC channel over fiber
    • Supports Multi-Stream transport
    • Compact design allows direct connect to the DP display.
    • Plug & Play
    • Auto power switching
    • Data security with negligible EMI emission.
    • Certifies FCC and CE standards for EMI/RFI emission

  • Item Includes:

    • One (1) Transmitter (Tx) and One (1) Receiver (Rx)
    • One (1) 0.2m Male to Female DisplayPort copper cable
    • Two (2) Micro USB to USB cables
    • Two (2) 5V 1A power adapter
    • User’s Manual

  • Warranty:

    • 1 Year
