Osprey 460e PCIe 4 Channel Analog Video Capture Card with Expansion Option

ITEM #: OSPREY-460E MFG #: 95-00471

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

95-00471 - Overview

The Osprey 460e Video Capture Card is a powerful, professional-grade card capable of capturing and streaming multiple independent video channels, simultaneously. Ideally suited for high-density encoding applications, the card will streamline your workflow as it provides good quality video for your capture and streaming applications.

With its PCIe (PCI Express) architecture, the card is designed to simultaneously capture 4 independent channels of analog composite video and unbalanced stereo audio signals and process them independently, minimizing internal PC space requirements. The channel density offered by the card dramatically reduces total system cost by increasing the capture capacity within a single system.

The card's A/V option (sold separately) provides additional video inputs and 4 stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.

PC manufacturers have adopted the PCIe bus as the standard for high-throughput internal bus architectures. The card optimizes this architecture and unleashes the power of modern multi-core PC engines with unfettered access to all PC resources. This capability means more power for your demanding streaming applications.

The card lets you take advantage of advanced video pre-processing features such as logo/bitmap overlay with transparency and positioning controls, de-interlacing, and closed-caption extraction and rendering. It automatically detects and adapts on-the-fly when the input video format changes from movie frame rates to television frame rates.

The card is designed to meet the demands of multiplatform digital media marketplace. You can add the SimulStream software (sold separately) to the Osprey 460e and stream to multiple devices - in various formats, bit rates and resolutions - simultaneously, from a single video source.

  • Specifications:

    • Description: Four channel analog audio/video

    • Format:
    • PCIe X1
    • PCIe 2.0

    • Video Input: Composite
    • Video Connector: Composite x 4 (BNC x 1) (BNC - RCA adapters included)

    • Video Modes:
    • NTSC/PAL
    • 720 x 480, 29.97, 30/i (NTSC)
    • 852 x 480, 29.97, 30/i (NTSC Wide Screen)
    • 720 x 576, 25/i (PAL)
    • Wide Screen Signaling (WSS)

    • Audio Input: Unbalanced stereo x 4 (RCA x 8)

    • Audio Connector:
    • Unbalanced stereo (4 pair)
    • RCA via breakout cable (included)

    • Driver Support:
    • Microsoft DirectShow
    • Linux

    • Driver based Pre-Processing:
    • Closed Caption extraction/ rendering
    • Logo/bitmap overlay
    • Scaling, cropping, de-interlacing and inverse telecine
  • Item Includes:

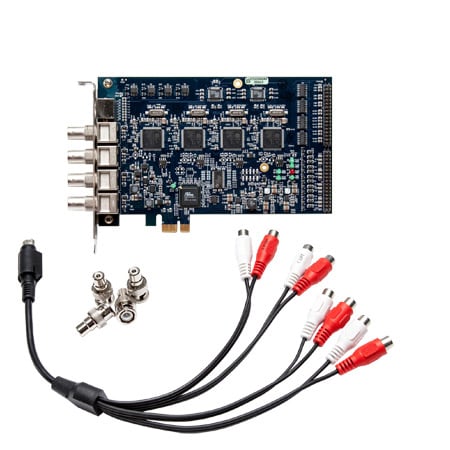

    • Osprey 460e PCIe Video Capture Card, Breakout Cable, 4 x BNC Connector
  • GTIN:
