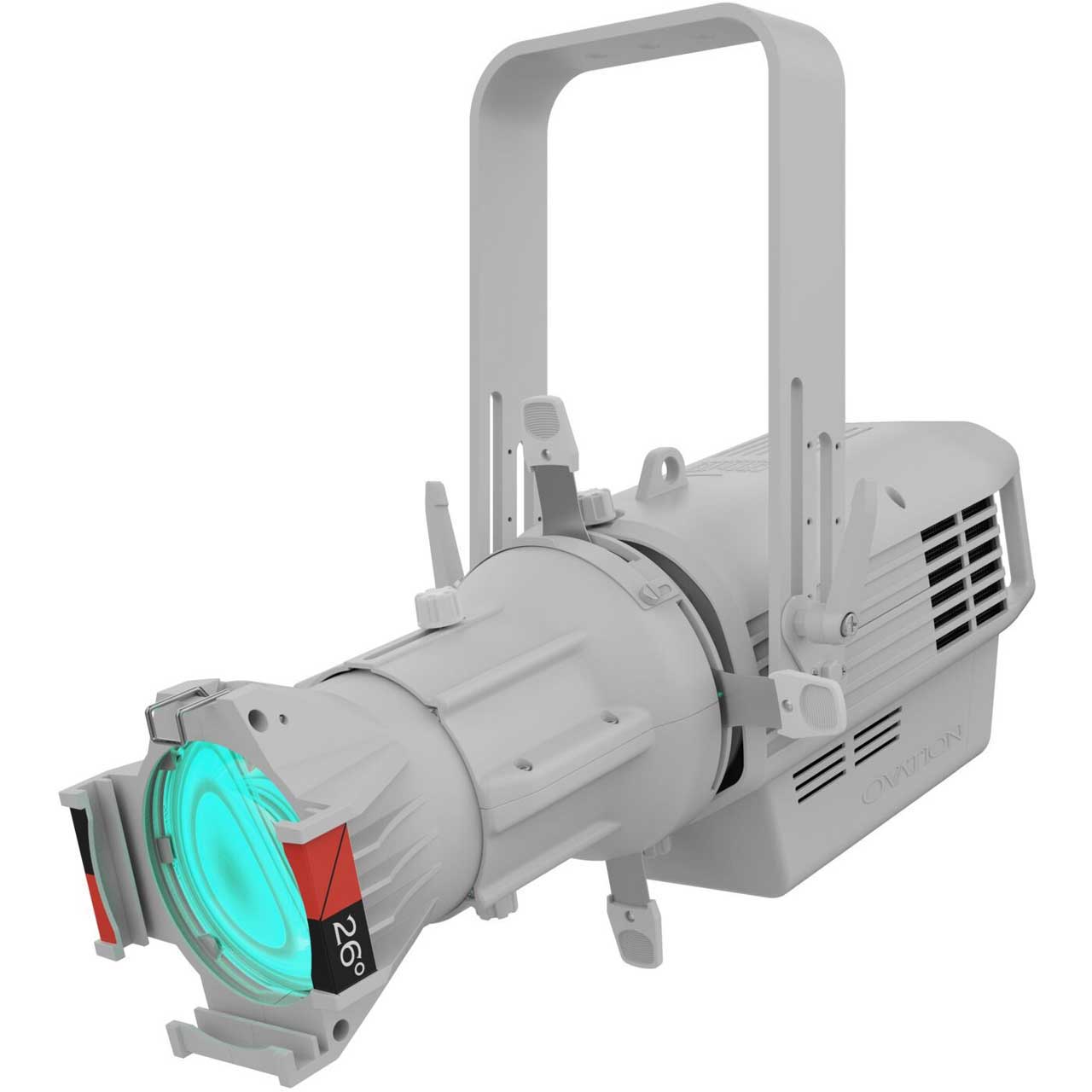

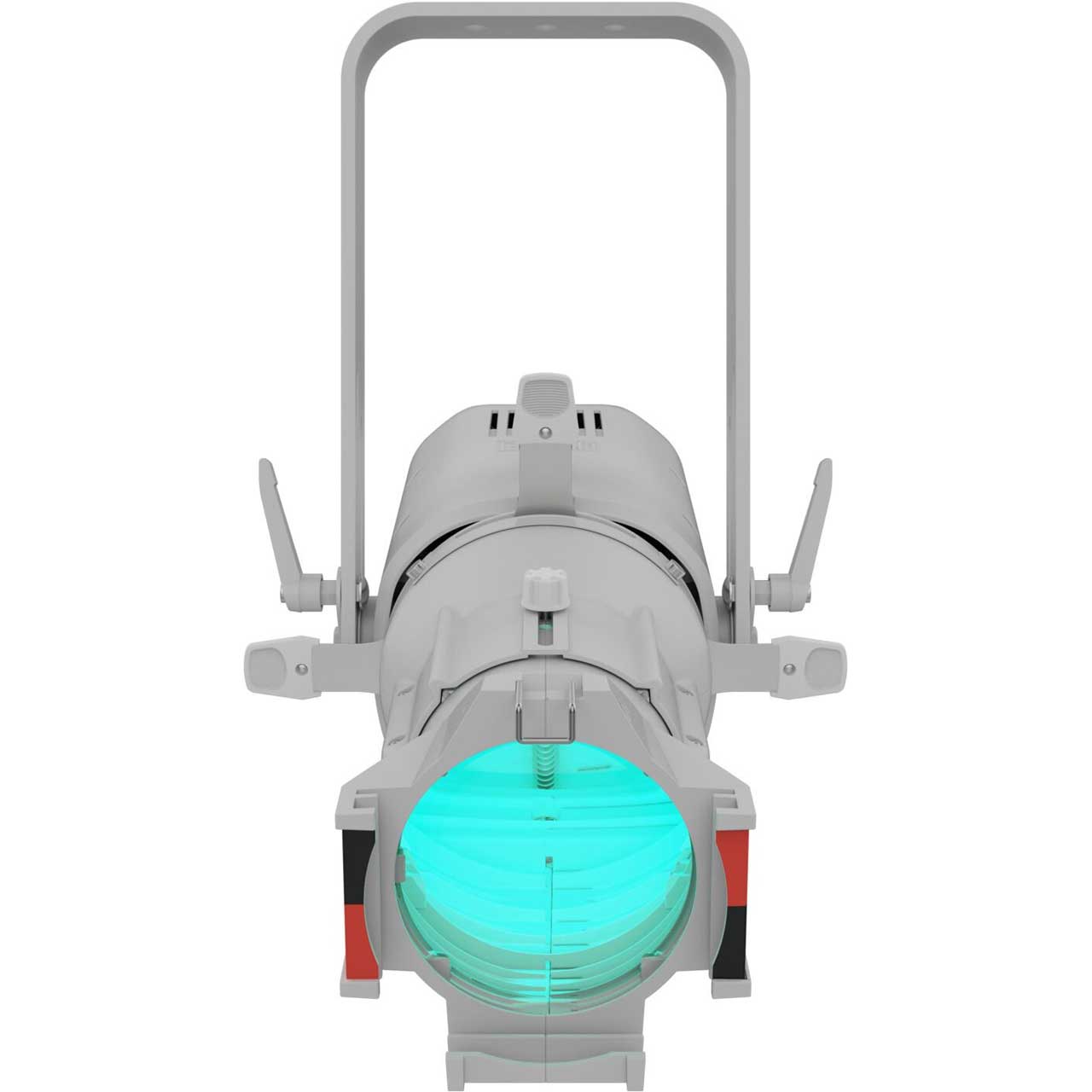

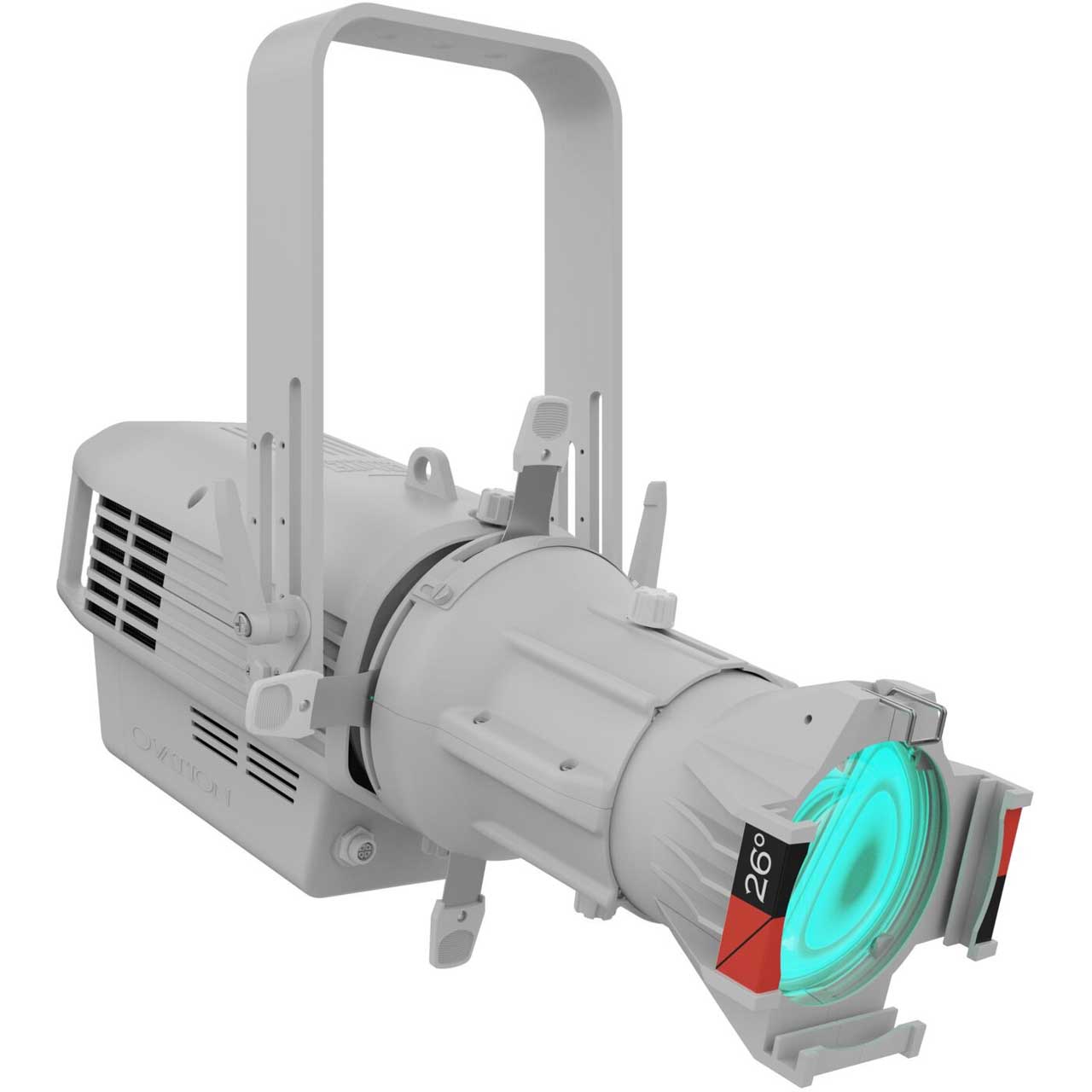

Chauvet OVATIONREVEE3WHT Multi-Color Full-Spectrum Ellipsoidal LED Lighting Fixture with White Housing

OVATIONREVEE3WHT - Overview

• Features:

  • Full-spectrum LED ERS-style lighting fixture for theatre, film and production
  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
  • Virtual color wheel with color matched to popular gel colors
  • +/- Green adjustment and emulated red-shift via DMX or on-board control
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio, film and theatre applications
  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
  • Innovative adjustable yoke for mounting in low clearance areas
  • Direct power/data connection and control options for the Ovation GR-1 gobo rotator
  • USB port for fixture software updates


• Specifications:

  • Optical
  • Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life
    expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 5470K
  • CRI (3200 K): 95.4
  • Beam Angle (w/5° lens): 4.6°
  • Beam Angle (w/10° lens): 10°
  • Beam Angle (w/14° lens): 14.8°
  • Beam Angle (w/19° lens): 18.5°
  • Beam Angle (w/26° lens): 26°
  • Beam Angle (w/36° lens): 33.3°
  • Beam Angle (w/50° lens): 49.5°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 28.5°
  • Beam Angle (w/25°–50° lens)(Narrow): 23.6°
  • Beam Angle (w/25°–50° lens)(Wide): 40.5°
  • Field Angle (w/5° lens): 5.6°
  • Field Angle (w/10° lens): 11.1°
  • Field Angle (w/14° lens): 16°
  • Field Angle (w/19° lens): 21.6°
  • Field Angle (w/26° lens): 29.6°
  • Field Angle (w/36° lens): 37.1°
  • Field Angle (w/50° lens): 55.7°
  • Field Angle (w/15°–30° lens)(Narrow): 15.4°
  • Field Angle (w/15°–30° lens)(Wide): 32.2°
  • Field Angle (w/25°–50° lens)(Narrow): 25.8°
  • Field Angle (w/25°–50° lens)(Wide): 44.1°
  • Lumens (w/5° lens): 5,076
  • Lumens (w/10° lens): 11,250
  • Lumens (w/14° lens): 12,179
  • Lumens (w/19° lens): 12,156
  • Lumens (w/26° lens): 13,300
  • Lumens (w/36° lens): 13,223
  • Lumens (w/50° lens): 12,216
  • Lumens (w/15°–30° lens): 12,057
  • Lumens (w/25°–50° lens): 14,355
  • Illuminance (w/5° lens): 31,856 lux @ 5 m
  • Illuminance (w/10° lens): 18,924 lux @ 5 m
  • Illuminance (w/14° lens): 9,284 lux @ 5 m
  • Illuminance (w/19° lens): 5,635 lux @ 5 m
  • Illuminance (w/26° lens): 3,378 lux @ 5 m
  • Illuminance (w/36° lens): 2,085 lux @ 5 m
  • Illuminance (w/50° lens): 870 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 9,292 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 2,671 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 3,710 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 1,527 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
  • Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
  • Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
  • Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
  • Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
  • Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)

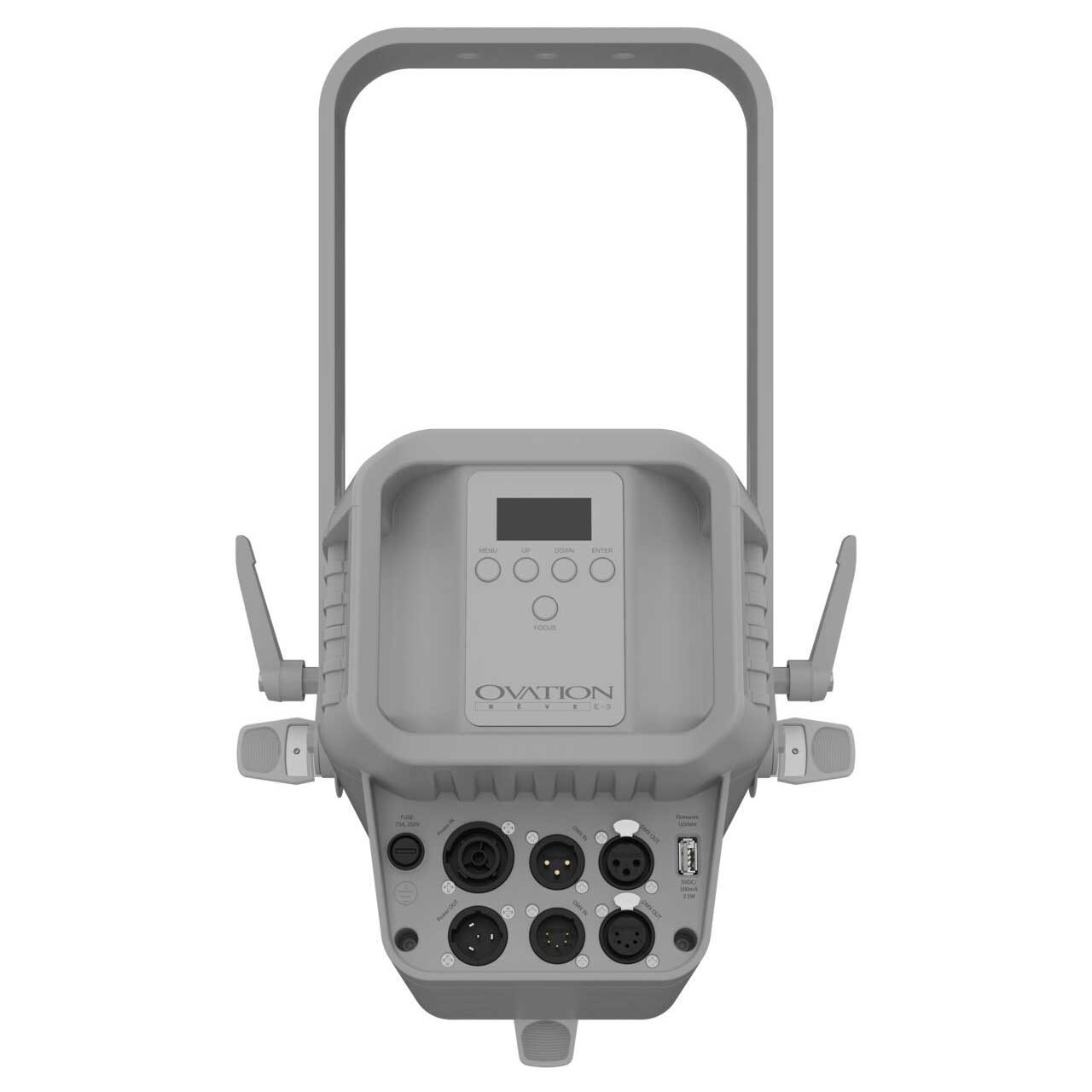

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
  • Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz
  • Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz
  • Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz


• Item Includes:

  • 1x Ovation Reve E-3-WHT
  • 1x Seetronic Powerkon power cord
  • 1x Ovation Metal Gobo Holder
  • 1x Soft Focus Filter


• GTIN:

  0781462220785
