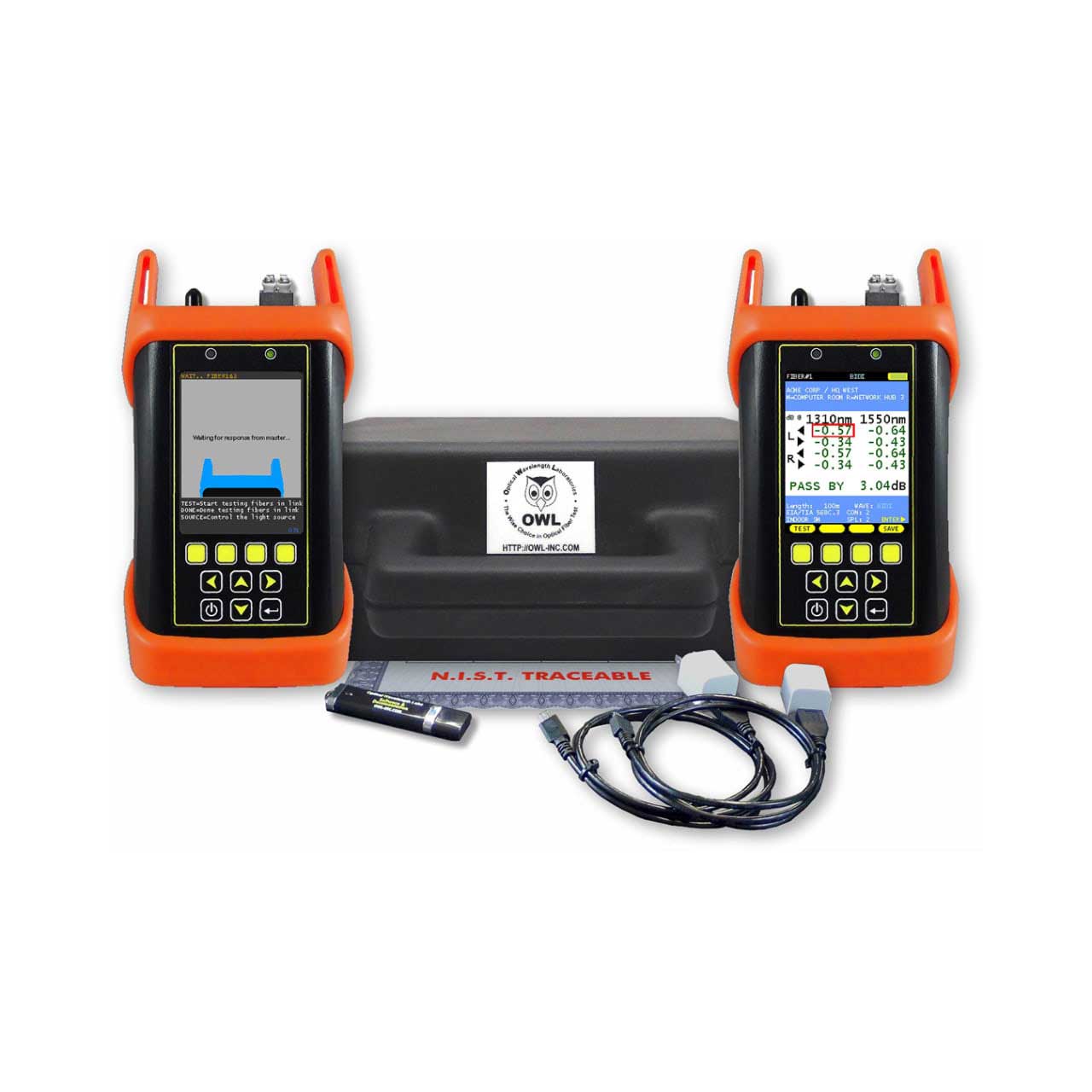

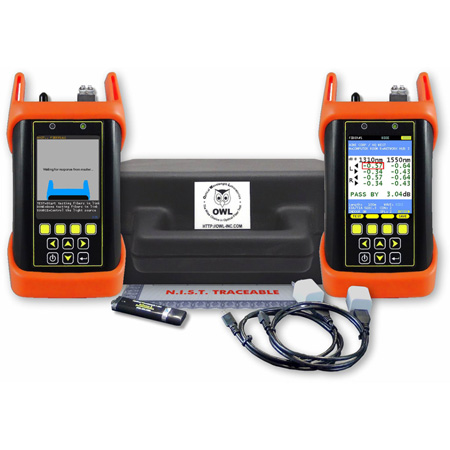

Optical Wavelength Labs F7BMS Fiber OWL 7 BIDI OLTS -- Quad (MM 850/1300 and SM - 1310/1550) Bi-Directional Fiber Tester

ITEM #: OWL-F7BMS MFG #: F7BMS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4,400.00

Our Price:

$4,124.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    F7BMS - Overview

    The Optical Wavelength F7BMS Fiber OWL 7 BIDI is a high-accuracy, high-resolution, microprocessor-controlled optical loss test sets (OLTS) capable of performing a wide variety of testing applications, from basic optical loss measurement up to simultaneous bi-directional, dualwavelength fiber link certification. With a wide measurement range and NIST-traceable wavelengths, the Fiber OWL 7 BIDI is ideal for both singlemode and multimode fiber link certification. Enclosed in an attractive hand-held case made from high impact plastic and protected by a protective rubber boot, test readings and graphical help screens can be viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry. Each Fiber OWL 7 BIDI is powered by re-chargeable lithium polymer batteries, typically allowing up to 50 hours of continuous use. A built-in auto-shutdown feature further conserves battery life. Batteries are re-charged through the USB port via supplied battery chargers.

    • Features:

      • Fiber OWL 7 BIDI OLTS - Quad (MM: 850/1300 and SM: 1310/1550)
      • Used for long-term cable system warranties and assure clients of a job well done
      • Intuitive Link Wizard: guides the setup and reference process with helpful tutorial diagrams via the color LCD
      • Optical Loss Test Set (olts): separate transmit and receive ports allow simultaneous dual-fiber testing

    • Specifications:

      • General
      • Display Type: 2.8" Color LCD
      • Battery Type: Lithium Polymer
      • Battery Life:
        MASTER up to 25 hours up to 20 hours
        REMOTE up to 55 hours up to 50 hours
      • Auto-shutdown: Yes
      • Operating Temperature: 14° to 131°F(-10° to 55°C)
      • Storage Temperature: -22° to 158°F (-30° to 70°C)
      • Dimensions: 2.87 x 4.42 x 1.25"
      • Weight: 10oz (284g)

        Optical Power Meter (OPM) Port - Receive
      • Detector Type: InGaAs
      • Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625nm
      • Measurement Range: +5 to -70 dBm
      • Accuracy (Uncertainty): ±0.15 dB
      • Display Resolution: 0.01 dB
      • Measurement Units: dBm, dB
      • Connector Type: Universal (2.5mm and 1.25mm)
      • Data Storage Points: <10,000
      • Download Port Connection: USB
      • Software: OWLView
      • Modes of Operation: PAIR, BIDI, CERT, LOSS, OPM
      • Length Measurement Range: up to 25 km
      • Length Measurement Accuracy: ±2.5 meters

        Fiber Optic Light Source (MM/SM) Port - Transmit
      • Type (MM/SM): LED/FP Laser
      • Center Wavelength:
        850 +30/-10nm
        1300 ±50nm
        11310 ±30nm
        11550 ±30nm
      • Spectral Width (FWHM):
        850nm: 50nm
        1300nm: 180nm
        1310nm: 2nm
        1550nm: 2nm

        Output Power (MM/SM) -20 dBm/-10 dBm
      • Initial Accuracy (Uncertainty): ±0.1 dB
      • Output Modes: CW, Modulated

        VFL Port
      • Type (MM/SM): Red Laser
      • Center Wavelength: 650nm
      • Output Power: 0 dBm (1mw)
      • Output Modes: CW, Modulated
      • Connector Type: 2.5mm universal
