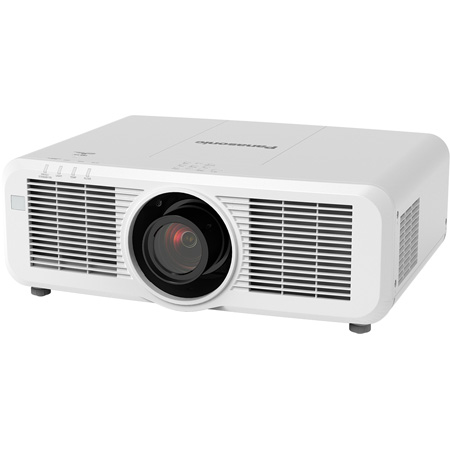

Panasonic PT-MZ670U 3LCD Solid Shine Laser Projector

ITEM #: PAN-PT-MZ670U MFG #: PT-MZ670U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAN-PT-MZ670U

PT-MZ670U - Overview

Enjoy bright images in most everyday settings with the Panasonic PT-MZ670U 6500-Lumen WUXGA 3LCD Projector. Its 6500 lumens of brightness and 3,000,000:1 dynamic contrast ratio will work together to overcome light in moderately bright rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The projector's 1.7 to 2.8:1 throw ratio offers a range of throw distances for focused images.

  • Features:

    • SOLID SHINE laser phosphor drive with 3LCD optical engine helps provide bright, vivid, detailed images
    • Brightness of up to 6500 lumens
    • Dynamic contrast ratio of 3,000,000:1 helps ensure legible text and enhanced picture quality thanks to the laser light source and WUXGA native resolution
    • Detail Clarity Processor 4 helps enhance image clarity and sharpness
    • Daylight view basic helps provide clear and crisp images in bright environments
    • DICOM Simulation Mode for medical presentations
    • Color adjustment function corrects color variations in multiple-projection


  • Specifications:

    • Image Display
    • Display System: 3-Chip 0.76" LCD
    • Native Chip Resolution: 1920 x 1200 (WUXGA)
    • Max Brightness: 6500 Lumens
    • Uniformity: 90%
    • Aspect Ratio: Native: 16:10
    • Dynamic Contrast Ratio: 3,000,000:1
    • Scan: Horizontal: 15 to 91 kHz
    • Vertical: 24 to 100 Hz

      Lens
    • Focus: Manual Powered
    • Lens: f/1.7 - 2.3 (f = 26.9 - 45.5 mm)
    • Lens Shift: Vertical: +/- 67%
    • Horizontal: +/- 35%
    • Optical Zoom: Powered: 1.69x
    • Throw Ratio: 1.7 to 2.8:1
    • Projection Size: 40 - 400" / 1.02 - 10.16 m

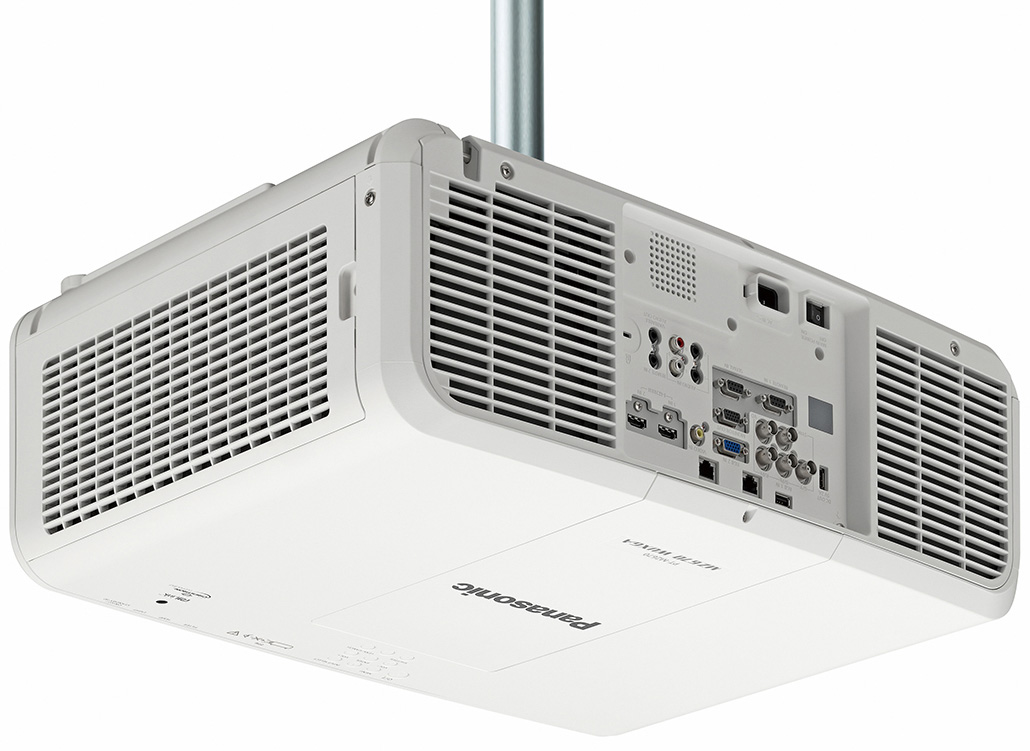

      Input/Output Connectors
    • Inputs/Outputs:
      2 x HDMI (HDMI Type-A) Audio, Video Input
      1 x 5BNC Video Input
      1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Service, Video Input
      1 x Composite (RCA) Video Input
      1 x VGA (DE-15/DB-15) Video Input
      1 x VGA (DE-15/DB-15) Video Output
      1 x 2RCA Audio Input
      2 x 1/8" / 3.5 mm Mini Audio Input
      1 x 1/8" / 3.5 mm Mini Audio Output
      1 x RS-232 (DE-9/DB-9) Control Input
      1 x DE-9/DB-9 Control Input
      1 x 1/8" / 3.5 mm Mini Control Input
      1 x Ethernet (RJ45) LAN Input
      1 x USB 2.0 (USB Type-A) Audio, Data, Video Input
      1 x USB 2.0 (USB Type-A) Power Output
    • Memory Card Slot: None

      Hardware
    • Wireless LAN / Wi-Fi: No, Optional Adapter Available

      General
    • Light Source: Laser Phosphor
    • Expected Lamp Life: Medium Brightness: 20,000 Hours
    • Fan Noise: Full Brightness: 33 dB
    • Low Brightness: 28 dB
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
    • Operating Temperature: 32 to 113°F / 0 to 45°C
    • Operating Humidity: 20 - 80%
    • Dimensions (WxHxD): 22.0 x 8.1 x 17.4 Inches
    • Weight: 35.3 Lbs


  • GTIN:

    0885170321809
