Panasonic PT-RZ6LWU7 6500 Lumens Laser WUXGA Resolution 1DLP Projector without Lens & 4K Signal Input - White

ITEM #: PAN-PT-RZ6LWU7 MFG #: PT-RZ6LWU7

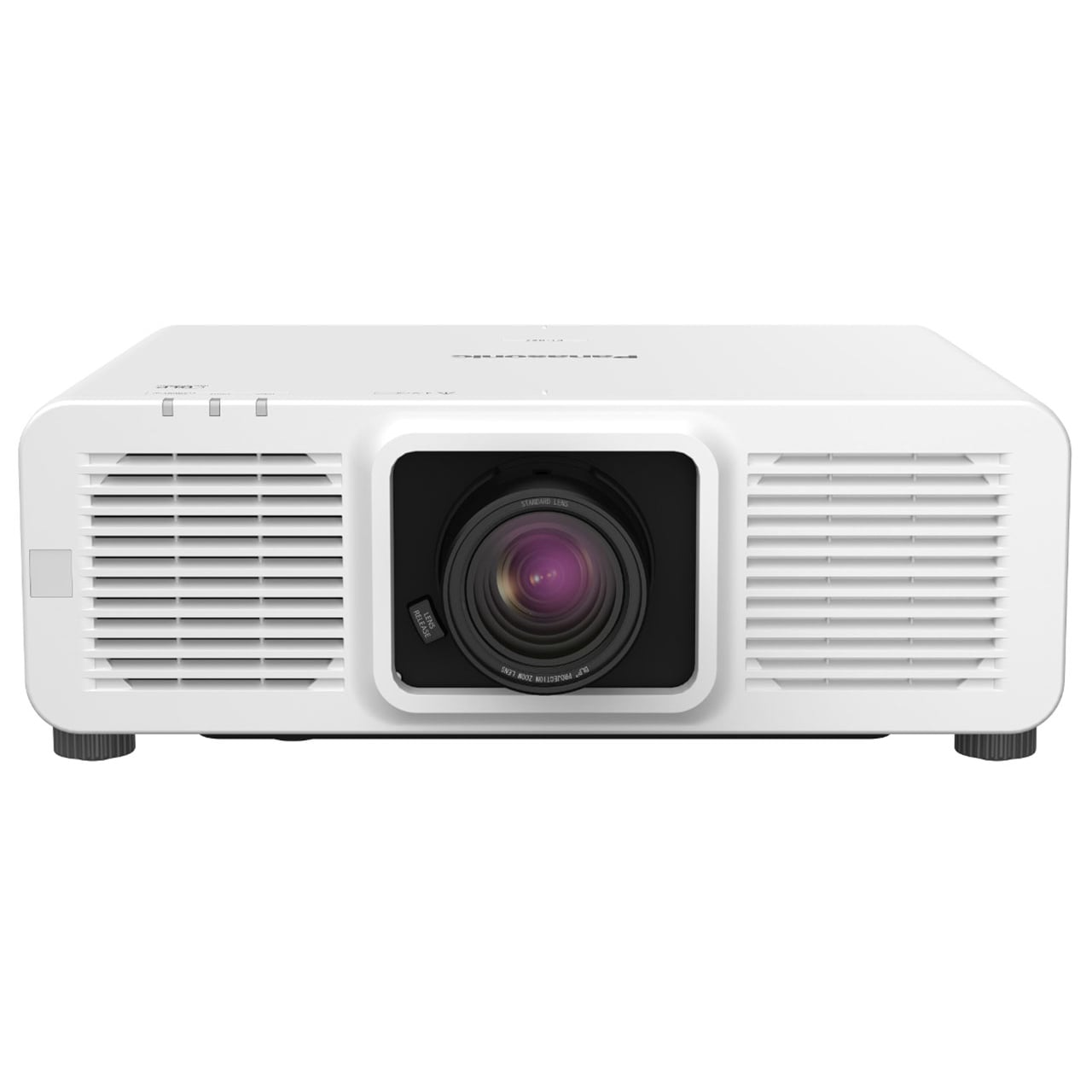

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$15,729.00

Our Price:

$8,640.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT-RZ6LWU7 - Overview

Light, Quiet, and Easy to Manage!

The Panasonic PT-RZ6LWU is a 6500-lumen projector that provides seamless visuals and endless possibilities. This compact 1-Chip DL projector creates an entrancing experience rich in contrast and color through exclusives such as Quad Pixel Drive and Rich Color Enhancer. But it's Panasonic's integration insight that sets it apart, with labor-saving innovations to streamline workflow. From automated multi-projection adjustment to effortless app control, the RQ7 Series makes it easy to realize your vision in museums, galleries, and beyond. Dynamic Contrast, Rich Color Enhancer, and Digital Art Mode bring out the realism of high-quality content.

At just 36.59lbs (16.6kg) and about 29% smaller than the RZ790/RZ690 models, the RQ7 Series eases the logistical burden for easy installation. Optional function boards for the Intel SDM standard-compatible SLOT, including our ET-SBFMP10 media processor, simplify complex layouts. Optional DLE Series lenses are compatible with this projector.

The PT-RZ6LWU is an eco-friendly and reliable 1-Chip DLP projector. Its optical engine and light-source module comply with the IP5X Dust Protected (IEC 60529) standard, while a filterless design contributes to 20,000 hours of maintenance-free operation. Other aspects include using plastic parts containing about 73% recycled resins and an Eco Boost mode that maintains perceived brightness while reducing energy consumption.

  • Features:

    • Compatible with Existing DLE Series Lenses
    • Smart Projector Control App Smooths Your Workflow
    • Supports Art-Net DMX, PJLin, Crestron Connected V2,
    • Crestron XiO Cloud, and Extron XTPr
    • Supports IPv61 network protocol
    • Supports widescreen 21:9 input signals
    • USB port for DC 5 V/2 A power supply, optional AJ-WM50 Series
    • Wireless Module, and data transfer
    • Compatible with the Multiple PJ Firmware Batch Update Tool
    • Data-Cloning Function2 via LAN or USB
    • Quick Start and Quick Off
    • Multi-screen Support System

  • Specifications:

    • Projector Type: 1-Chip DLPT projector
    • DLP Chip: 1
    • Panel Size: 0.67" (17.0mm) diagonal (16:10 aspect ratio)
    • Display Method: 1x DLP chip, DLPT projection system
    • Number of Pixels: 2,304,000 (1920 x 1200 pixels)
    • Resolution: WUXGA (1920 x 1200 pixels)
    • Screen Size (Diagonal):
      - 50" - 200" (1.27m - 5.08m) with ET-DLE055
      - 50" - 600" (1.27m - 15.24m) with ET-DLE060/ETDLE085/ET-DLE105/ET-DLE150/ET-DLE170/ET-DLE250/ET-DLE350
      - 100" - 350" (2.54m - 8.89m) with ET-DLE035
      - 100" - 400" (2.54m - 10.16m) with ET-DLE020
    • Light Source: Laser diodes
    • Light Output: 6,500 lm
    • Contrast Ratio: 15,000:1 (Full On/Full Off, Dynamic Contrast [3])(TBD)
    • Time Until Light Output Declines to 50%: 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
    • Lens: Optional (no lens included with this model)
    • Center-to-Corner Zone Ratio: 90%
    • LAN: 1x RJ45 for network connection, PJLinkT (Class 2) compatible, 10Base-T/100Base-TX, ArtNet compatible
    • Remote In: 1x M3 stereo mini-jack for wired remote control
    • Keystone Correction Range: TBD
    • Installation: Ceiling/floor, front/rear, free 360° installation
    • Serial In: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    • Serial Out: 1x D-sub 9-pin (male) for link control (RS-232C compliant)
    • Terminals: 2
    • HDMI IN: 2x HDMI (Deep Color, compatible with HDCP 2.3, 4K/60p signal input 5)
    • DIGITAL LINK/LAN: 1x RJ45 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseTT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p 5, 6 signal input)
    • REMOTE OUT: 1x M3 stereo mini-jack for link control (for wired remote control)
    • DC Out: 1x USB Type A (for power supply, DC 5 V, 2 A)
    • USB: 1x USB connector (Type A) for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal)
    • Expansion Slot: Open slot for function boards, Intel SDM compatible
    • Protocol Versions: IPv4, IPv6 7
    • Dimensions (WxHxD): Approx. 19-19/32" x 6-11/16" x 17-5/16" (498mm x 170mm x 440mm)(With legs at shortest position, excluding lens and protruding parts)(TBD)
    • Operating Environment:
      - Operating Temperature: 32°F - 113°F (0°C - 45°C)
      - Operating Humidity: 10% - 80% (no condensation)
    • Cabinet Materials: Molded plastic
    • Applicable Software: Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System11, Geometry Manager Pro, Smart Projector Control for iOS/Android
    • Power Supply: AC 100V - 240V, 50/60Hz
    • Control Function via LAN: Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)
    • NORMAL: 470W (TBD)
    • ECO: 340W (TBD)
    • QUIET: 335W (TBD
    • Operation Noise: 35dB (NORMAL/ECO), 32dB (QUIET)(TBD)
    • Maximum Power Consumption: 620W (6.3A - 2.7A)(630VA)(TBD)
    • Weight: 39.7lbs (18.0kg) or less (TBD)

  • Item Includes:

    • Panasonic PT-RZ6L 6500-Lumen WUXGA Laser DLP Projector (No Lens, White)
    • Power Cord
    • Remote Control
    • 2 x AAA Batteries for Remote
    • SLOT Adapter

  • Warranty:

    • 3 Month Limited Manufacturer Warranty
