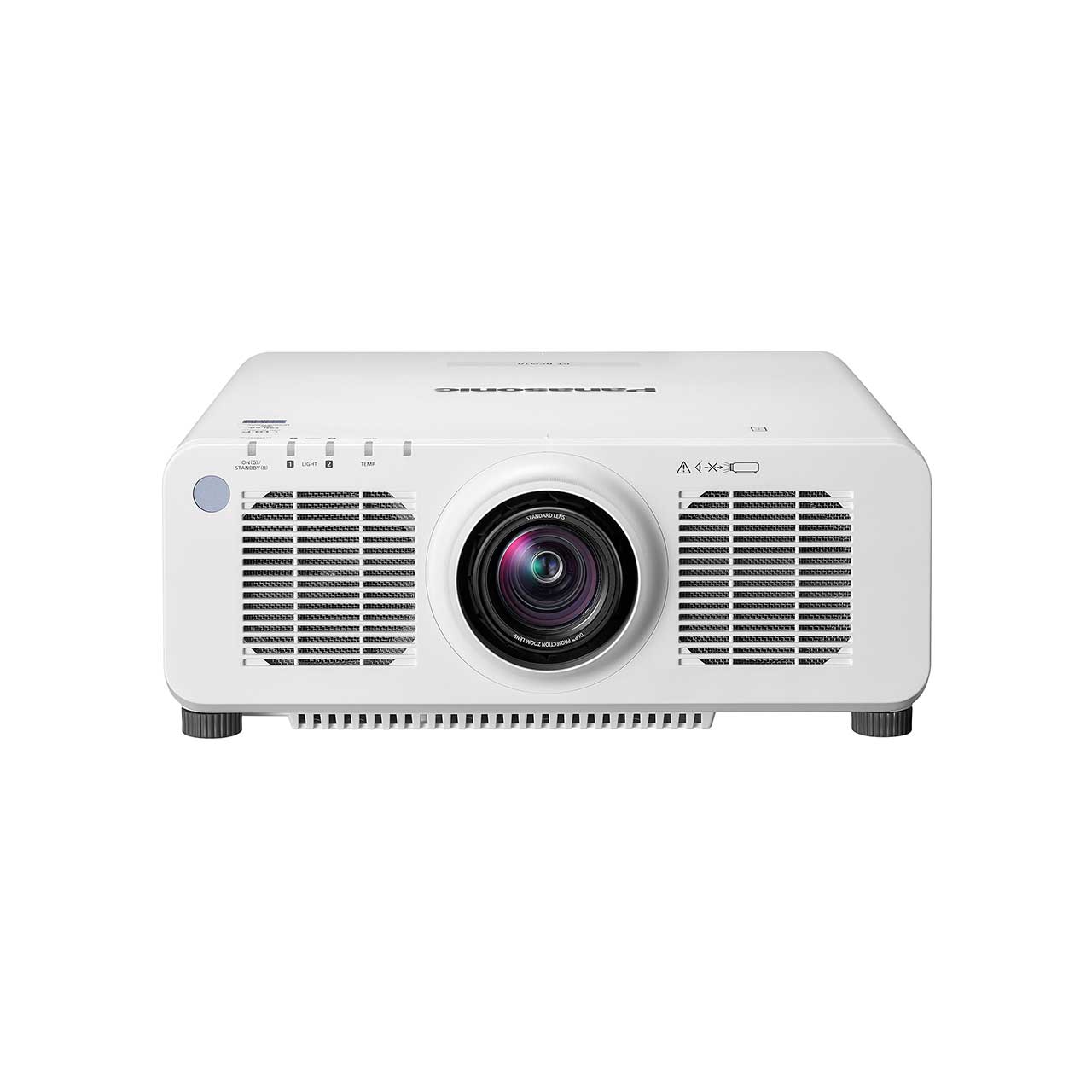

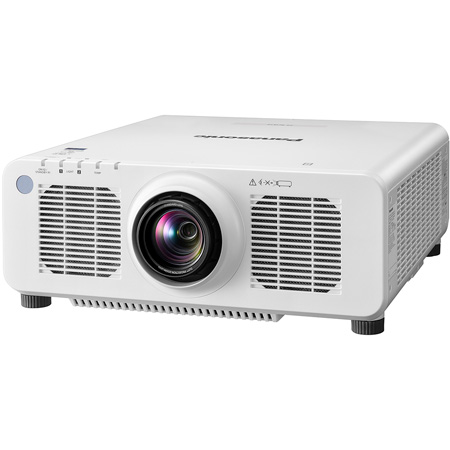

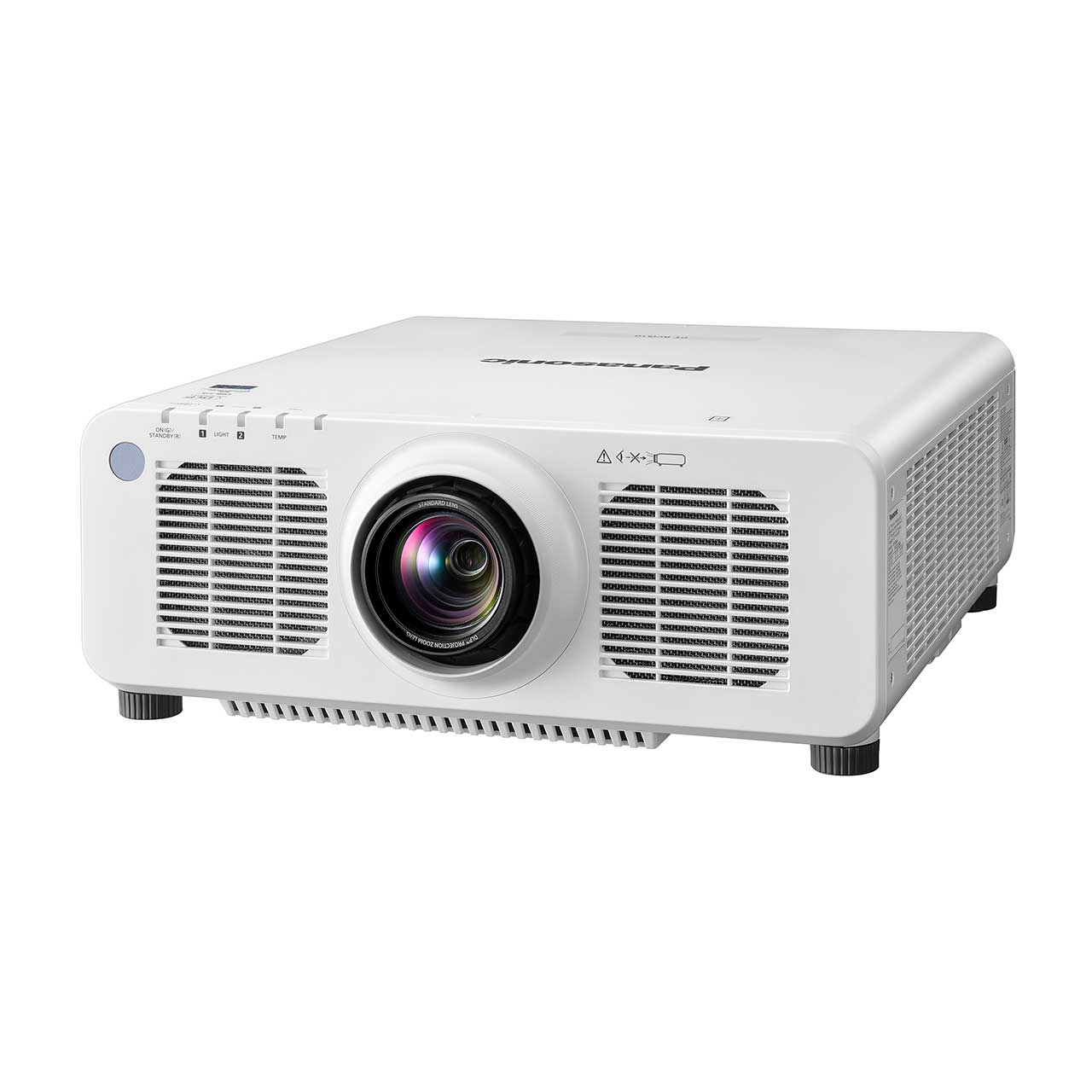

Panasonic PT-RCQ80L 8000 ANSI Lumen 1DLP WUXGA Laser Projector - 1600 x 1200 - White (without lens)

ITEM #: PAN-PT-RCQ80L-WE MFG #: PT-RCQ80L

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$24,499.00

Our Price:

$11,849.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    PT-RCQ80L - Overview

    Detailed, Color-Rich Images and Seamless Integration Help You Create Immersive Environments

    More Immersive, Color-rich Images from Panasonic's Most Adaptable Projector Yet
    The Panasoic PT-RCQ10 has a newly developed Rich Color Harmonizer that achieves deeper, more vibrant color expression. Combined with Smooth Pixel Drive, a technology that creates crisp yet smooth images using. 1-axis wobbling, you can enjoy colorful and highly detailed images beyond the panel resolution.

    Seamless Integration with SLOT NX and Full Lens Lineup
    With technologies to support 4K playback, including 4K signal input via HDMI®, DIGITAL LINK, and optional SLOT NX interface boards, the seamless integration of 4K content is greatly simplied. Compatibility with our 1-Chip DLP™ lenses, including the ET-DLE020 Ultra-Short-Throw Zoom Lens, further enhances application flexibility.

    Excellent Reliability in Tough Conditions
    Further improvements to Panasonic's unique SOLID SHINE Laser cooling system achieve 20,000 hours of maintenance-free operation, all from the same compact body-size as our 1-Chip DLP™ WUXGA laser models.

    Smooth Pixel Drive
    Smooth Pixel Drive is a new 1-axis pixel-wobbling system that produces detailed images beyond the projector's panel resolution. It combines an original image processing engine optimized for single-axis pixel-wobbling with a thinner DMD aperture ratio, boosting perceived resolution while smoothing jaggies, sharpening text, and clarifying detail, resolving impressively with 4K input signals. Your audience is treated to clear, comfortable, and easy-to-see images even from a distance.

    Smart Projector Control App
    Smart Projector Control app for Android™ and iOS now includes Near Field Communication (NFC) function to instantly pair smartphone to projector just by touching them together. Once linked, the app accesses an information settings menu that's readable and writable for easy adjustment without turning on the projector. As well as showing data and allowing certain settings to be changed, the app features an auto-focus function*3 that uses the smartphone's camera and app UI to achieve fast yet precise image focus.

    • Features:

      • System Daylight View 3
      • Separate LAN/DIGITAL LINK Terminals
      • Data Cloning Function
      • Unique Contrast Sync and Shutter Sync Function
      • Quick Start/Quick Off Mode
      • Multi Monitoring & Control
      • Software and Early Warning Software
      • Multi-Unit Brightness and Color Control
      • Seamlessly Blended Screens with Multi-Screen Support System

    • Specifications:

      • Projector type: 1-Chip DLP projector

        DLP chip:
      • Panel size: 17.0 mm (0.67 in) diagonal, 16:10 aspect ratio
      • Display method: DLP chip x 1, DLP projection system
      • Number of pixels: 2,3042,304,000 (1920 x 1200) pixels
      • Light source: Laser diodes
      • Light output: 8,000 lm 8,400 lm (Center)
      • Time until light output declines to 50 %: 20,000 hours (NORMAL) / 24,000 hours (ECO)
      • Resolution: 4,608,000 pixels / 2715 x 1697 dots * With Smooth Pixel Drive: ON.
      • Contrast ratio: 10,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to [3].
      • Screen size (diagonal):1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with ET-DLE035, 2.54-10.16 m (100-400 in) with ET-DLE020, 16:10 aspect ratio
      • Center-to-corner zone ratio: 90 %
      • Lens: PT-RCQ80: Powered zoom (throw ratio 1.71-2.41:1), powered focus F 1.7-1.9, f 25.6-35.7 mm. PT-RCQ80L: Optional powered zoom/focus lenses

        Lens shift:
      • Vertical (from center of screen): +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
      • Horizontal (from center of screen): +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
      • Keystone correction range: Vertical: ±40 °(±5 °with ET-DLE020, ±16 °with ET-DLE060, ±22 °with ET-DLE105/ET-DLE085/ET-DLE055, +5 °with ET-DLE035),Horizontal: ±15 °(±10 °with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
      • Keystone correction range with optional ET-UK20 Upgrade Kit: Vertical: ±45 °(±16 °with ET-DLE060, ±40 °with ET-DLE150/ET-DLE250/ET-DLE170, ±22 °with ET-DLE105/ET-DLE085/ET-DLE055),
      • Horizontal: ±40 °(±10 °with ET-DLE060, ±15 °with ET-DLE105/ET-DLE085/ET-DLE055),
      • When [Vertical Keystone] and [Horizontal Keystone] are used simultaneously, correction cannot be made exceeding a total of 55 °.
      • Installation: Ceiling/floor, front/rear, free 360-degree installation: Ceiling/floor, front/rear, free 360-degree installation

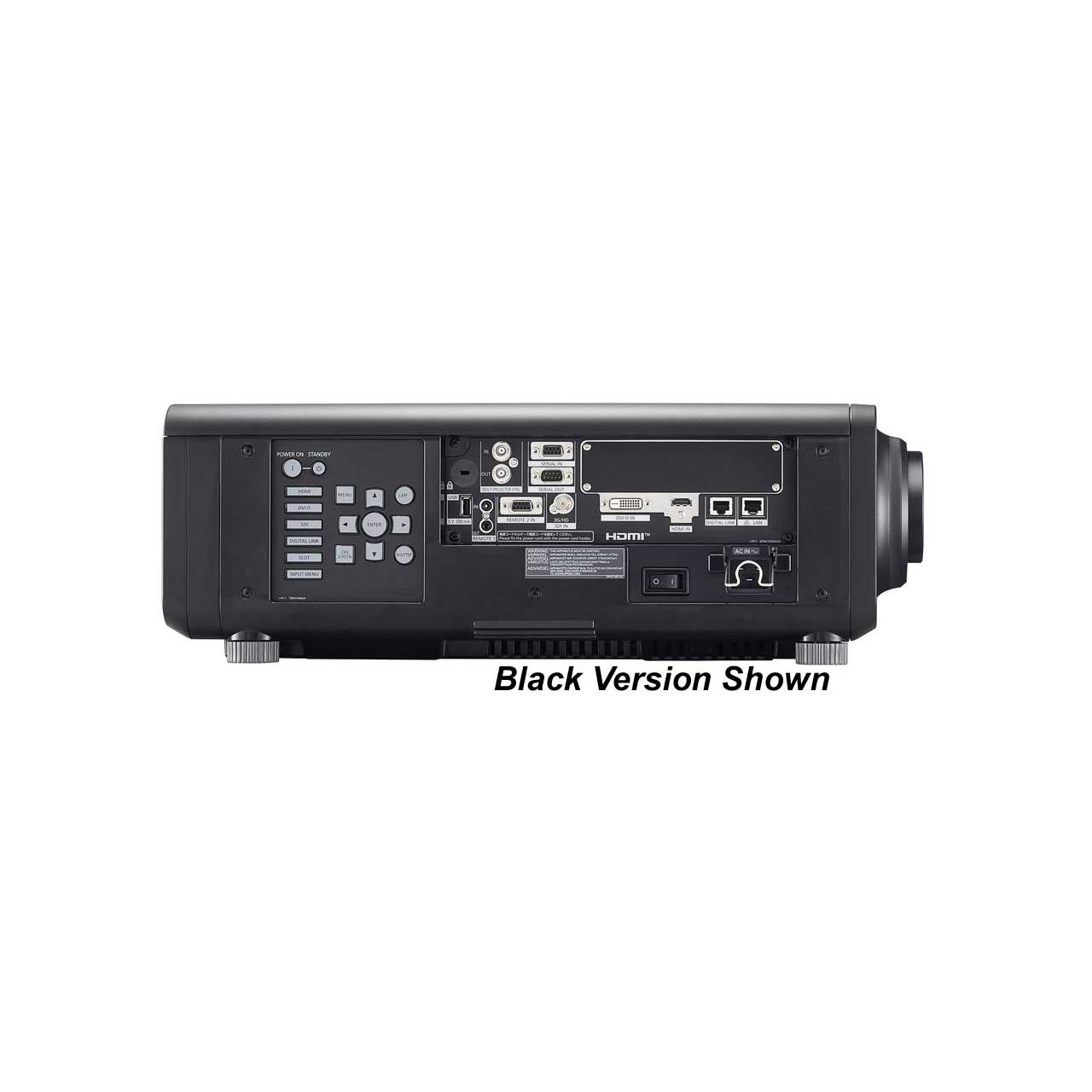

        Terminals:
      • SDI In: BNC x 1: 3G/HD-SDI input
      • HDMI In: HDMI 19-pin x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input)
      • DVI-D In: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
      • Multi Projector Sync In: BNC x 1
      • Multi Projector Sync Out: BNC x 1
      • Serial In: D-sub 9-pin (female) x 1 for external control (RS-232C compliant): D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
      • Serial Out: D-sub 9-pin (male) x 1 for link control: D-sub 9-pin (male) x 1 for link control
      • Remote 1 In: M3 x 1 for wired remote control
      • Remote 1 Out: MM3 x 1 for link control (for wired remote control)
      • Remote 2 In: D-sub 9-pin (female) x 1 for external control (parallel)
      • LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compliant with PJLink (Class 2), Art-Net
      • Digital Link: RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT compliant), 100Base-TX, compatible with Art-Net, PJLink (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input*5
      • USB: USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/500 mA)
      • Expansion Slot: Open slot for SLOT NX compatible interface board
      • Power supply: AC 100-240 V, 50/60 Hz
      • Power consumption: 880 W
      • Cabinet materials: Molded plastic
      • Operation noise: 40 dB (Normal)/38 dB (Quiet)
      • Dimensions (W x H x D): PT-RCQ80L: 498 x 200*6 x 538 mm (19 19/32" x 7 7/8" *6 x 21 3/16") (without lens)
      • Weight: PT-RCQ80L: Approx. 23.4 kg (51.6 lbs) (without lens)
      • Operating environment: Operating temperature: 0-45 °C (32-113 °F)*8 *9, operating humidity: 10-80 % (no condensation)

    • GTIN:

      0885170370951
