PENTA-721S Modular Router with 1 Slot / MADI / AES / Dante / Dual PSU and Dual Power Socket

ITEM #: PENTA-721S MFG #: PENTA-721S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    PENTA-721S - Overview

    The NTP PENTA 721s is a new generation audio router and audio distribution interface from NTP Technology, which provides a versatile and flexible interface for signal distribution of analog, and digital audio via AES/EBU and MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks including Dante. It has all the features of the Penta 721 with the addition of a card slot that can accept one of the 7 Penta interface cards to exactly match your I/O requirements.

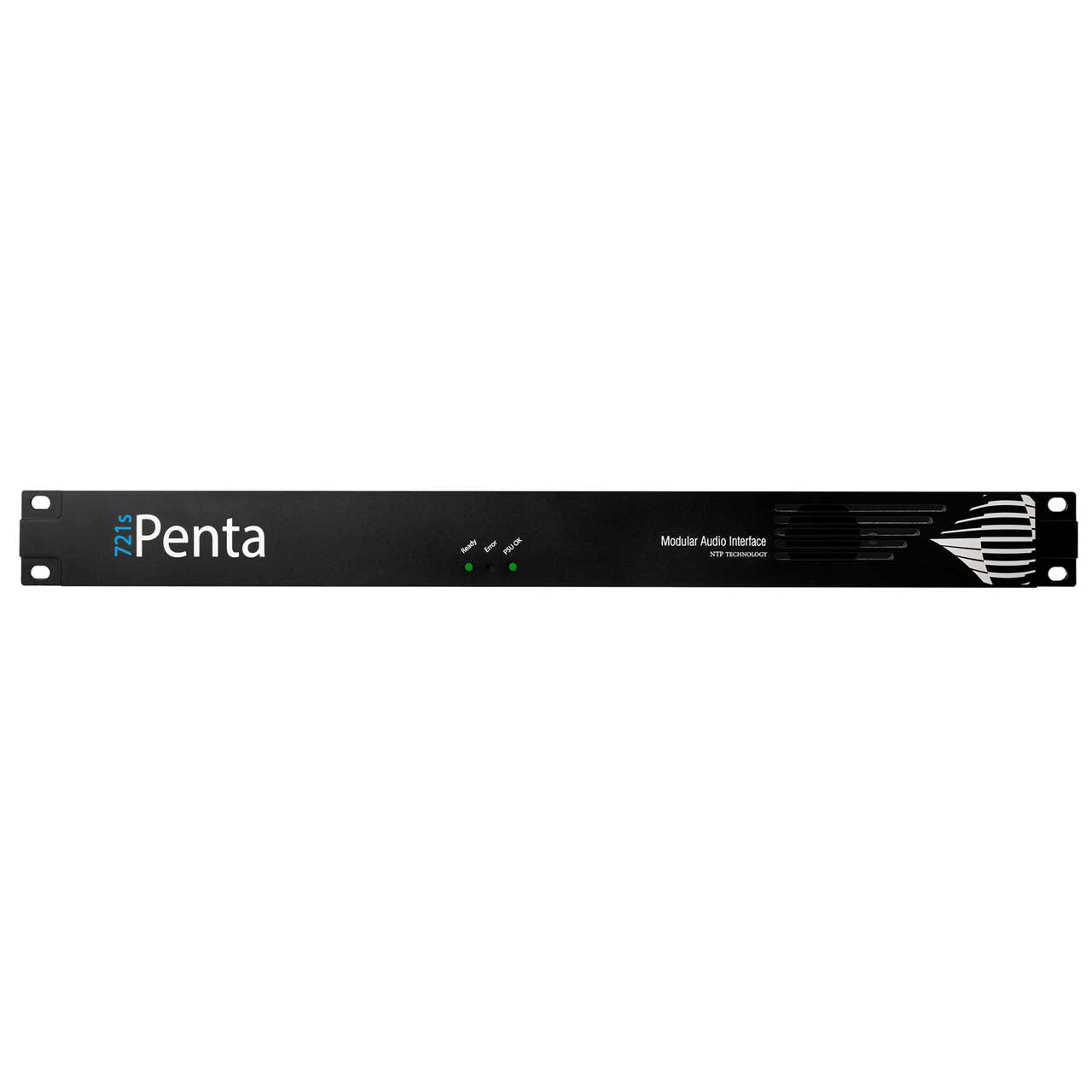

    PENTA 721s is a compact 1U digital audio interface designed for stand-alone use in recording studios, radio stations and stage venues.

    Signal Routing
    PENTA 721s include a 512+512 multiplexer,enabling all analog and digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs, and furthermore it incorporates soft switching with a fade down and fade up functionality of the signal level. Soft switching ensures that setting or changing a signal path can be made without any audible click or artefact.

    Control
    PENTA 721s are TCP/IP controlled via one or two Ethernet ports. Control and supervision can be made by the NTP RCCore control system, and the operation is done via the NTP VMC control software client applications. A simple dedicated software control application for Windows is available for controlling and setting up PENTA 721s on a unit to unit basis when less advanced operation is required.

    The IP Audio routing is for larger systems controlled by the NTP RCCore Router Control System, for easy and simple setting of connections on the Gigabit IP Ethernet. PENTA 721s can also be controlled by the Dante IP Audio routing controller software.

    IP Audio Powered by Dante
    The PENTA 721s IP Audio protocol is based on the robust tried-and-tested Dante™ digital audio network technology, and will interoperate with products of other brands that comply with Dante.

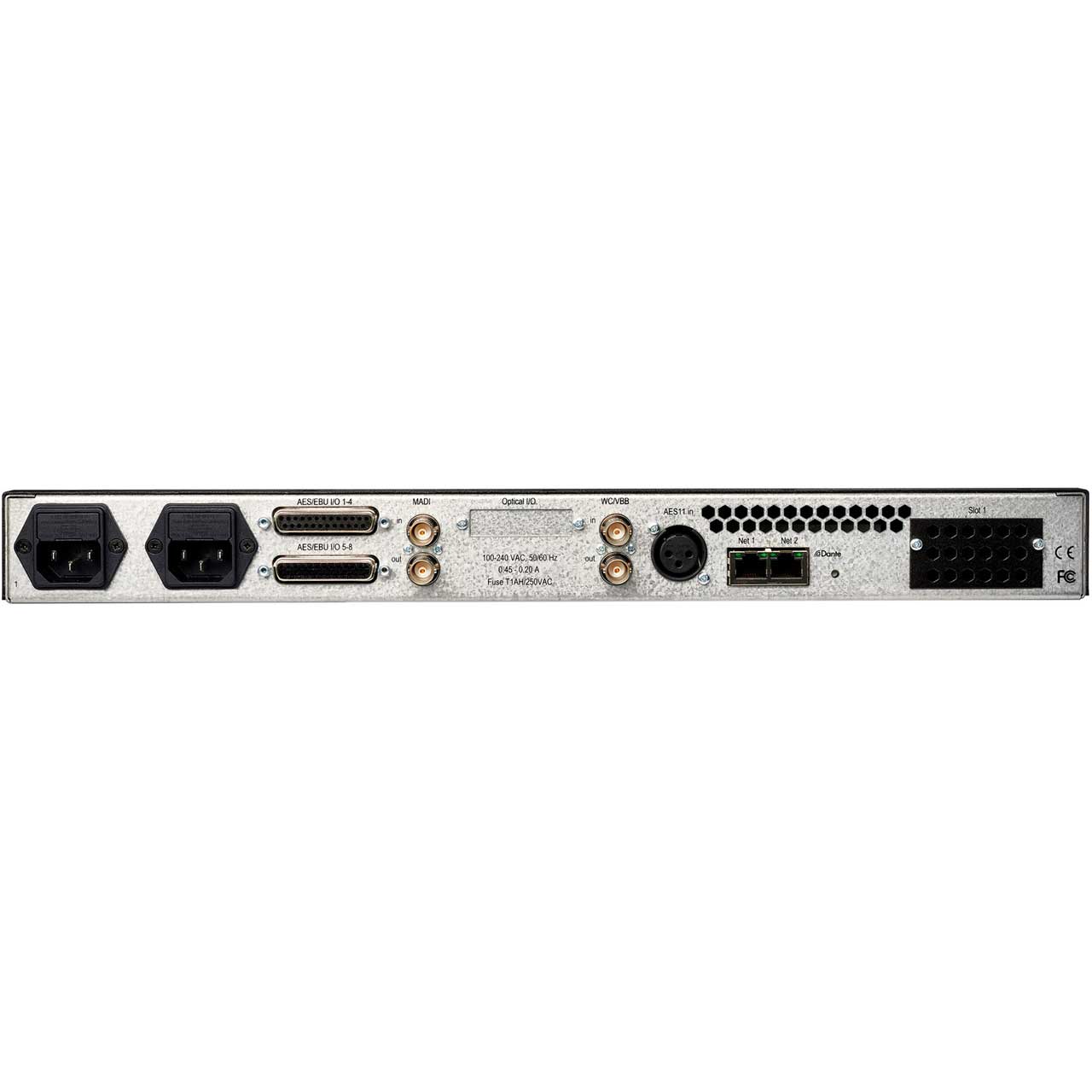

    • Features:

      • Crestron Drivers routing and volume
      • 64 MADI / BNC
      • 2 IP Audio RJ45 Ethernet Ports ( DANTE Brooklyn 2 card included as standard)
      • 8 AES/EBU I/O and 1-3 MADI I/O
      • Word clock and VBB in and out
      • AES11 Sync Input ( clock)
      • 512 x 1512 routing
      • IP audio L3 Ethernet I/O powered by Dante
      • TCP/IP control via NTP Router Control System and Stand alone control applications for PC Single or Dual power supply
      • 1 Card Slot – choose from one of the seven Penta Option Cards
      • D–slot mini-module slot for optional ST optical MADI connection or dual SFP MADI optical in/out. 128 MADI

    • Specifications:

      • Fitted with 64 Dante/AES67 Brooklyn 2 module
      • 1 Full Expansion Slot for any of the 7 modules available
      • Dual MADI Option Slot
