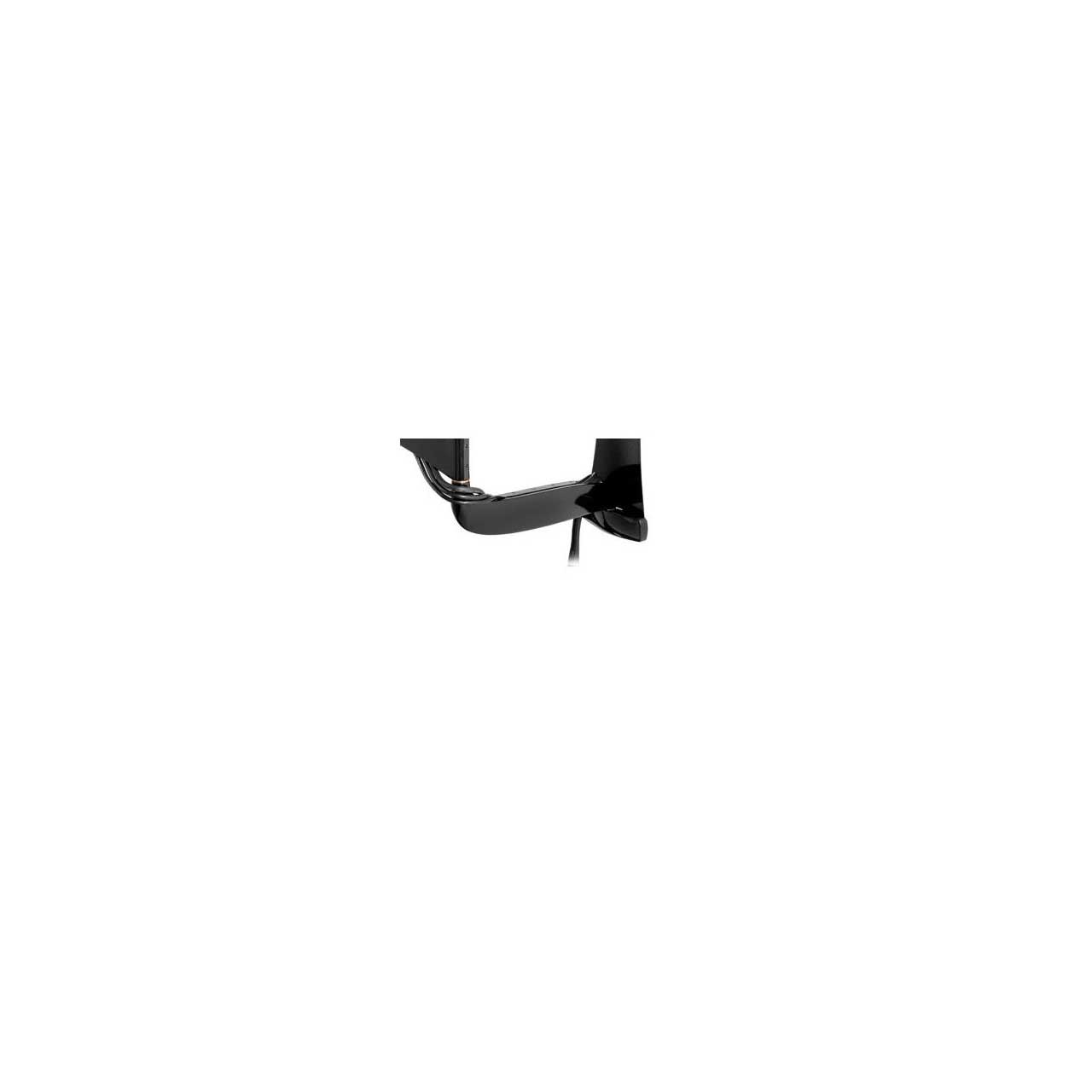

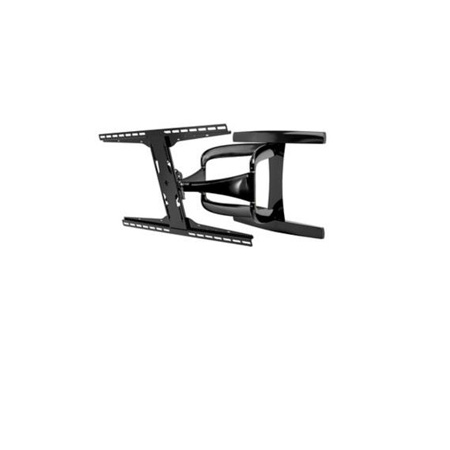

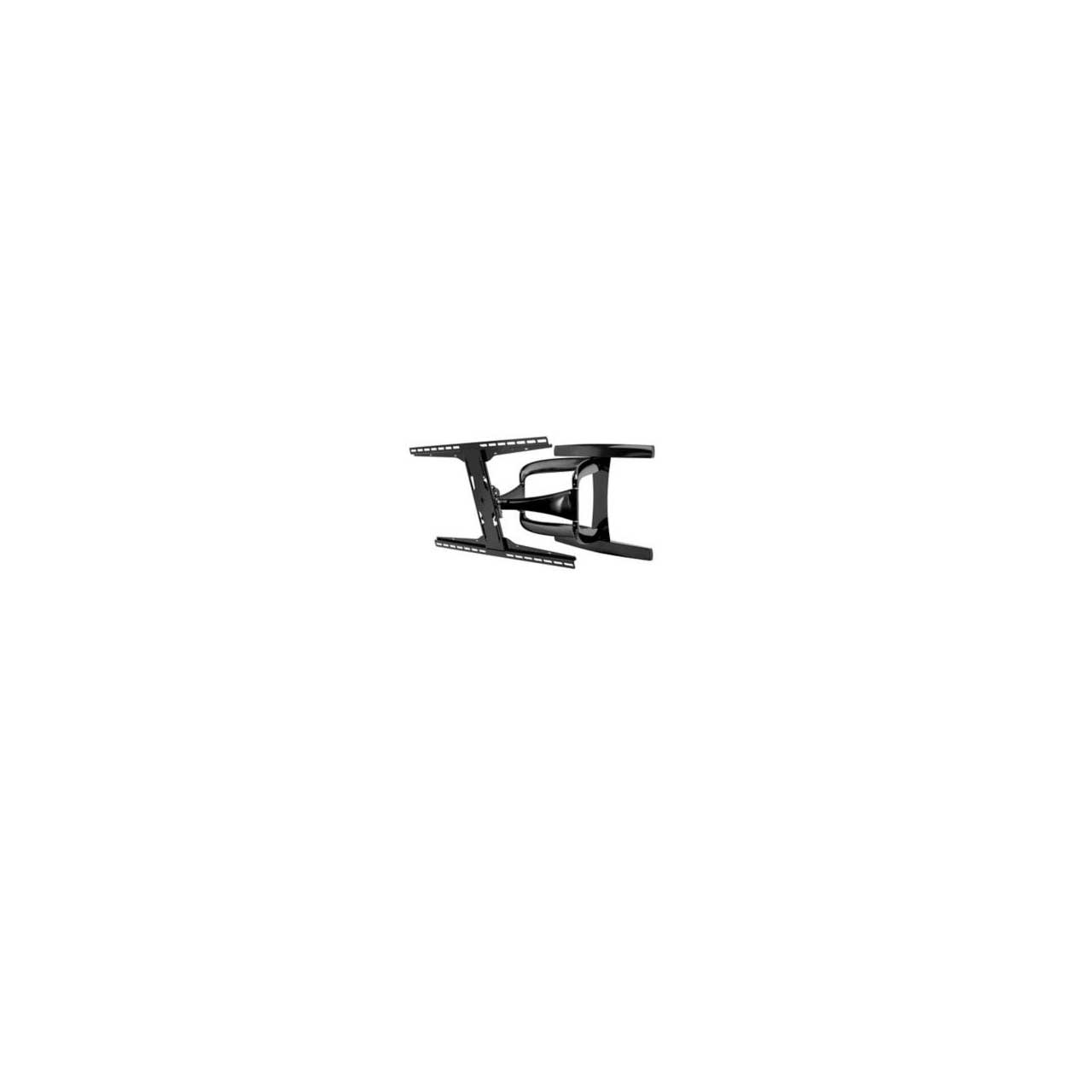

Peerless-AV SUA771PU Designer Series Universal Ultra Slim Articulating Wall Mount For 42 to 90 Inch Ultra-thin Displays

SUA771PU - Overview

• Features:

  • Dual-arm design enhances the stability of the articulating motion
  • Arms retract to 1.85" (47mm) and extend up to 24.85" (631mm) from wall
  • One-Touch tilt mechanism allows adjustment of +15/-5° without the use of tools
  • Up to ±72.5° of side-to-side swivel
  • Added ±5° of roll for post-installation display leveling without the use of tools
  • Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
  • Internal cable management provides clean, professional installation finish
  • Universal mount fits displays with mounting patterns 200 x 100 to 800 x 400mm
  • Landscape or portrait mounting options increases display versatility
  • The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display


• Specifications:

  • Minimum to Maximum Screen Size: 46" to 90"
  • VESA Pattern: 200x100,200,300x200,300,400x200,400x300,400,600x400,800x400
  • Mounting Pattern: 800 x 400mm (31.50 x 15.75")
  • Weight Capacity: 125lb (57kg)
  • Color: Black
  • Finish: High Gloss
  • Security Features: Non-Security Hardware
  • Tilt: +5/-15
  • Swivel Yaw: +/-90
  • Roll: +/-5
  • Increlock Increments: N/a
  • Distance from Ceiling: N/a" (N/amm)
  • Distance from Wall: 1.85 - 24.85" (47 - 631mm)
  • Product Dimensions: 32.25x17.39x1.85-24.85" (819x442x47-631mm)
  • Ship Dimensions: 23.75 x 4 x 41" (603.3 x 101.6 x 1,041.4mm)
  • Shipping Weight: 30.73lb (0kg)
  • UPC Code: 735029306405


• GTIN:

  0735029306405
