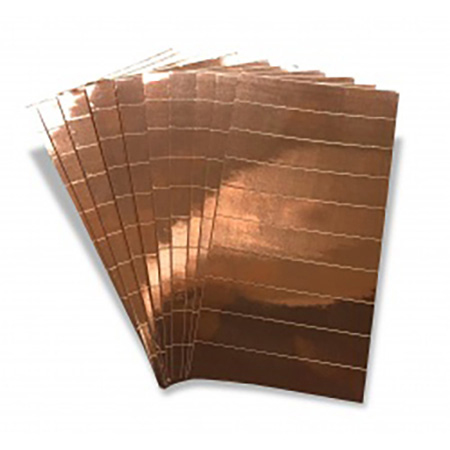

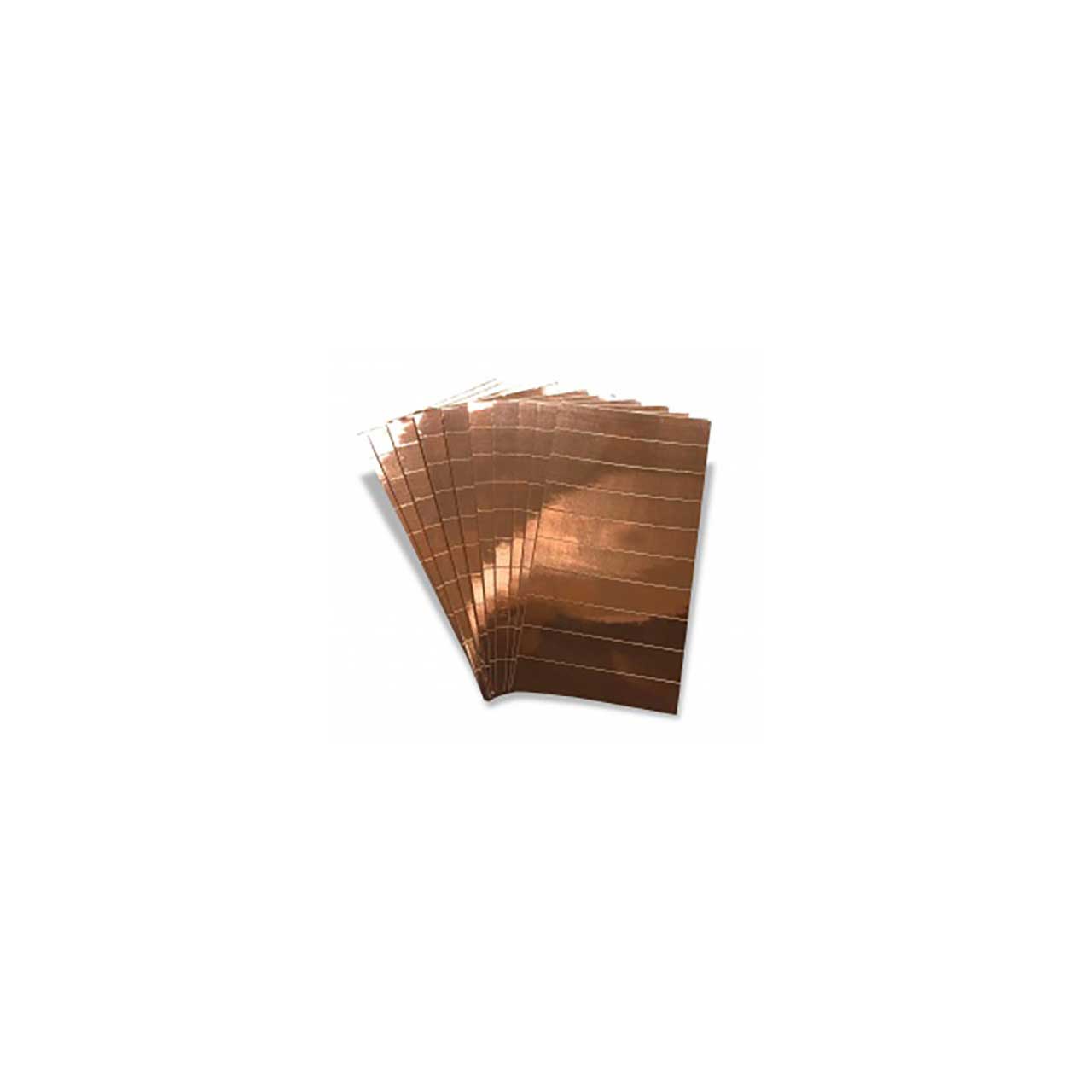

Platinum Tools 2039 Copper Foil Strips - 100 Pack (10 sheets of 10 strips)

ITEM #: PLAT-2039 MFG #: 2039

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$12.31

Our Price:

$10.47

Availability: In Stock
iAvailability Description Popup


2039 - Overview

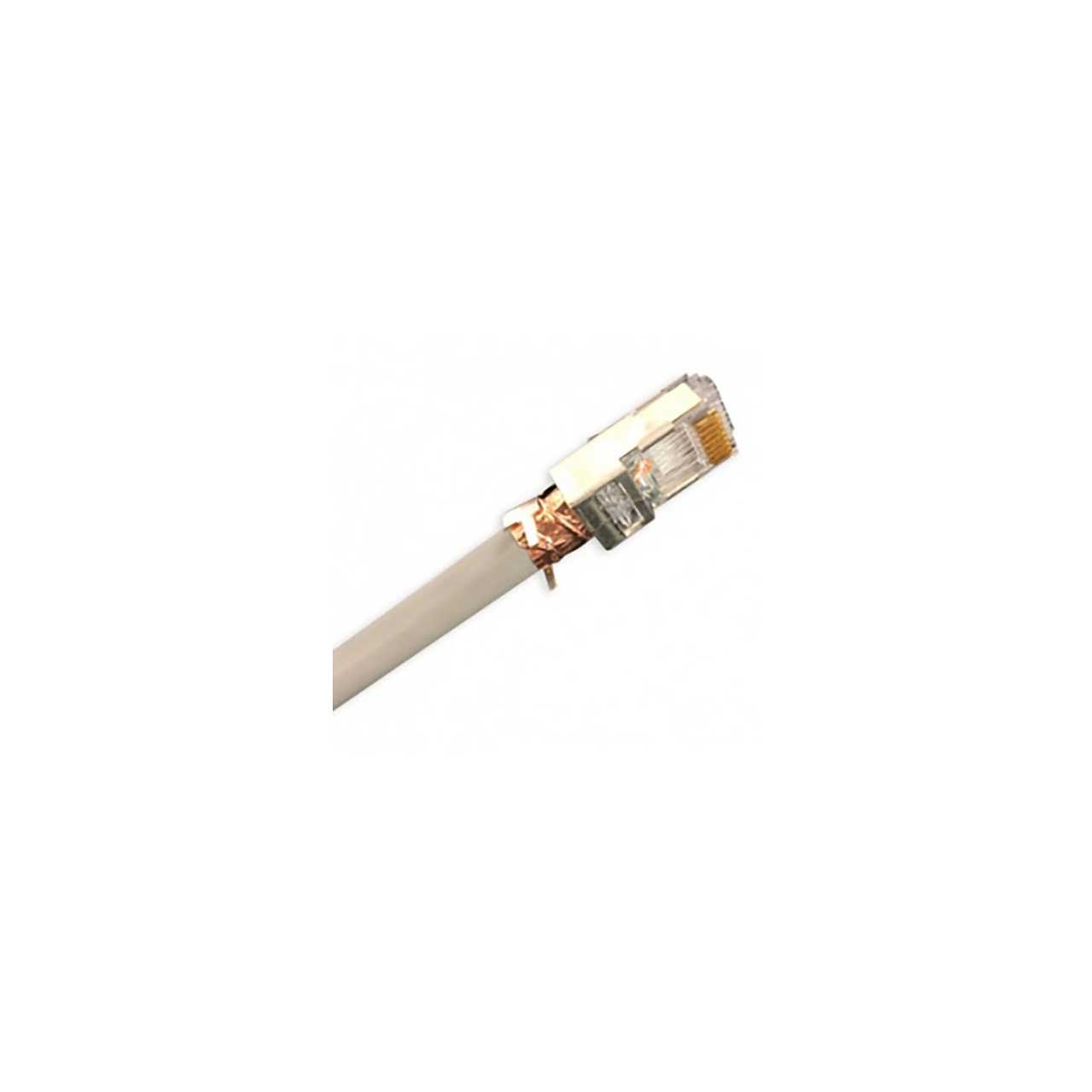

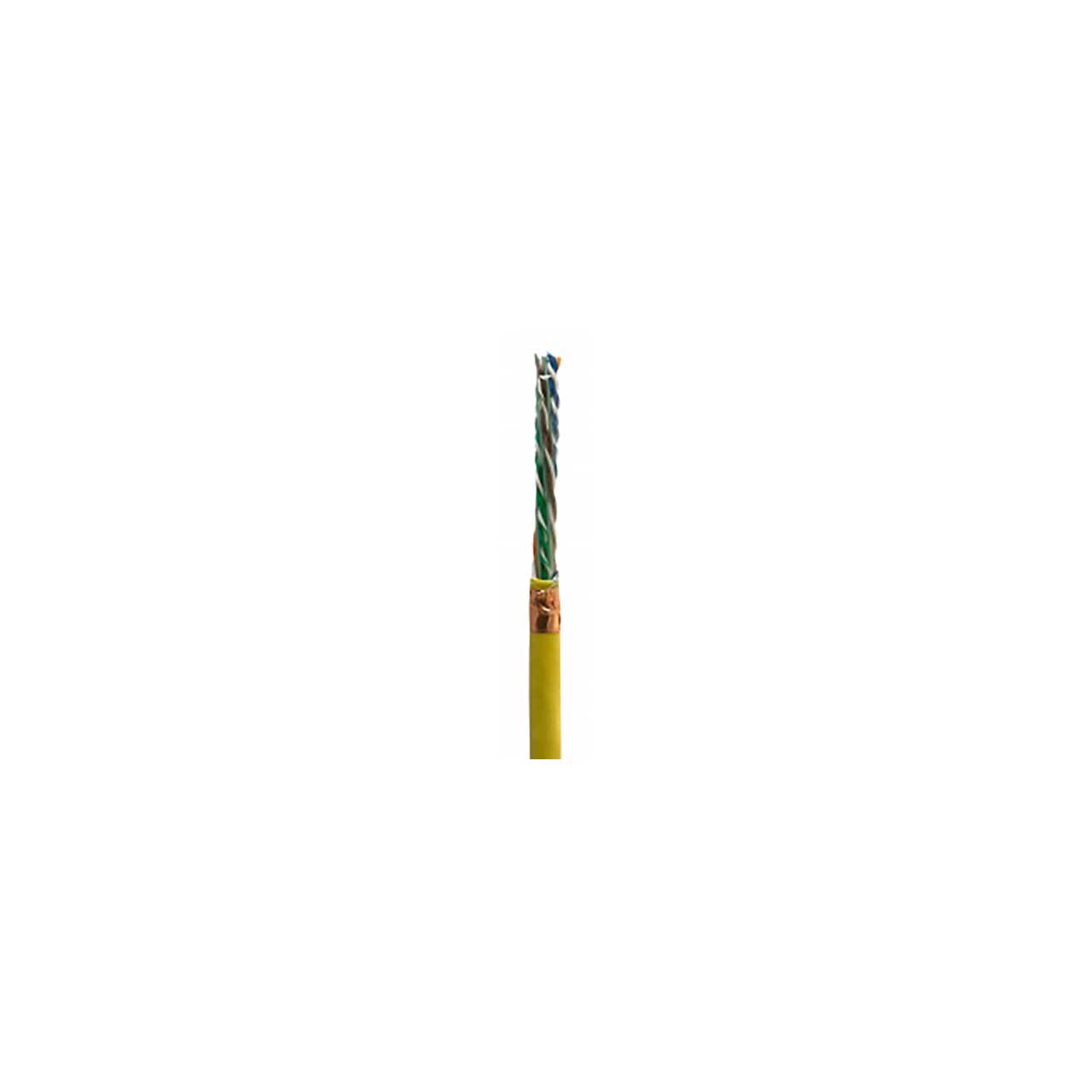

The Platinum Tools 2039 Copper Foil Strips consist of a copper foil backing and conductive adhesive. The Copper Foil Strips are supplied on removable paper sheet for easy handling. Copper foil strips are typically used as an EMI/RFI shielding for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping, and surface contact to non-solderable materials. These copper foil strips work perfectly with all the Platinum Tools Shielded RJ45 Connector and Shielded Keystone Jacks.

  • Features:

    • Conductive Adhesive
    • EMI/RFI Shielding Strips
    • Improves Bandwidth Performance
    • 10 strips per sheet (10 sheets per pack), 100 pcs

  • Specifications:

    • Base Material: Copper Foil
    • Base Material Characteristic: XYZ Axis Conductive
    • Composition of Adhesive: 99.95% CU
    • Thickness of Material: 0.025mm ±10%
    • Adhesive: Conductive Acrylic Adhesive
    • Composition of Adhesive: Acrylic Acid + NI
    • Thickness of Adhesive: 0.03mm ±10%
    • Liner: Single-Sided Release Paper with White Color
    • Weight of Liner: 140g ±10%
    • Thickness of Liner: 0.15mm ±10%
    • Total Thickness: 0.05mm ±10%
    • Heat Resistance (ASTM-1000): 14°F - 248°F (-10°C - 120°C)
    • Peel Off Strength (with Metal Plate)(ASTM-1000): ≥1.0kg/25mm
    • Shielding Effectiveness (SJ-20524-1995): 60dB (10MHz - 3GHz)
    • Copper Surface Resistivity (ASTM-100): 0.015Ω
    • Adhesive Surface Resistivity (ASTM-1000): ≤0.08Ω

  • GTIN:

    0849160010920
