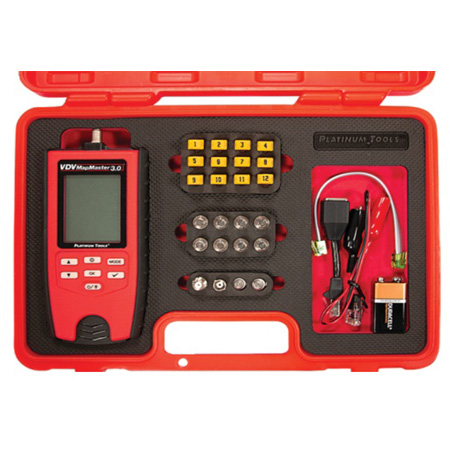

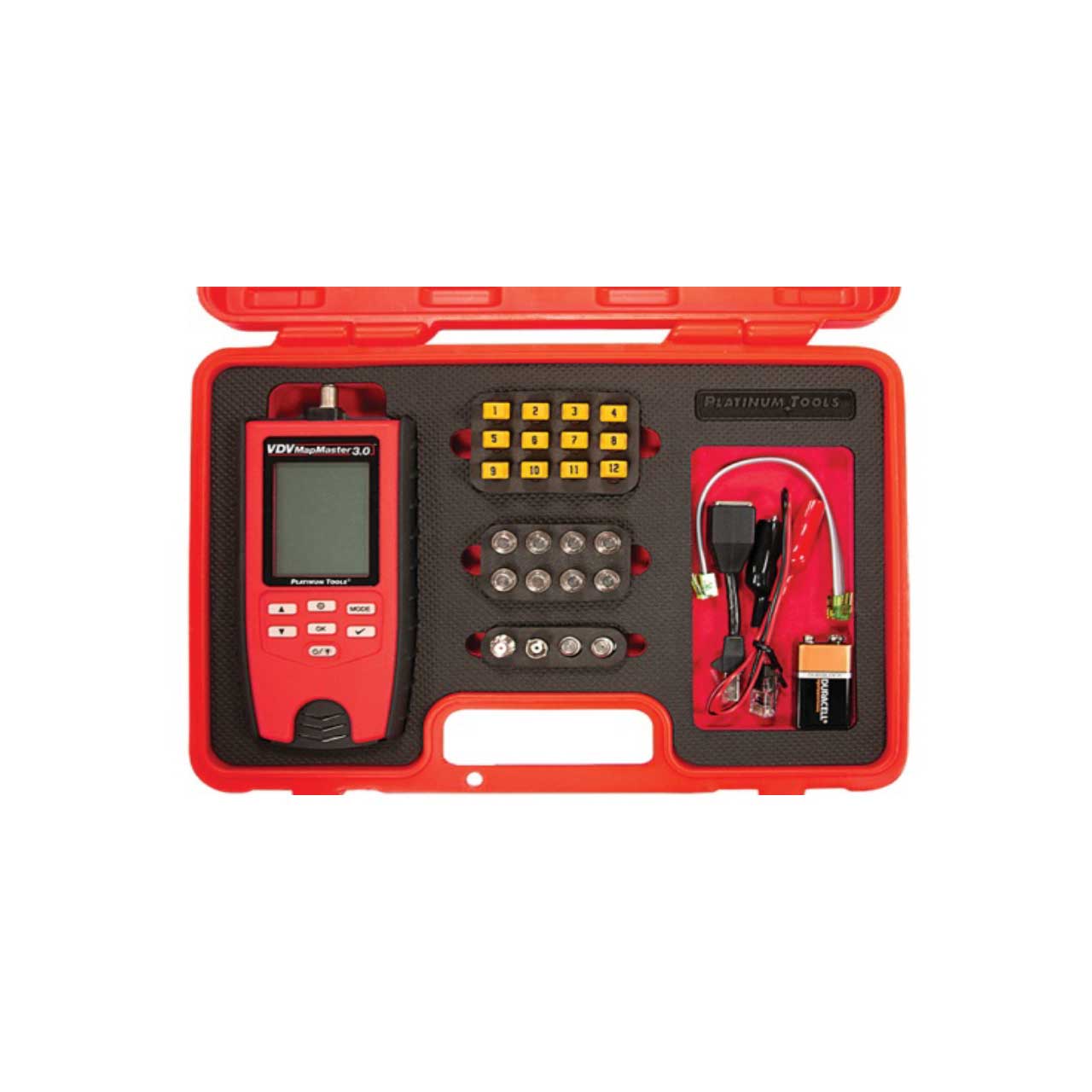

Platinum Tools T130K5 Platinum Tools T130K5 VDV MapMaster 3.0 Network & Coax Field Test Kit

ITEM #: PLAT-T130K5 MFG #: T130K5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    T130K5 - Overview

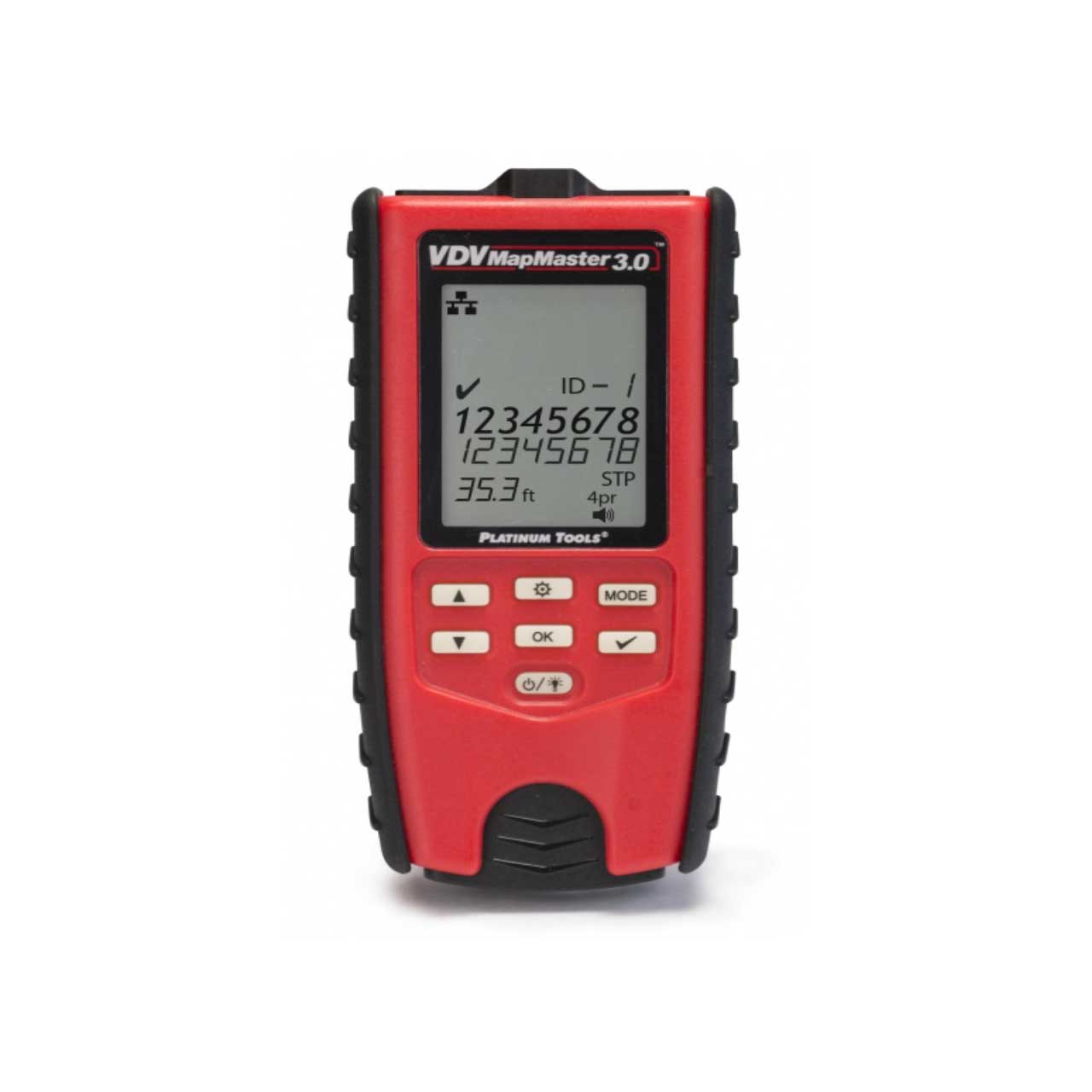

    The Platinum Tools T130K5 VDV MapMasterT 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!

    • Features:

      • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
      • Single-ended Testing for Shorts & Split Pairs
      • Measures Length in Feet/Meters
      • Identifies cable location on active ports using flashing Port Link Light
      • Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
      • Identify up to 20 network or coax cable runs at a time
      • Audible Tone Generator, 4 selectable cadences
      • Tests Voice (6 wire), Data (8 wire) and Video (coax)
      • Works with Cable Tester Smart Remotes (#1-8)
      • Made in USA with global components
    • Specifications:

      • Display: Large 2.75" Backlit Monochrome LCD
      • Dimensions: 6.8" x 3.2" x 1.4" (17.3 x 8.1 x 3.5 cm)
      • Weight: 10.8 oz. (305 grams) with battery and remote
      • Operating Temperature: 0°C/32°F to 50°C/122°F
      • Storage Temperature: -20°/-4°F to 60°C/140°F
      • Humidity: 10% to 90%, non-condensing
      • Maximum Voltage between any two connector pins without damage RJ12/RJ45/F: 50V DC or AC
      • Battery Life:
        9V alkaline battery typical
        Standby: 4 years
        Active: 425 hours
      • Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
      • Maximum RJ Cable Length Testing: 0 to 1,000 feet (305 meters)
      • Minimum Cable Length for Split Pair Detection: 1.5 feet (0.5 meters)
      • Maximum Coax Cable Length: Varies depending on cable resistance varies
      • Low Battery: Icon flashes when battery voltage falls below 6V
      • Measurement Technology: Capacitance testing
      • Length Accuracy Without Length Constant: ±3% plus + 1 foot
      • Default Length Constant (Restored with power on reset):
        Voice (Twisted pair): 17.4 pF/ft
        Video (Coax): 16.5 pF/ft
        Data (Twisted pair): 15 pF/ft
