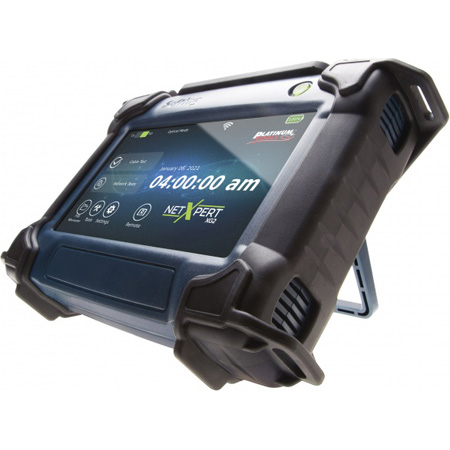

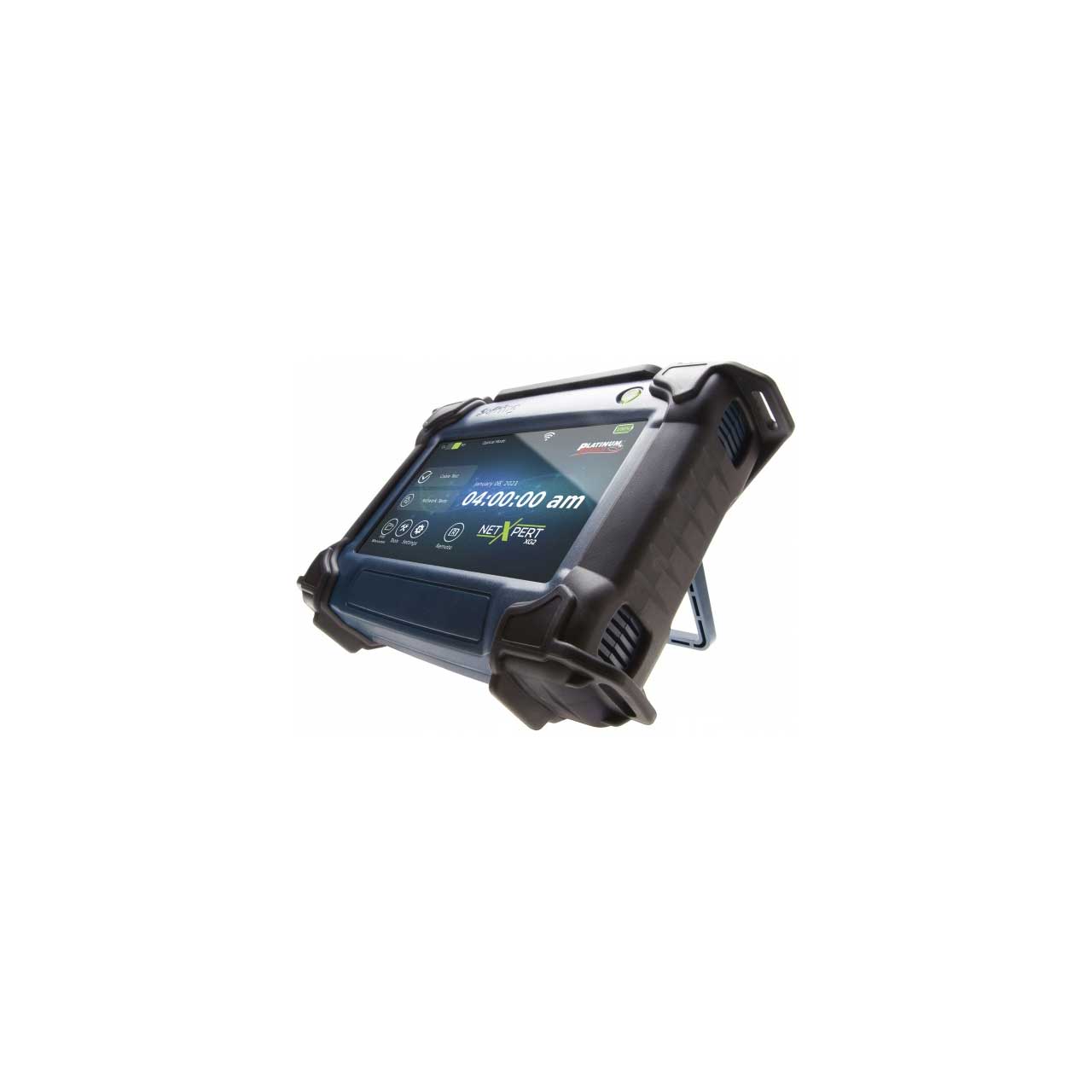

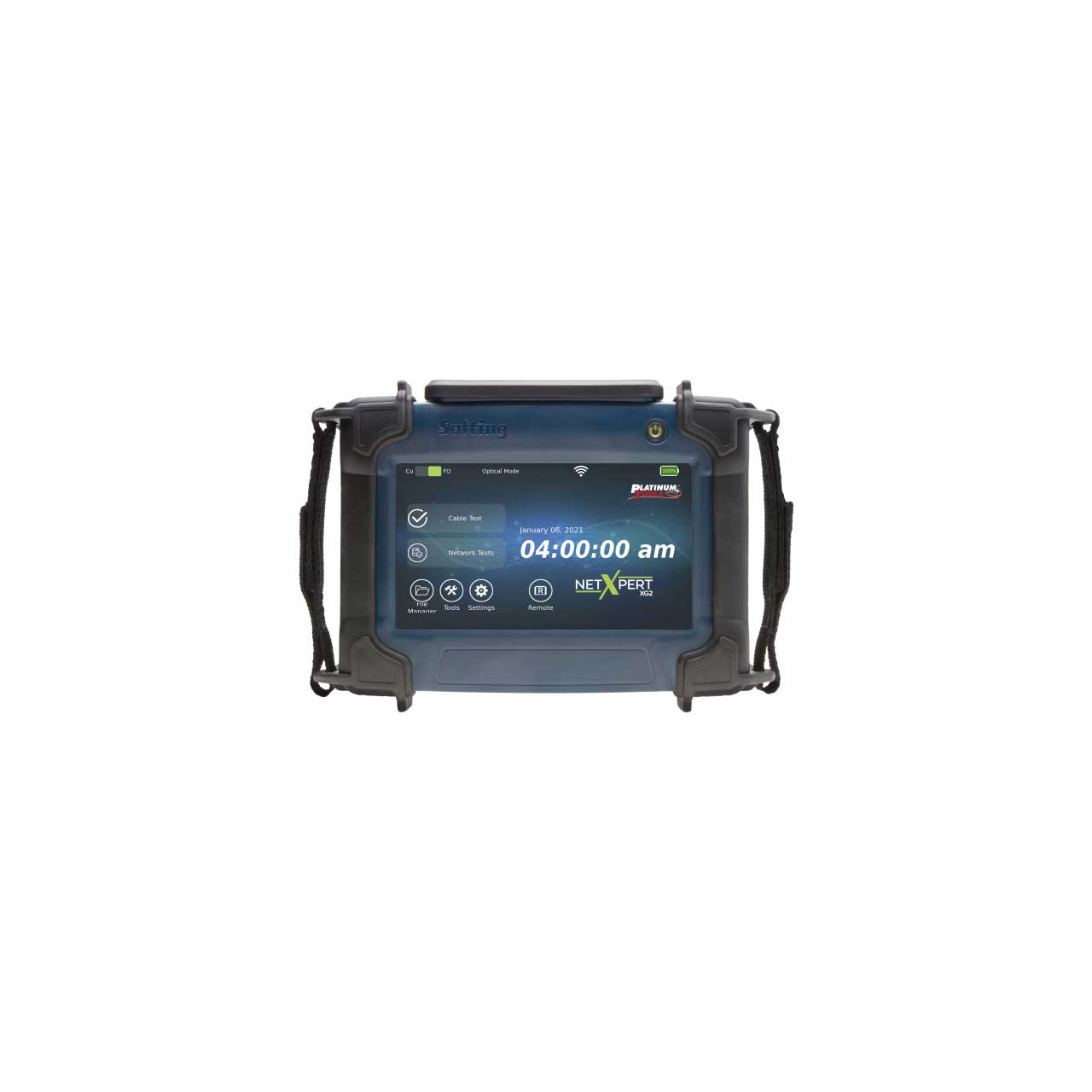

Platinum Tools TXG200-FO NetXpert XG2 10G Fiber Optic Network Tester - Li-Ion Battery 7.8V 6000mAh

ITEM #: PLAT-TXG200-FO MFG #: TXG200-FO

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$11,544.75

Our Price:

$10,995.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TXG200-FO - Overview

    The NetXpert XG2 TXG200-FO can certify copper or fiber networks to 10G speeds using advanced Bit Error Rate Testing (BERT), pushing real data packets over the cable and measuring the results. This is real world testing, which proves the capabilities of new networks and helps to identify those older cable runs that can operate at higher speeds. The XG2 is also equipped with a full suite of active network tests and tools to speed network installs, including PoE testing and network testing over WiFi. The NetXpert XG2 is designed to be the one device that can perform all the tests you need during an install, simplifying and speeding up the process.

    90W PoE++ TESTING
    The NetXpert XG2 will test for PoE up to 90W, and displays load, current and voltage, as well as detecting PoE type, power class, polarity, and wire mapping, while also checking ethernet speeds.

    DETAILED REPORTING
    The NetXpert XG2 can produce detailed reports in PDF, CSV, or XML format to share with clients. Easily move reports from the unit to your computer via USB cable or thumbrive for editing or emailing.

    Please note! Dual SFP+ ports are utilized for any type of SFP optical interface. SFP's are not provided.PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

    • Features:

      • Ethernet Speed certification of copper and fiber optic systems up to 10Gb
      • Complete active network testing over copper, fiber and Wifi systems
      • Cable qualification to IEEE standards
      • TDR & fiber cable length measurement
      • PoE testing up to 90W (PoE++)
      • Fiber Optic Kit includes Two Basic Kits

    • Specifications:

      • Length Measurement: Time Domain Reflectomoetry

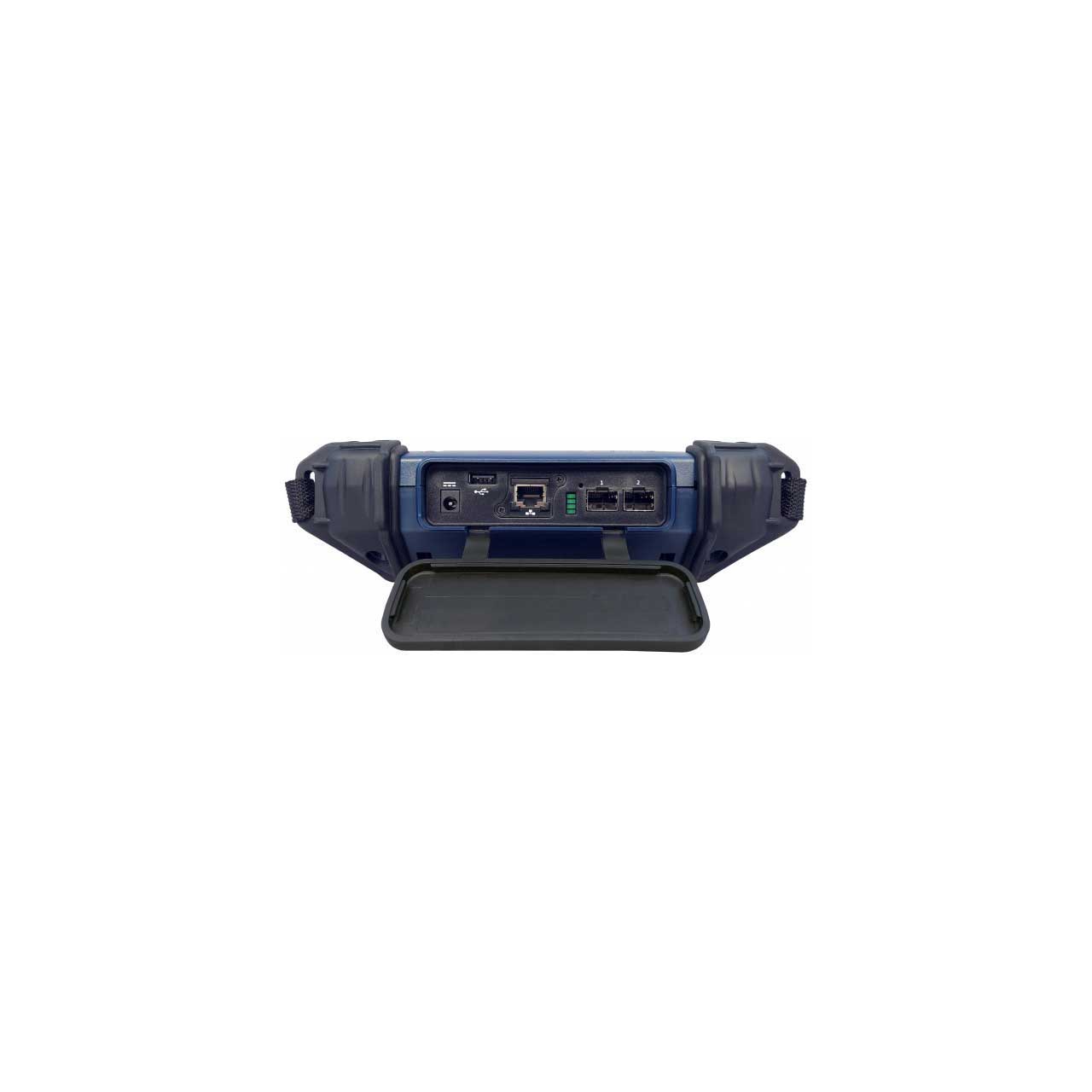

      • Output Connections: 8- Position Shielded Modular Jack (Data) 2 x 10Gb SFP+ (Fiber)
      • Interfaces: USB Type A
      • Languages: EN, FR, ESP, DEU, ITA
      • Temperature:
        Operating: -10 to 60°C
        Storage: -20 to 50°C
        When Charging: 10 to 40°C
      • Humidity: 10 to 90% non-condensing
      • Altitude Operating: 10,000' (3,048m)
      • Power Supply Input: 100-240VAC, Output 12VDC 2.5A
      • Battery: Li-Ion, 7.8V 6000mAh - expected initial life 4hrs. typical at 1Gb speed
      • Enclosure: Rubber armored impact-resistant plastic
      • Carrying Case Dimensions: 17.75 x 13 x 5" (450 x 330 x 127mm)
      • Weight: 8.5Lbs (4Kg)
      • Size Tester: 9.75 x 7 x 3" (245 x 177 x 73mm)
      • Remote: 5.25 x 7 x 2.25" (130 x 177 x 55mm)
      • Weight Tester: 2.65Lbs (1.2Kg)
      • Remote: 1.3Lbs (0.6Kg)
      • Compliance: CE

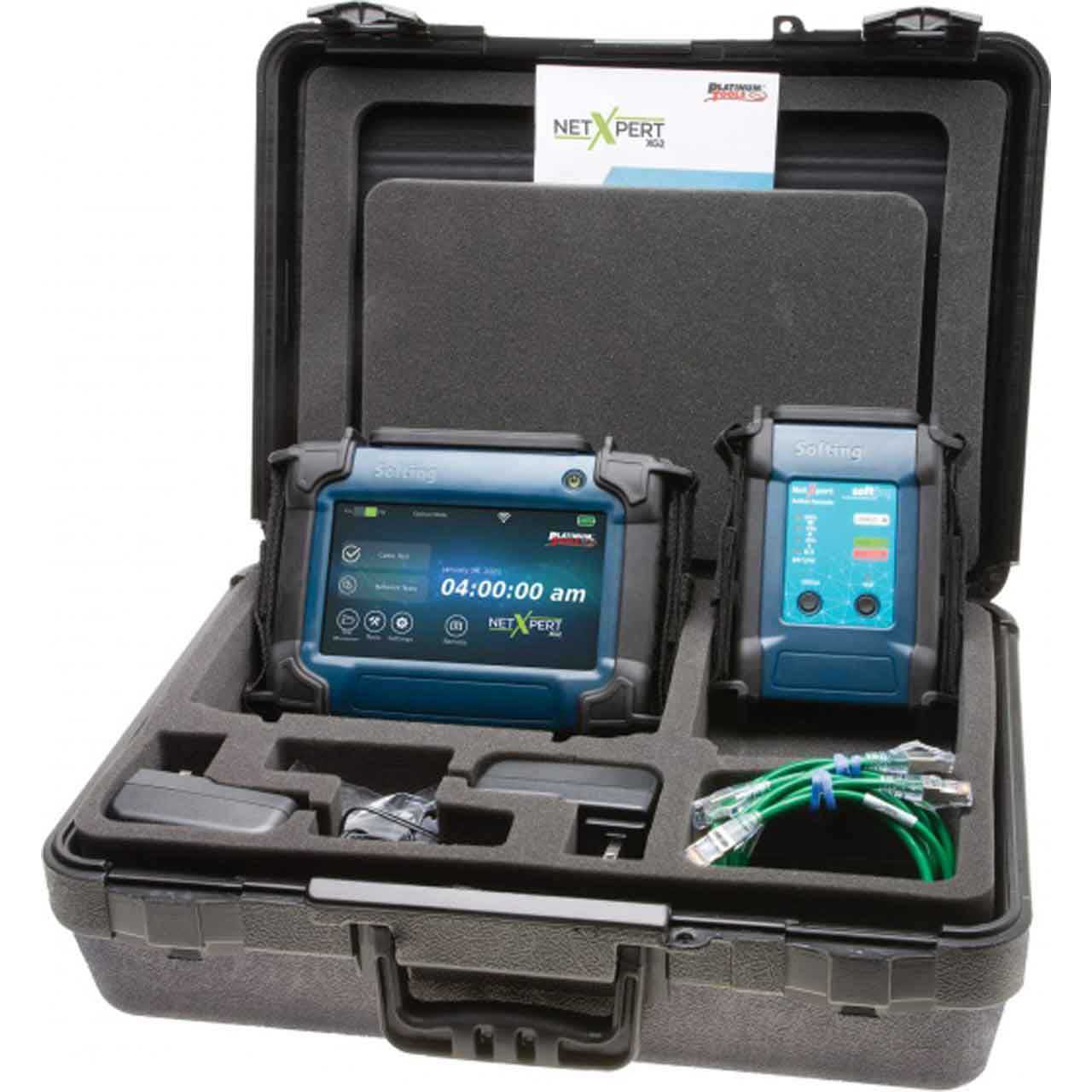

    • Item Includes:

      • 2x XG2 Testers

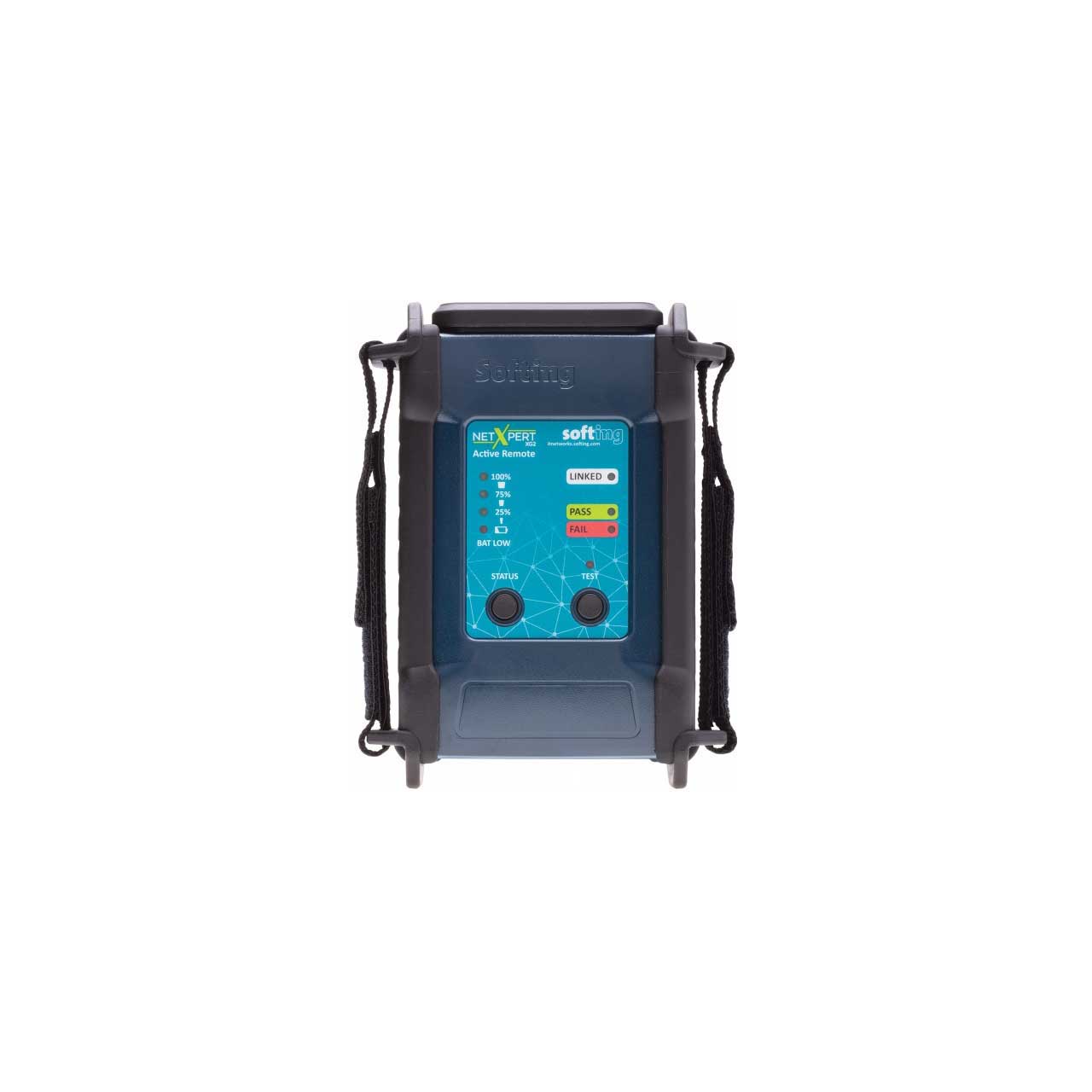

      • 2x Active Remote
      • 4x Chargers
      • 4x Patch cables
      • 2x Carrying case

    • Warranty:

      • Warranty: One Year
