PureLink EZH2-030-DT EZ Detachable HDMI 2.0 over Fiber Cable with TotalWire Technology - 100ft (30m)

ITEM #: PLK-EZH2-030-DT MFG #: EZH2-030-DT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$599.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EZH2-030-DT - Overview

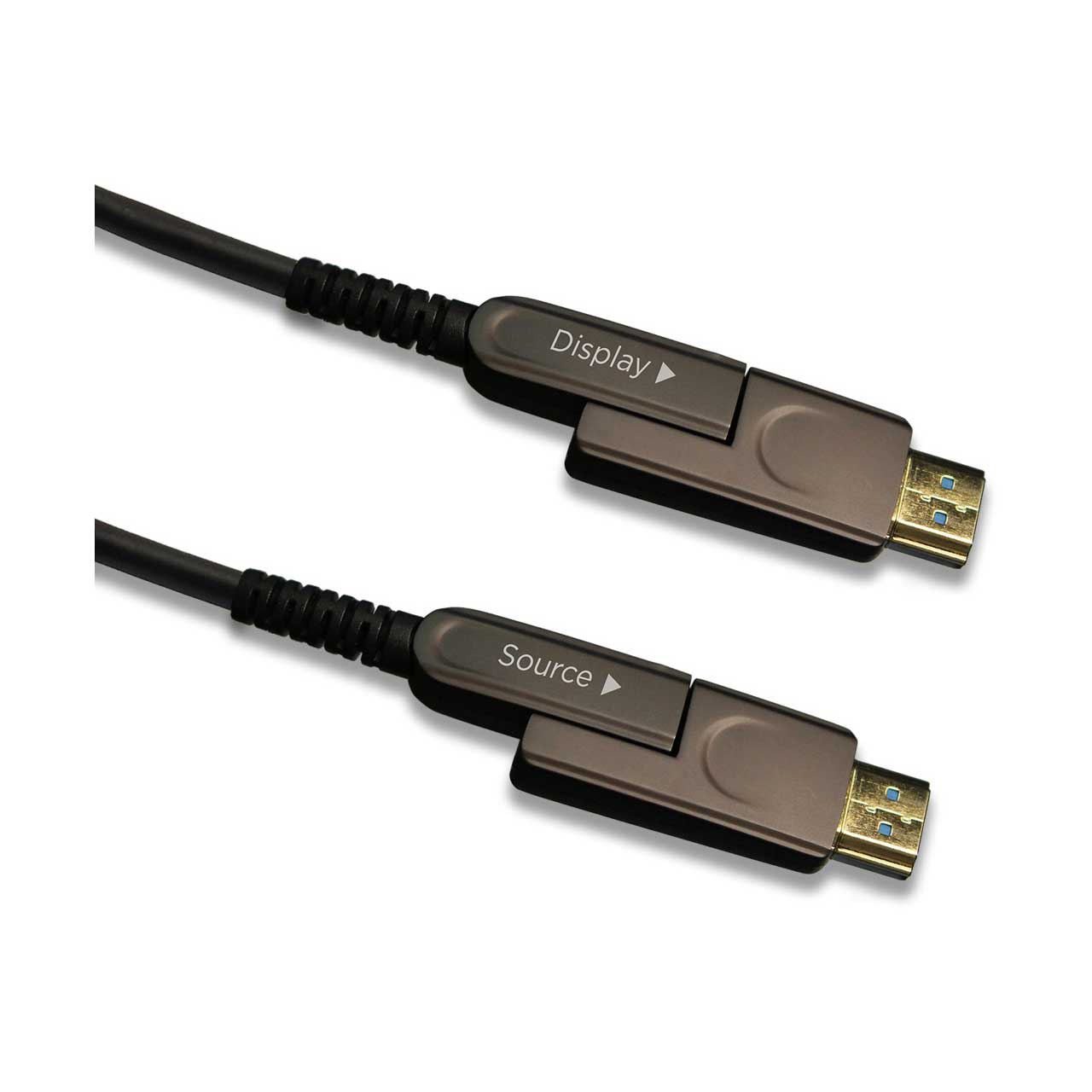

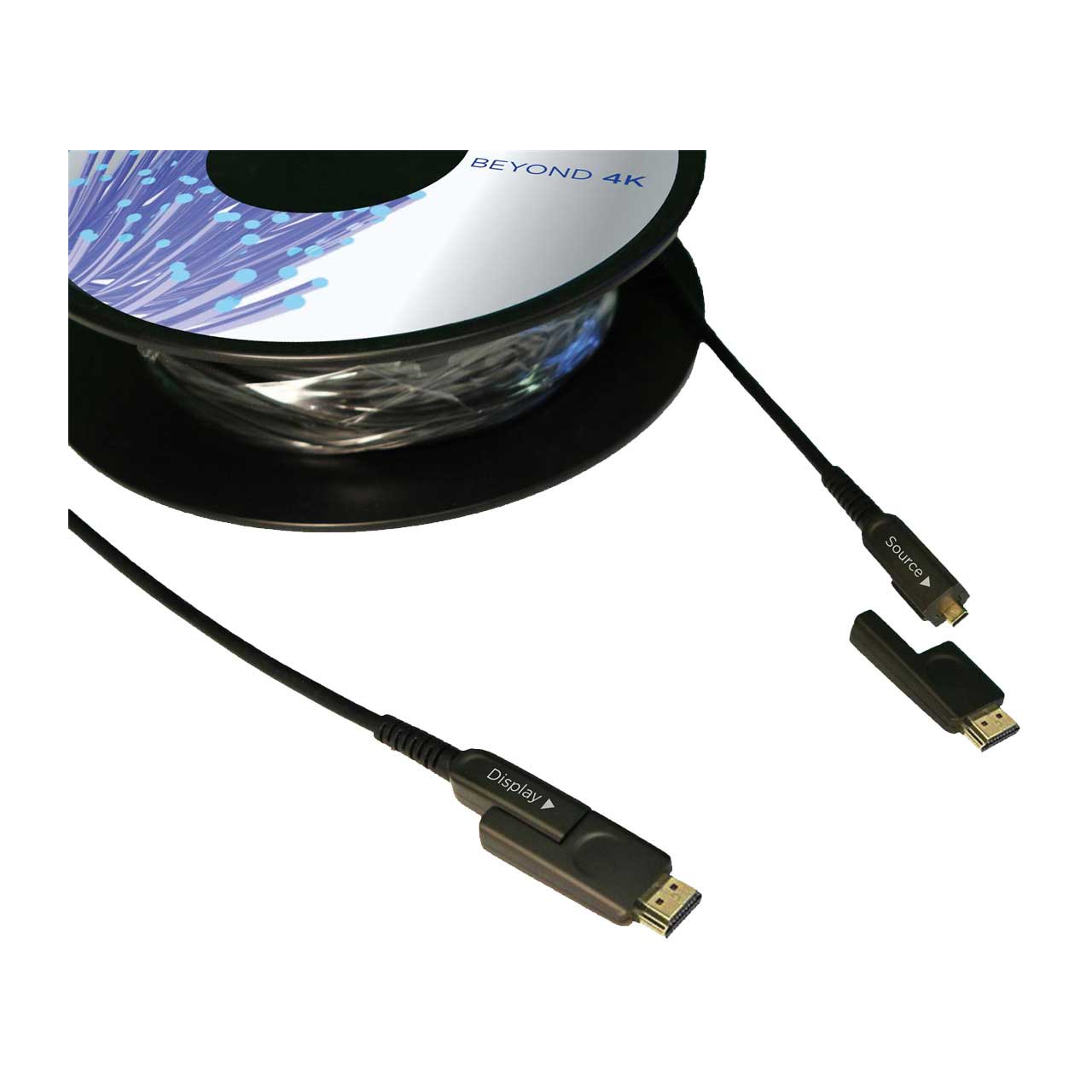

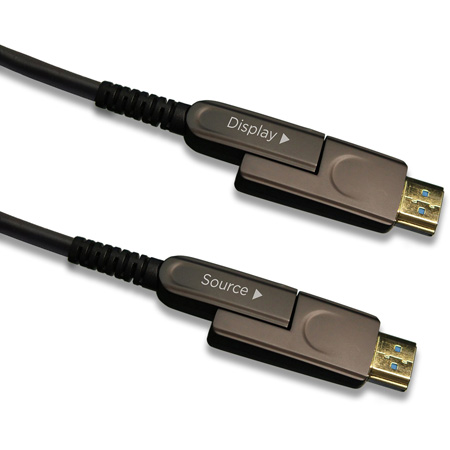

    The PureLink HDTools EZH2-030-DT HDMI 2.0 over Fiber Cable provides a convenient, plug-n-play extension solution offering full 4K/60 (4:4:4) connectivity and HDCP 2.2 compliance. Detachable HDMI and DVI Tx/Rx connectors allow cable runs through conduits or other tight spaces, offering greater manageability in many installation environments.

    The EZH2-DT is available in pre-terminated lengths up to 100 meters and are thinner and more flexible than copper or standard fiber cables. The EZH2-DT can simply be used as a regular HDMI cable for powerful, long-distance transmission without the need for additional extenders or accessories.

    Note:
    * DVI Tx/RX connectors sold separately
    * Auxillary power supply unit also available

    Applications:
    Corporate A/V systems
    Indoor & outdoor digital signage
    Home theater systems
    Facility automation systems

    • Features:

      • Supports resolutions up to 4K/60 4:4:4
      • Supports High Dynamic Range (HDR) content
      • High quality, detachable Tx/Rx connectors*
      • Pre-terminated lengths up to 100 meters (328 ft.)
      • HDCP 2.2/1.4, CEC compliant
      • 18 Gbps data rate (6 Gbps per channel)
      • Low power consumption (250mW)
      • Pass-through EDID
      • Plug-n-play (external power* not required)

    • Specifications:

      • Hardware
      • Audio: PCM 8-channel, Dolby Digital TrueHD, DTS-HD Master Audio
      • Input Signal Type(s): Male HDMI Connector
      • Output Signal Type(s): Male HDMI Connector

        Performance
      • Supported Distance: 4K@50/60Hz (4:4:4), 3D, 36-bit Deep Color
      • Data Transfer Rate: 18 Gbps
      • HDR Support: Yes
      • Compliance: HDMI 2.0, HDCP 2.2/1.4, CEC compliant
      • Power Consumption: 250mW (max)
      • Power Supply: 100-240VAC 50/60Hz
      • Operating Temperature: -4° to 140°F (0° to 50°C)
      • Storage Temperature: -40° to 158°F (-40° to 70°C)
      • Relative Humidity: 5% to 85% RH
      • MTBF: 50,000 hours
      • Rack Mounting Option: Standard 19 inch rack-mountable design

        Enclosure
      • Rack Mounting Option: Standard 19 inch rack-mountable design

    • Warranty:

      • 3 Year Limited Warranty
