PureLink HOF TIII TX/RX HDTools UHD HDMI 2.0 4K60 4:4:4 HDCP 2.2 IR RS-232 over LC Fiber Transmitter/Receiver Set - TAA

HOF TIII TX/RX - Overview

• Features:

  • 4K60 4:4:4 UHD video, audio, and control signals up to 33,000ft (10km) over SFP+ 1LC Single Mode fiber (1 LC SFP+ modules included), High-res Audio / Dolby Digital/Plus/EX/True HD / DTS up to DTS-HD Master Audio™ / DSD and more
  • HDMI 2.0 / HDCP 2.2 / HDR / 1080P 3D
  • HDMI Loop Out on Transmitter
  • Easy EDID Management
  • HDMI 2.0 Loop Out on the TX allows for connecting to a local display
  • 2 Ch Stereo Analog Audio Embedding / De-embedding
  • Bi-directional IR and RS-232 control signals
  • Diagnostic LEDs


• Specifications:

  Standards & Compliance
  • Standards: HDMI 2.0/HDCP 2.2/DVI 1.0
  • Compliance: Trade Agreements Act (TAA)

    Connections

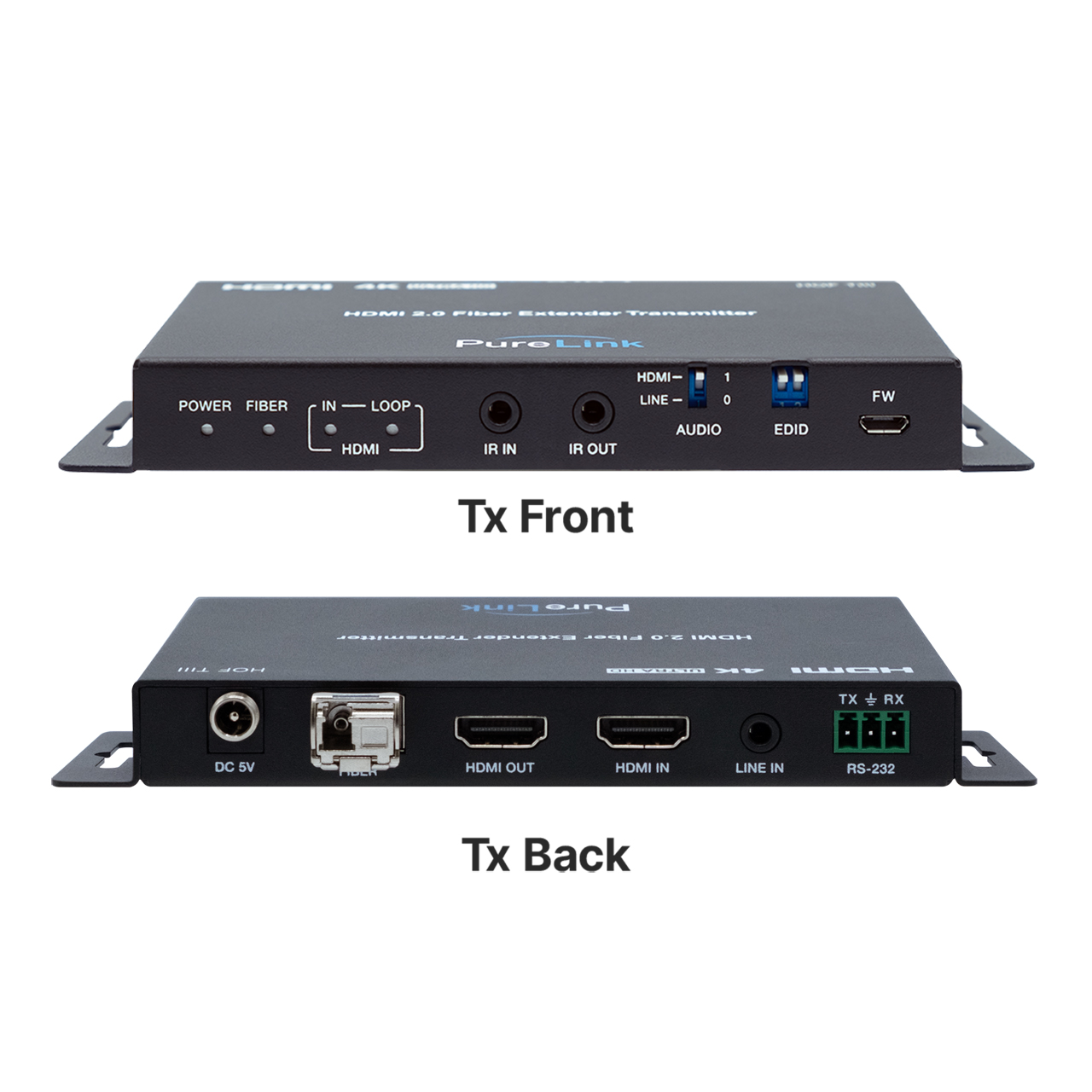

  • Inputs (TX): 1x HDMI 2.0b
    - 1x 2ch Stereo Analog Audio 3.5mm TRS
    - 1x Bi-directional RS-232 3pin mini phoenix
    - 1x IR In 3.5mm TRS

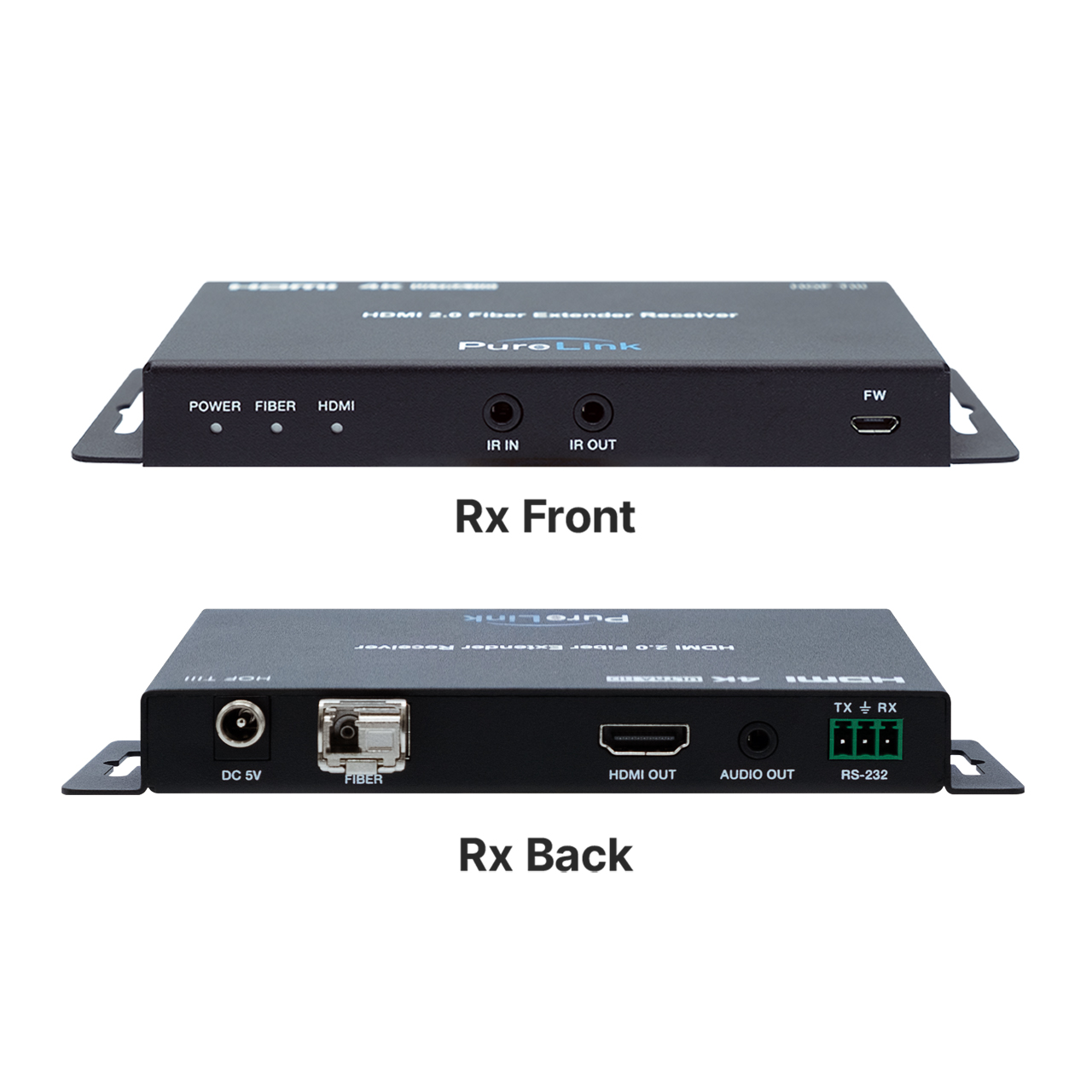

  • Inputs (RX):
    - 1x SFP+ 1LC Fiber
    - 1x Bi-directional RS-232 3pin mini phoenix
    - 1x IR In 3.5mm TRS
  • Outputs (TX):
    - 1x HDMI 2.0b Loop Out
    - 1x SFP+ 1 LC Fiber
    - 1x IR Out 3.5mm TRS
  • Outputs (RX):
    - 1x HDMI 2.0b
    - 1x 2ch Stereo Analog Audio 3.5mm TRS
    - 1x IR Out 3.5mm TRS

    Performance
  • Distance: Up to 33,000ft (10km) over single-mode fiber cable
  • Resolutions: Up to Ultra HD 4K60 4:4:4 HDR
  • Supported Audio Formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
  • Master Audio, DSD
  • Video Bandwidth: 18 Gbps
  • Color Space:
    - RGB
    - YCbCr 4:4:4 / 4:2:2
    - YUV 4:2:0
  • Color Depth: 8 bit, 10 bit, 12 bit/3D/4K HDR
  • RS-232 Baud Rate: 4800 - 115200bps
  • Power Consumption:
    - Tx: 3.85W (Max)
    - Rx: 2.7W (Max)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60HZ
    - Output: DC 5V/1A
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% non-condensing
  • ESD Protection: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Enclosure
  • Enclosure Type: Folder Power Coated Steel
  • Product Dimensions: 1" x 5.28" x2.68" (18mm x 134mm x 68mm)
  • Product Weight: 0.62lbs (280g)
  • Shipping Dimensions: 2.5" x 12" x 8" (63.5mm x 305mm x 203.2mm)
  • Shipping Weight: 2lbs (0.91kg)


• Item Includes:

  • 1x LC SFP+ module included
  • 1x 18Gbps HDMI over Optical Fiber Extender (Transmitter)
  • 1x 18Gbps HDMI over Optical Fiber Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x IR Receiver cable (1.5 meters)
  • 2x 5V/1A Power adapter
  • 2x 3-pin 3.81mm Phoenix connector


• Warranty:

  • 5-Years


• GTIN:

  0817705025838
