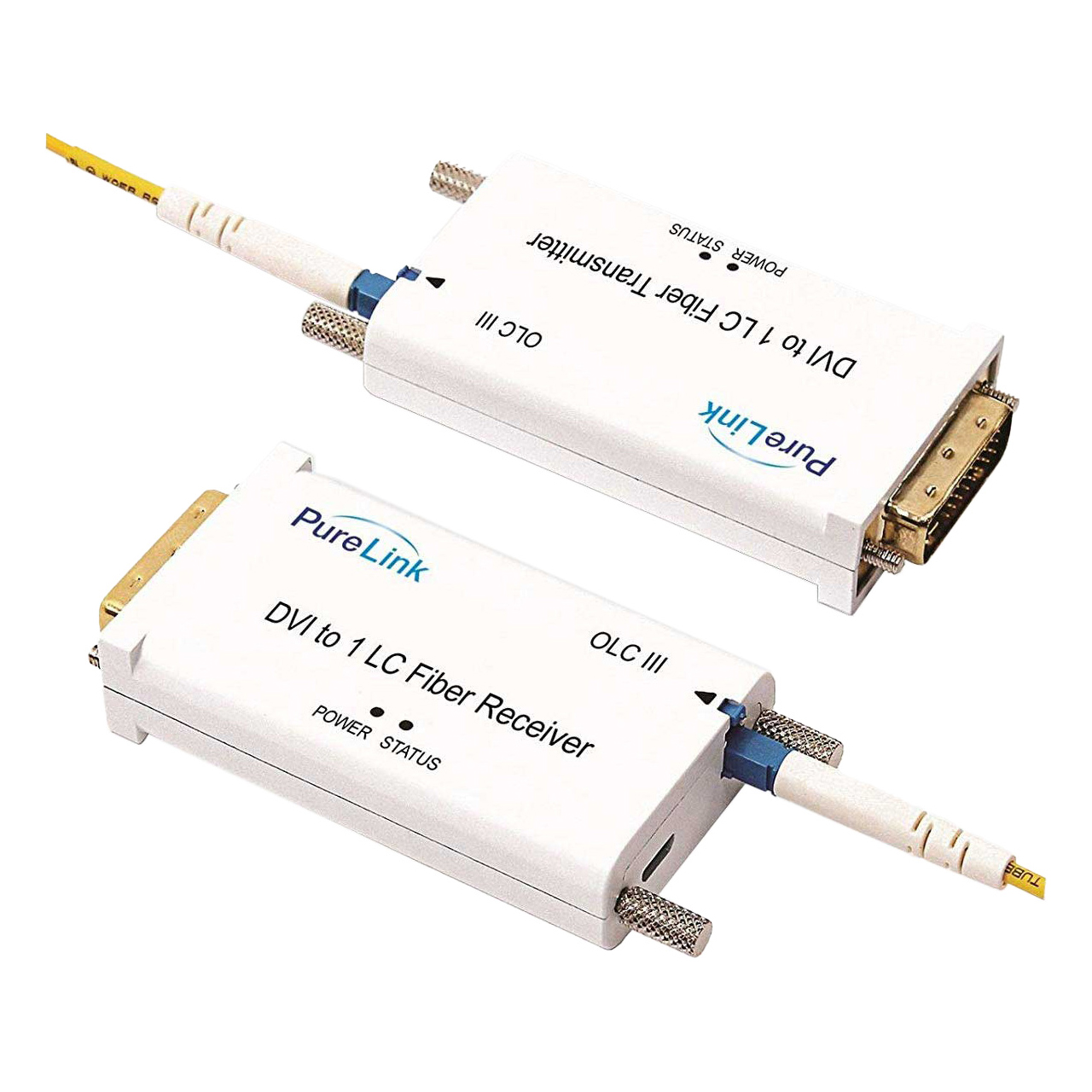

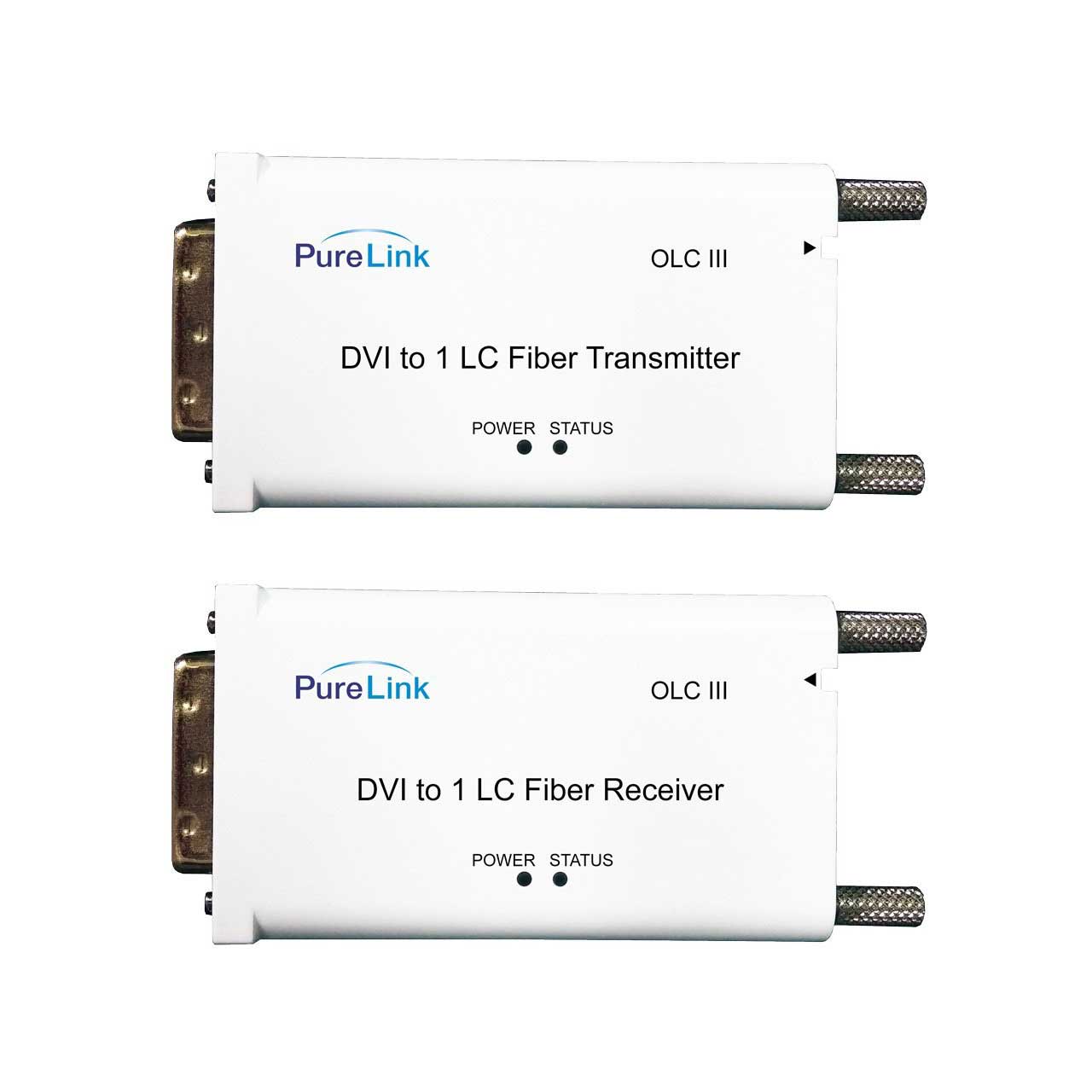

PureLink OLC III Tx/Rx HDTools DVI Over 1 LC MM Fiber Transmitter/Receiver Kit - Full HD

OLC-III-TXRX - Overview

• Features:

  • DVI extension over a single strand, OM3 multi-mode fiber optic cable
  • Reliable, long-range extension of Full-HD/1080p content
  • Supports distances up to 980 ft. (300 m.)
  • HDCP compliant
  • Compact, detachable modules for easy integration
  • Ensures secure and fast communication between devices


• Specifications:

  • Signal Type: TMDS (DVI 1.0 Standard)
  • Connector Types:
    1 x LC type optical port
    1 x 24-Pin DVI-D port
  • Optical Converter: 850nm 10G VCSEL/ InGaAs PIN PD
  • Supported Resolution: WUXGA(1920x1200) / 1080p@60Hz
  • Supported Distance: 984 ft. (300 m)
  • Data Rate: 2.25Gbps / Channel
  • Reccomended Fiber: Multi-mode glass-fiber
  • Dimensions: 3.06 x 1.58 x 0.63" (74.66 x 40.2 x15.9 mm)
  • Weight: 0.15 lbs. (68 g)


• Warranty:

  • 3 Year Limited Warranty
