PureLink RPS-1218 18-Channel - 12VDC 1U Rack Power Supply with V/A LED Display - for any 12VDC Device

RPS-1218 - Overview

• Features:

  • 18 Channels – 12V DC power (up to 20A)
  • Diagnostic LED indicator for each power output
  • Real-time system volt/amp and output meters
  • Heavy duty, 1U rack mountable enclosure
  • Compatible with Media Axis™ - PureMedia™ - PureStream™ - and HDTools™ products
  • Phoenix output terminations
  • Each channel is protected with automatic PTC fuse
  • UL listed


• Specifications:

  • General Specifications
  • Voltage per Output: 12V DC
  • Current per Output: 1~16 (1.6 A max) | 17~18 (5A max)
  • Total Current Output: 20 A max
  • Number of Outputs: 18

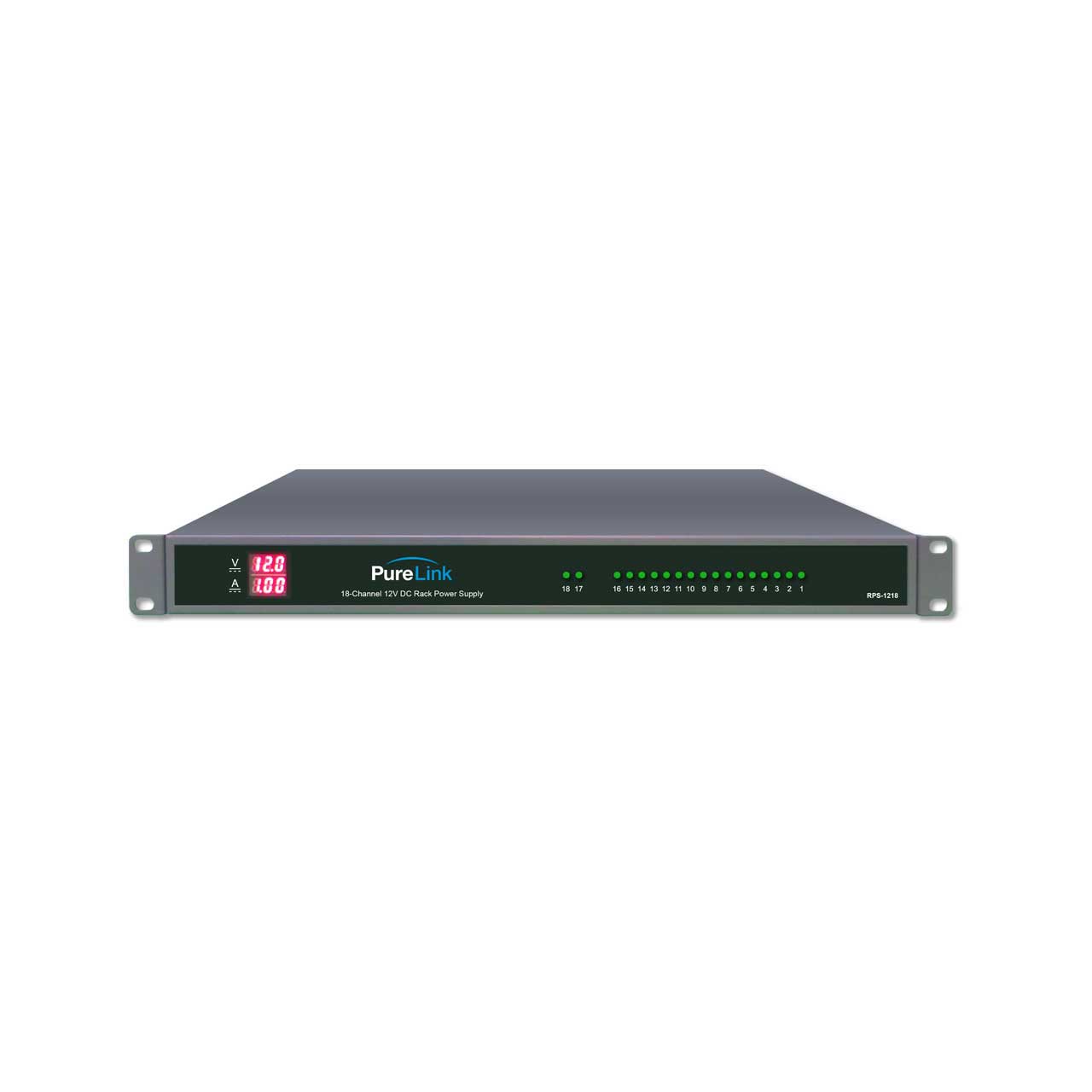

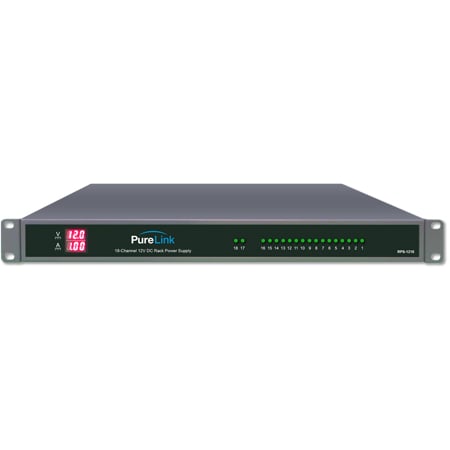

  • Interface: Front panel volt/current digital meter
  • Calibration: Front panel fine output adjustment
  • Protection: PTC fuse per channel
  • Output Connections: phoenix
  • Input Voltage: 110-220 VAC 50/60 Hz switch selectable
  • Input Connection: IEC 320 - NEMA 5-15P power cable (supplied)
  • Power Consumption: Max load ~400 Watts
  • Operating Temperature: 14° to 104°F (-10° to +40°C)
  • Storage Temperature: 7° to 186°F (-14° to +86°C)
  • Certifications: UL, CE, RoHS

    Enclosure
  • Enclosure Type: Steel, powder coated
  • Rack Mounting Option: Standard 19" rack-mountable design
  • Product Dimensions: 20 x 11.02 x 3.77" (51 x 28 x 9.6cm)
  • Product Weight: 8.82Lbs (4kg)
  • Product Dimensions: 12.21 x 7.09 x 2.76" (310 x 180 x 70mm)
  • Product Weight: 7.7Lbs (3.5kg)


• Warranty:

  • 3-Year Limited Warranty
