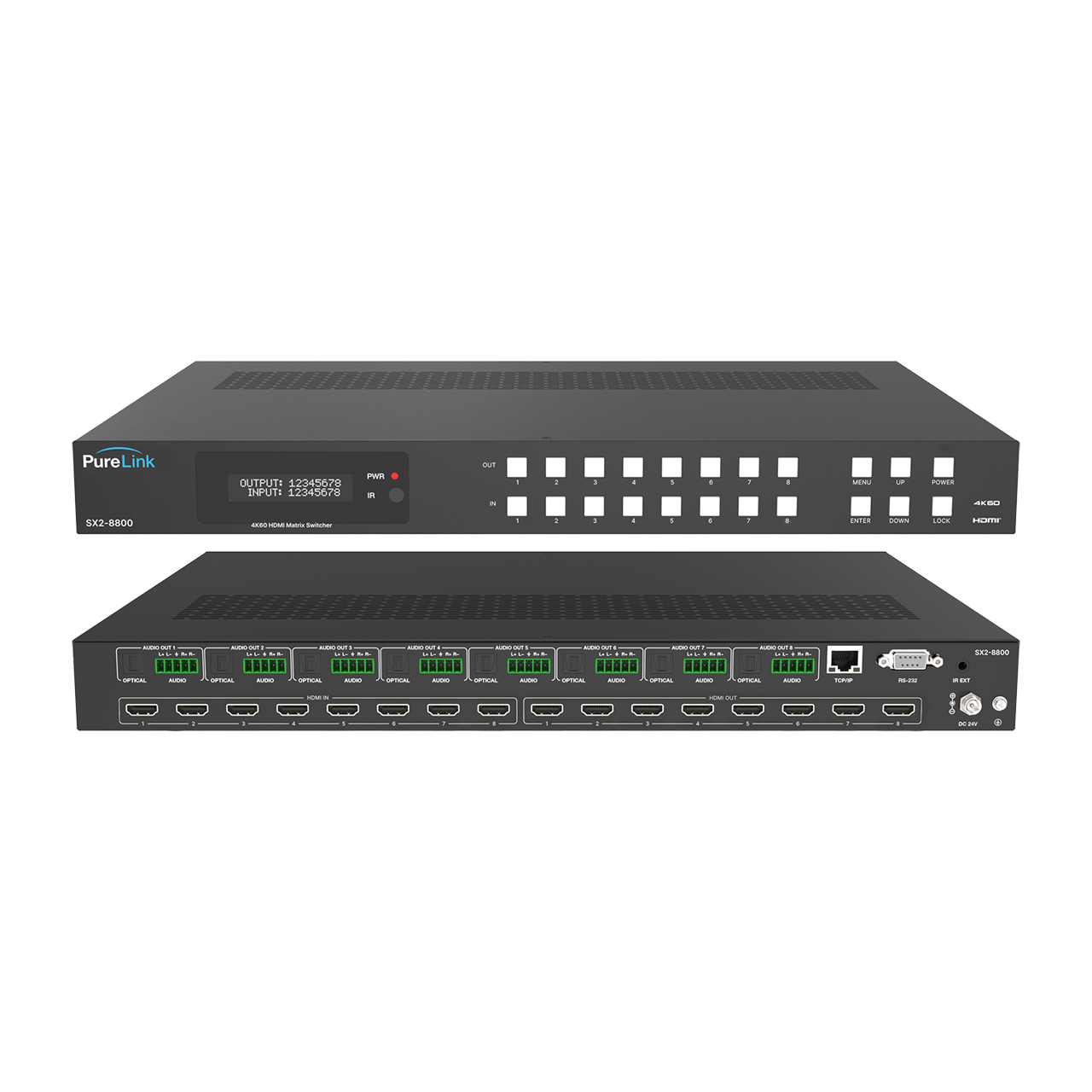

PureLink SX2-8800 HDTools 8x8 HDMI 2.0b Matrix Switcher with Seamless SDR Switching

SX2-8800 - Overview

• Features:

  • HDMI 2.0b / HDCP 2.2
  • 4K60 4:4:4 3840x2160-60P and 4096x2160-60P
  • SDR Seamless Switching
  • HDR10, HDR10+, HLG 10, Dolby Vision
  • MPEG-H Audio
  • Simple Video Wall creation
  • Each output with independent scaling engine
  • Image rotation independent for each output
  • HDMI audio extract - balanced analog stereo, and multichannel optical
  • Audio breakaway and matrix audio on analog and optical outputs
  • Complete EDID management independent for each input including user EDID
  • Controllable via Front panel, RS232, TCP/IP and IR remote
  • CEC control for inputs, and outputs, via web UI and API commands
  • Easy preset creation and recall via web UI and API commands
  • Control with PureLink's award winning iCON™, Crestron, Q-SYS, and more


• Specifications:

  Hardware
  • Input: Up to 4096x2160@60Hz
  • Independent Output Scaling: 4096x2160p60, 4096x2160p50, 4096x2160p30, 4096x2160p25, 4096x2160p24, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 3840x2160@25Hz, 1920x1080@p60Hz, 1920x1080@p50Hz,1920x1080@p30Hz, 1920x1080@p25Hz, 1920x1080@p24Hz, 1920x1080@i60Hz, 1920x1080@i50Hz, 1360x768@60Hz, 1280x800@60Hz, 1280x720@60Hz, 1280x720@50Hz, 1024x768@60Hz

    Technical Specifications
  • HDMI / DP / VGA Version: HDMI2.0b, HDCP2.2
  • Bandwidth: 18 Gbps
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, Selectable per Output
  • Audio Formats:
    - HDMI In / Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD, MPEG-H
  • Independent Audio Outs:
    - Optical Outputs: LPCM 2.0CH / Dolby / DTS 5.1CH
    - Balanced Analog Audio Outputs: LPCM 2CH
  • Baud Rate and Protocol:
    - Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200
    - Data bit: 8
    - Stop bit: 1

    Power
  • Power Consumption: 90W, 110-240VAC to 24VDC external power adapter

    Environmental
  • Operating Temperature: 32°F ~ 122°F (0° to 50° C)
  • Storage Temperature: -4°F ~ 158°F (-20° to 70° C)
  • Permissible Humidity: 10% - 50%

    Enclosure
  • Dimensions (W x D x H): 17in x 12in x 2in (431.8mm x 304.8mm x 50.8mm)
  • Weight: 8.8lbs (4kg)


• Warranty:

  • 5-Years


• GTIN:

  0817705025845
