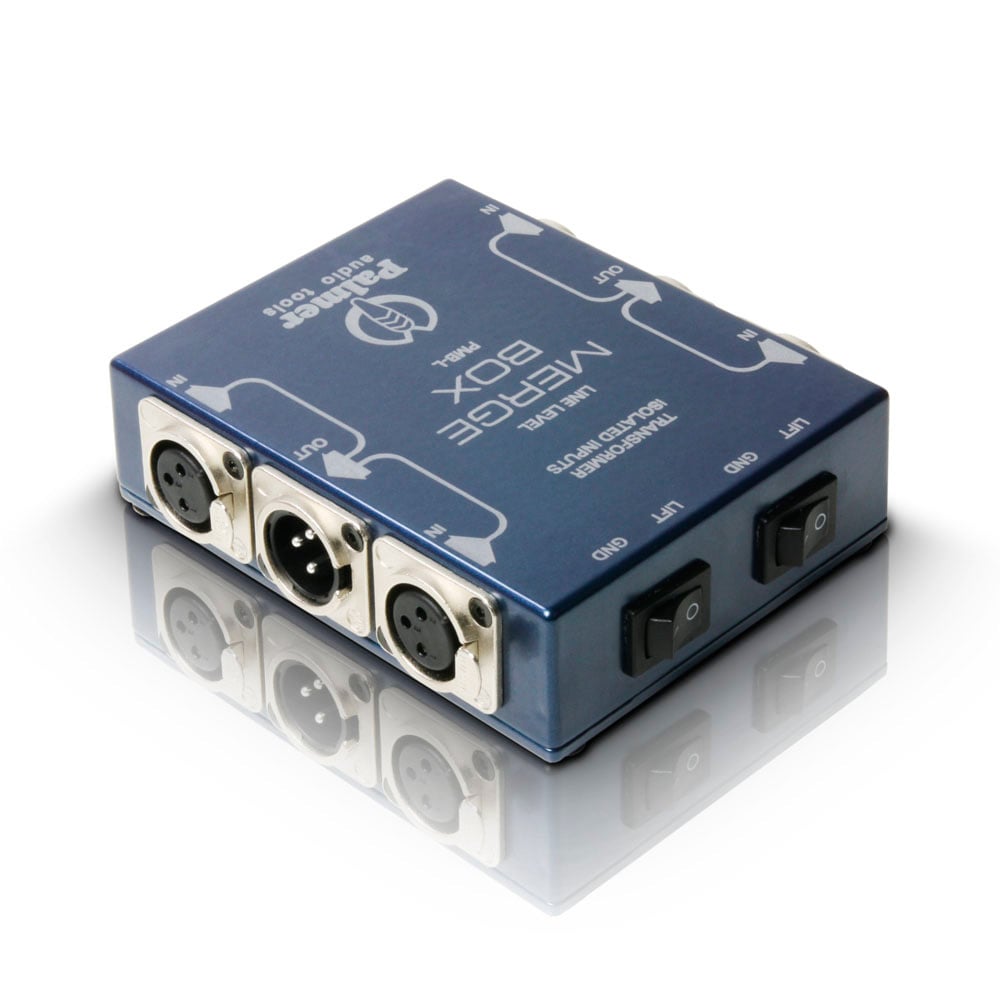

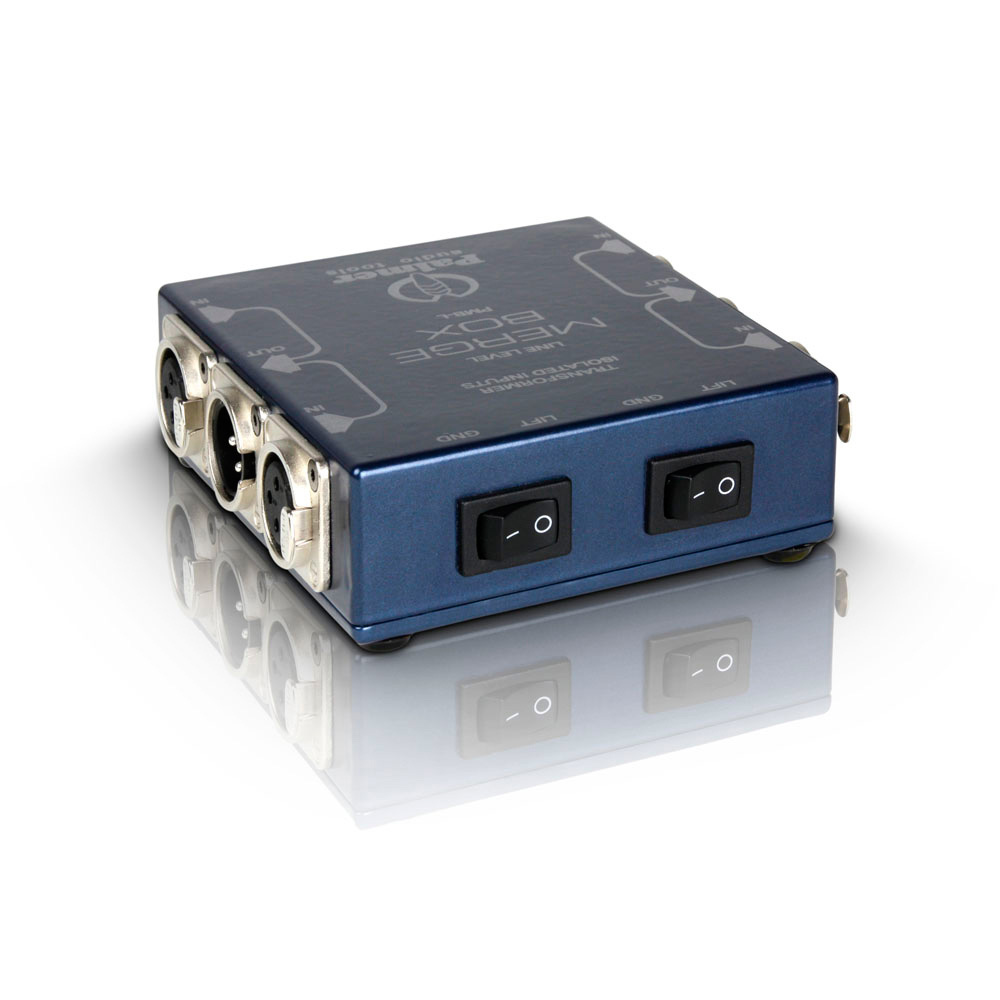

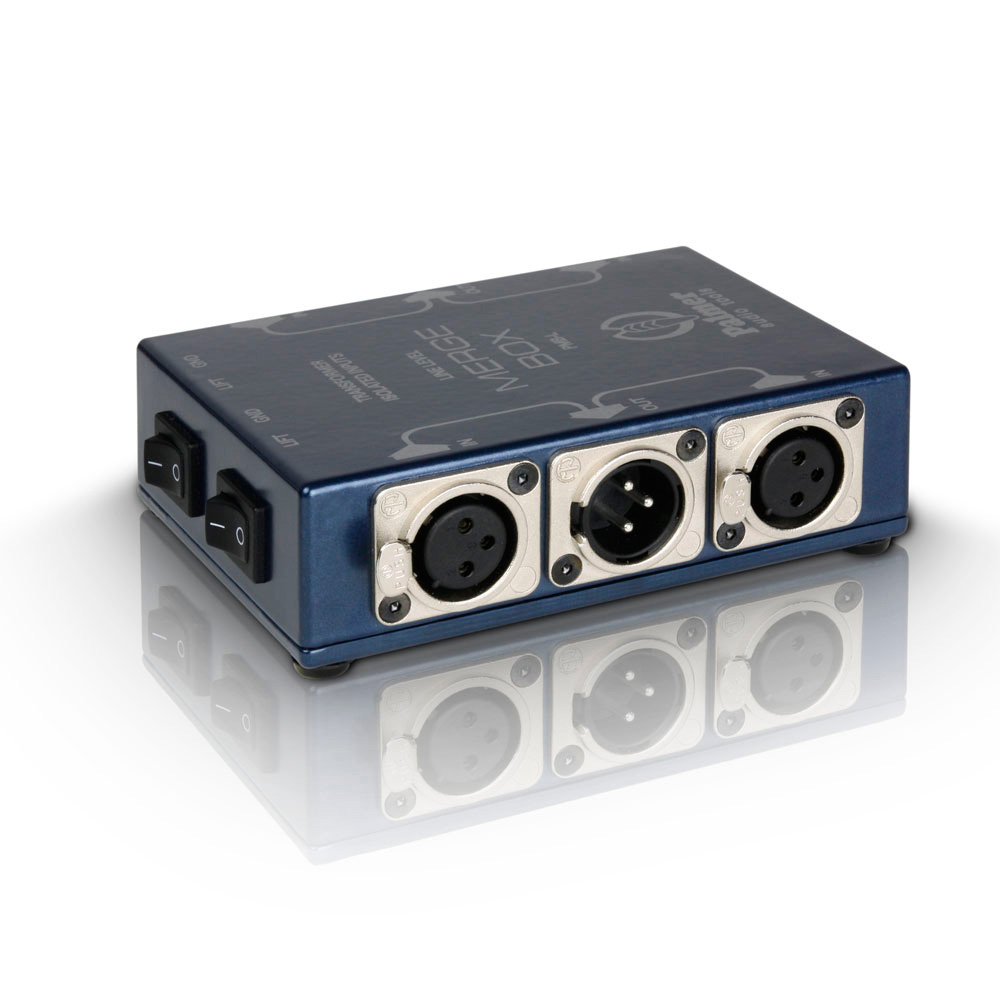

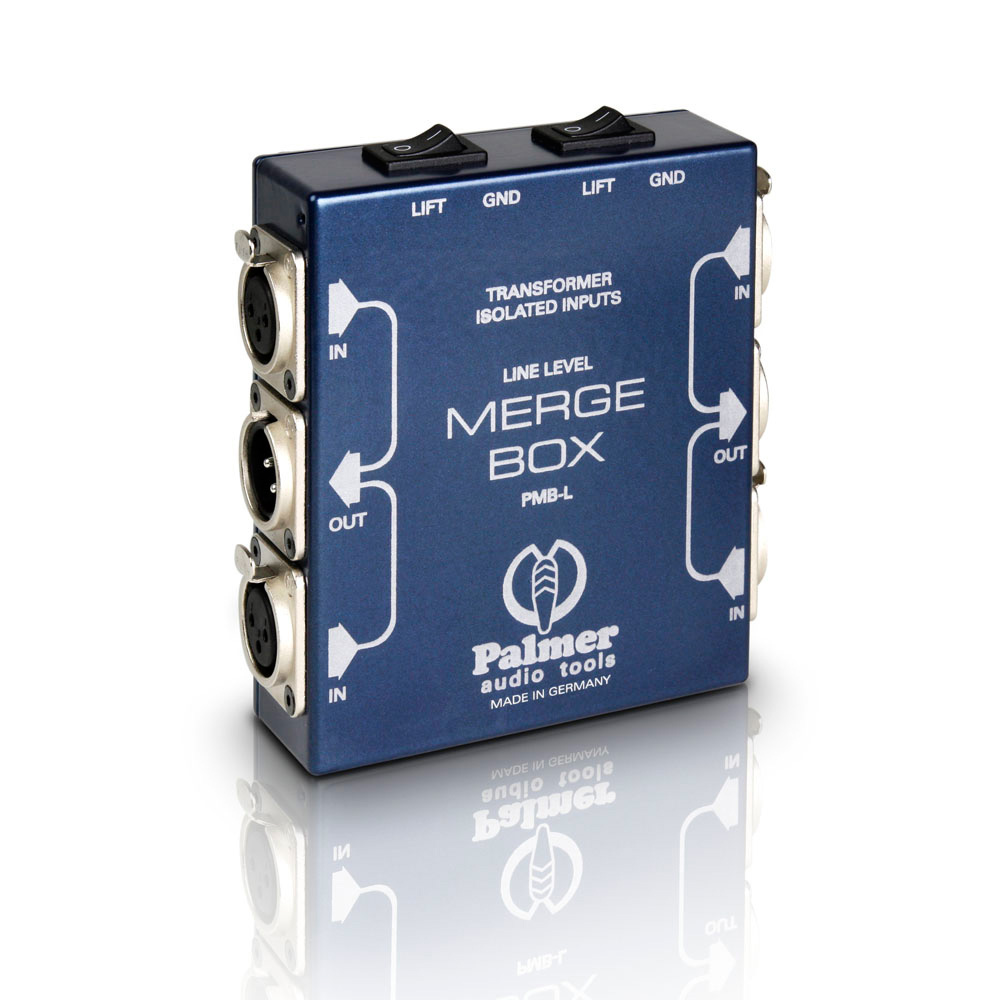

Palmer Audio PMBL Dual Channel Line Merger passive

Manufacturer: Palmer Audio

Item #: PLM-PMBL   •   MFG #: PMBL




Share!





The PMBL is a 2 channel passive line level merge box. Each channel has 2 balanced XLR/f inputs. The input signal is merged via a resistor network to a XLR/m output.The top side input is transformer isolated. Possible applications might be the routing of two mixing desks to one power amp or mixing a stereo signal down to mono. Our transformer technology allows for an unbalanced top side input to be sent out balanced.


  • Features

    • 2 channel passive line level merge + Each channel has 2 balanced XLR/f inputs + Transformer technology allows for an unbalanced top side input to be sent out balanced.

  • Specifications

    • Product type: combiner
    • Type: passive
    • Inputs: 4
    • input connectors: XLR
    • input impedance: 2 k Ohm(s)
    • Outputs: 2
    • output connectors: XLR
    • output impedance: 600 Ohm(s)
    • max. output level: +20 dBu (balanced) dBu
    • controls: ground lift
    • Width: 110 mm
    • depth: 125 mm
    • Height: 38 mm
    • cabinet material: die-cast aluminium
    • Cabinet / Housing surface: powder coated
