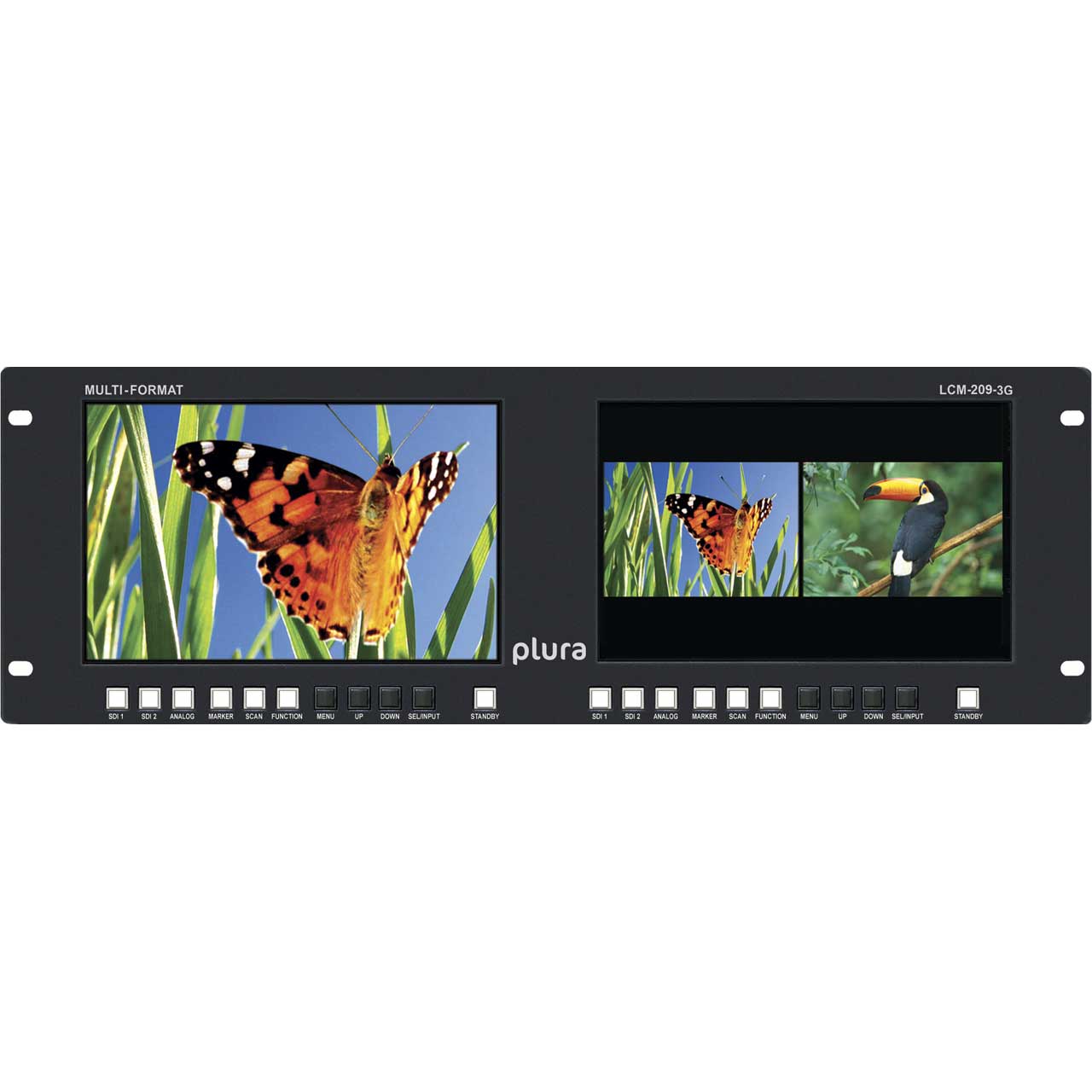

Plura LCM-209-3G Dual 9-Inch LED 3G HD-SDI / HDMI Rackmount Video Monitor

ITEM #: PLUR-LCM-209-3G MFG #: LCM-209-3G

free ship

List Price:

$2,310.00

Our Price:

$2,079.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    LCM-209-3G - Overview

    LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

    The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast and medical standards. The LCM series calibration tool provides 10 bit look up table (LUT) (1024 steps of grayscale)

    The LCM-209-3G can be used as a Dual 9" or as a Quad 5" as each screen can display two images at the same time when activating the PAP (Picture & Picture) mode through the monitor menu.

    • Features:

      • PAP Mode of Each Monitor can Display Two 5" Images for Quad Display
      • LCM-209, 2 x 9" True 8 bit LED Panel
      • 3Gb/s ready - 1080/60P
      • 2 x Auto-detect with active loops (3Gb/s ~ 1.485Gb/s ~ 270Mb/s)
      • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
      • Complies with EBU-2330 TECH, SMPTE-C and ITU-R BT.709 standards
      • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
      • Cutting edge De-interlacing and Scaling Technology
      • Fast Response Time for high Motion Video
      • 12 Bit Color Processing
      • 178 Viewing Angle Display
      • Color Temperature - User adjustable (11000K TO 3200K)
      • Various and User defined Markers Display, Safe Area in HD & SD
      • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
      • Third-party Tally systems support
      • Underscan / Overscan / Normal / Zoom
      • Internal Test pattern Mode
      • Ethernet & Serial Wall Remote Control
      • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)

    • Specifications:

      • Input: HDMI: 1 x HDMI In With HDCP), 19 Pin Female Per Screen
      • Input: DVI: N/A
      • Input: HD/SD-SDI: 2 x 3G HD/SD-SDI Per Screen
      • Input: D-Sub: N/A
      • Input: 9 Pin D -Sub: 1 x RS-232, 9 Pin Male Per Screen
      • Input: 3 x BNC: 1 x Component In (Y, Pb, Pr) Per Screen
      • Input: 2 x BNC: S-Video In (Y,C) Per Screen
      • Input: 1 x BNC: Composite In (CVBS) Per Screen
      • Output: HD/SD-SDI
      • Output: 2 x 3G HD/SD-SDI Per Screen
      • Output: Analog / 1 x Analog Per Screen
      • Output: 9 Pin D -Sub: N/A
      • Input Signal: DVI: N/A
      • Input Signal: HDMI: 640 x 480 up to 1920 x 1080
      • Input Signal: PC-RGB: 640 x 480 up to 1920 x 1080, SOG sync support
      • Input Signal: HD-SDI: 3G Signal
      • Analog Input Signal: Composite: 1.0Vp-p (With Sync)
      • Analog Input Signal: S-Video: Y : 1.0Vp-p, C : 0.7Vp-p
      • Analog Input Signal: Component: Y: 1.0Vp-p, Pb : 0.7Vp-p, Pr : 0.7Vp-p
      • Analog Input Signal: D-Sub: 1.0Vpp (With Sync)
      • Digital Input: SMPTE-425M(3G) 1920 x 1080P (50/60)
      • Digital Input: SMPTE-292M1920 x 1080i (50/59.94/60); 1920 x 1080P (30Psf/25Psf/24Psf/30/25/24)
      • Digital Input: SMPTE-372M 1080P (30/29.97/25/24/23.98), 1080i (29.97/25/24/23.98), 720P (60/59.94/50)
      • Digital Input: SMPTE-296M 1280 x 720P (50/59.94/60)
      • Digital Input: SMPTE-259M/C 480i (59.94), 576i (50)
      • Digital Input: Component 640 x 480 up to 1920 x 1080
      • DVI,VGA, HDMI Input Signal Format: VESA Standard 1920 x 1080 (60P,60i,50i), 1920 x 1080 (25P,24P,23P)
      • I/O Port: Ethernet Port
      • Serial Update: RJ-45 8 Pin Ethernet Port, 100Mbps, LAN to Serial Support for Wall control Application Firmware Update.
      • 9Pin D-sub, Remote, Update, Serial Interface
      • Color Coordinate: Color space: EBU,SMPTE-C,IBT-709, NTSC, Native
      • LCD Size: 2 x 9"
      • LCD Resolution: 800 X 480 (16:10)
      • LCD Pixel Pitch (V) x (H): 0.2327x0.2475mm
      • LCD Color: 16.7 M Colors
      • LCD Viewing Angle(deg): R/L:140, U/D:140
      • LCD Luminance of White: 350 cd/m²
      • LCD Contrast: 700 : 1
      • LCD Response Time: 30 msec
      • LCD Display Area: 152.4x91.44mm
      • Power Requirements: DC 12V/5.0A
      • ATC for Reliability: Automatic Temperature Control - 80 x 25mm BLDC Cooling Fan
      • Operating Temperature and Humidity: 0 Degrees C ~40 Degrees C (32F~104F) ,20% ~ 80% RH
      • Weight: 3.1 KG (7.0 lbs)
      • Dimension(W*H*D) without Box & Stand: 480x173.6x64mm/18.75x6.75x2.0Inch
      • Accessories: Power Cord & Rackmount
