AVN-CL100 - Overview

The PlexusAV P-AVN-CL100 (ChargeLink) is a durable connection hub solution engineered to provide flexible source selection and one-cable simplicity for modern AV systems. ChargeLink supports one-cable USB-C input with video, data, ethernet, and up to 100W of power delivery, enabling a single cable connection for high-performance laptops and mobile devices. Front-panel push-button switching allows users to easily select between USB-C and HDMI sources, while LED indicators provide clear system status at a glance. Professional connectivity continues on the rear panel with a full-size HDMI output, locking USB-C power input, and an ETH-BRIDGE RJ45 port for IT and network integration. An included universal power supply (100-240V, 5-60Hz, 1.9A) and rugged chassis design ensure dependable performance across corporate, education, healthcare, broadcast, and AV-over-IP deployments.

Why Choose The P-AVN-CL100 (Chargelink) One-Wire USB-C Connectivity Device?
- One-Cable USB-C Simplicity: Video, data, ethernet, and up to 100W power delivery over a single USB-C connection.
- User-Friendly Source Switching: Front-panel push-button control for USB-C or HDMI selection
- Professional Connectivity: Front-panel USB-A x2, HDMI input, USB-C input. Rear-panel HDMI output, ETH-BRIDGE RJ45, and locking USB-C power input.
- Zero-Latency Signal Path: Direct HDMI and USB-C video switching with no compression, no buffering, and no perceptible latency for real-time presentations, collaboration, and interactive use.
- Compact, Placement-Friendly Design: Small footprint for podiums, meeting rooms, presentation spaces, and more.

Applications:
- Corporate and Enterprise
- Education and Training
- Live Production
- HDMI and USB-C Video Converter
- PC/Macbook Docking Station

  • Features:

    • Zero-Latency Performance:
      - Direct-Signal Path: HDMI and USB-C switching with no compression, no buffering, and no perceptible delay.
      - Real-Time Operation: Ideal for live presentations, collaboration, and interactive environments.
    • Versatile One-Cable USB-C Connectivity
      - Video, Data & Ethernet: Combines display output, USB data, device charging, and network connectivity over a single USB-C connection.
      - Up to 100W Power Delivery: Supports high-performance laptops and devices without external chargers.
      - Front-Panel Push-Button Switching: Easily toggle between USB-C and HDMI inputs or automatically prioritizes active inputs for simplified operations.
    • Compact Design
      - Small Form Factor: Optimized for podiums, meeting rooms, lecture halls, and other presentation furniture.
      - LED Status Indicators: Clear visibility for Power, HDMI, USB-C, and Auto-Select Input Modes
      - Locking USB-C Power Connector: Prevents accidental disconnects in active environments.
      - Universal Power Supply: 100-240V, 5-60Hz, 1.9A input for global deployments.


  • Specifications:

      Rear Panel Physical Ports And Interfaces
    • HDMI Output: Type-A transmit port, HDMI 2.1/1.4b, with locking connector point
    • USB-C Output: USB-C Display-ALT transmit port with locking connector point
    • ETH-BRIDGE: RJ-45 (100/1000 Auto-Negotiating)
    • USB-C Power: PD 3.1 USB-C connection to included power supply

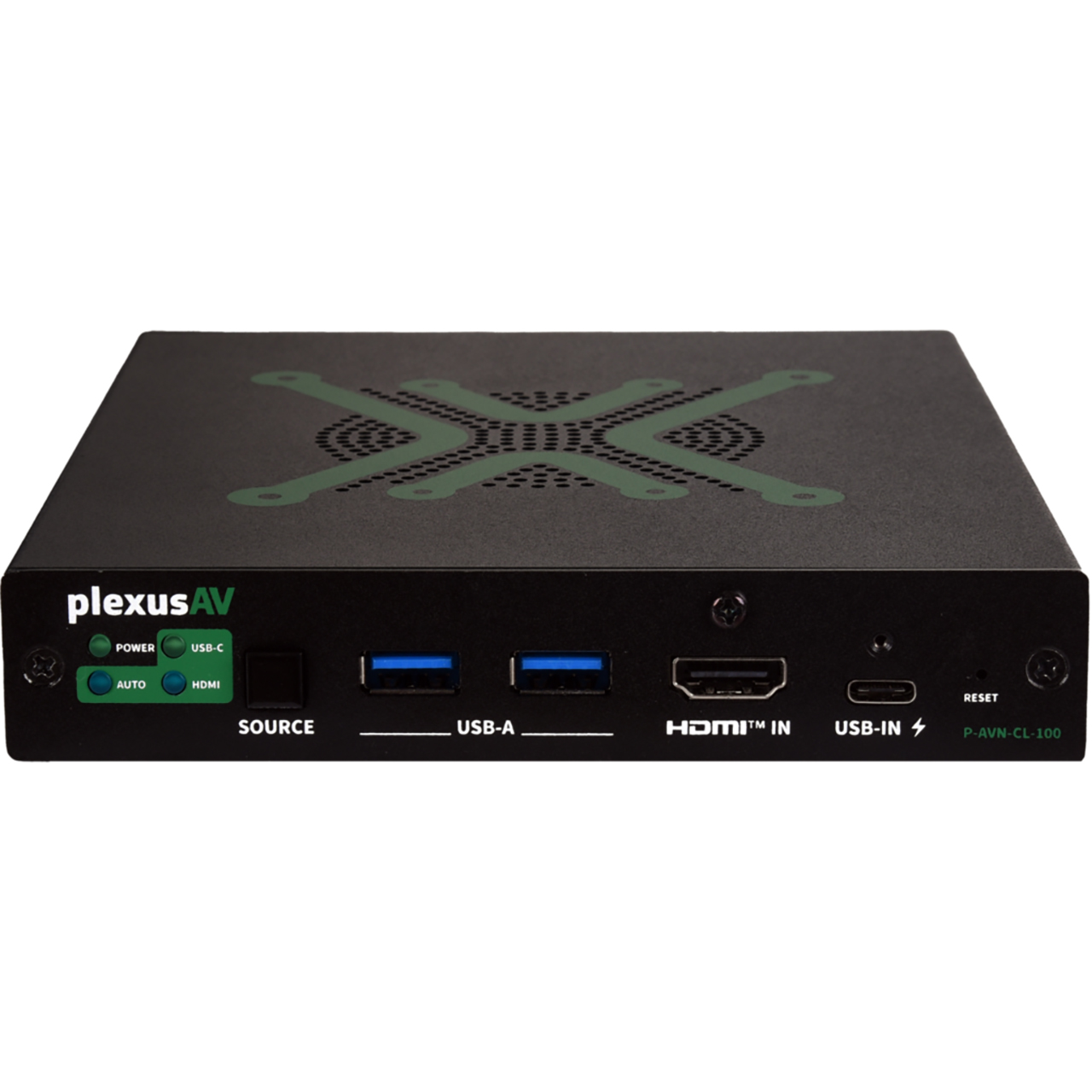

      Front Panel Physical Ports And Interfaces
    • SOURCE Button: Push-button selection switch (hold 3 seconds to enable/disable auto)
    • HDMI Input: Type-A receive port, HDMI 2.1/1.4b with locking connector point
    • USB-C Input: USB-C Display-ALT receive port with locking connector point
    • USB-A Ports (2): USB 3.0 ports / hub connection to wired device on USB-C input
    • Factory Reset: Recessed "paperclip" style factory reset button (hold 10 seconds)

      Video And Audio
    • HDMI IN/USB-C: 4096X2160P @ 60, 59.94, 50, 30, 29.97, 25fps 3840x2160P @ 60,59.94, 50, 30, 29.97, 25fps, 1920x1080P @ 60,59.94, 50, 30, 29.97, 25fps, 1280x720P @ 60,59.94, 50, 30, 29.97, 25fps, 720x576P @ 60,59.94, 50, 30, 29.97, 25fps, 2560x1600P@ 60fps

      Dimensions And Power
    • Size: 6.37" x 5.63" x 1.02" (162mm x 143mm x 26mm)
    • Weight: 2.0 lbs (0.907kg)
    • Power: 140W Power "Brick"
    • Auto Ranging Power Supply: 100-240V 5-60Hz 1.9A (50/60 Hz)
    • Detachable Cable: IEC 320 C13 to NEMA 5-15 (standard US power cable)
    • Power Brick:
      - USB-C end for unit power connection IEC 320 C14 port for datable power cable to outlet
      - No load power/voltage/current: 24 V / 0.15 A / 3.6 W
      - Full load power/voltage/current: 24 V / 2.91 A / 69.84 W

      Environmental Conditions
    • Operating Temperature: 32° to 104° F (0° to 40° C)
    • Storage Temperature: -4° to 140° F (-20° to 60° C)
    • Operating Humidity: Less than 90% (non-condensing)


  • Item Includes:

    • 1x P-AVN-CL-100 USB-C Charge Link Connectivity Hub
    • 1x Universal power supply (100-240V, 5-60Hz, 1.9A)
    • 1x Locking USB-C power cable
    • 1x Quick Start documentation


  • Warranty:

    • 3 Year Limited Warranty
