PlexusAV P-AVN-2E IPMX H.264/265 Encoder for HDMI and USB-C Inputs with 1GB Ultra-Low Latency - PoE+ Powered

ITEM #: PLX-P-AVN-2E MFG #: P-AVN-2E

Primary Image
Plexus
Free Shipping with $49 Minimum Order

Our Price:

$1,225.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

P-AVN-2E - Overview

Reliable IPMX Encoder Perfect for Broadcast and Production!

The PlexusAV P-AVN-2E IPMX Encoder delivers professional-grade video performance in a compact design. Purpose-built for encoding HDMI or USB-C inputs, it converts high-resolution signals into efficient, low-latency IP streams using H.264 or H.265 compression. With PoE+ power, advanced audio integration, and an intuitive web interface, the P-AVN-2E empowers reliable, real-time video delivery across classrooms, conference rooms, and production environments-all while ensuring seamless compatibility with IPMX-based AV networks.

The P-AVN-2E is built for environments where high-quality encoding and IP-based video delivery are essential. Supporting HDMI and USB-C inputs with H.264/H.265 compression, it enables efficient, low-latency video transmission across 1Gbps networks. Designed on IPMX standards, the P-AVN-2E provides a scalable, cost-effective solution for education, corporate AV, and production workflows that demand reliability and interoperability.

Applications:
- Educational and Corporate AV
- Digital Signage
- Live Production
- Virtual Events and eSports
- Broadcast and Production

  • Features:

    • IPMX-Based Open Standards: Built on IPMX protocols for future-proof AV-over-IP deployment.
    • Purpose-Built Encoding: Encode HDMI or USB-C video up to 4K60 using H.264 or H.265 compression for low-latency, high-quality streaming.
    • Flexible Network Connectivity: Dual gigabit Ethernet ports with PoE+ power simplify installation and deliver reliable performance in any environment.
    • Compact, Installation-Ready Design: The small, lightweight form factor easily mounts behind displays, under tables, or in rack systems using optional accessories.
    • Advanced Audio Integration: Support for AAC, Linear PCM, and optional Dante ensures professional-grade audio quality across all workflows.
    • Support for AAC, Linear PCM, and optional Dante ensures professional-grade audio quality across all workflows.
    • Flexible Network Connectivity
    • Versatile Input/Output Options
    • Efficient Video Encoding
    • Compact and Install-Ready Design


  • Specifications:

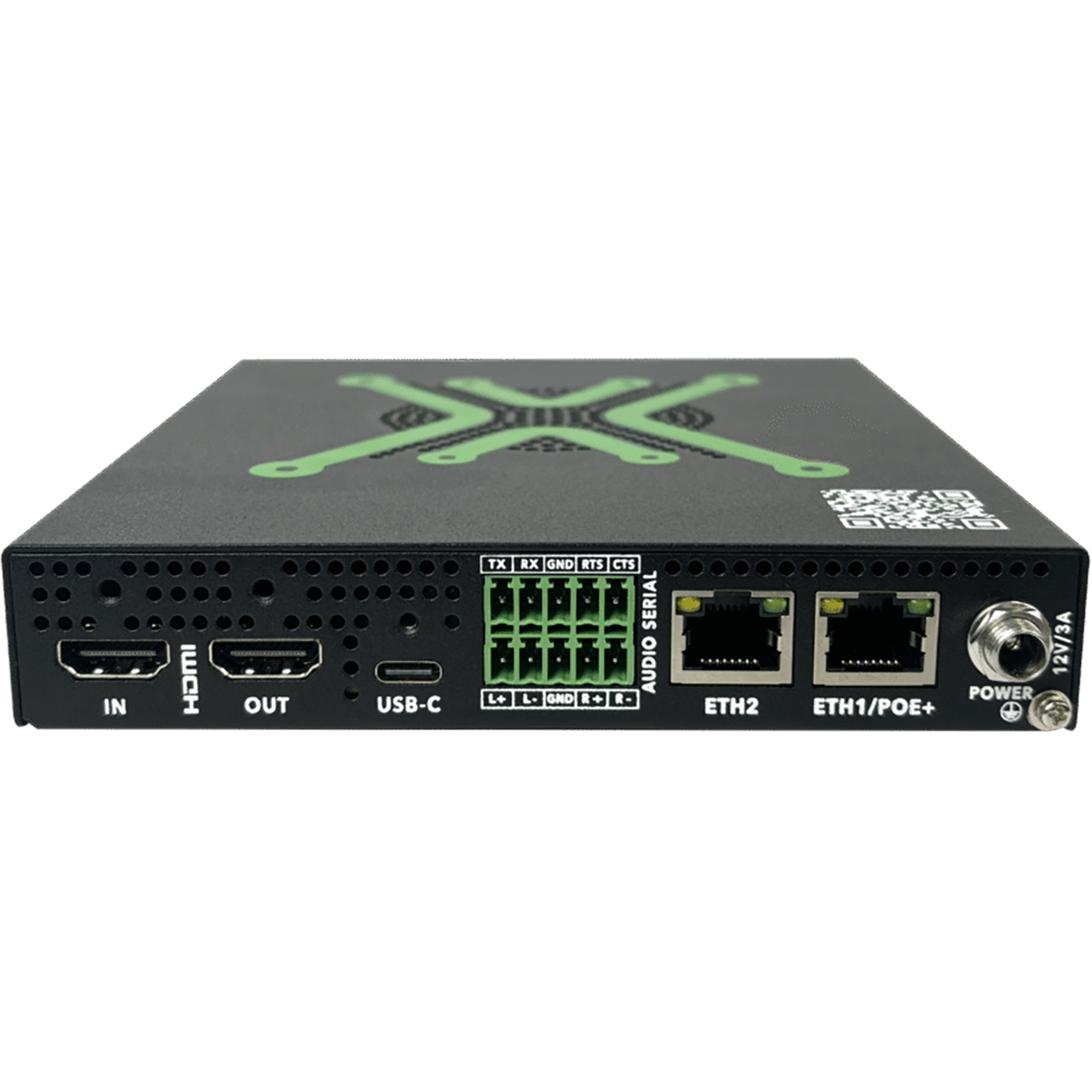

      Rear Panel Ports
    • HDMI Input (1):
      - Type-A Female, HDMI 2.1/1.4b
      - Content Protection - up to HDCP 2.3
      - Consumer Electronics Control (CEC)
      - EDID Control - Auto, Presets or Manual
    • HDMI Loop Out (2):
      - Type-A Female, HDMI 2.1, 1.4b
      - Content Protection - Up to HDCP 2.3
    • USB-C (3): Single USB 3.0 (Video, DisplayPort Alt Mode)
    • Analog Audio Connector: 5-Pin Phoenix
    • Analog Audio Channels: Stereo Pair, Balanced or Unbalanced
    • Analog Audio Volume Adjust: Slider in web-interface (+/- volume)
    • Analog Audio Pinouts: Printed on chassis silk screen
    • Serial Communication:
      - 5-Pin Phoenix Connector
      - RS-232 "Serial" Protocol
      - Printed on chassis silk screen Pinouts
    • Ethernet 1: RJ-45/PoE+ (100/1000 Auto-Negotiating)
    • Ethernet 2: RJ-45 (100/1000 Auto-Negotiating)
    • Cable Type: CAT6 or CAT6A shielded cable recommended
    • Power Specifications: 12V/3A DC
    • Polarity: Center-Positive

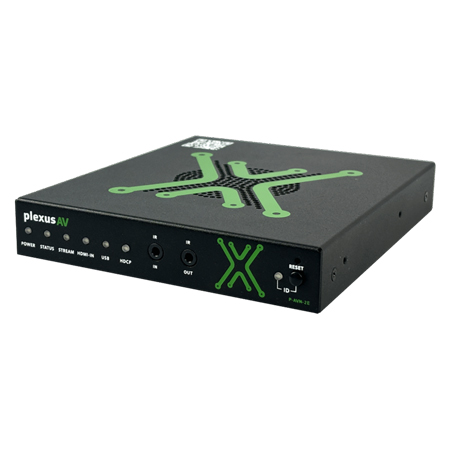

      Front Panel Ports
    • Infra-Red Audio Jack: 3.5mm (tip-ring-sleeve)
    • IR In: Receives IR signal from attached dongle/adapter
    • IR Out: Transmits IR signal out attached dongle/adapter
    • ID Push Button: One Click
    • ID Light: When ID mode is on, LED is lit and HDMI output shows system information
    • Factory Reset: Press and hold recessed button for 10 seconds

      IPMX Support
    • Technical Standards:
      - TR-10-1 - System Timing and Definitions
      - TR-10-3 - PCM Digital Audio
      - TR-10-5 - HDCP Key Exchange Protocol
      - TR-10-7 - Compressed Video
      - TR-10-8 - NMOS Requirements
      - TR-10-11 - Constant Bit-Rate Compressed Video

      Video Scaling
    • Encoder Video Scaling: Upscale (up to 3840x2160)
    • Aspect Ratio Adjustment:
      - Maintain Aspect Ratio (no change)
      - Stretch (fill screen)

      Audio Support
    • Audio Signal Type: Linear PCM, AAC-LC, AAC-Main, Pass-Through
    • AAC Bitrate Range: 96/112/128/160/192/224/256 Kbps
    • Sample Rate: 44.1/48 KHz

      Video and Audio
    • Bitrate Range: 5-60Mbps (VBR and CBR)
    • Dynamic Range:
      - HDR10 Pass-Through
      - SDR (Standard Dynamic Range)
    • Color Formats:
    • IPMX Stream Output: 8/10-bit, YUV 4:2:0 / 4:2:2
    • HDMI/USB-C Output: 8/10-bit, YUV 4:2:0 / 4:2:2
    • Color Gamut: BT.2020, BT.709, BT.601
    • Video Codecs: H.264 (MPEG-4), H.265 (HEVC)
    • Audio Codecs: AAC, PCM
    • IPMX Stream Output:
      - 3840x2160P @ 60, 50, 30, 25fps
      - 1920x1080P @ 60, 50, 30, 25
      - 1280x720P @ 60, 50
    • HDMI IN/USB-C:
      - 3840x2160P @ 60, 50, 30, 25fps
      - 2560x1600P @ 60
      - 2560x1440P @ 60
      - 2560x1080P @ 60
      - 1920x1200P @ 60
      - 1920x1080P @ 60, 50, 30, 25
      - 1680 x 1050P @ 60
      - 1600 x 1200P @ 60
      - 1440 x 900P @ 60
      - 1280 x 1024P @ 60
      - 1024 x 768P @ 60
      - 1280x720P @ 60, 50
      - 800 x 600P @ 60
      - 640 x 480P

      Management and Control

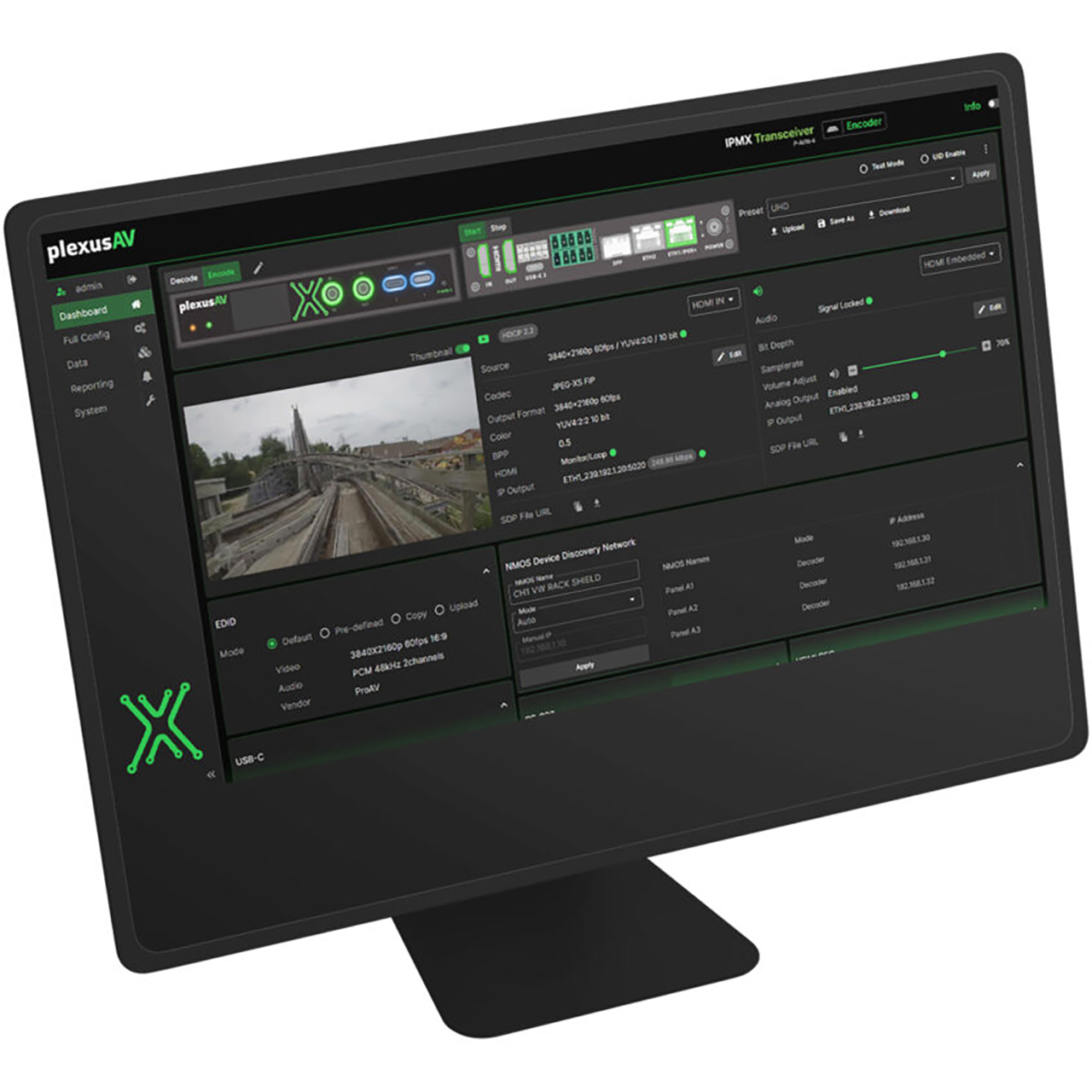

    • Web Interface: Browser-based HTTPS Web-UI and Control
    • HTTPS API: GraphQL, REST API
    • NMOS Support: IS-04, IS-05, BCP-003
    • LED Indicators:
      - (1) Power
      - (2) Status
      - (3) Stream
      - (4) HDMI-IN
      - (5) USB
      - (6) HDCP

      Dimensions and Power
    • Size: 6.37" x 5.63" x 1.02" (162 mm x 143 mm x 26 mm)
    • Weight: 1.3 lbs (0.6 kg)
    • PoE+: IEEE 802.3at Type 2 Class 4 compliant
    • Power Consumption (Operational Mode): 15W Typical
    • Power Consumption (Eco Mode) FW 1.4: 11W

      Environmental Conditions
    • Operating Temperature: -13° to 113° F (-25° to 45° C)
    • Storage Temperature: -40° to 113° F (-40° to 45° C)
    • Operating Humidity: Less than 95% (non-condensing)
    • Acoustic Noise: 33 dBA typical


  • Warranty:

    • 3 Year Limited Warranty
