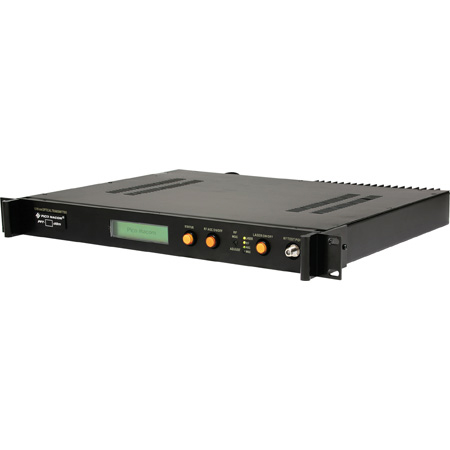

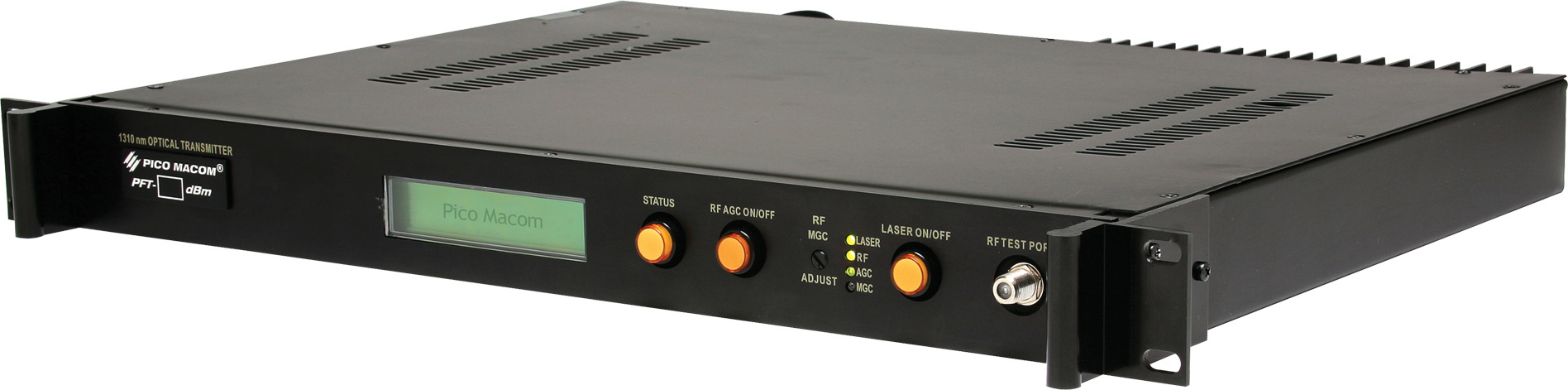

Pico Digital PFT-6 1310nm Optical Transmitter - 6dBm

PFT-6 - Overview

• Features:

  • Wide bandwidth, 54~860MHz, high-performance single-mode 1310nm optical fiber transmitter
  • Supports analog and QAM digital applications
  • Wide range laser options, from 6dBm to 14dBm (4mW to 26mW), for multiple broadband applications
  • Optical power monitoring of input RF and laser status
  • RS232 port
  • Manual or automatic gain controls RF input level
  • Input voltage between 90-260Vac
  • Unit can be used for NTSC and PAL systems
  • Front panel RF test port -20dB
  • Low power consumption


• Specifications:

  • Optical Output Power in dBm 6, 8, 10, 12, 14 dBm
  • Optical Wavelength 1310nm
  • Laser Type DFB
  • Optical Connector Type SC/APC (FC/APC Optional)
  • RF Frequency Range 50~860 MHz
  • RF Input Level Range +15 to 20dBmV
  • RF Input Impedance 75 Ohm
  • In-Band Flatness ±1dB
  • Input Return Loss >15dB
  • Carrier-to-Noise (CNR)* >50dB
  • Composite Second Ordering (CSO)* >60dB
  • Composite Triple Beat(CTB)* >65dB
  • AGC Control Range ±5dB
  • MGC Control Range ±5dB
  • Power Supply Range 90-264 Vac
  • Power Consumption (typical) 30 watts
  • Operating Temperature 0° to 50°C
  • Storage Temperature -20° to +65°C
  • Relative Humidity <10%
  • Dimensions 19" (W) x 13" (D) x 1.75" (H)
  • Weight 9.15 lbs.
