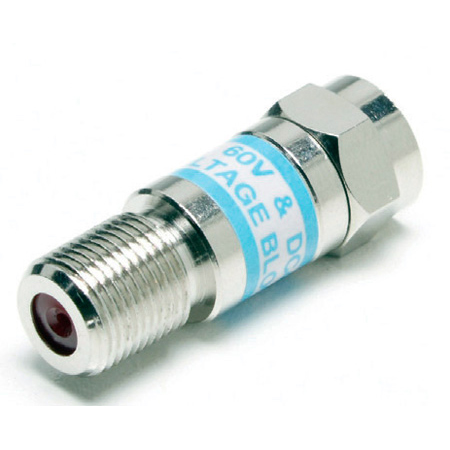

ATX Networks VBC-HRL 3GHz DC-Voltage Blocking Coupler

VBC-HRL - Overview

VBC-HRL - Overview

VBC-HRL - Details

• Features:

  • Used to stop voltage from entering a device
  • Protects sensitive test equipment from damage test
  • Two bandwidths available for use in CATV and Satellite applications
  • Low insertion loss for transparent operation
  • High return loss for unsurpassed performance in digital signal environments


• Specifications:

  • Specifications
  • Bandwidth 5~1000MHz
  • Flatness @ 1GHz >0.5dB
  • Insertion Loss @ 40MHz <0.3dB
  • Return Loss >20dB
